Model # KUDS30IVSS4 Official KitchenAid dishwasher

Here are the diagrams and repair parts for Official KitchenAid KUDS30IVSS4 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

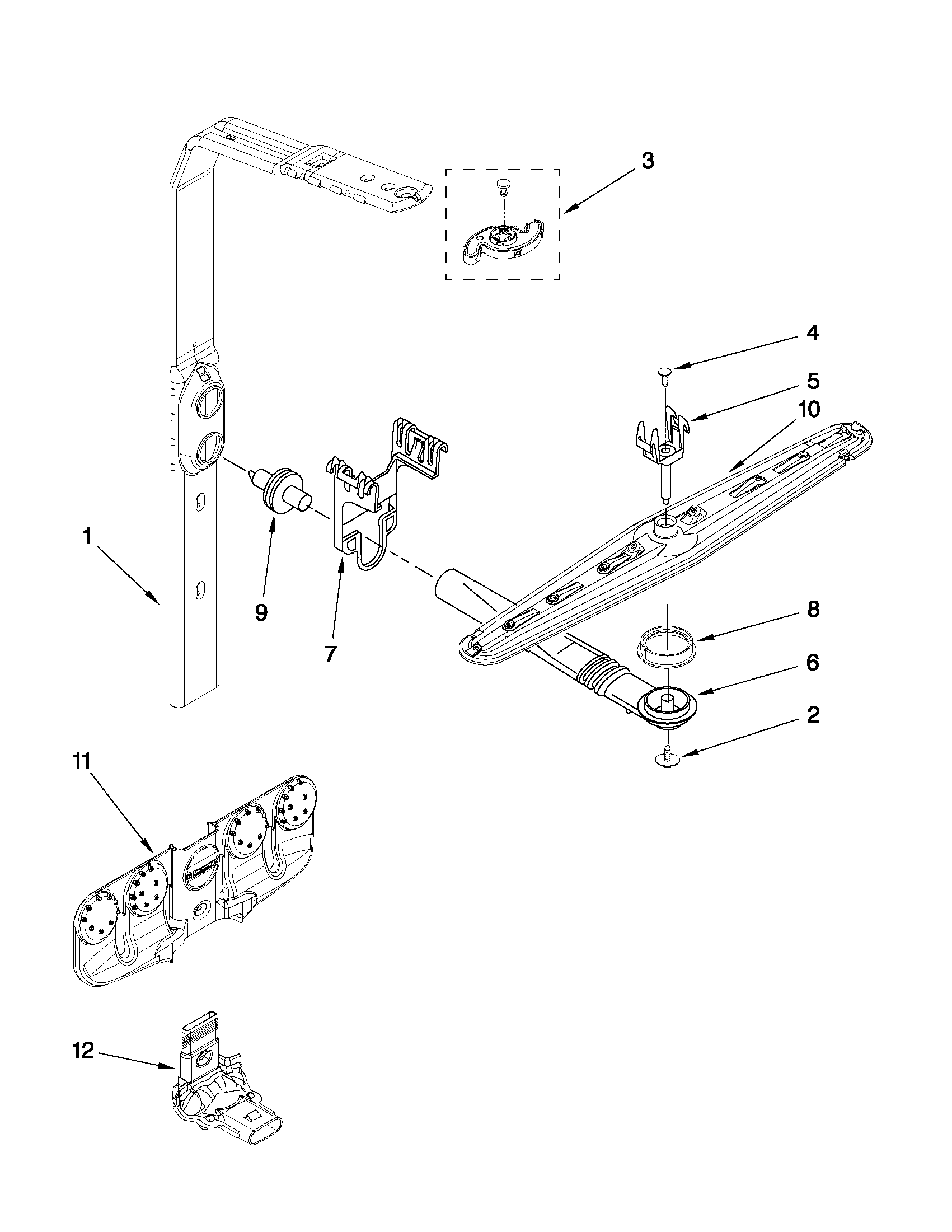

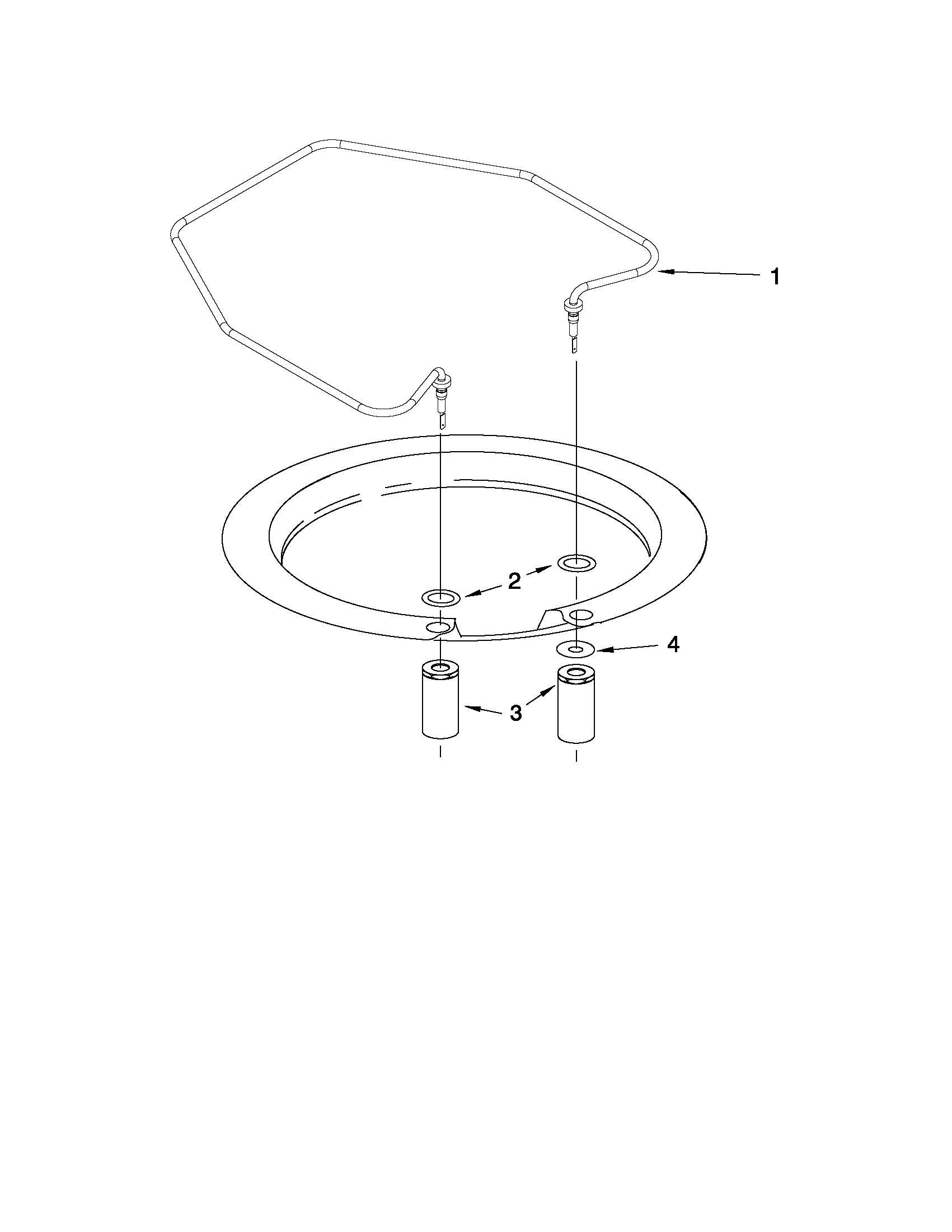

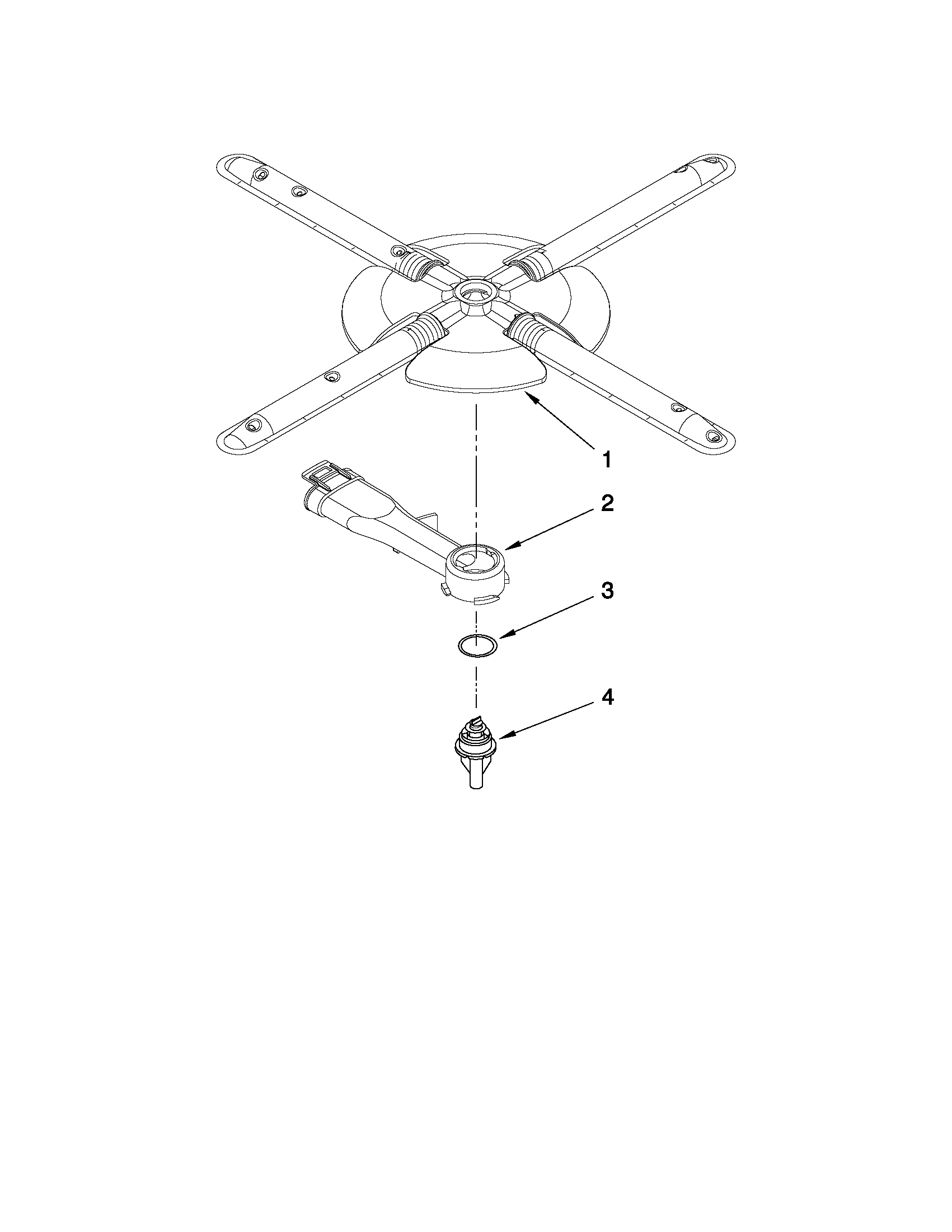

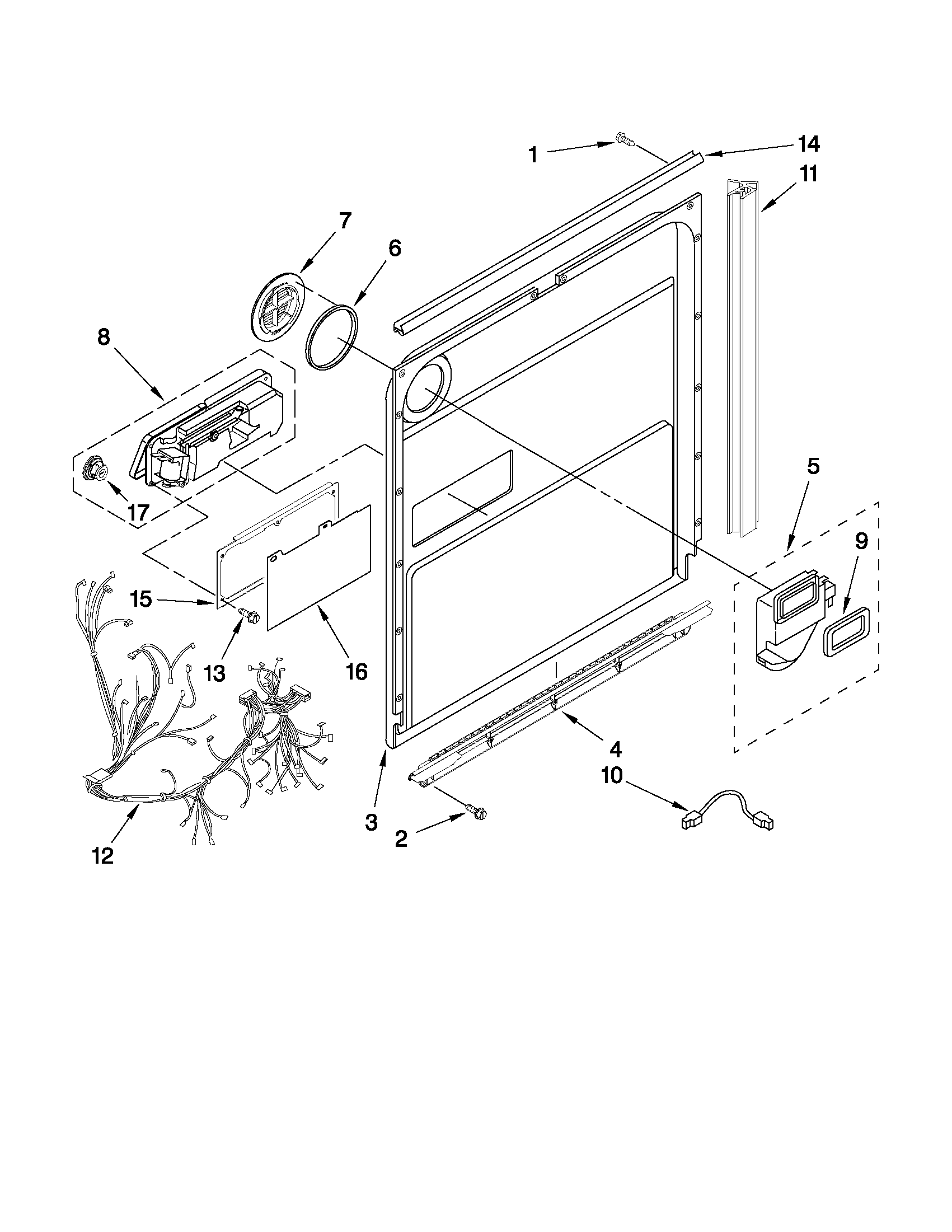

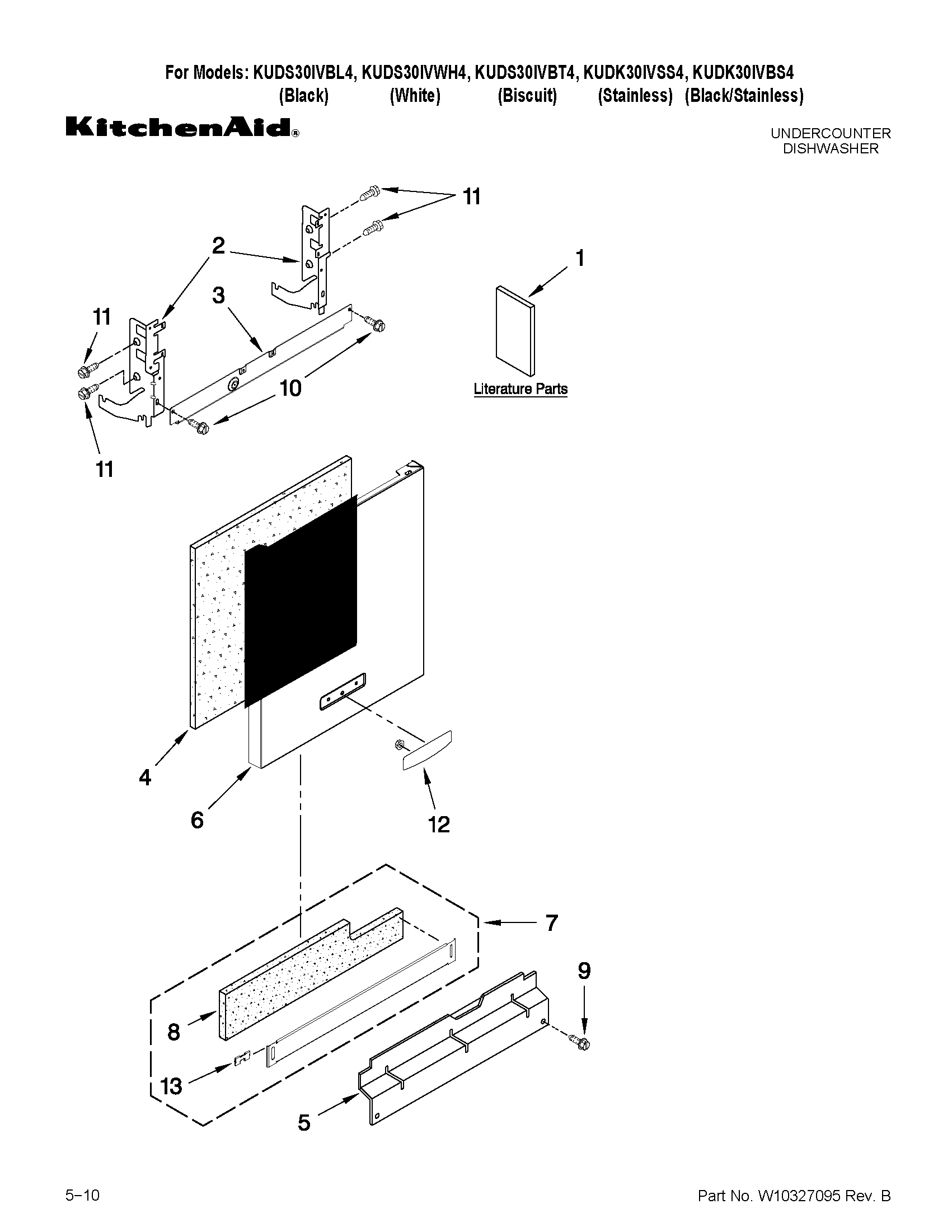

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |

Dishwasher Drain Pump 8558995
#15

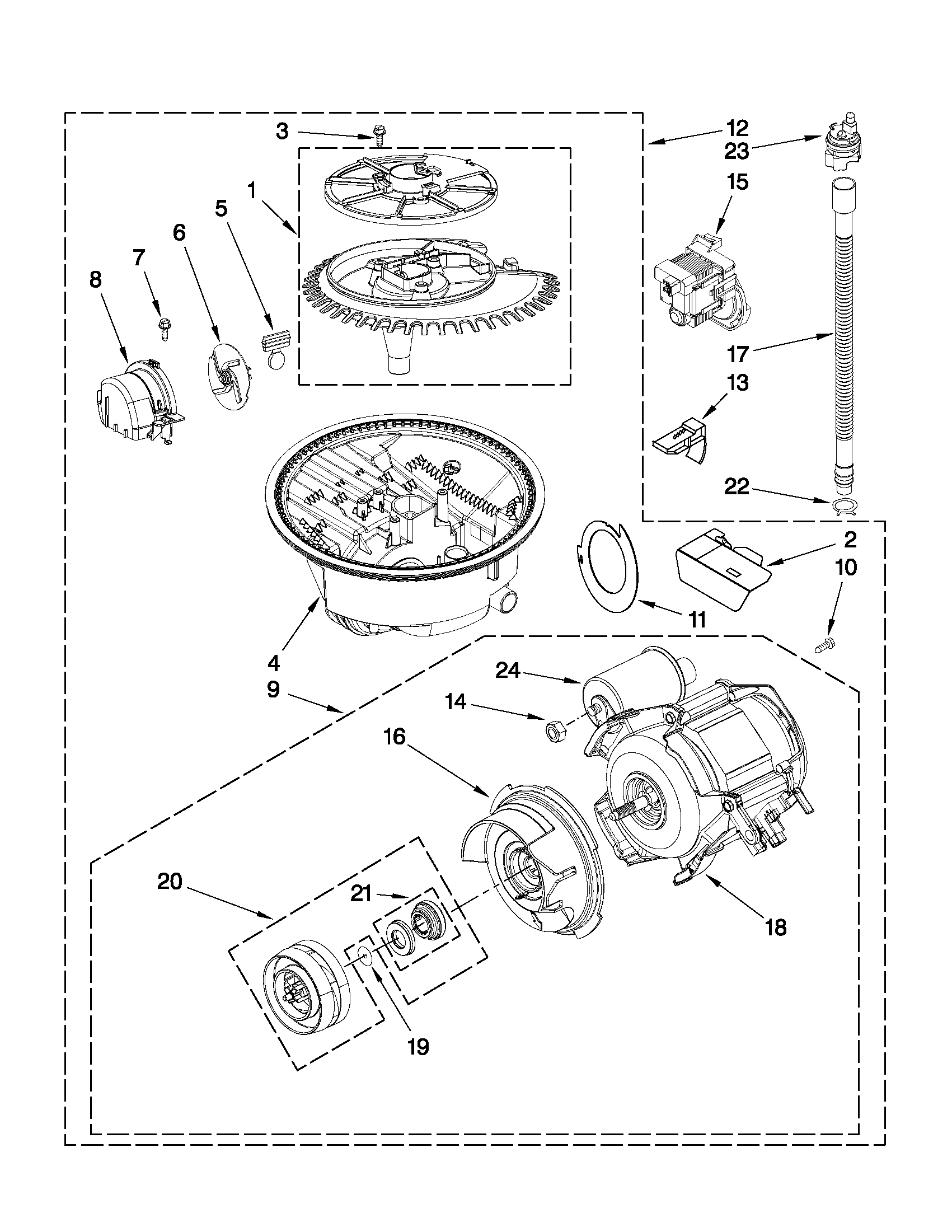

Pump and motor parts diagram

Dishwasher drain pump

Part #8558995

Replaced by #WPW10348269

?
Manufacturer substitution
This part replaces 8558995. Substitute parts can look different from the original.
BEST SELLER
$66.32
15% OFF Was : $78.00
In Stock
Dishwasher Door Balance Link W10158291
#20

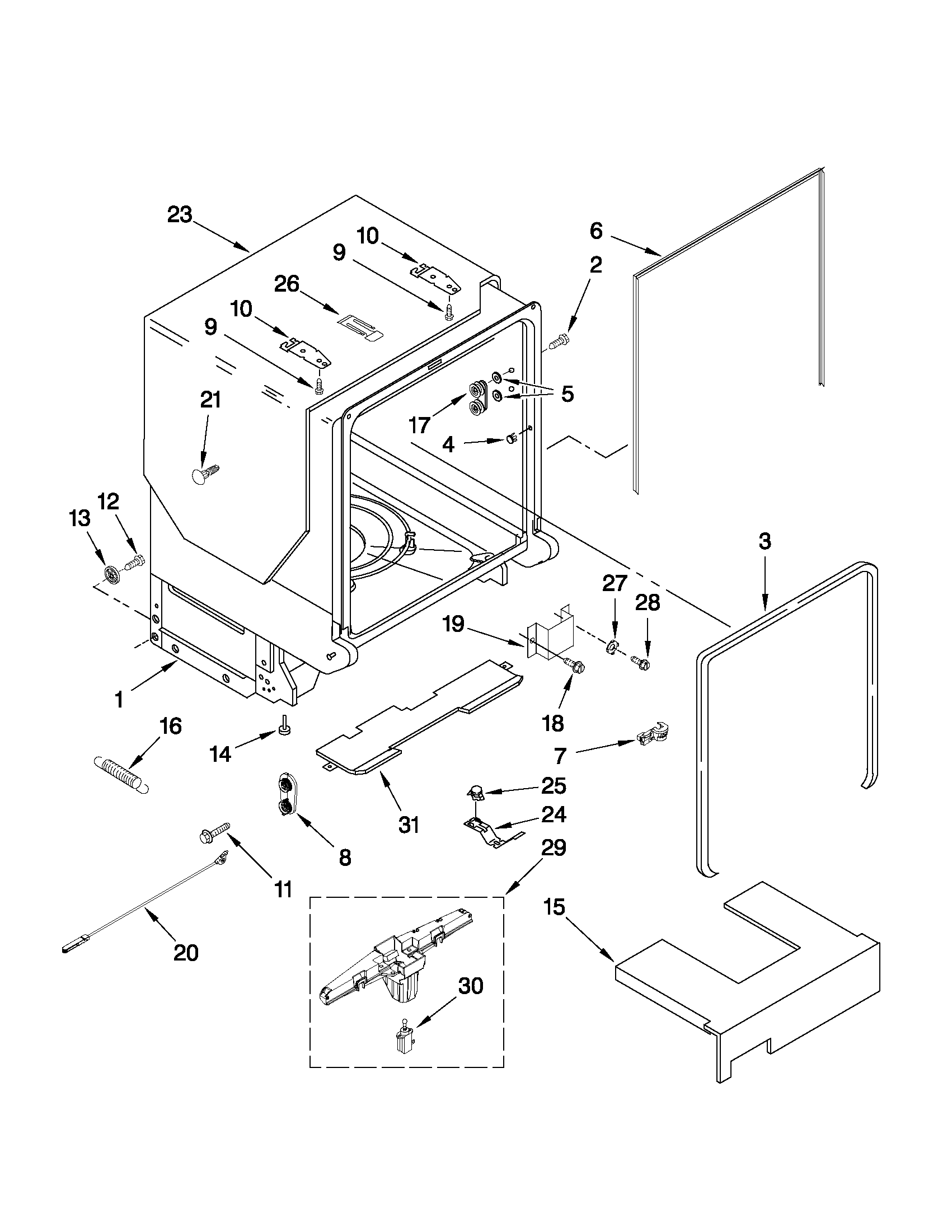

Tub and frame parts diagram

Dishwasher door balance link

Part #W10158291

Replaced by #8194001

?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
BEST SELLER
$24.00
17% OFF Phone Price : $29.00
In Stock
Dishwasher Tine Pivot Clip W10082853
#8

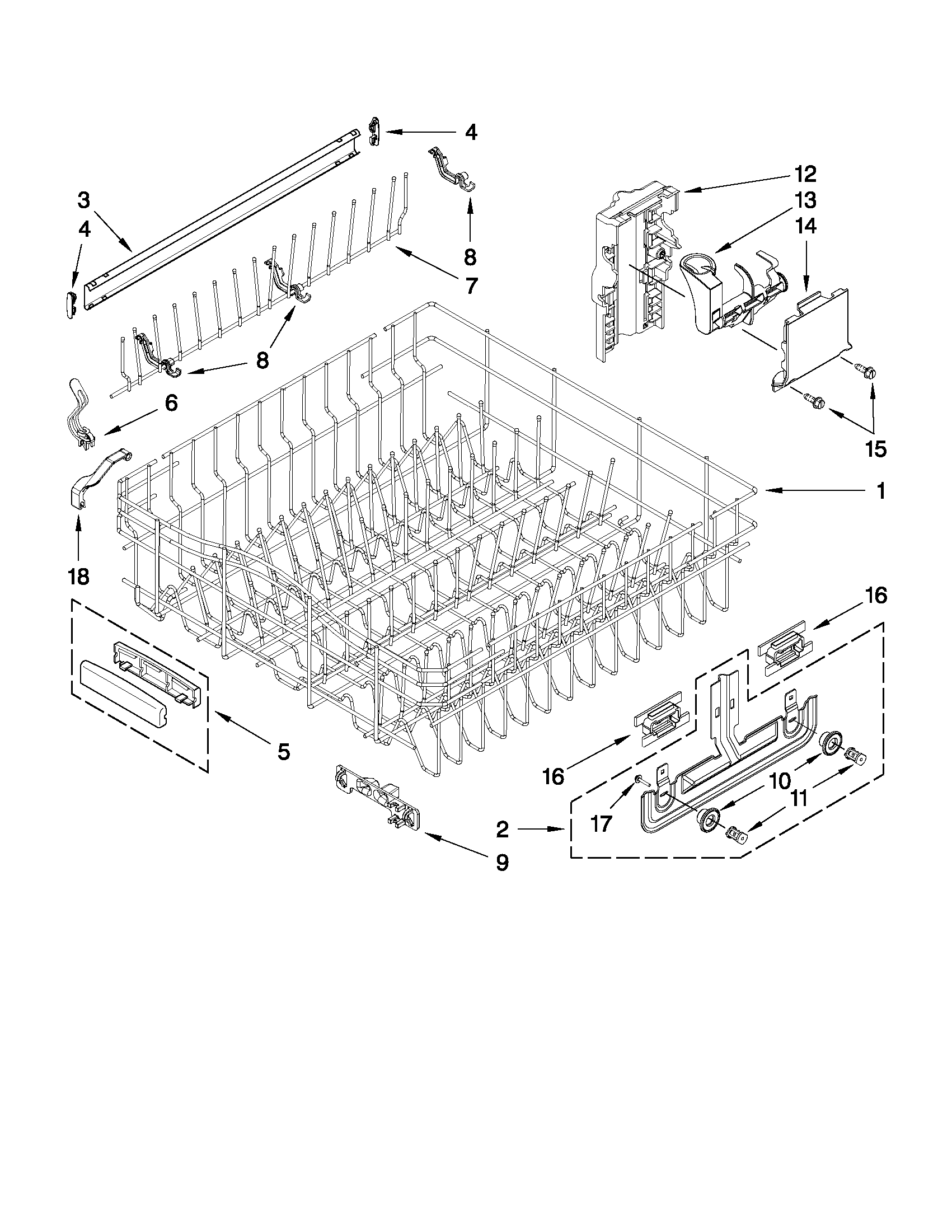

Upper rack and track parts diagram

Dishwasher tine pivot clip

Part #W10082853

Replaced by #WPW10082853

?
Manufacturer substitution
This part replaces W10082853. Substitute parts can look different from the original.
BEST SELLER
$8.99
40% OFF Was : $15.00
In Stock
Stop W10082860
#4

Upper rack and track parts diagram

Stop

Part #W10082860

Replaced by #WP8565925

?
Manufacturer substitution
This part replaces W10082860. Substitute parts can look different from the original.
BEST SELLER
$7.84
48% OFF Was : $15.00
In Stock
Fuse 661663
#6

Control panel and latch parts diagram

Fuse

Part #661663

Replaced by #W10258275

?
Manufacturer substitution
This part replaces 661663. Substitute parts can look different from the original.
BEST SELLER
$25.68
31% OFF Was : $37.00
In Stock
Dishwasher Drain Hose 8269144
#17

Pump and motor parts diagram

Dishwasher drain hose

Part #8269144

Replaced by #8269144A

?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
BEST SELLER
$20.96
22% OFF Was : $27.00
In Stock
Dishwasher Dishrack, Lower W10056271
#1

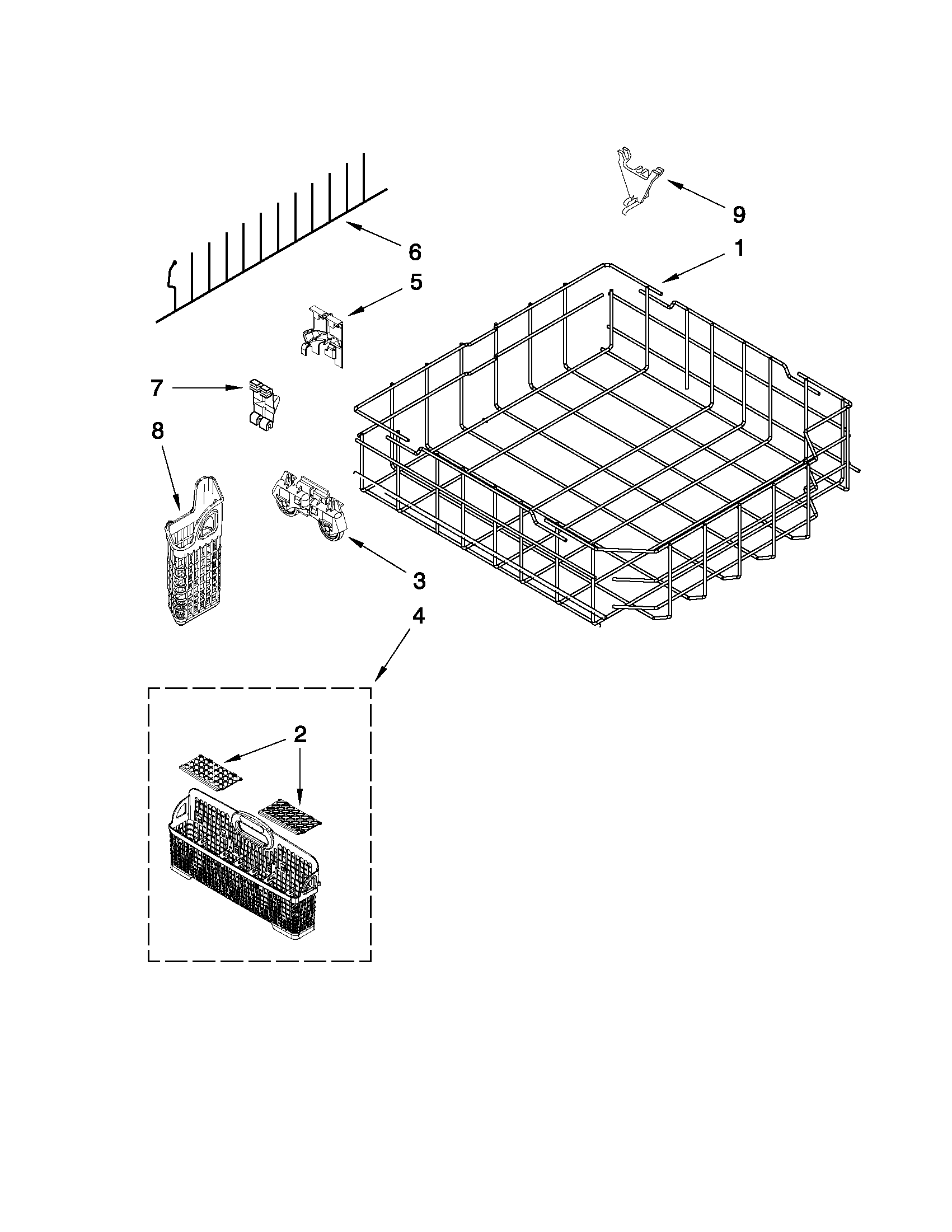

Lower rack parts diagram

Dishwasher dishrack, lower

Part #W10056271

Replaced by #W10728159

?
Manufacturer substitution
This part replaces W10056271. Substitute parts can look different from the original.
BEST SELLER
$191.41
9% OFF Was : $210.00
In Stock
Dishwasher Sump And Motor Assembly W10237169
#12

Pump and motor parts diagram

Dishwasher sump and motor assembly

Part #W10237169

Replaced by #WPW10780877

?
Manufacturer substitution
This part replaces W10237169. Substitute parts can look different from the original.
BEST SELLER
$235.40
$10.00 OFF Phone Price : $245.40
In Stock
Dishwasher Drain Hose W10137608
#16

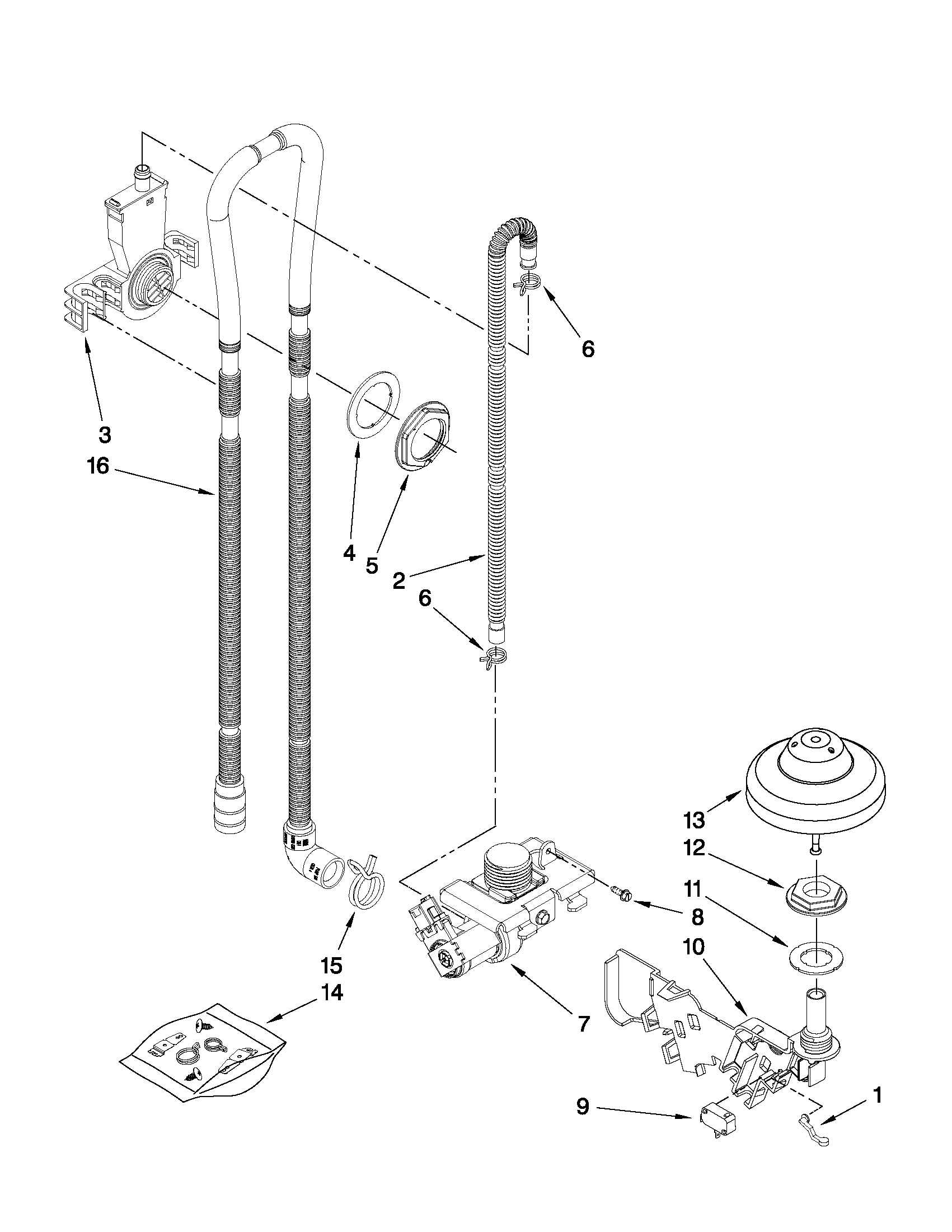

Fill, drain and overfill parts diagram

Dishwasher drain hose

Part #W10137608

Replaced by #WPW10545278

?
Manufacturer substitution
This part replaces W10137608. Substitute parts can look different from the original.
BEST SELLER
$41.40
31% OFF Was : $60.00
In Stock
Dishwasher Turbidity Sensor W10134017
#23

Pump and motor parts diagram

Dishwasher turbidity sensor

Part #W10134017

Replaced by #WPW10705575

?
Manufacturer substitution
This part replaces W10134017. Substitute parts can look different from the original.
BEST SELLER
$22.13
40% OFF Was : $37.00
In Stock
