Model # GTDP490GD4WS Official GE gas dryer

Here are the diagrams and repair parts for Official GE GTDP490GD4WS gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Dryer Drum Glide Bearing (replaces We03m0051, We1m404) WE3M51
#317

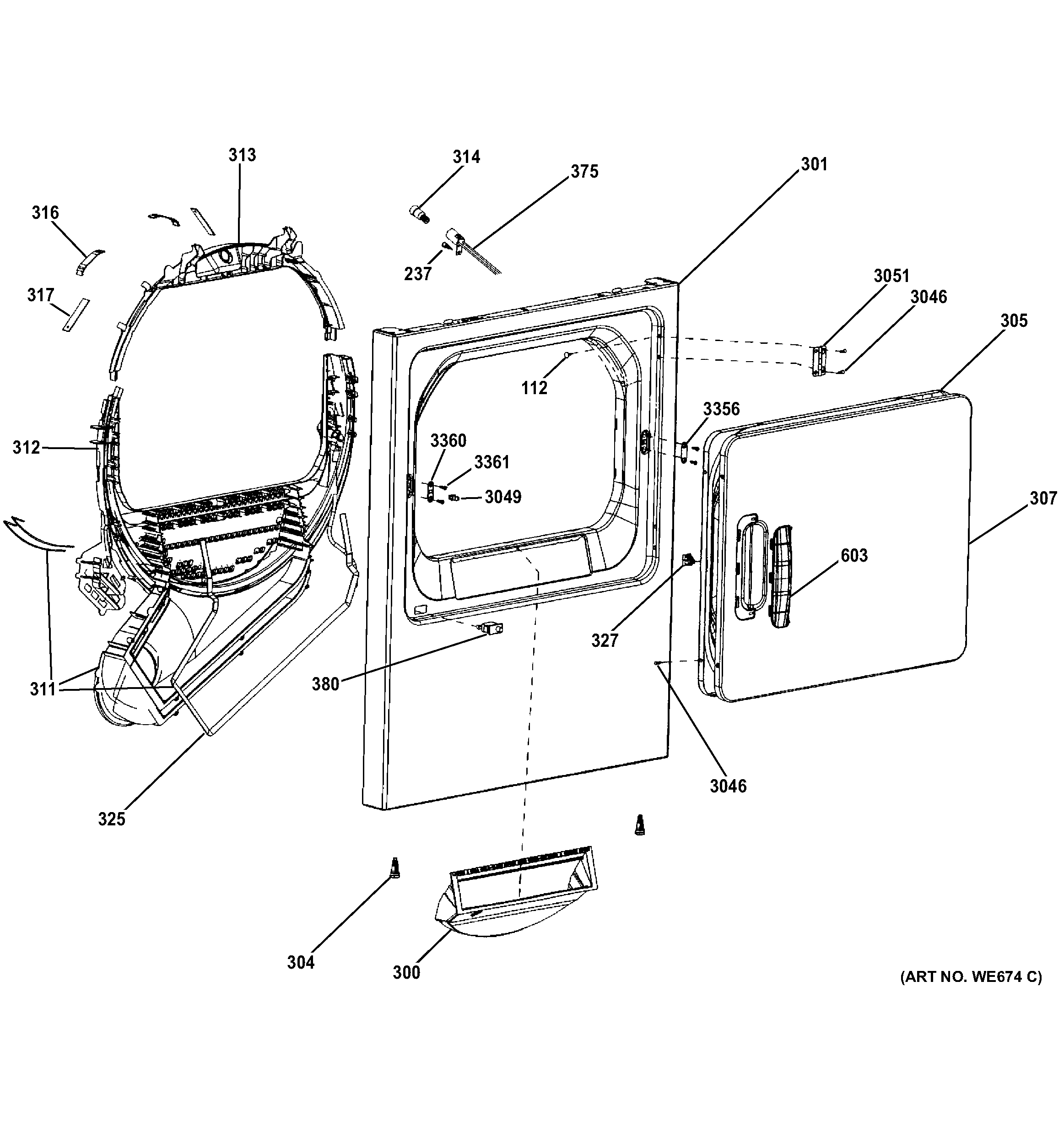

Front panel & door diagram

Dryer drum glide bearing (replaces we03m0051, we1m404)

Part #WE3M51

BEST SELLER
$13.05 |
13% OFF Phone Price : $15.05
In Stock
Dryer Drum Felt Seal WE09X20441
#312

Front panel & door diagram

Dryer drum felt seal

Part #WE09X20441

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE09X20441. Substitute parts can look different from the original.
BEST SELLER
$7.77 |
11% OFF Phone Price : $8.77
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

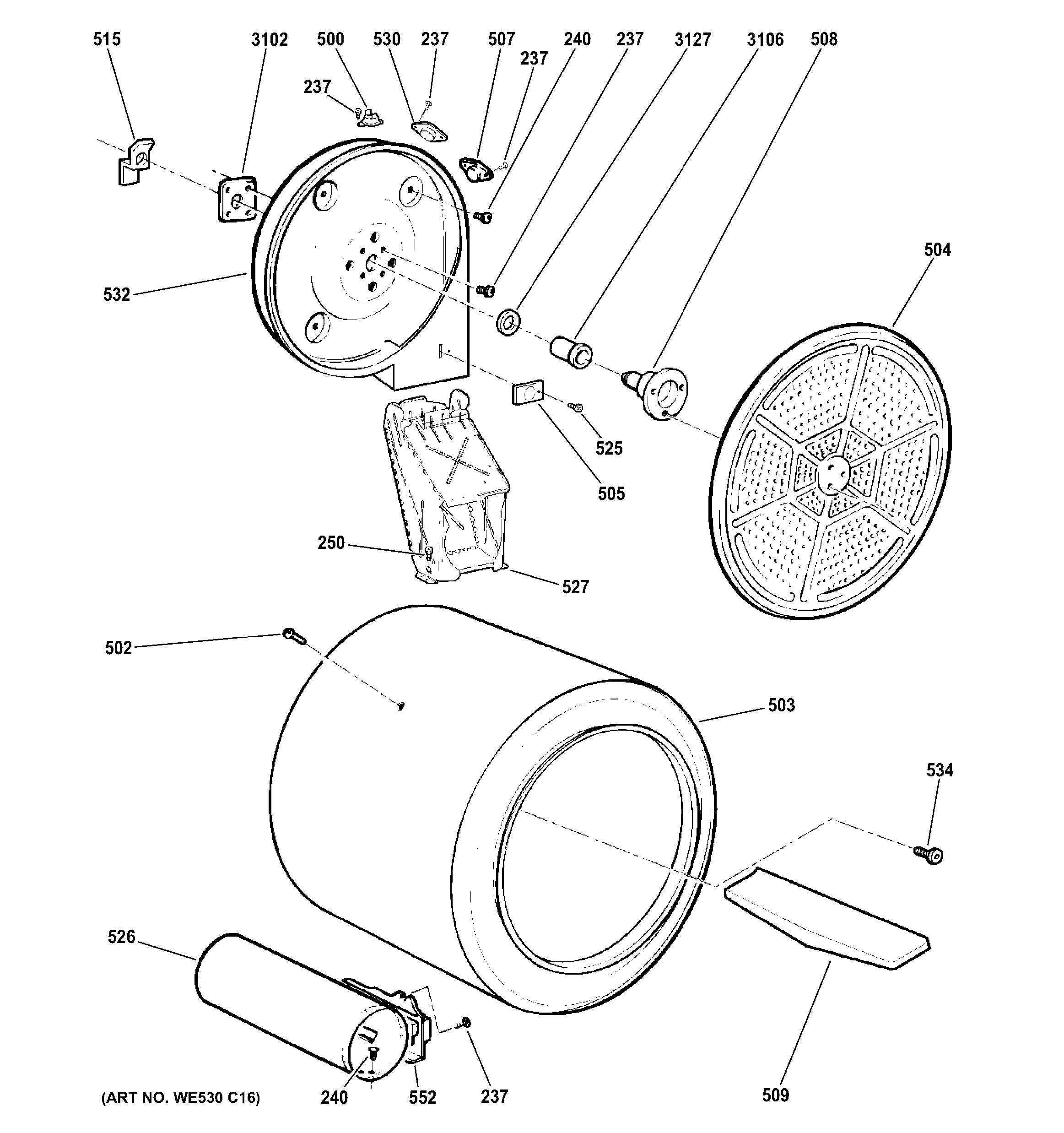

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$25.54 |
19% OFF Phone Price : $31.54
In Stock
Dryer Idler Pulley WE12X20395
#216

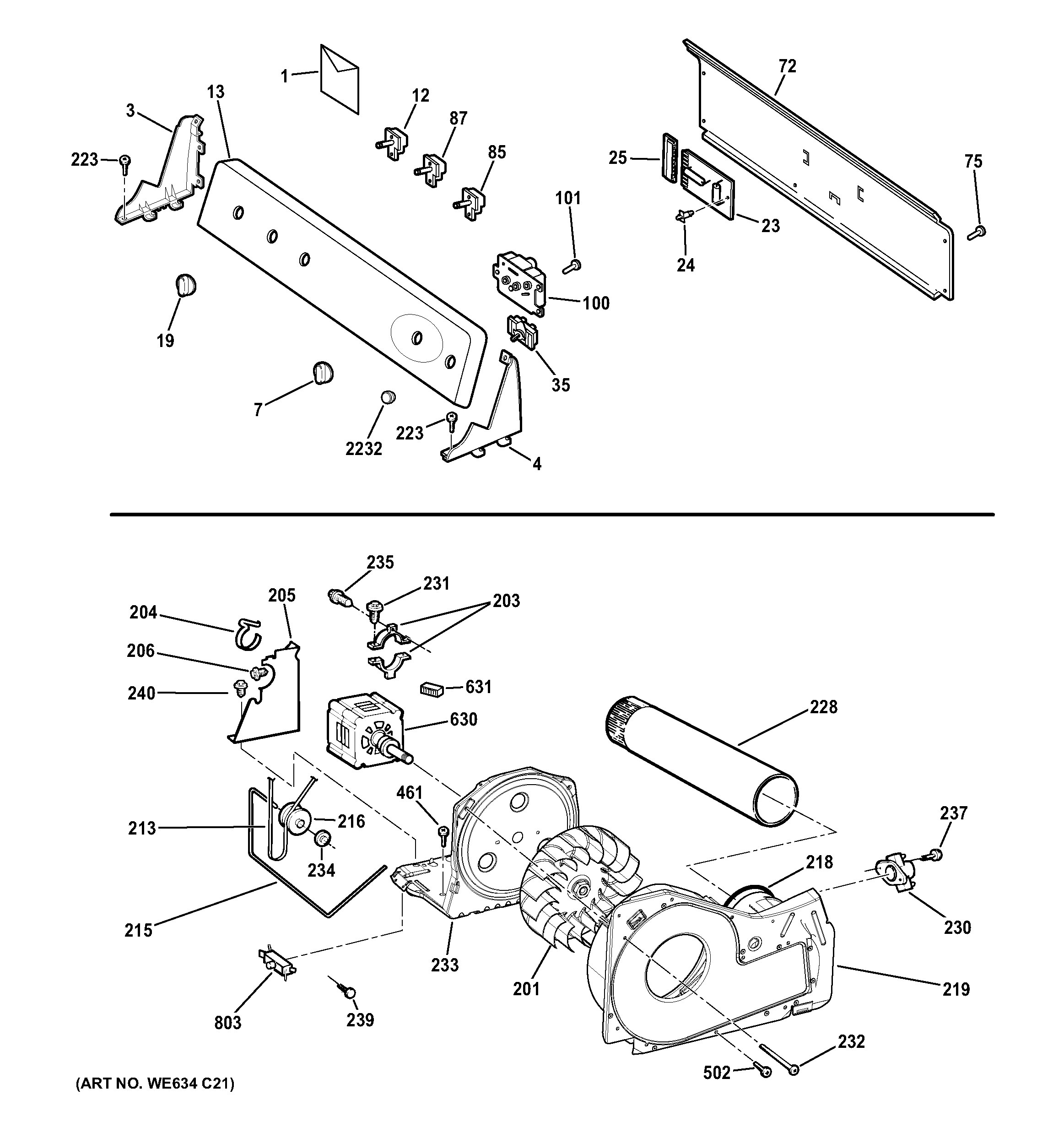

Backsplash, blower & motor assembly diagram

Dryer idler pulley

Part #WE12X20395

Replaced by #WE03X31620

?
Manufacturer substitution
This part replaces WE12X20395. Substitute parts can look different from the original.
BEST SELLER
$21.75
In Stock
Dryer High-limit Thermostat (replaces We03m0026, We3m20, We4m457) WE4M137
#500

Drum diagram

Dryer high-limit thermostat (replaces we03m0026, we3m20, we4m457)

Part #WE4M137

BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Dryer Air Duct Assembly WE14X21334
#311

Front panel & door diagram

Dryer air duct assembly

Part #WE14X21334

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14X21334. Substitute parts can look different from the original.
BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63 |
12% OFF Phone Price : $8.63
In Stock
Laundry Center Dryer Blower Wheel (replaces We16m17, Wh16x20270) WE16X20393
#201

Backsplash, blower & motor assembly diagram

Laundry center dryer blower wheel (replaces we16m17, wh16x20270)

Part #WE16X20393

BEST SELLER
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Dryer Operating Thermostat (replaces We04m0181, We4m0181, We4m245) WE4M181
#507

Drum diagram

Dryer operating thermostat (replaces we04m0181, we4m0181, we4m245)

Part #WE4M181

BEST SELLER
$71.22
In Stock
Dryer Door Switch (replaces We04m0415, We4m335) WE4M415
#380

Front panel & door diagram

Dryer door switch (replaces we04m0415, we4m335)

Part #WE4M415

BEST SELLER
$23.58 |
20% OFF Phone Price : $29.58
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Dryer Exhaust Duct WE14X20421
    Dryer exhaust duct
    $31.40 |
    16% OFF Phone Price : $37.40
  • Leg WE2M188
    Leg
    $12.35 |
    14% OFF Phone Price : $14.35
