Craftsman 917298850 tiller Parts

Here are the diagrams and repair parts for Craftsman 917298850 tiller, as well as links to manuals and error code tables, if available.

Craftsman 917298850 tiller
By Schematic
By Part

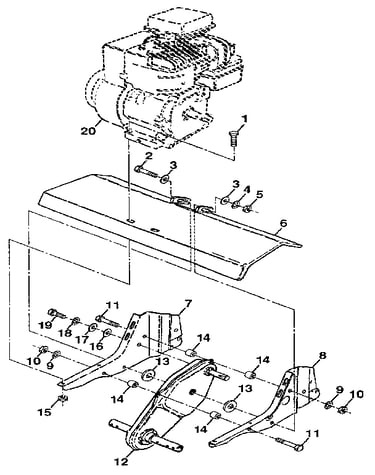

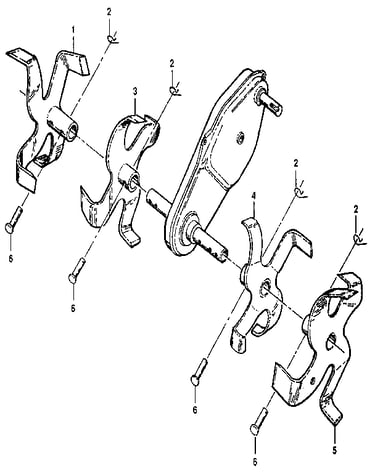

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for917298850 Tillers

  • Husqvarna Lawn Tractor Attachment Hitch Pin for Craftsman 917298850 - Part 532003146

    Spring Retainer

    Part #3146R

    Replaced by #532003146

    Info Icon
    Manufacturer substitution
    This part replaces 3146R. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.31
    16% OFF Phone Price : $6.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Tiller Clutch Cable for Craftsman 917298850 - Part 583731701

    Handle assembly diagram

    Cbl/cltch T

    Part #3066J

    Replaced by #583731701

    Info Icon
    Manufacturer substitution
    This part replaces 3066J. Substitute parts can look different from the original.
    In Stock
    $20.60
    23% OFF Phone Price : $26.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Western Auto Tiller Drive Belt for Craftsman 917298850 - Part 532133035

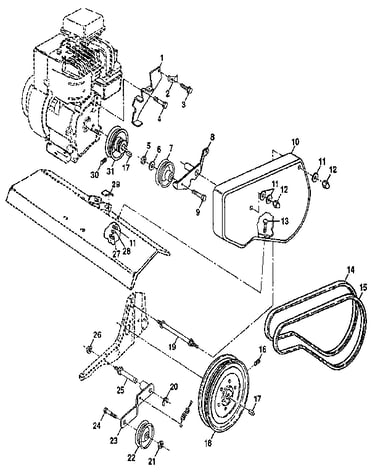

    Belt guard and pulley assembly diagram

    Husqvarna Tiller Drive Belt

    Part #133035

    Replaced by #532133035

    Info Icon
    Manufacturer substitution
    This part replaces 133035. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $58.98
    9% OFF Phone Price : $64.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Washer for Craftsman 917298850 - Part 596040101

    Washer

    Part #19171616

    Replaced by #596040101

    Info Icon
    Manufacturer substitution
    This part replaces 19171616. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.47
    13% OFF Phone Price : $7.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Hexagon Screw for Craftsman 917298850 - Part 596030501

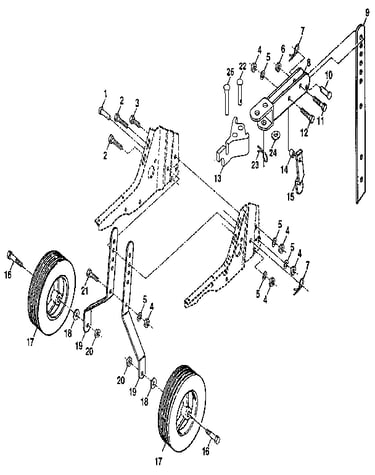

    Wheel and depth stake assembly diagram

    Bolt

    Part #74760512

    Replaced by #596030501

    Info Icon
    Manufacturer substitution
    This part replaces 74760512. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Tractor Hex Lock Nut for Craftsman 917298850 - Part 596040501

    Keps Nut

    Part #STD541431

    Replaced by #596040501

    Info Icon
    Manufacturer substitution
    This part replaces STD541431. Substitute parts can look different from the original.
    In Stock
    $56.12
    10% OFF Phone Price : $62.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Bolt for Craftsman 917298850 - Part 872140405

    Belt guard and pulley assembly diagram

    Bolt

    Part #72140405

    Replaced by #872140405

    Info Icon
    Manufacturer substitution
    This part replaces 72140405. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Nut-cap Ti for Craftsman 917298850 - Part 583644101

    Belt guard and pulley assembly diagram

    Tiller Cap Nut

    Part #104213X

    Replaced by #583644101

    Info Icon
    Manufacturer substitution
    This part replaces 104213X. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.26
    Minus Item
    Qty
    Plus Item
  • Washer for Craftsman 917298850 - Part 819131316

    Belt guard and pulley assembly diagram

    Washer

    Part #19131316

    Replaced by #819131316

    Info Icon
    Manufacturer substitution
    This part replaces 19131316. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $27.36
    18% OFF Phone Price : $33.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Pad Idler Ti for Craftsman 917298850 - Part 532109227

    Belt guard and pulley assembly diagram

    Idler Pad

    Part #109227X

    Replaced by #532109227

    Info Icon
    Manufacturer substitution
    This part replaces 109227X. Substitute parts can look different from the original.
    In Stock
    $8.63
    10% OFF Phone Price : $9.63Info Icon
    Minus Item
    Qty
    Plus Item
