Craftsman 917986911 tiller Parts

Here are the diagrams and repair parts for Craftsman 917986911 tiller, as well as links to manuals and error code tables, if available.

Error Code Icon View engine
Craftsman 917986911 tiller
By Schematic
By Part

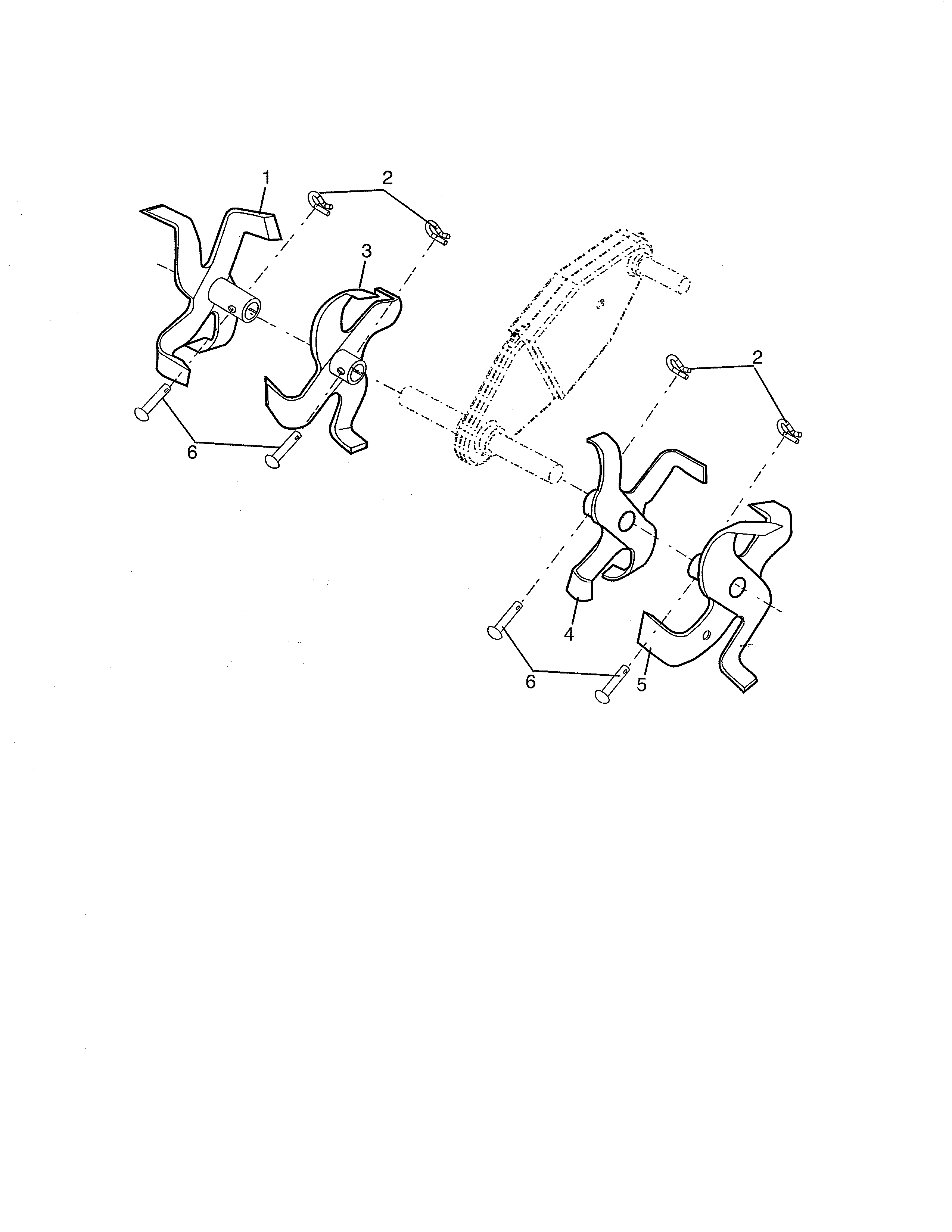

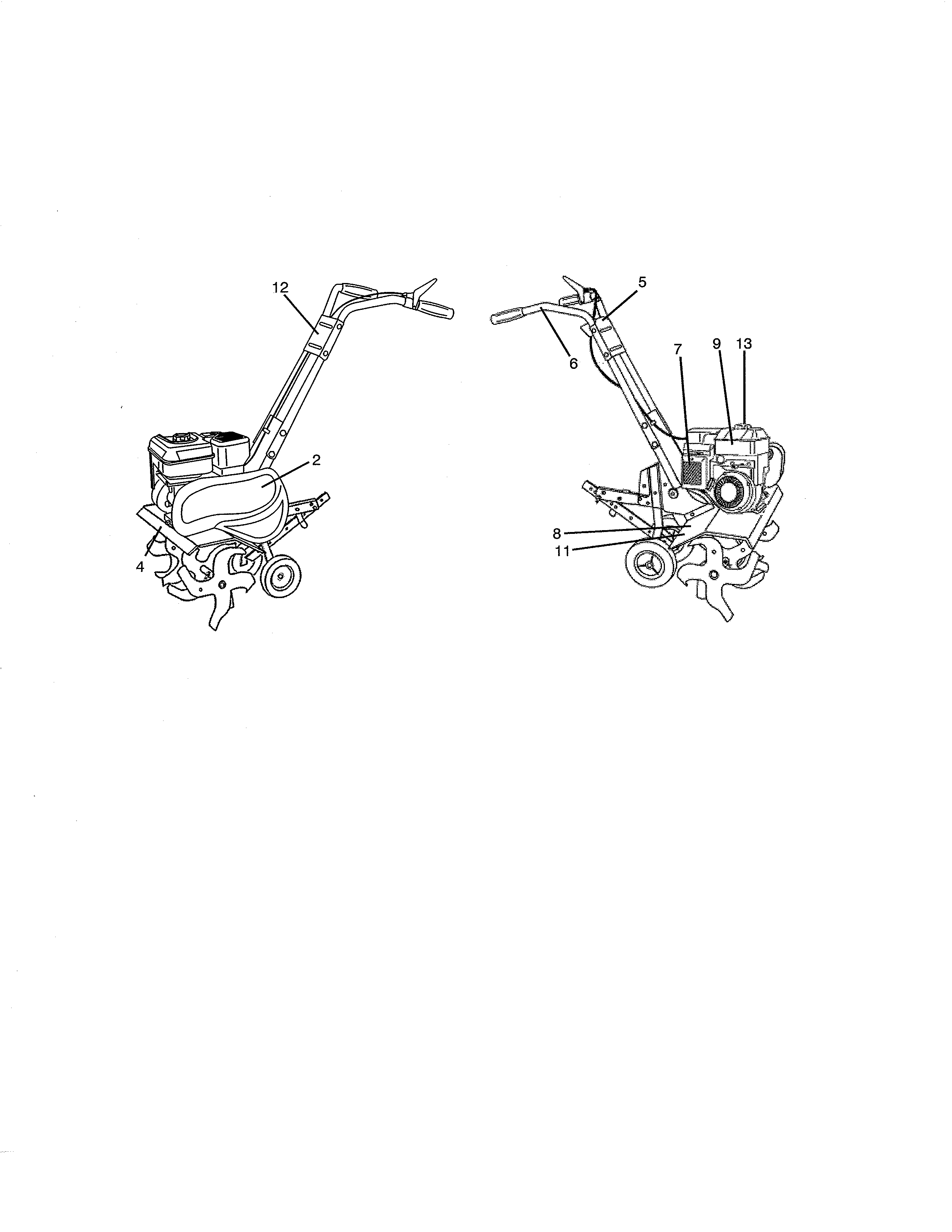

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 917986911 Tillers

  • Lawn & Garden Equipment Hex Jam Nut for Craftsman 917986911 - Part 873350500

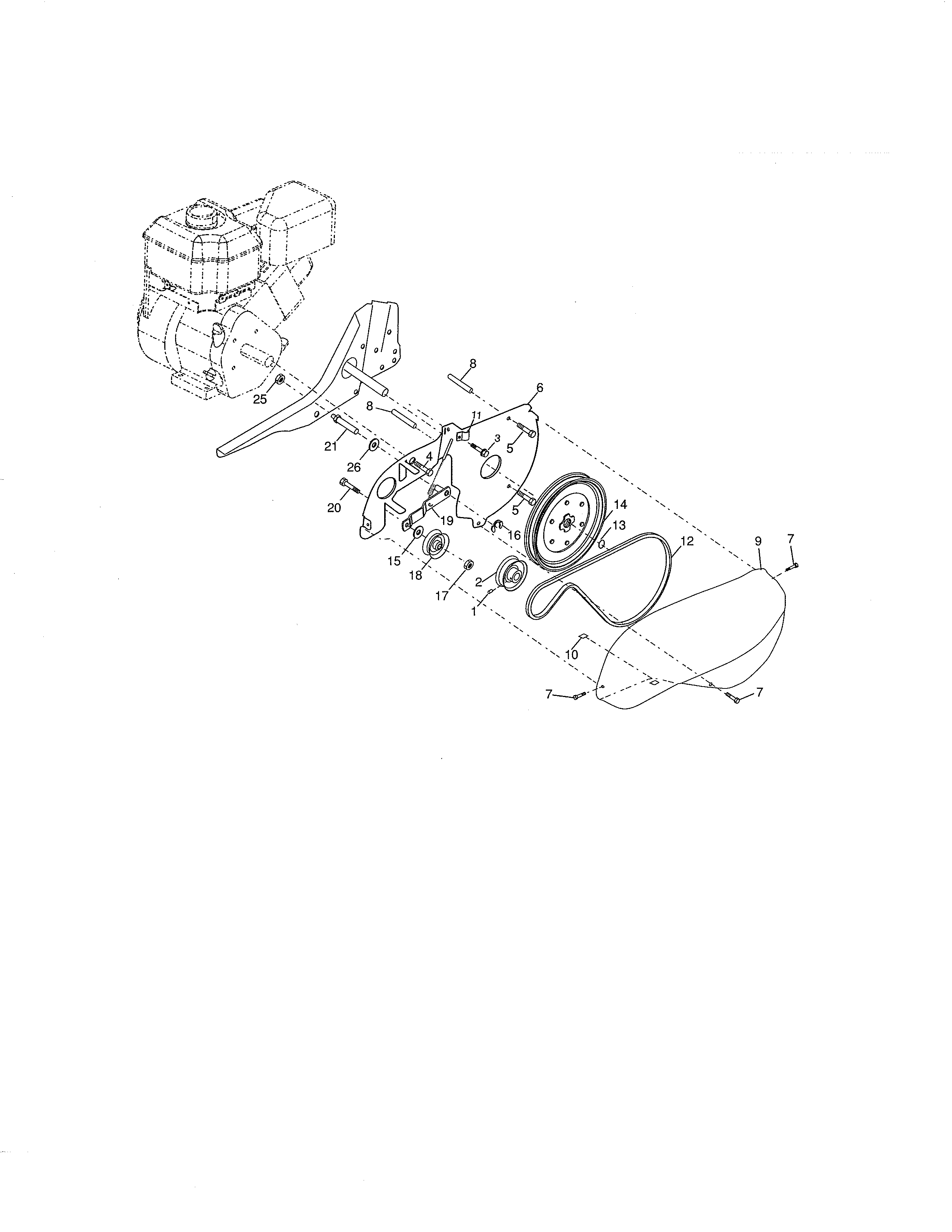

    Belt guard/pulley diagram

    Lawn & Garden Equipment Hex Jam Nut

    Part #73350500

    Replaced by #873350500

    Info Icon
    Manufacturer substitution
    This part replaces 73350500. Substitute parts can look different from the original.
    In Stock
    $12.97
    Minus Item
    Qty
    Plus Item
  • Washer Sprin for Craftsman 917986911 - Part 596029801

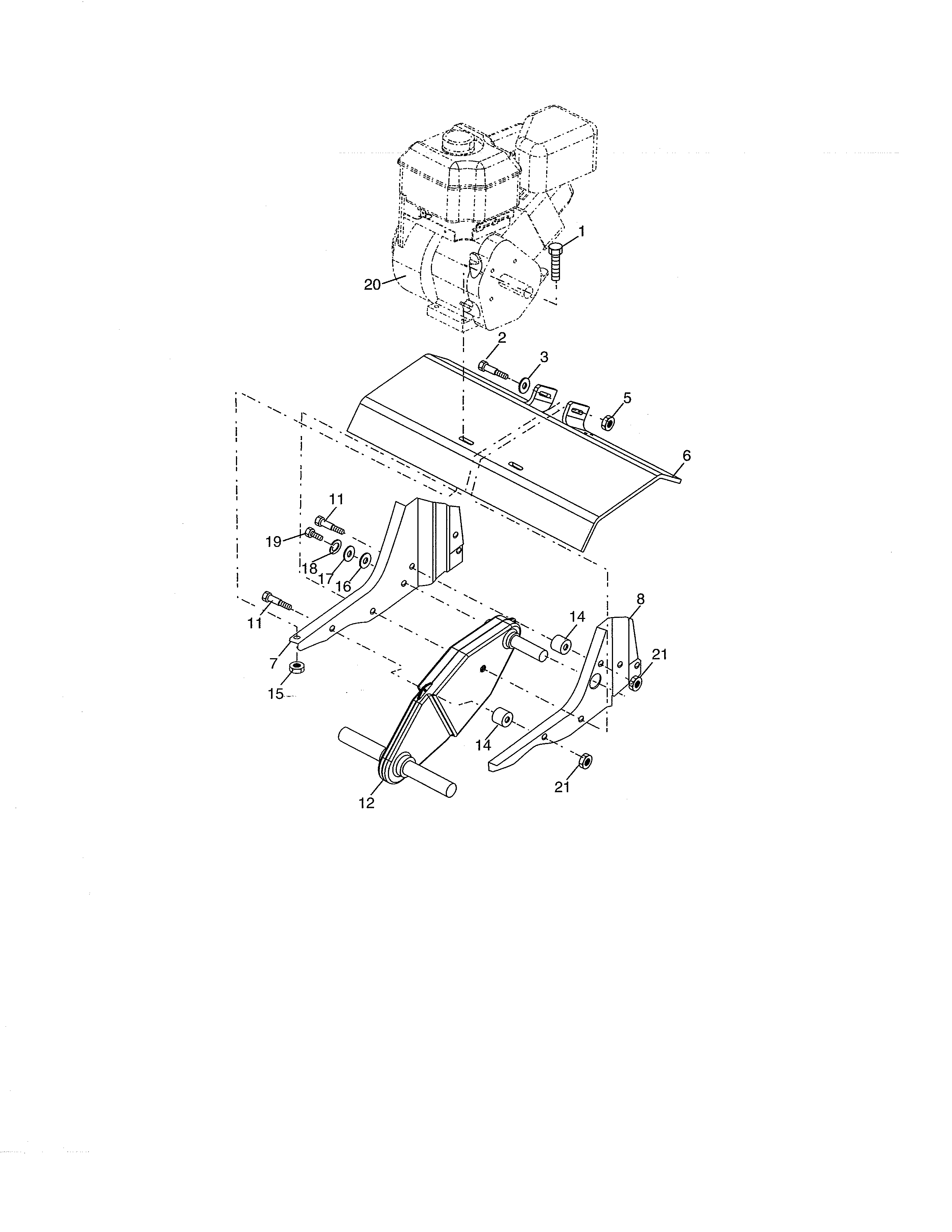

    Transmission diagram

    Washer

    Part #10040400

    Replaced by #596029801

    Info Icon
    Manufacturer substitution
    This part replaces 10040400. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.54
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Lock Washer for Craftsman 917986911 - Part 596238801

    Lock Washer

    Part #10040500

    Replaced by #596238801

    Info Icon
    Manufacturer substitution
    This part replaces 10040500. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.73
    19% OFF Phone Price : $31.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Nut for Craftsman 917986911 - Part 873220500

    Bolt

    Part #73220500

    Replaced by #873220500

    Info Icon
    Manufacturer substitution
    This part replaces 73220500. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.26
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Washer for Craftsman 917986911 - Part 582732401

    Transmission diagram

    Washer

    Part #19131311

    Replaced by #582732401

    Info Icon
    Manufacturer substitution
    This part replaces 19131311. Substitute parts can look different from the original.
    In Stock
    $12.97
    Minus Item
    Qty
    Plus Item
  • Conduit Clip T for Craftsman 917986911 - Part 532009484

    Belt guard/pulley diagram

    Lawn & Garden Equipment Cable Bracket

    Part #9484R

    Replaced by #532009484

    Info Icon
    Manufacturer substitution
    This part replaces 9484R. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.26
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn Mower Washer for Craftsman 917986911 - Part 532067725

    Belt guard/pulley diagram

    Washer

    Part #67725

    Replaced by #532067725

    Info Icon
    Manufacturer substitution
    This part replaces 67725. Substitute parts can look different from the original.
    In Stock
    $10.08
    17% OFF Phone Price : $12.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Tractor Nut for Craftsman 917986911 - Part 596322601

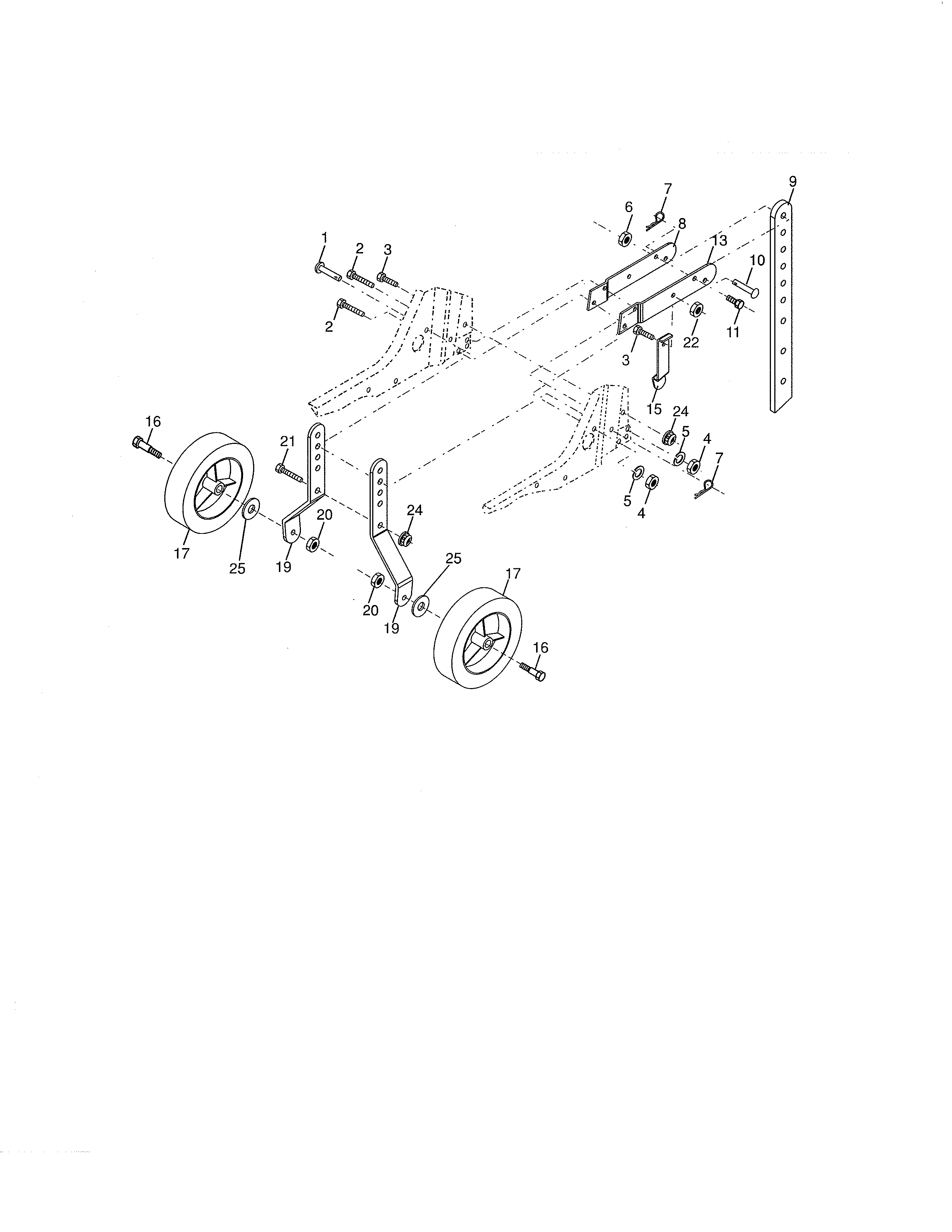

    Wheel/depth stake diagram

    Lawn Tractor Nut

    Part #73680600

    Replaced by #596322601

    Info Icon
    Manufacturer substitution
    This part replaces 73680600. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.87
    15% OFF Phone Price : $6.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Tiller Transmission Pulley for Craftsman 917986911 - Part 532151223

    Belt guard/pulley diagram

    Sheave Transmission

    Part #151223

    Replaced by #532151223

    Info Icon
    Manufacturer substitution
    This part replaces 151223. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $101.70
    Minus Item
    Qty
    Plus Item
  • Tiller Handle Grip for Craftsman 917986911 - Part 532427643

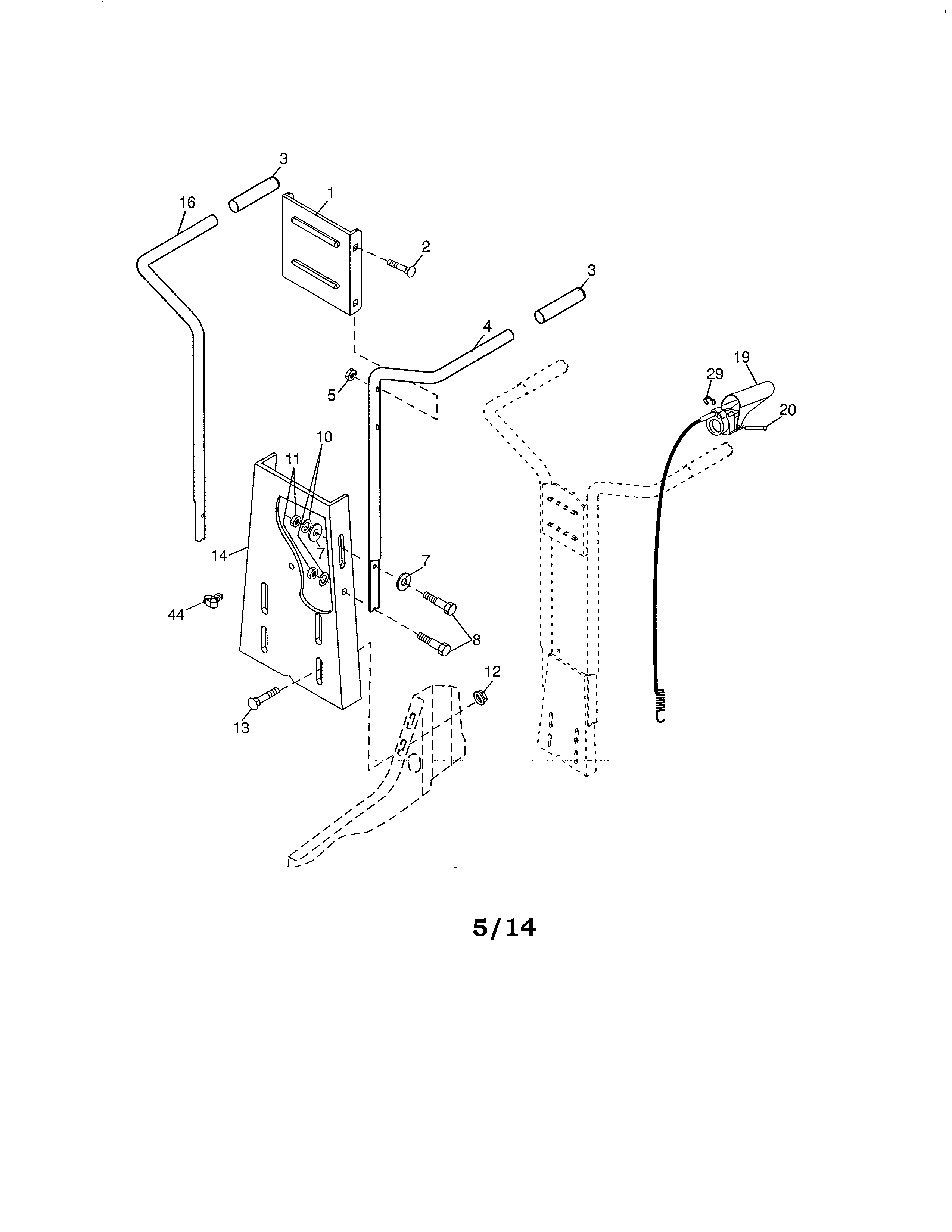

    Handles diagram

    Handle Grip

    Part #165787

    Replaced by #532427643

    Info Icon
    Manufacturer substitution
    This part replaces 165787. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.40
    Minus Item
    Qty
    Plus Item
