Front-Tine Tiller

Model # 917986911 Official Craftsman tiller

Here are the diagrams and repair parts for Official Craftsman 917986911 tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

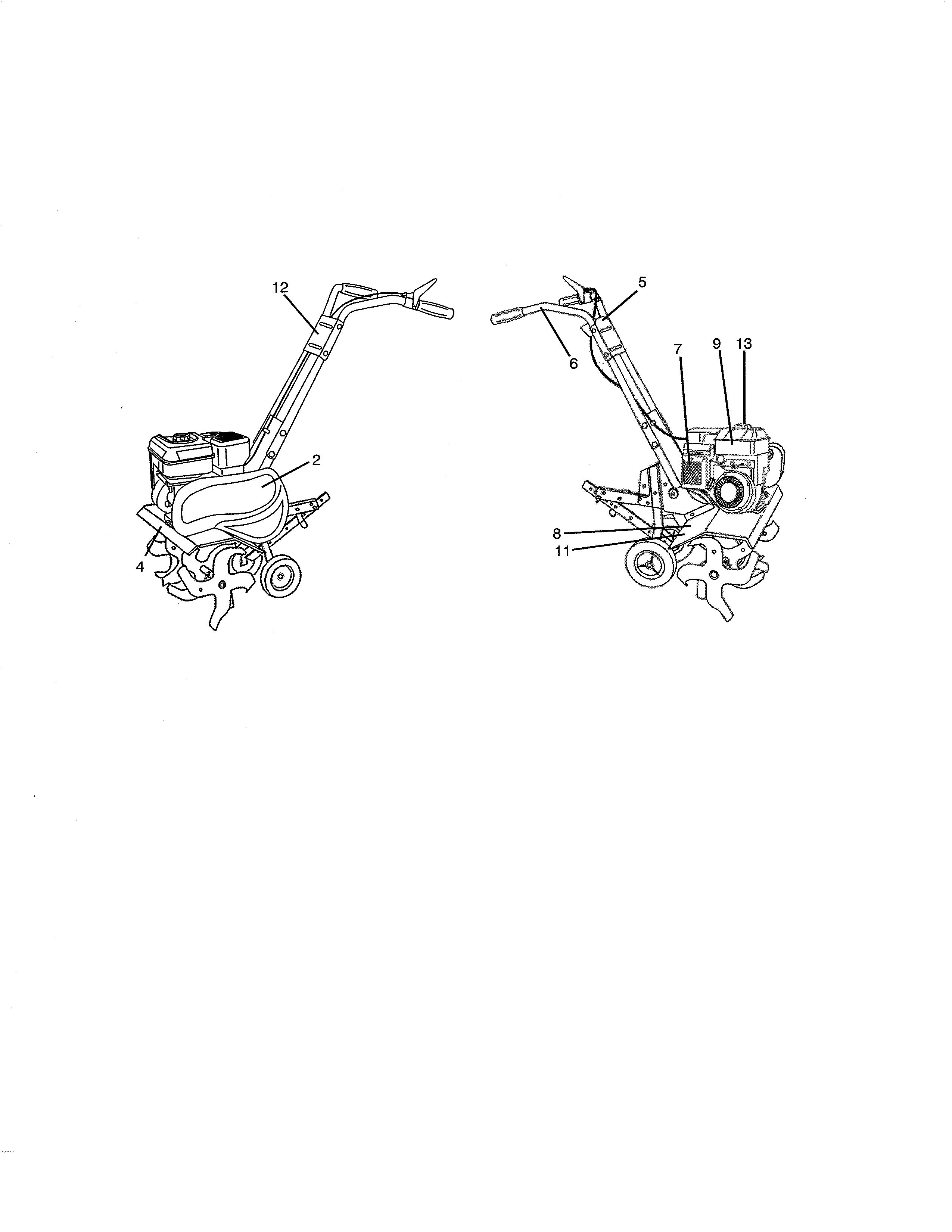

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Lock Nut 73900600
#5

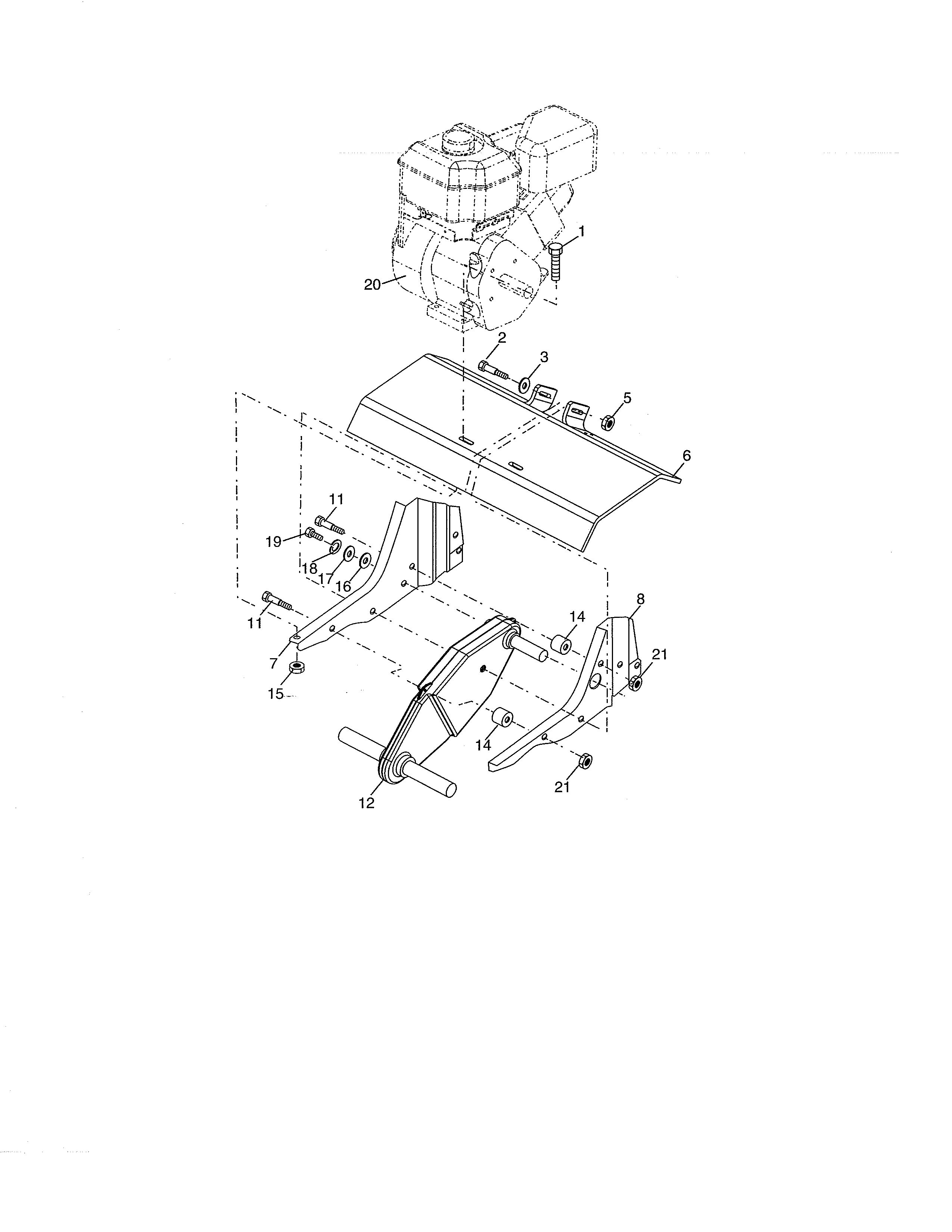

Transmission diagram

Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Washer 19121414
#7

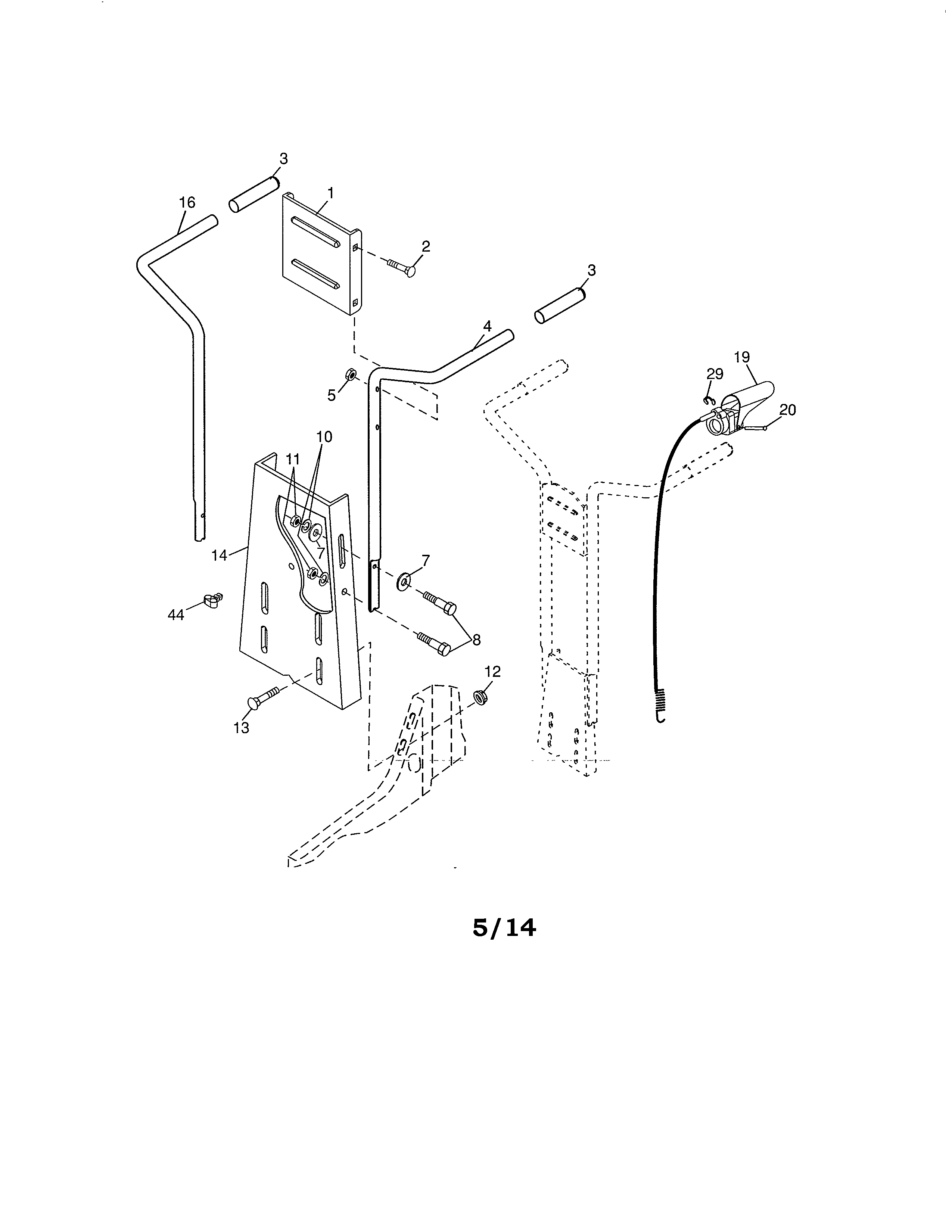

Handles diagram

Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Spring Retainer 3146R
#2

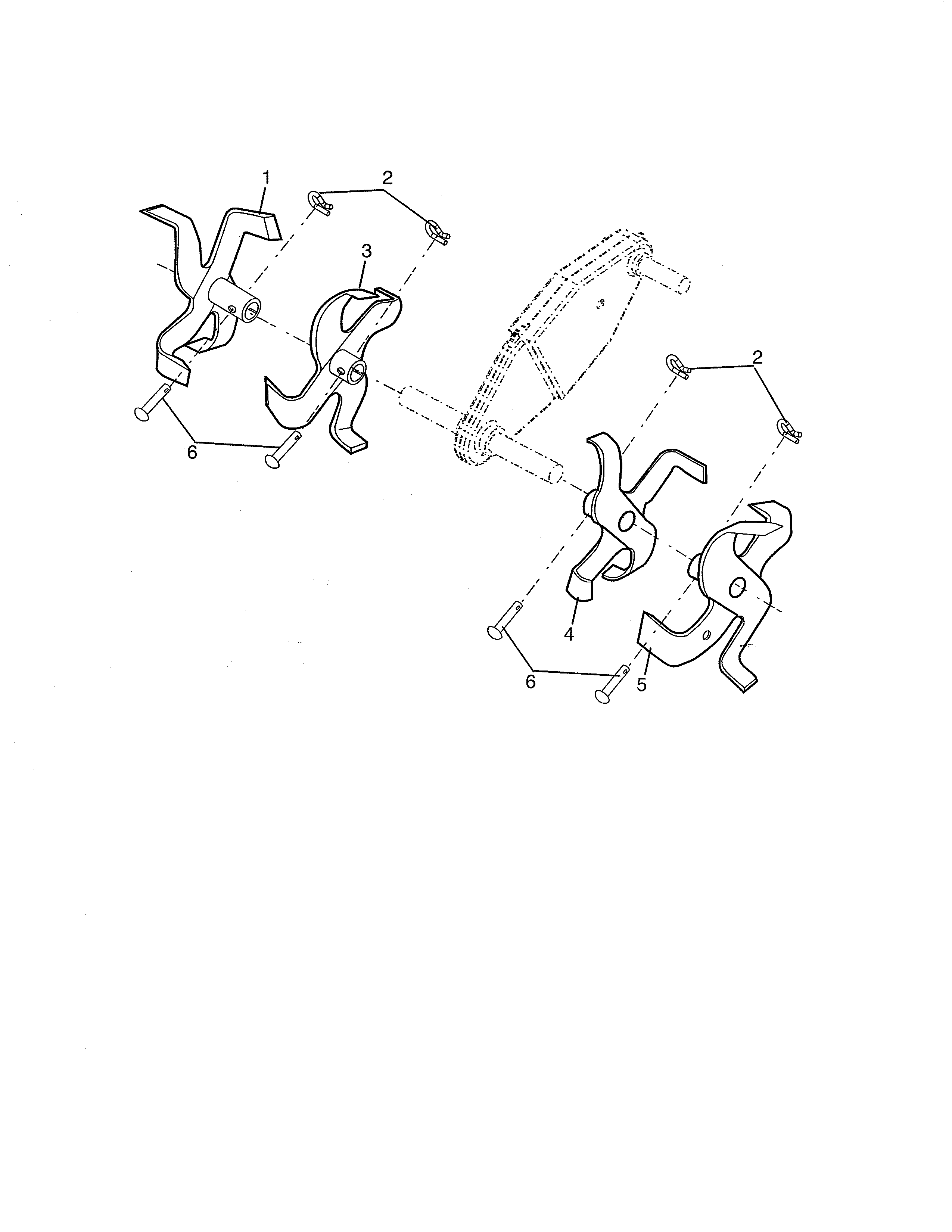

Tine diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.97 |
20% OFF Phone Price : $4.97
In Stock
Lawn Tractor Nut 73680600
#20

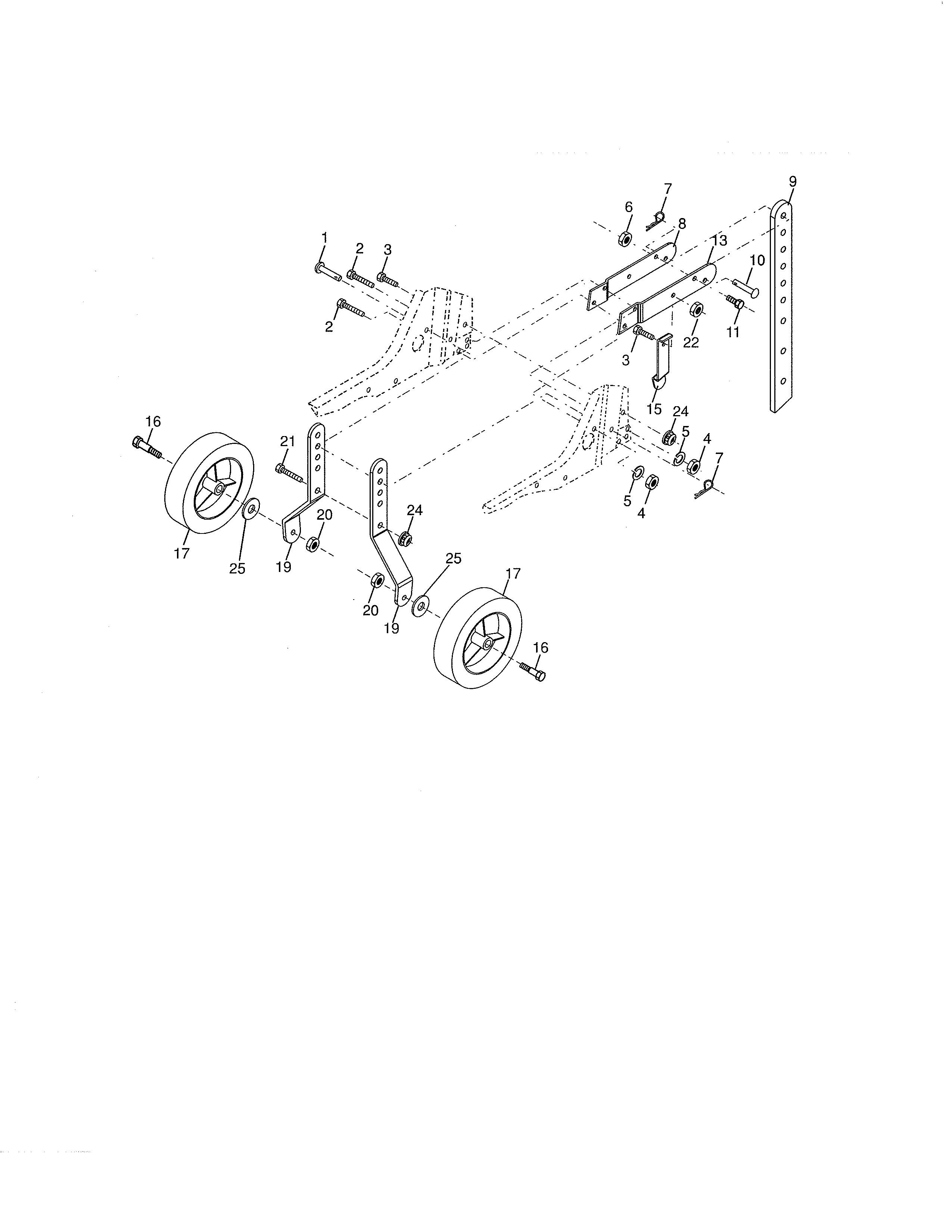

Wheel/depth stake diagram

Lawn tractor nut

Part #73680600

Replaced by #596322601

?
Manufacturer substitution
This part replaces 73680600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.16
In Stock
Tiller Tine Control Lever (replaces 532188562) 188562
#19

Handles diagram

Tiller tine control lever (replaces 532188562)

Part #188562

BEST SELLER
$25.53 |
23% OFF MSRP : $33.00
In Stock
Pulley 130812
#2

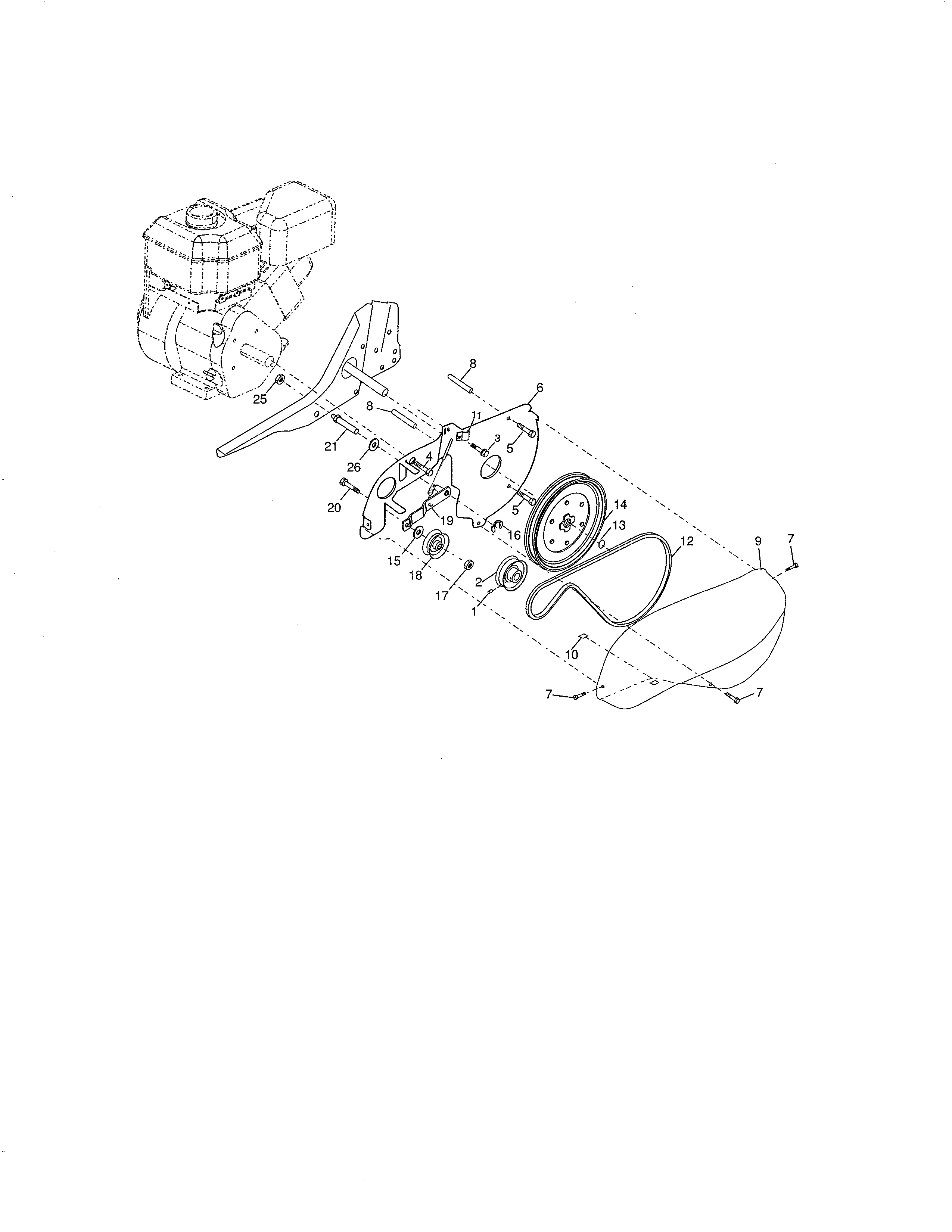

Belt guard/pulley diagram

Pulley

Part #130812

Replaced by #592642101

?
Manufacturer substitution
This part replaces 130812. Substitute parts can look different from the original.
This item is not returnable
$16.09 |
11% OFF Phone Price : $18.09
In Stock
Tiller Shoulder Bolt 121117X
#16

Wheel/depth stake diagram

Tiller shoulder bolt

Part #121117X

Replaced by #532121117

?
Manufacturer substitution
This part replaces 121117X. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Nut 98000129
#12

Handles diagram

Nut

Part #98000129

Replaced by #426589

?
Manufacturer substitution
This part replaces 98000129. Substitute parts can look different from the original.
This item is not returnable
$3.13
In Stock
Lawn & Garden Equipment Hex Jam Nut 73350500
#25

Belt guard/pulley diagram

Lawn & garden equipment hex jam nut

Part #73350500

This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Pulley 180522
#18

Belt guard/pulley diagram

Pulley

Part #180522

Replaced by #532180522

?
Manufacturer substitution
This part replaces 180522. Substitute parts can look different from the original.
$18.89 |
10% OFF Phone Price : $20.89
Back Order
