What are the most common issues with 917271910?
The most common issues we see on the Craftsman 917271910 front-engine lawn tractor involve the mower deck drive system (belt, idlers, mandrels), starting and key problems, and steering or front-axle wear. Many symptoms trace back to normal wear items and simple adjustments listed in the 917271910 owner's manual.
Common problems and what they usually mean
- Blades will not engage or deck stops under load: worn or stretched deck belt, weak idler spring, or a failing mandrel bearing.
- Squealing, burning rubber smell, or belt keeps coming off: misrouted belt, damaged idler pulley, or bent pulley/bracket.
- Uneven cut or heavy vibration: bent/dull blade, loose mandrel pulley, or worn mandrel assembly.
- No-crank or intermittent start: worn ignition key, poor battery connections, or a safety switch issue.
- Loose steering or wandering: worn steering sector gear, drag link wear, or front axle play.
Quick checks we recommend first
- Park on level ground; set parking brake; remove the key and disconnect the spark plug wire.
- Inspect the deck belt for glazing, cracks, or missing chunks; confirm correct routing.
- Spin each blade by hand (with gloves); listen for grinding that points to mandrel bearing wear.
- Check idler pulley alignment and spring tension.
- Verify battery terminals are clean and tight; confirm safety interlocks are being fully engaged.
Parts that commonly fix these symptoms (examples)
| Symptom | Common wear item | Example part on this model page |
|---|---|---|
| Deck will not stay engaged | Deck drive belt | V-belt 532138255 |
| Belt squeal or poor tension | Idler pulley or spring | Lawn tractor blade idler pulley 532139245, lawn tractor blade idler spring 532169022 |
| Vibration or uneven cut | Blade or mandrel components | Husqvarna lawn tractor mandrel assembly 532130794 |
| Key issues | Ignition key | Molded ignition key 532140403 |
Why it matters
On riding mowers like the 917271910, the deck belt, idlers, and mandrels transfer engine power to the blades. When any of these wear, you get slipping, noise, poor cut quality, and repeated belt failures. Catching wear early prevents bigger damage to pulleys, housings, and spindles.
Last updated: March 2026
What are the parts of a riding lawn mower called?
On the Craftsman lawn tractor model 917271910, parts are typically named by the system they belong to (mower deck, drive, steering, engine, electrical, or safety). Common part names you’ll see include belts, blades, pulleys, spindles (mandrels), springs, switches, and hardware; see the 917271910 owner's manual for diagrams and terminology.
Common riding lawn tractor part names (and what they do)
These are the most common “categories” customers use when describing parts:
- Mower deck parts: blades, mandrel (spindle) assemblies, idler pulleys, deflector shield
- Belts: blade drive belt (deck belt) and ground drive belt (motion belt)
- Steering parts: tie rods, drag links, bushings, sector gears
- Safety interlock parts: seat switch, brake/clutch interlock switch
- Engine/exhaust parts: muffler, gasket, fuel line and clamps
- Hardware: nuts, bolts, washers, clips, retainers
Examples of real part names used on model 917271910
Here are a few examples pulled from common assemblies on this model:
- Blade drive belt: lawn tractor v-belt 532144959
- Mulching blade: husqvarna lawn tractor mulching blade, 21-in 532134149
- Mandrel (spindle) assembly: husqvarna lawn tractor mandrel assembly 532130794
- Safety switch: lawn tractor seat switch 532421062
Quick reference table: “what you call it” vs “what it may be listed as”
| What you might call it | What it’s often listed as | Where it’s used |
|---|---|---|
| Spindle | Mandrel assembly | Mower deck blade mounting and rotation |
| Deck belt | Blade drive belt / V-belt | Turns the mower blades |
| Motion belt | Ground drive belt | Moves the tractor forward/reverse |
| Safety switch | Interlock switch / seat switch | Prevents unsafe starting/operation |
Why it matters
Using the correct part name helps you match the right diagram and avoid ordering the wrong component, especially on deck-drive parts where belts, pulleys, and mandrels can look similar but fit differently.
Last updated: January 2026

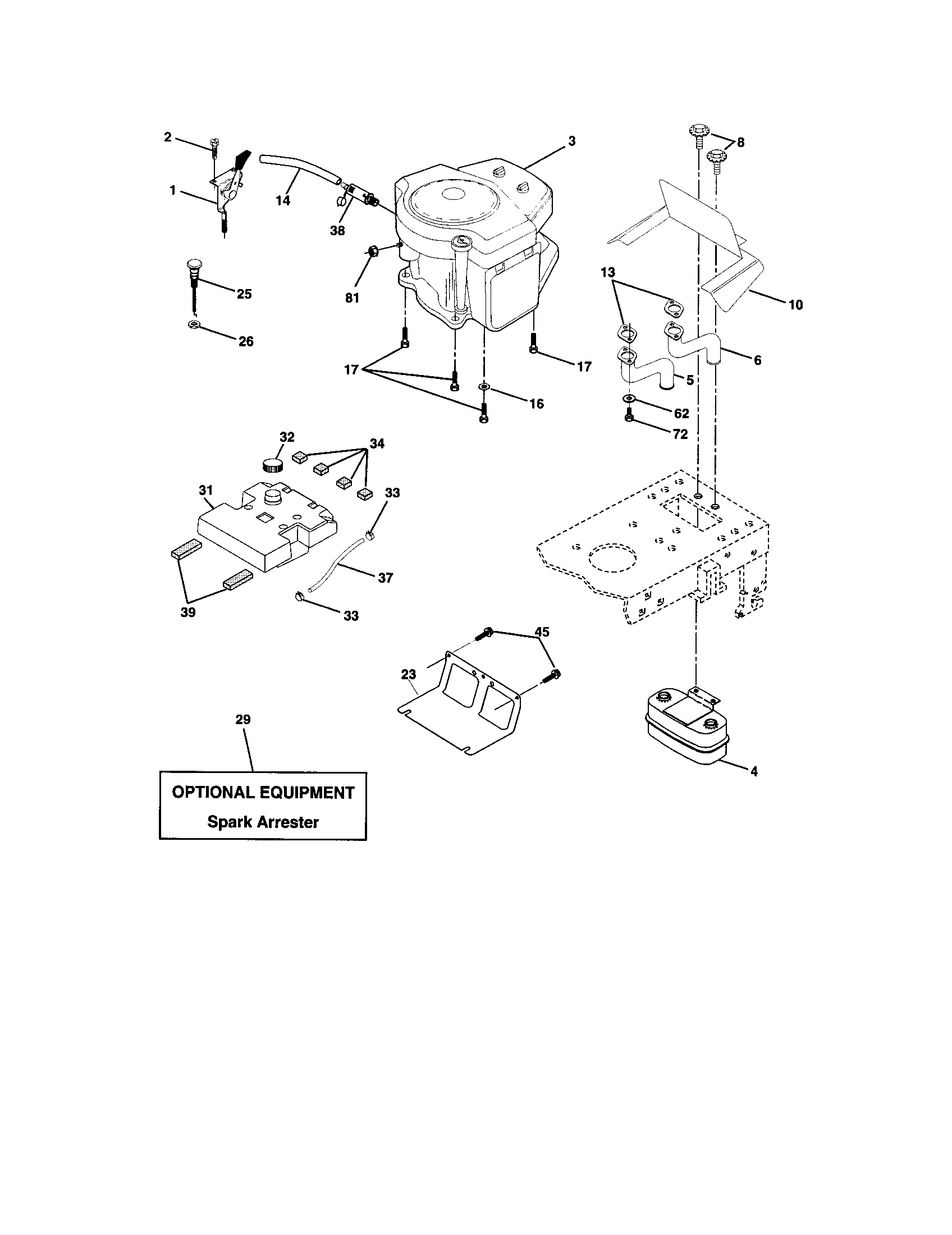

What kind of engine does a Craftsman riding lawn mower have?
For Craftsman lawn tractor model 917271910, the owner’s manual specifies a 20.0 HP gasoline engine (low-emission design) paired with a 42-inch mower deck and an electric start system. The manual does not identify the engine brand or exact engine model number.
What we can confirm for model 917271910
From the specifications section in the 917271910 owner’s manual, we can confirm these engine-related details:
- Gasoline: unleaded, regular
- Engine oil type: SAE 30 (above 32°F) or SAE 5W-30 (below 32°F)
- Oil capacity: 4.0 pints
- Spark plug type: Champion RC12YC (gap 0.030 in.)
- Charging system: 3 amps (battery) and 5 amps (headlights)
Why the engine brand can vary
Even within the same Craftsman model number family, the engine manufacturer can vary by production run and engine spec code. For model 917271910, the most reliable way to identify the exact engine is to check the engine ID label on the engine itself.
Where to look for the engine ID label
- On top of the engine shroud (near the recoil/starter area)
- Near the valve cover
- On the blower housing
- Stamped into a metal tag or printed on a decal
Quick comparison: “engine type” vs “engine details”
| What you’re trying to identify | Where to get it | What you’ll see |
|---|---|---|
| Horsepower rating for 917271910 | Owner’s manual | 20.0 HP |
| Oil type and capacity | Owner’s manual | SAE 30 or 5W-30; 4.0 pints |
| Exact engine make/model | Engine label | Manufacturer + model/type + code |
Why it matters
Using the correct engine identification helps you match the right maintenance items (spark plug, air filter, fuel filter) and avoid fit issues when ordering tune-up parts.
Last updated: January 2026
