Kenmore 11627112790 canister vacuum Parts
Here are the diagrams and repair parts for Kenmore 11627112790 canister vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 11627112790 Vacuum Cleaners

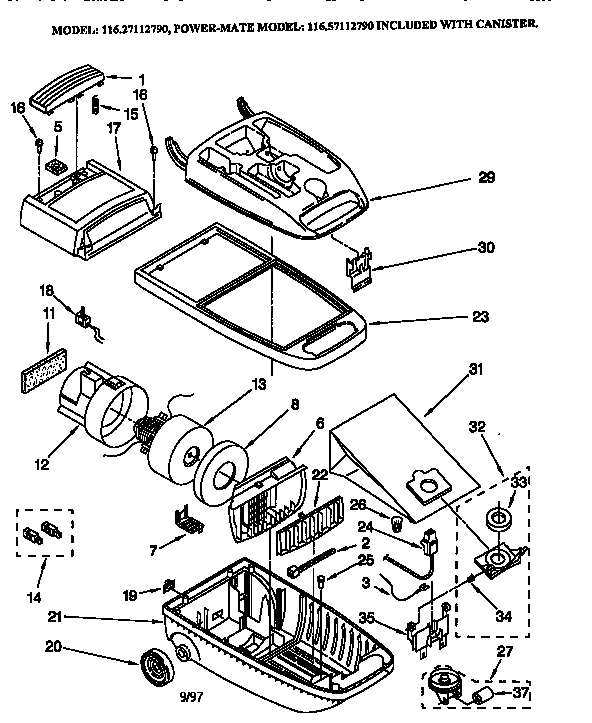

Base assembly diagram
Vacuum Bag, 2-pack
Part #50557
The manufacturer no longer makes this part, and there's no substitute part

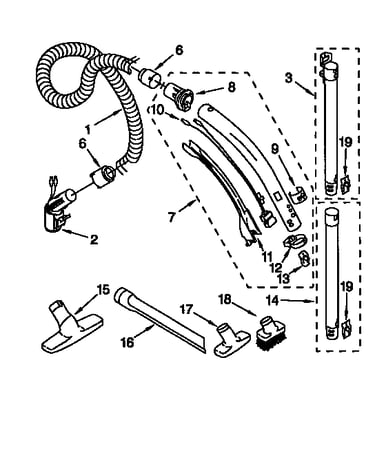

Hose and attachment diagram
Vacuum Hose Adapter
Part #4370325
The manufacturer no longer makes this part, and there's no substitute part

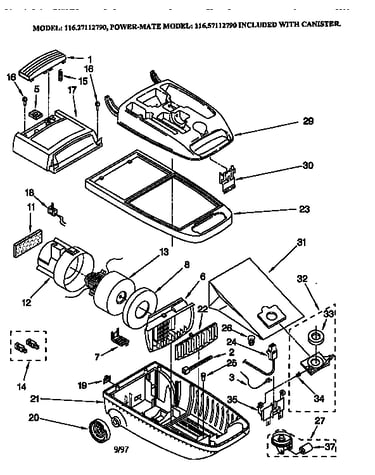

Base assembly diagram
Plug Cover
Part #4153294
The manufacturer no longer makes this part, and there's no substitute part

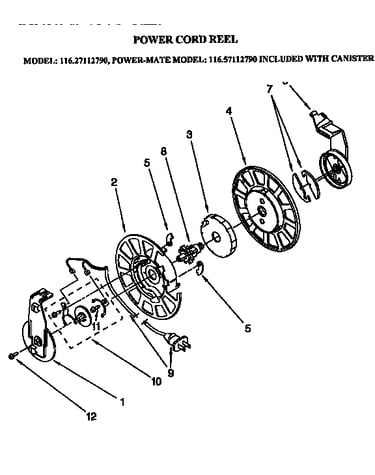

Power cord reel diagram
Vacuum Screw
Part #780343
The manufacturer no longer makes this part, and there's no substitute part
Power cord reel diagram
Flange
Part #4149336
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Lead Wire
Part #4369803
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Vacuum Canister Base
Part #4370477
The manufacturer no longer makes this part, and there's no substitute part
Power cord reel diagram
Vacuum Cord Reel Spring And Keeper
Part #4369019
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Foam Button
Part #706395
The manufacturer no longer makes this part, and there's no substitute part
Power cord reel diagram
Power Cord
Part #4370343
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your vacuum cleaners
Choose a symptom to see related vacuum cleaner repairs.
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring fail…
Main causes: lack of power, bad power cord, drive motor failure, wiring failure…
Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor…
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose…
Repair guides for canister vacuums
How to replace a vacuum power head cogged drive belt
If the power brush isn't working well because the cogged drive belt is slipping, take a few minutes to replace the belt.…
Repair time and Difficulty
 15 minutes or less
How to replace a vacuum power head ribbed drive belt
Some canister vacuums have a ribbed drive belt that spins the brush roll on a power brush attachment. If the brush roll …
Repair time and Difficulty
 30 minutes or less
How to replace a vacuum suction motor
The suction motor on a vacuum creates the draw of air at the cleaning head that picks up dirt. If the vacuum won't run, …
Repair time and Difficulty
 15 minutes or less
Effective articles & videos to help repair your vacuum cleaners
Use the advice and tips in these articles and videos to get the most out of your vacuum.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Follow this advice to keep your vacuum in good working order.…
Find the answers to frequently asked questions about vacuum cleaners.…
