Jenn-Air JJW2730DS01 electric oven Parts

Common problems we see with Jenn-Air cooking appliances include an oven that will not heat or heats unevenly, a convection fan that will not run, a door that will not close or seal well, and control or display issues. For your Jenn-Air JJW2730DS01 electric wall oven, the most frequent fixes involve restoring power, replacing a failed heating component, or correcting an airflow or door-seal problem.

Most common symptoms and likely causes

• Oven not heating: failed bake element, blown thermal fuse, or a high-limit thermostat opening from overheating
• Uneven baking: weak bake element, convection element issue, or convection fan problem
• No convection: convection fan motor not running or convection element not heating
• Oven shuts off or seems dead: thermal fuse open, overheating condition, or power supply issue
• Door heat leak or poor temperature stability: worn/misaligned door hinge or damaged door glass/liner

Parts that commonly solve these problems (JJW2730DS01)

If troubleshooting points to a failed component, these model-matched parts are commonly involved:

• Range bake element W11545804
• Wall oven thermal fuse W11610133
• Range high-limit thermostat WP4449751

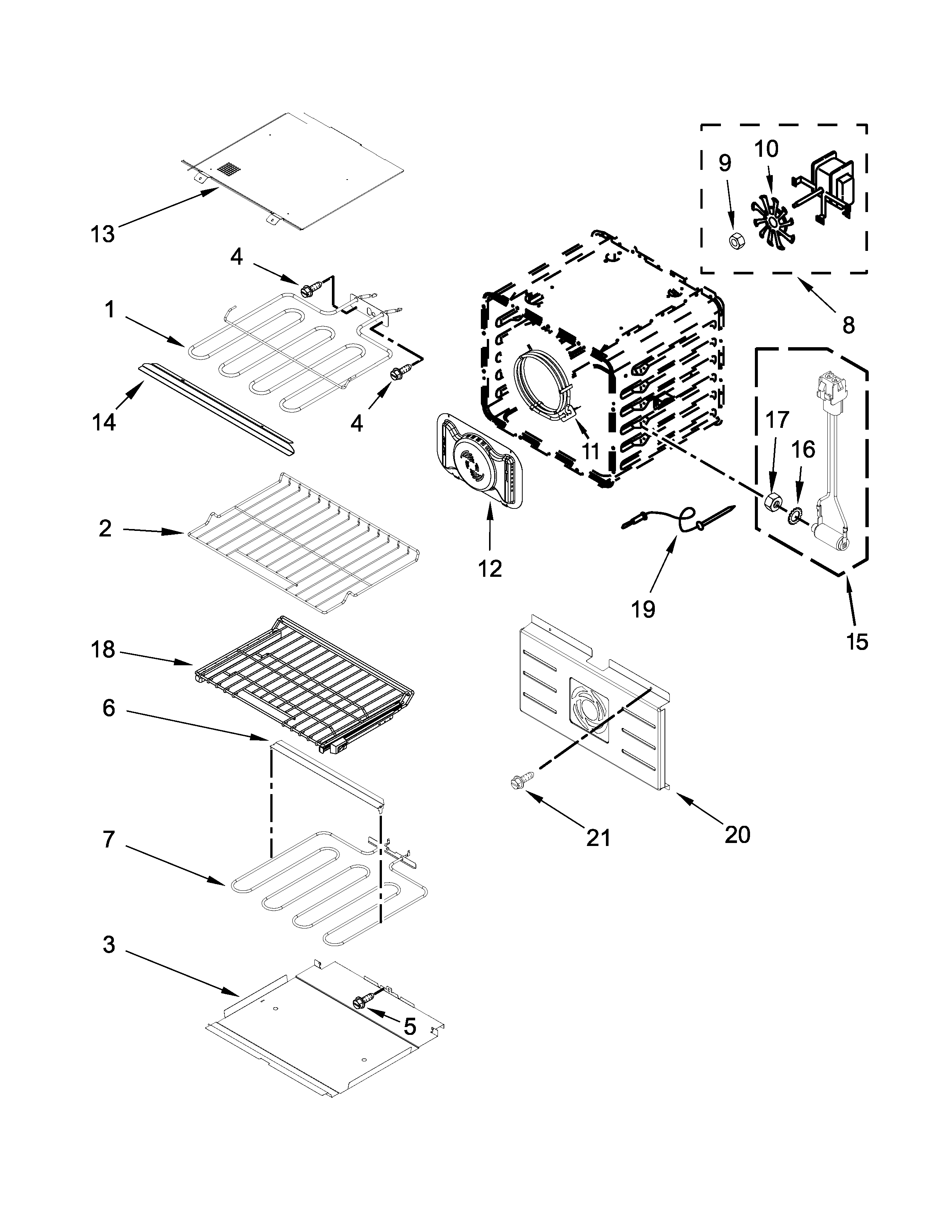

• Wall oven convection element W11678579

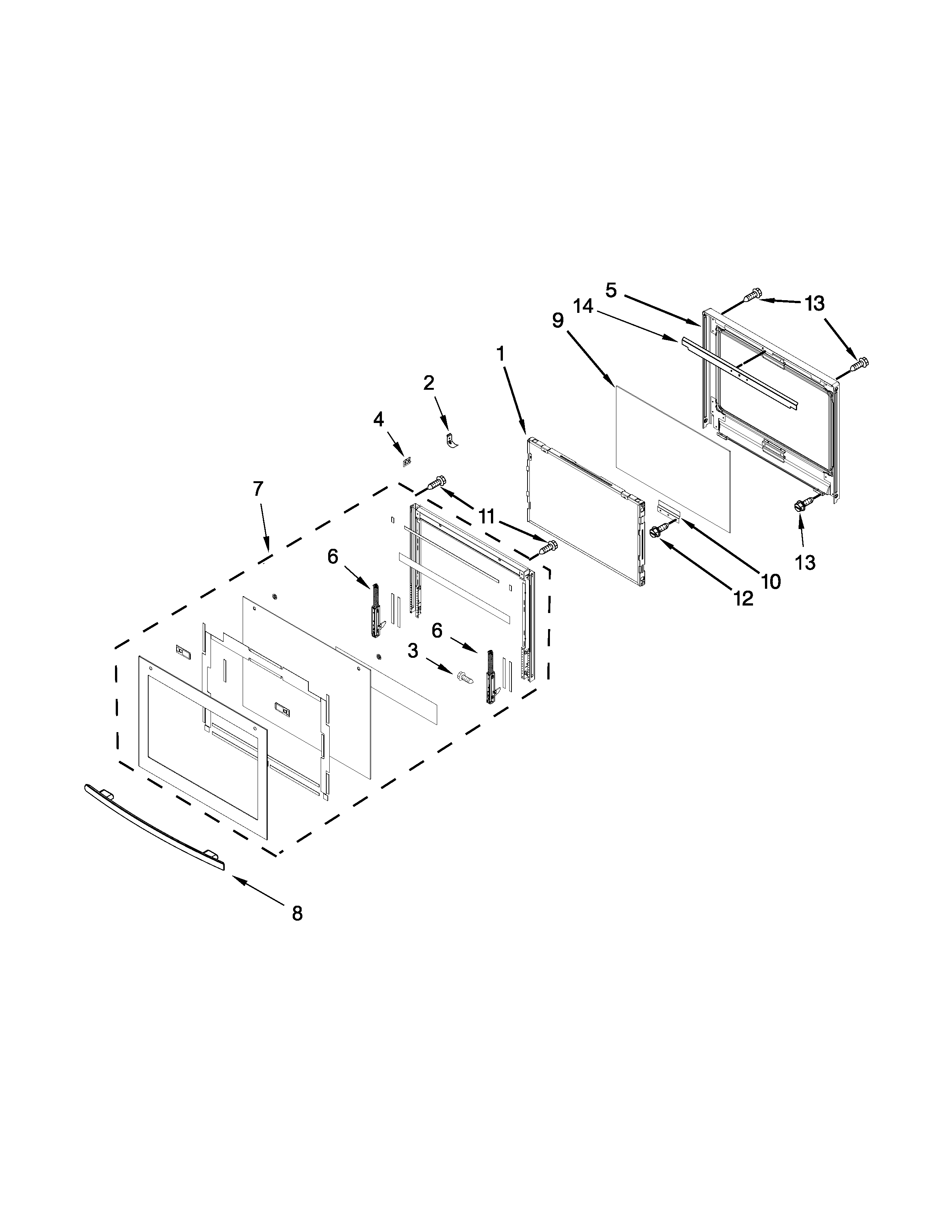

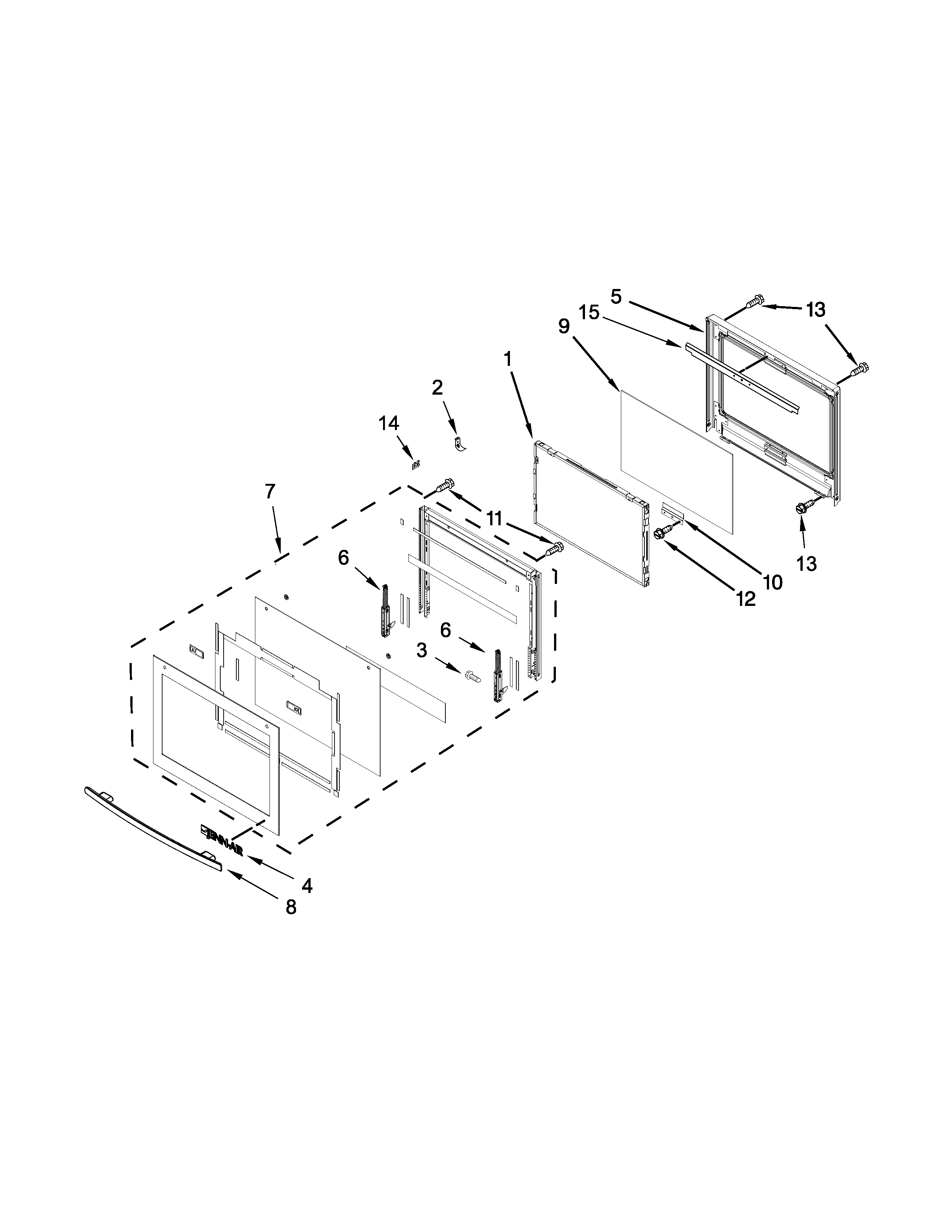

• Wall oven door hinge W10825778

Quick checks we recommend before replacing parts

1. Confirm power: make sure the breaker is fully reset (off, then on). Many wall ovens need a solid 240V supply.
2. Test a simple bake: set Bake to 350°F and see if preheat completes normally.
3. Look for visible damage (with power off): blistered spots or breaks on the bake element, loose wiring, or heat discoloration.
4. Check airflow: blocked vents can trigger overheating and open a safety device.
5. Inspect the door: sagging, gaps, or rubbing can point to hinge or door alignment issues.

Symptom-to-part guide

Symptom	Most common part to check first	What you may notice
No heat on Bake	Bake element	No glow/heat from lower element area
Oven completely dead	Thermal fuse	Display off, no response
Shuts down during use	High-limit thermostat	Works, then stops until cooled
Convection bakes poorly	Convection element or fan	Fan noise missing or weak browning
Door will not close tight	Door hinge	Door droops or does not seal evenly

Why it matters

Heating and airflow problems can cause long preheat times, undercooked food, and overheating that trips safety devices. Catching a weak element or failing safety part early helps prevent repeat shutdowns and inconsistent temperatures.

You can order JJW2730DS01 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most electric wall ovens, including the Jenn-Air JJW2730DS01, typically last about 16 years with normal use and basic maintenance. Keeping airflow clear, avoiding heavy door loads, and replacing worn heating or safety parts on time helps you reach that expected service life.

Typical lifespan and what affects it

Electric wall oven lifespan is mainly driven by heat stress, how often you run high-temperature cycles, and whether the door seals and cooling airflow stay in good shape.

• Average expected lifespan: ~16 years
• Heavier use (daily high-heat cooking): tends to shorten lifespan
• Good ventilation and clean vents: helps electronics and wiring last longer
• Prompt part replacement: prevents secondary damage (overheating, uneven baking)

Parts that commonly impact longevity

When an oven starts heating unevenly, overheating, or shutting down, these are common wear-related items to check and replace as needed.

• Range bake element W11545804 (weak or broken element can cause long preheat and uneven baking)
• Wall oven thermal fuse W11610133 (can open if the oven overheats)
• Range high-limit thermostat WP4449751 (helps prevent unsafe overheating)
• Wall oven door hinge W10825778 (a sagging door can compromise sealing and heat retention)

Quick maintenance checklist (5 to 10 minutes)

These simple habits reduce heat loss and overheating, which are two of the biggest lifespan killers for wall ovens.

• Keep the bottom vent area clear of foil, pans, and debris
• Avoid using foil in ways that block airflow
• Do not lean on or hang heavy items from the oven door
• Wipe spills after the oven cools to reduce smoke and corrosive residue
• If preheat times increase, test heating performance and consider replacing the bake element

Symptoms and likely causes

Symptom	Common cause	What to check first
Slow preheat, uneven baking	Weak bake element	Bake element condition and connections
Oven shuts off mid-cycle	Overheat protection triggered	Thermal fuse, high-limit thermostat
Door does not close tightly	Worn hinge or alignment issue	Door hinge and door seal contact

Why it matters

A wall oven that holds temperature steadily cooks more evenly, uses less energy, and puts less stress on control components. Replacing a failing heating or safety part early often prevents repeat overheating and extends the usable life of your JJW2730DS01.

For replacement parts specific to your model, we list them on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

The model number for your Jenn-Air wall oven is printed on the appliance’s rating label. On JJW2730DS01 units, the label is typically found around the oven door opening (often along the frame) or on the side trim area visible when the door is open.

Where to look on the oven

Check these common rating-label locations first:

• Open the oven door and inspect the front frame around the door opening
• Look along the left or right side of the door frame near the hinges
• Check the lower front frame area near the bottom vent trim
• If it’s a double wall oven, check both upper and lower oven door frames
• Wipe the area with a damp cloth; grease can hide the printed label

What the label should show

The rating label usually includes more than just the model number.

Label item	What it’s used for
Model number (JJW2730DS01)	Matching the correct parts and diagrams
Serial number	Identifying production run and revisions
Electrical rating	Confirming voltage and amperage requirements

Why it matters for parts and repairs

Jenn-Air wall ovens can have multiple versions that look identical but use different parts (control panel, bake element, door hinge, wiring harness). Using the exact model number helps us match the correct replacement part the first time.

If the label is missing or unreadable

Use these practical options:

• Check your purchase paperwork or installation paperwork for “JJW2730DS01”
• If you can read even part of it, compare the characters carefully (0 vs O, 1 vs I)
• If you’re troubleshooting a heating issue while you confirm the model, common related parts include the range bake element W11545804 and the wall oven thermal fuse W11610133

For more help identifying the correct model tag format, use how to find your appliance model number (and what it means for parts).

Last updated: March 2026
