Sub-Zero 511 refrigerator Parts

A Sub-Zero refrigerator typically lasts about 20 years. For your Sub-Zero 511 bottom-mount refrigerator, lifespan depends most on sealed-system health (compressor, condenser, evaporator), airflow, door sealing, and routine cleaning; consistent maintenance helps you reach that 20-year average.

Most Sub-Zero units are built for long service life; the biggest variables are usage and how hard the refrigerator has to work to hold temperature.

• Maintenance habits: cleaning coils, keeping vents clear, and replacing worn door gaskets
• Ambient conditions: hot kitchens, tight cabinetry, and poor ventilation increase run time
• Door use: frequent openings and misalignment cause temperature swings and moisture
• Sealed-system condition: compressor and refrigerant loop performance drives long-term cooling
• Repairs and parts quality: timely fixes prevent small issues from damaging major components

Use these as your baseline for extending life on a built-in bottom-mount like the Sub-Zero 511.

For model-specific care and access instructions, follow the 511 owner's manual.

These symptoms often show up more as systems wear, especially if airflow or sealing has been poor.

• Warmer-than-normal temperatures even after cleaning and resetting controls
• Compressor running almost constantly or cycling rapidly
• Repeated frost buildup or moisture around doors
• Unusual fan noise (evaporator or condenser fan)
• Cooling problems that return soon after a repair

If you suspect an evaporator fan issue, our guide on how to fix your evaporator cooling fan walks through common causes and fixes.

A refrigerator that is struggling to cool uses more energy and puts extra stress on the sealed system. Keeping airflow strong and doors sealing correctly is the most reliable way to protect the compressor and help your Sub-Zero 511 reach its expected lifespan.

Last updated: February 2026

Yes. Sub-Zero is widely considered a high-end, built-in refrigeration brand; the Planning and Installation Guide positions Sub-Zero as an industry leader and highlights premium design features plus a long, multi-year protection plan.

Sub-Zero refrigerators (including the Sub-Zero 511) are typically viewed as premium because they focus on built-in fit, materials, and long-term serviceability.

• Built-in design standard: many Sub-Zero units are designed to sit flush and are typically 24 inches deep for a true built-in look.
• Panel-ready capability: units can accept decorative door and side panels to match cabinetry (with specified panel limits).
• Premium product support: the guide describes a 12-year Sub-Zero Protection Plan, including longer sealed-system coverage.
• Installation planning emphasis: high-end built-ins require tighter planning for clearances, cabinetry integration, and door swing.
• Model-specific detail: the guide notes the 511 has a 120-degree normal door swing (many other models are listed at 130 degrees).

The installation documentation calls out design and planning details that are typical of high-end built-in refrigeration.

High-end built-in refrigerators are less forgiving about fit, airflow, and door alignment. Using the correct model information helps you avoid ordering the wrong part and helps keep temperatures stable.

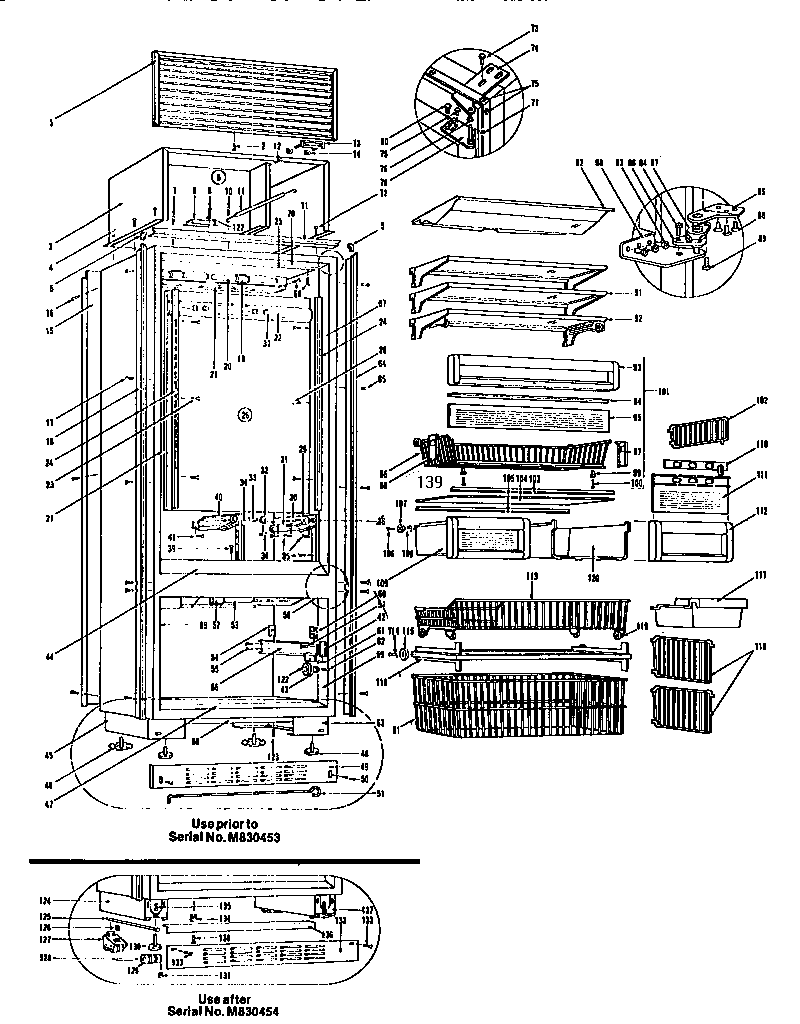

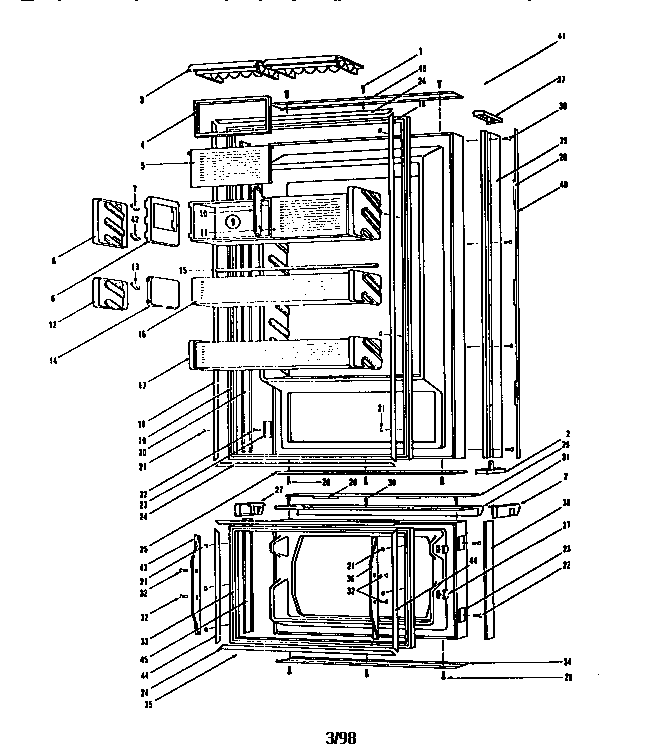

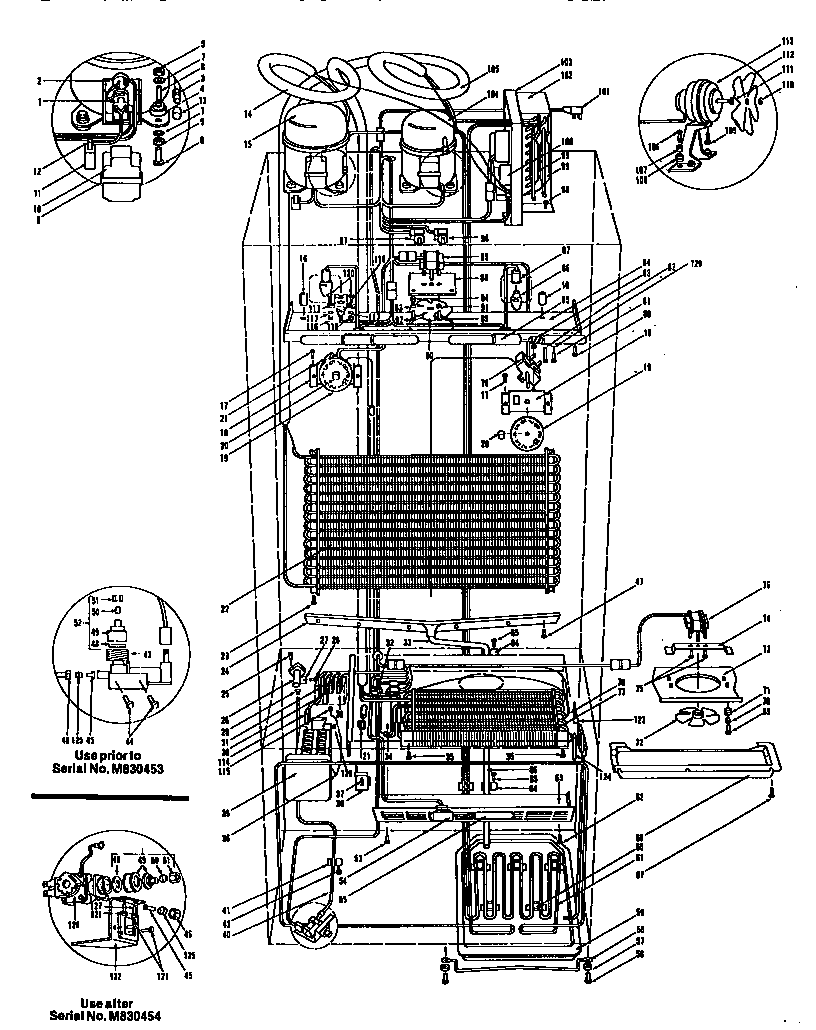

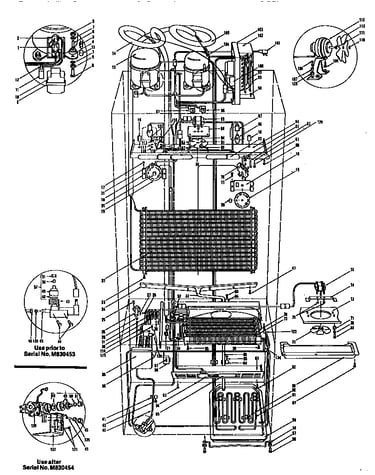

• Use the exact model number 511 when looking up diagrams and parts.
• Follow clearance and panel guidance to prevent door seal and alignment issues.
• Keep condenser and airflow areas clean to protect cooling performance.

For model-specific installation and planning details (including door swing notes), use the installation guide.

Last updated: February 2026

A bottom-freezer design like the Sub-Zero 511 makes fresh-food access convenient, but it puts frozen items lower and typically in a deeper drawer. That means more bending, more lifting from a low position, and sometimes higher upfront cost compared with simpler top-freezer designs.

• More bending for frozen food: You reach down into the freezer drawer for everyday items.
• Heavier lifting from a low position: Large frozen foods can be awkward to lift up and out.
• Items can get buried: Deep drawers make it easier for smaller packages to end up underneath larger ones.
• Door swing and clearance planning matters: Built-in and bottom-mount layouts often need careful placement so doors and drawers open fully.
• Upfront price can be higher: Many bottom-mount units are positioned as premium designs with more features.

The Sub-Zero 511 is a built-in style unit with features like automatic defrost, front venting, and an automatic ice maker. Also, door swing is more limited on this model than many refrigerators: normal door swing is 130 degrees on most units, but the 511 is an exception (reduced swing). For exact installation clearances and swing details, use the installation guide.

If you use the freezer daily, the bending and lifting can be the biggest downside. If you use the refrigerator section more often, the bottom-freezer layout can still be a great fit, especially when you set up freezer bins to keep items visible.

Last updated: February 2026

Common Sub-Zero refrigerator problems include warm temperatures (or temperature swings), ice maker not making ice, water leaks or puddles, noisy fan operation, and doors not sealing or closing correctly. On the Sub-Zero 511, many issues trace back to airflow, door sealing, condenser cleanliness, or control settings.

• Refrigerator or freezer too warm: dirty condenser, door left ajar, control set too warm, or unit in/coming out of defrost.
• Temperature fluctuates: normal small swings happen; larger swings often point to door sealing issues or airflow restrictions.
• Ice maker not working: ice maker switch off (if equipped), freezer not cold enough, or water supply issue.
• Water on the floor: defrost drain issue, door not sealing, or water line/valve problem (if plumbed).
• Noisy operation: evaporator fan or airflow obstruction; some compressor and fan noise is normal.

Use these checks first because they solve many “common problems” without replacing parts:

• Confirm the unit has power and the master power switch is on.
• Verify temperature controls are set correctly; many Sub-Zero units are preset around 38°F fresh food and 0°F freezer.
• Clean the condenser area; restricted airflow commonly causes warming.
• Check for doors left open and food packages blocking the door from closing.
• If the unit just stopped, wait about 30 minutes in case it is in a defrost cycle.

Many Sub-Zero controls use a dial where #1 is warmest and #10 is coldest. Use the owner's manual for the exact control location and adjustment guidance for your 511.

Sub-Zero units are designed for precise, independent temperature control (often with dual refrigeration systems). Small setup or airflow problems can create big performance symptoms, so basic checks save time and protect food quality.

For fan-related symptoms, we also use the steps in how to fix your evaporator cooling fan.

Last updated: February 2026

Yes. Fixing a Sub-Zero refrigerator like model 511 is worth it because built-in Sub-Zero units are designed for long service life, and many common problems (airflow, defrost, door sealing, controls) are repairable without replacing the cabinet or built-in installation.

Use these checkpoints before you approve parts or labor:

• Cooling stability: after basic checks, the fresh-food section should run near 38°F and the freezer near 0°F (typical Sub-Zero targets).
• Airflow: you should hear/feel the evaporator fan running; blocked vents or heavy frost point to a fixable airflow issue.
• Defrost symptoms: thick frost on the evaporator cover or warming after a few days often indicates a defrost problem.
• Door sealing: gaps, torn gaskets, or doors out of alignment cause warm temps, sweating, and longer run times.
• Cabinet condition: if the liner, drawers, and door structure are solid, repair usually makes sense.

The Sub-Zero literature commonly references these operating expectations:

• Temperature controls are typically set to maintain about 38°F (refrigerator) and 0°F (freezer).
• The unit uses an automatic defrost system.

For model-specific operating details and control settings, use the 511 owner's manual.

If you are deciding based on coverage, rely on your warranty packet and purchase/installation dates. In refrigeration terms, the sealed system includes the compressor and refrigerant-loop components (such as condenser, evaporator, and connecting tubing); repairs in this area are higher-cost but still worthwhile when the built-in cabinet is in excellent shape.

• Confirm temperature control settings and allow 24 hours to stabilize.
• Check for frost buildup that restricts airflow.
• Verify the evaporator fan runs and vents are not blocked.
• Inspect door alignment and gasket contact all the way around.

For step-by-step fan troubleshooting, use how to fix your evaporator cooling fan.

A Sub-Zero built-in refrigerator is integrated into cabinetry; repairing cooling, airflow, or sealing problems preserves the built-in fit and avoids the cost and disruption of replacement.

Last updated: February 2026
