Kenmore 10651789413 refrigerator Parts

Most Kenmore Elite refrigerators typically last 10 to 15 years with normal household use. For a Kenmore refrigerator like model 10651789413, consistent maintenance (cleaning condenser coils, keeping door gaskets sealing, and using the right water filter) is what most often determines whether you land closer to 10 years or closer to 15.

Typical lifespan and what affects it

A refrigerator’s service life is mainly driven by compressor workload, airflow, and how well the doors seal.

• Condenser coil cleanliness: dusty coils make the compressor run hotter and longer
• Door gasket condition: air leaks cause temperature swings and longer run times
• Ice maker and dispenser use: heavy use increases wear on valves, motors, and the ice maker
• Room temperature and ventilation: tight cabinets and hot garages shorten life
• Power quality: frequent outages or surges can stress control boards and compressors

Quick maintenance checklist (best ROI)

These steps help a Kenmore Elite refrigerator reach its normal lifespan.

• Vacuum or brush condenser coils regularly
• Confirm doors close easily and evenly; adjust leveling if needed per the 10651789413 installation guide
• Inspect and clean door gaskets; replace if torn or hardened
• Replace the water filter on schedule; use the correct Kenmore refrigerator water filter 9081
• Keep vents inside the fresh food and freezer sections unblocked

Repair vs. replace: a simple decision guide

Situation	What it usually means	Typical next step
Warm temps plus loud running	airflow or sealed-system strain	clean coils, check fans, then diagnose
Water/ice issues only	valve, filter, or ice maker wear	service dispenser/ice system
Major sealed-system failure	high-cost repair category	compare repair cost to replacement

Why it matters

Knowing the typical 10 to 15 year lifespan helps you plan: if your unit is near that range, investing in maintenance and smaller parts can prevent expensive compressor strain and extend reliable cooling.

Last updated: January 2026

To identify your Kenmore refrigerator model, find the model and serial tag on the cabinet frame or an interior wall, then match that full model number exactly (for this page, it is 10651789413). The tag is usually inside the fresh food section or freezer, not on removable drawers.

Where to look on Kenmore 10651789413

Check these common locations first:

• Inside the refrigerator compartment on a side wall (often near the top)
• Inside the refrigerator compartment behind or near the crisper drawers
• On the cabinet frame behind the door (door-open area, near the hinge side)
• Inside the freezer compartment on a side wall or back wall
• Behind the lower kick plate or base grille area (less common, but possible)

If you are already removing the base grille for leveling or door alignment, the 10651789413 installation guide can help you do that safely and correctly.

What to write down (and why)

Record the information exactly as shown on the tag:

• Model number (example format: 106.51789413 or 10651789413)
• Serial number (helps date the unit and match revisions)
• Type (sometimes listed; helps confirm platform)

Quick check: model number formatting

What you see on the tag	What it means for parts lookup
106.51789413	Same model as 10651789413; punctuation may vary
10651789413	Use this exact number when searching parts
10651789413A (or extra suffix)	Use the full version shown; suffix can matter

Why it matters

The model number controls which parts fit your refrigerator, including items like the ice maker, door bins, and water system components. For example, the correct replacement water filter for this model is the Kenmore refrigerator water filter 9081.

Last updated: January 2026

Yes. For Kenmore model 10651789413, the most reliable reset is a hard reset: disconnect power for about 5 to 10 minutes, then restore power and allow the controls a few minutes to reboot. Use the steps in the 10651789413 owner's manual for any model-specific button resets.

Reset options that work most often

• Hard reset (recommended): Unplug the refrigerator (or switch off the breaker) for 5 to 10 minutes, then power it back on.
• Control-panel reset: Some Kenmore Elite units support a press-and-hold reset for items like the filter indicator; follow the exact key sequence in the 10651789413 owner's manual.
• After a power outage: Restore power, wait 5 minutes, then confirm cooling and dispenser functions return to normal.

What to check after you reset

• Confirm the interior lights and display respond when doors open and close.
• Set temperatures to typical targets: 37°F fresh food and 0°F freezer.
• Listen for the evaporator fan and compressor to run after the restart.
• If ice or water is acting up, verify the household water supply is on and the filter is seated.

Quick troubleshooting table

Symptom after reset	Most common cause	What we recommend
Display comes back but not cooling	Control not fully rebooted or airflow issue	Wait 15 to 30 minutes; confirm vents are not blocked
Filter light stays on	Filter indicator not reset	Use the manual’s filter reset steps; replace filter if due
No ice or water	Water supply, filter, or valve issue	Check filter seating; inspect supply line; consider testing the inlet valve

Parts that commonly relate to “reset” complaints

A reset can clear a control glitch, but it will not fix a failed component. These parts are commonly involved when symptoms return right after a reset:

• Kenmore refrigerator water filter 9081 (clogged filter can reduce water flow)
• Refrigerator water inlet valve WPW10341320 (can affect ice maker and dispenser fill)
• Kenmore refrigerator ice maker W10873791 (if the ice maker itself is not cycling)

Why it matters

Resetting clears temporary control-board logic issues and restores normal operation after brief power interruptions. If the same symptom returns quickly, it usually points to a water supply problem, airflow restriction, or a failing part rather than a setting.

Last updated: January 2026

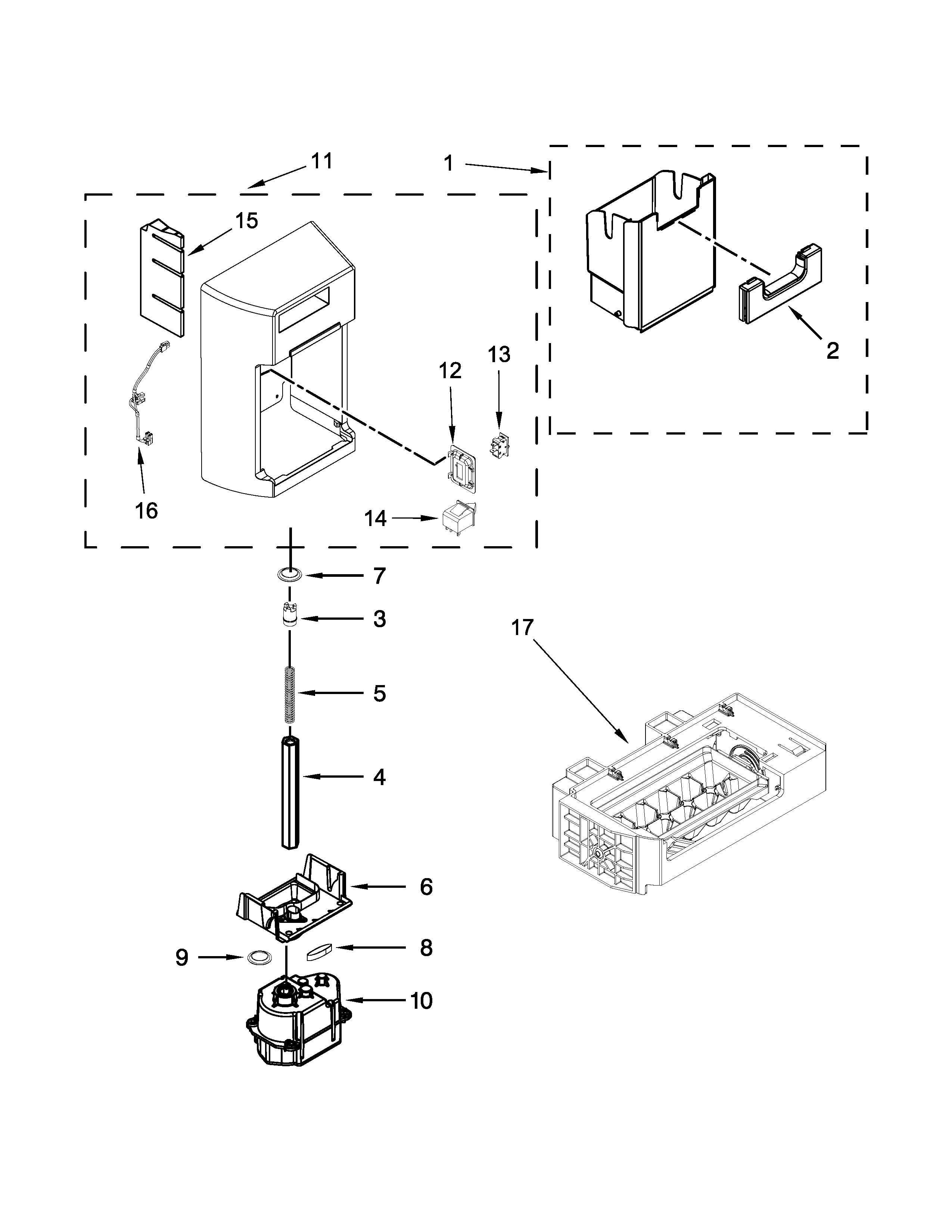

Yes, replacing the ice maker is usually worth it on a Kenmore refrigerator model 10651789413 when the refrigerator is otherwise cooling well and you rely on ice; an ice maker replacement is typically far less expensive than replacing the entire refrigerator. Use the 10651789413 installation guide for safe handling steps if you need to remove bins or doors for access.

When replacing the ice maker makes sense

• The refrigerator and freezer temperatures are stable (food stays cold and frozen).
• The ice maker stopped producing ice but the water dispenser still works.
• You see mechanical issues (jammed ejector, cracked mold, stripped gears).
• The repair is limited to the ice maker assembly, not sealed-system cooling.
• You want a straightforward DIY repair with a known-fit part.

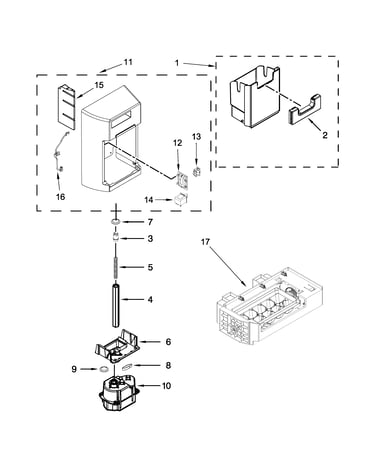

A common replacement option for this model is the Kenmore refrigerator ice maker W10873791.

When it may not be worth it

• The freezer is warm, frosting heavily, or not recovering temperature after door openings.
• You have repeated water leaks, slow fill, or no fill that points to a supply or valve issue.
• The refrigerator is near end-of-life (most refrigerators last 13 years).
• Multiple high-cost parts are failing at the same time.

Quick cost and effort comparison

Option	Typical cost	Typical effort	Best when
Replace ice maker	Low to moderate	Moderate DIY	Cooling is good; ice maker is the only problem
Diagnose water supply/valve	Low to moderate	Moderate DIY	No fill, small cubes, hollow cubes
Replace refrigerator	High	High	Cooling issues or multiple major failures

Why it matters

A failing ice maker can look like a “big” problem, but it is often isolated to the ice maker module or water delivery. Fixing the right component first helps restore ice production without overspending.

Related parts that can affect ice production

• Refrigerator water inlet valve WPW10341320 (no fill, slow fill, small cubes)
• Kenmore refrigerator water filter 9081 (restricted flow, slow dispensing)
• Refrigerator evaporator fan motor WP2315549 (poor freezer cooling can stop ice)

Last updated: January 2026
