How to remove bottom grille on GE refrigerator?
On the GE GYE22HSKGSS bottom-mount refrigerator, the bottom grille (base grille/toe grille) typically comes off by releasing its retaining clips or removing a small number of screws, then pulling the grille straight out from the cabinet. Use gentle, even pressure to avoid cracking the plastic.
Steps to remove the bottom grille
- Unplug the refrigerator or switch off power at the breaker if you will be working near wiring.
- Pull the refrigerator straight out a few inches if you need more access; avoid rolling over the power cord or water line.
- Look along the top edge and corners of the grille for fasteners (often Phillips screws) or clip tabs.
- If screws are present, remove them and set them aside.
- If clips are present, press the clip tabs inward (or upward, depending on the clip style) while pulling the grille forward.
- Pull the grille straight out; do not twist it.
Reinstalling the grille
Reinstall is usually the reverse: align the grille with the mounting slots, push it in until the clips snap (or reinstall screws), then confirm it sits flush.
| What you see | What to do | What it means |
|---|---|---|
| Phillips screws at the ends | Remove screws first | Grille is screw-retained |
| No screws, grille feels “snapped in” | Release clip tabs, pull forward | Grille is clip-retained |
| Grille won’t budge | Check for hidden screws behind end caps | A fastener is still engaged |
Why it matters

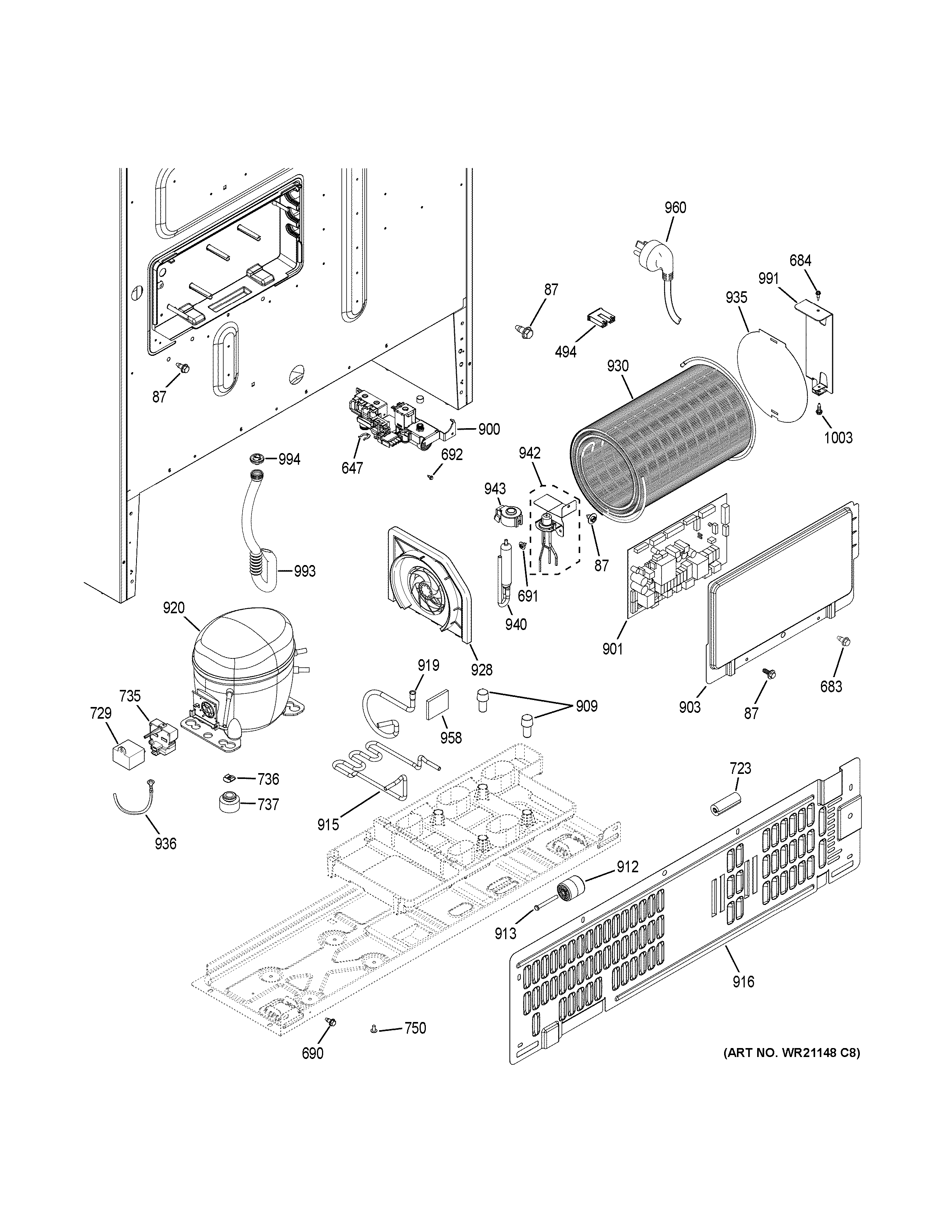

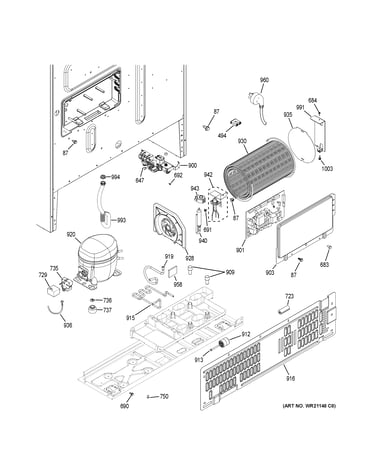

We remove the bottom grille to access cleaning areas and service zones (like the condenser area on many refrigerators). Pulling evenly and moving the refrigerator straight out helps prevent floor damage and reduces the chance of breaking the grille.
For model-specific diagrams and any fastener locations called out by GE, use the GYE22HSKGSS owner’s manual.
Last updated: January 2026

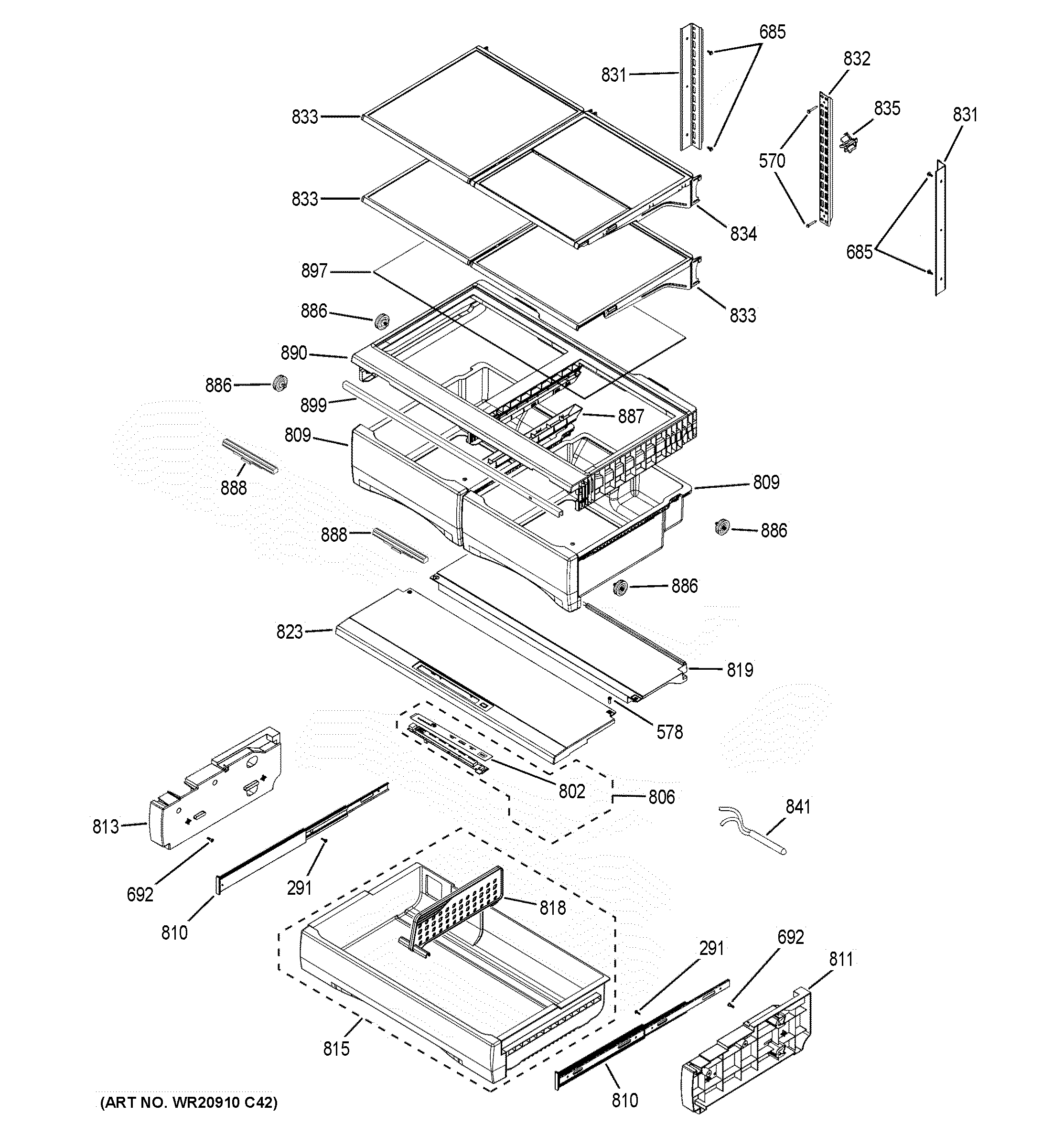

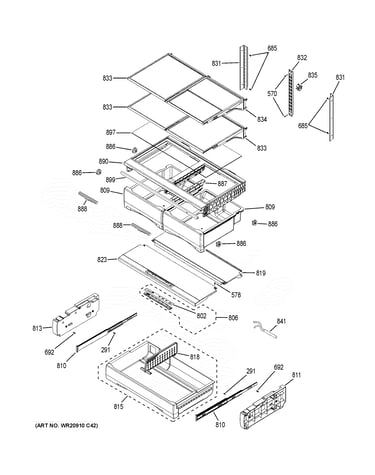

How to remove the bottom drawer of a GE refrigerator?
To remove the bottom drawer on your GE GYE22HSKGSS bottom-mount refrigerator, pull the drawer out to the stop position, then lift the front of the drawer up and out. This releases the drawer from the slide rails so you can remove it safely (see the GYE22HSKGSS owner's manual).
Steps to remove and reinstall the drawer
Remove
- Open the drawer and pull it straight out until it stops.
- Support the drawer with both hands.
- Lift the front of the drawer up.
- Pull the drawer out and away from the slides.
- Set the drawer on a protected surface to avoid scratching.
Reinstall
- Pull the left and right slides out until fully extended.
- Set the drawer back onto the slides (rear first).
- Rotate the drawer front down to seat it on the slide rails.
- Push the drawer in to the fully closed position.
Which “bottom drawer” are you removing?
On many GE bottom-mount and French door refrigerators, customers mean one of these:
| Drawer type | Where it is | Typical removal method |
|---|---|---|

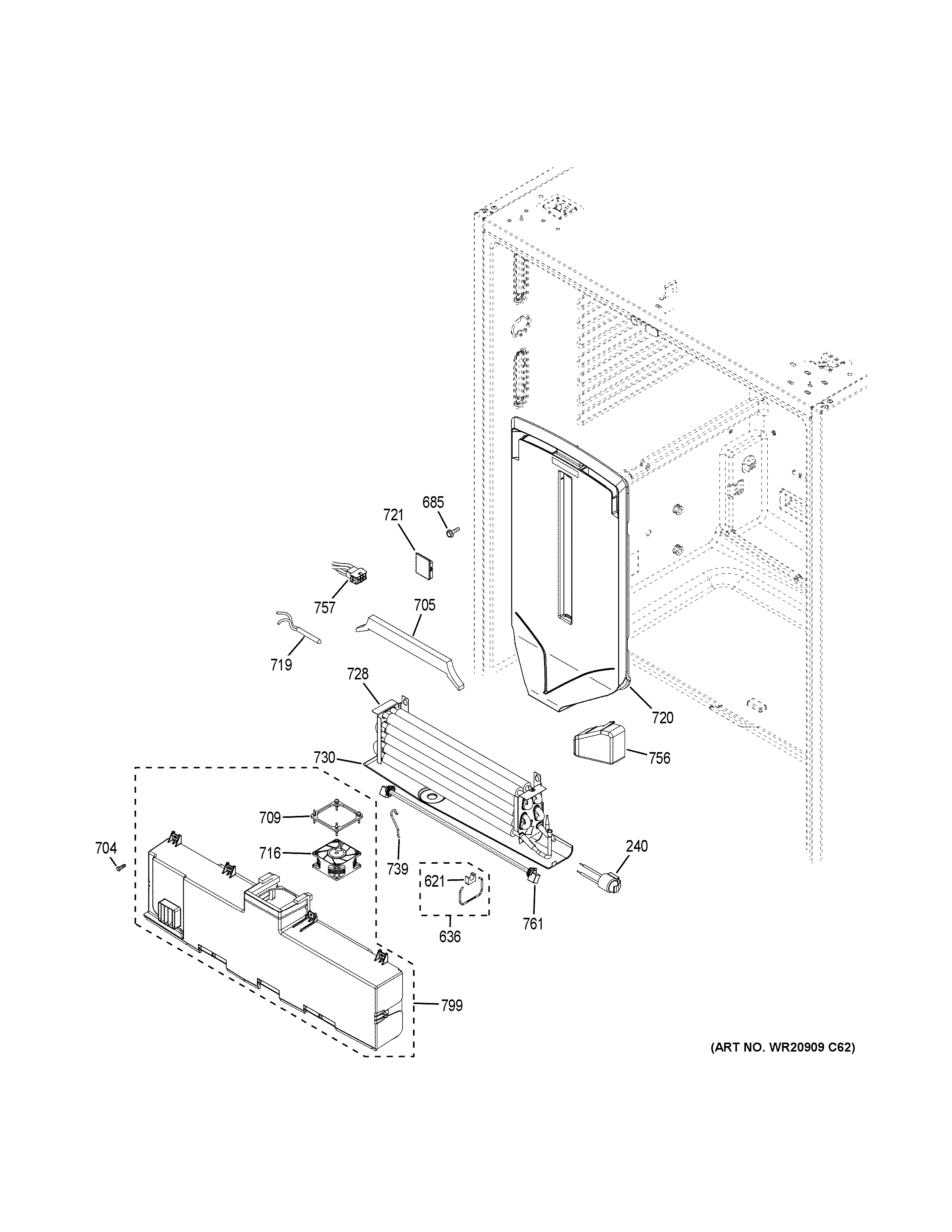

| Temperature controlled drawer | Fresh food section | Pull to stop, lift front up and out |

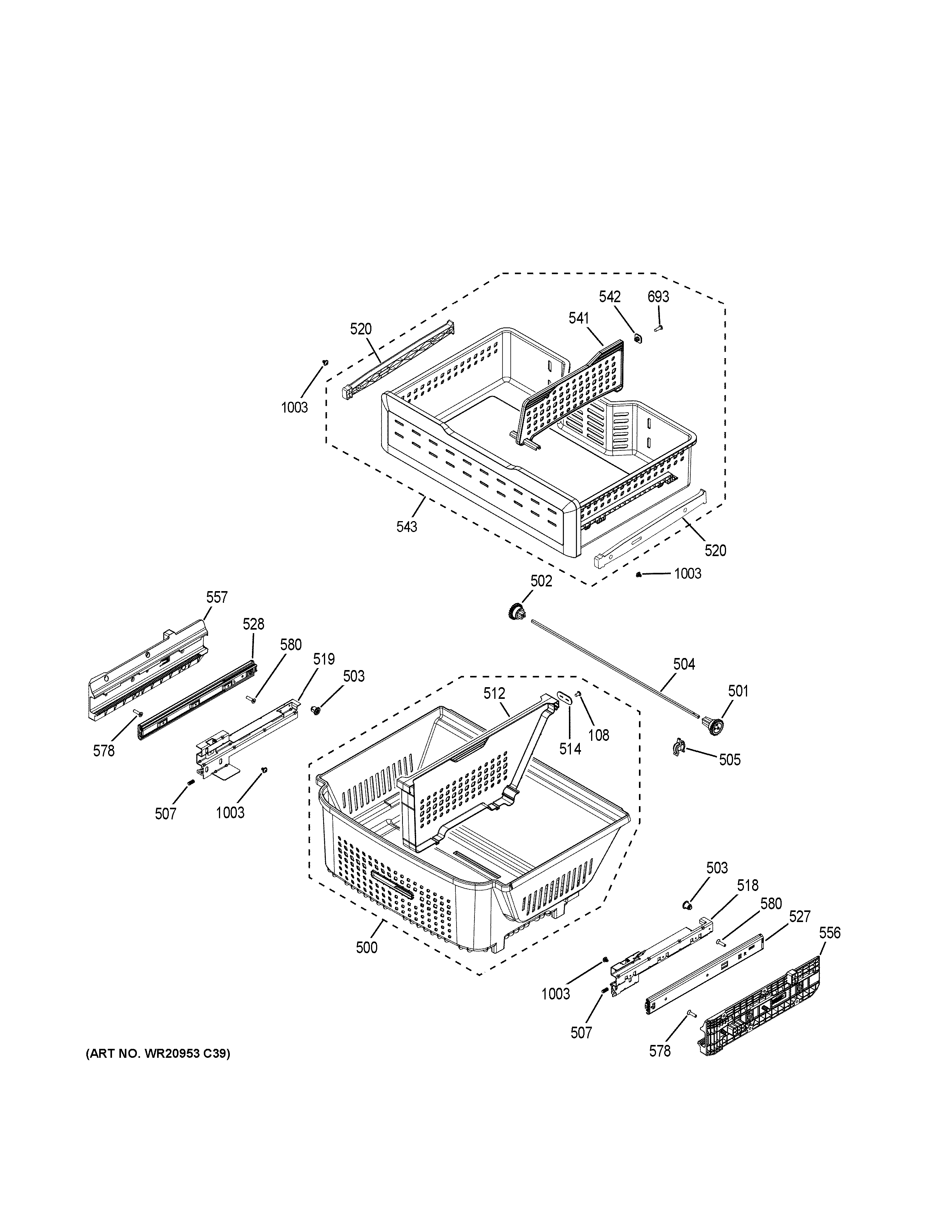

| Freezer upper drawer/basket | Freezer section | Fully extend, lift up and out |

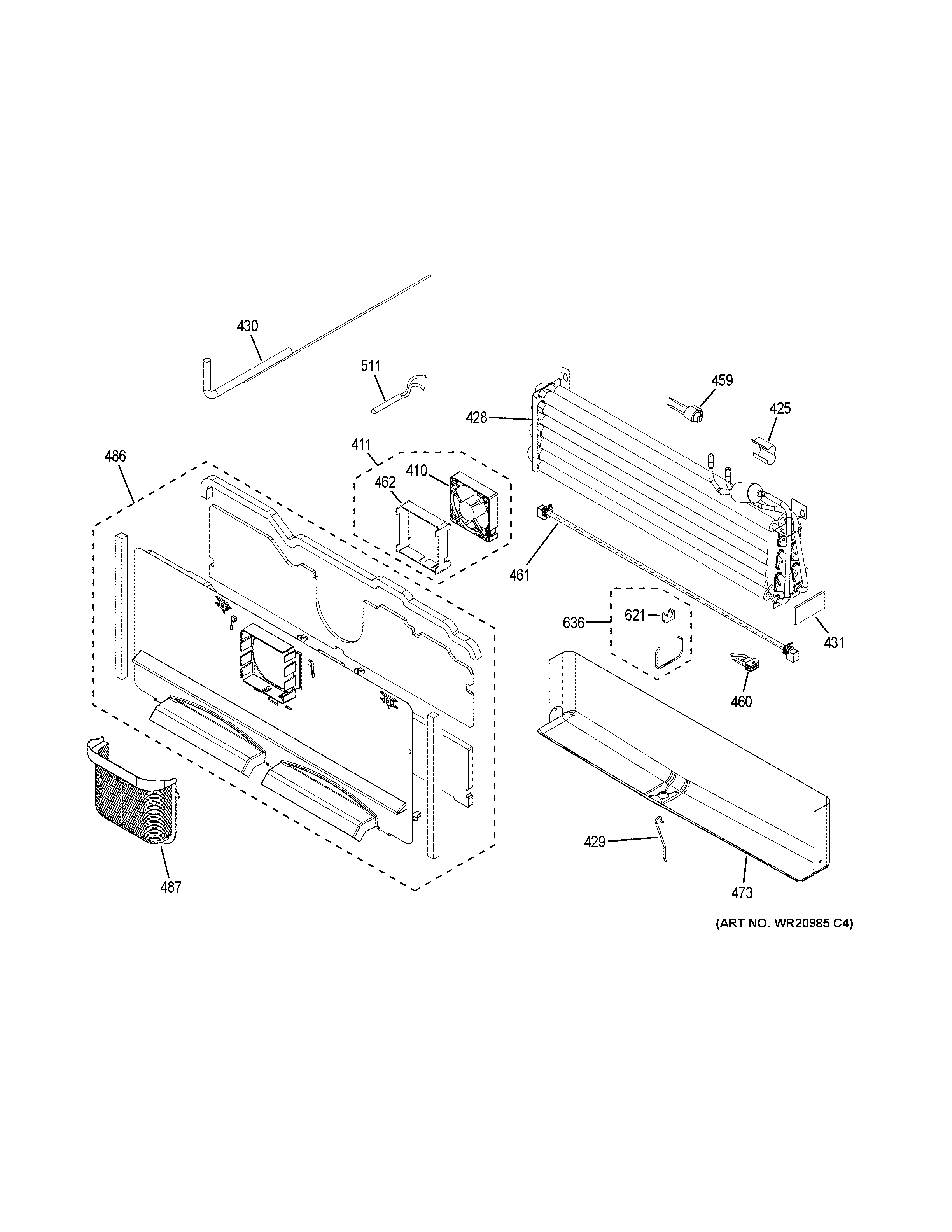

If you are removing the freezer drawer/basket assembly, follow the freezer basket removal steps in the GYE22HSKGSS owner's manual.
Common issues and quick fixes
- Drawer won’t lift out: pull it all the way to the stop first.
- Drawer feels stuck: check for food packages or ice blocking the rails.
- Drawer won’t close after reinstall: make sure both slides are equally extended and the drawer is seated on both sides.
- Divider in the drawer is in the way: remove the divider first, then remove the drawer.
Why it matters
Removing the drawer the right way prevents bent slide rails, cracked plastic, and poor door sealing that can lead to temperature swings in the refrigerator or freezer.
Last updated: January 2026
What is the most common problem with GE refrigerators?
Cooling problems are the most common issue we see with GE refrigerators, including the GE GYE22HSKGSS. Symptoms usually show up as warm fresh food temperatures, soft ice, or heavy frost; the root cause is often airflow, defrost, or sealed-system related, but simple maintenance checks come first (see the GYE22HSKGSS owner's manual).
Most common causes (from easiest to check to more involved)
- Dirty condenser coils causing poor heat release and higher cabinet temps
- Door gasket leaks letting warm, humid air in (frost, sweating, temperature swings)
- Evaporator fan or airflow blockage (cold spots, warm sections)
- Defrost system trouble (frosted evaporator, weak cooling)
- Control or sensor issues (erratic temps, intermittent cooling)
- Sealed system problems (compressor, evaporator, condenser, or tubing)
Quick symptom-to-cause guide
| What you notice | Most likely area to check | What to do first |
|---|---|---|
| Fresh food warm, freezer OK | Airflow/damper, evaporator fan | Make sure vents are not blocked; listen for fan |
| Frost buildup on back wall/freezer | Defrost system | Defrost fully, then monitor return of frost |
| Both sections warm | Condenser coils, compressor, control | Clean coils; verify fans run |
| Door alarm beeping | Door not sealing/ajar | Confirm doors close fully and bins are seated |
What we recommend you do first
- Confirm temperature settings and give the unit 24 hours to stabilize after changes
- Check for blocked vents (packages against air returns in fresh food or freezer)
- Clean condenser coils and make sure the unit has proper airflow around it
- Inspect door seals for gaps, tears, or debris; clean the gasket sealing surface
- If the door alarm is sounding, follow how to reset the door alarm on a GE refrigerator
- If the display shows a fault, use GE refrigerator error codes to narrow the system involved
Why it matters
Cooling issues can spoil food quickly and can also cause secondary problems like excess frost, water leaks from defrost drain icing, and overworking the compressor. Catching airflow or gasket problems early often prevents bigger repairs.
Last updated: January 2026
