GE
Upright Freezer

Model #ZIFS36NMDLH GE freezer

Here are the diagrams and repair parts for GE ZIFS36NMDLH freezer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 175 parts

    Refrigerator Light Bulb

    #8936

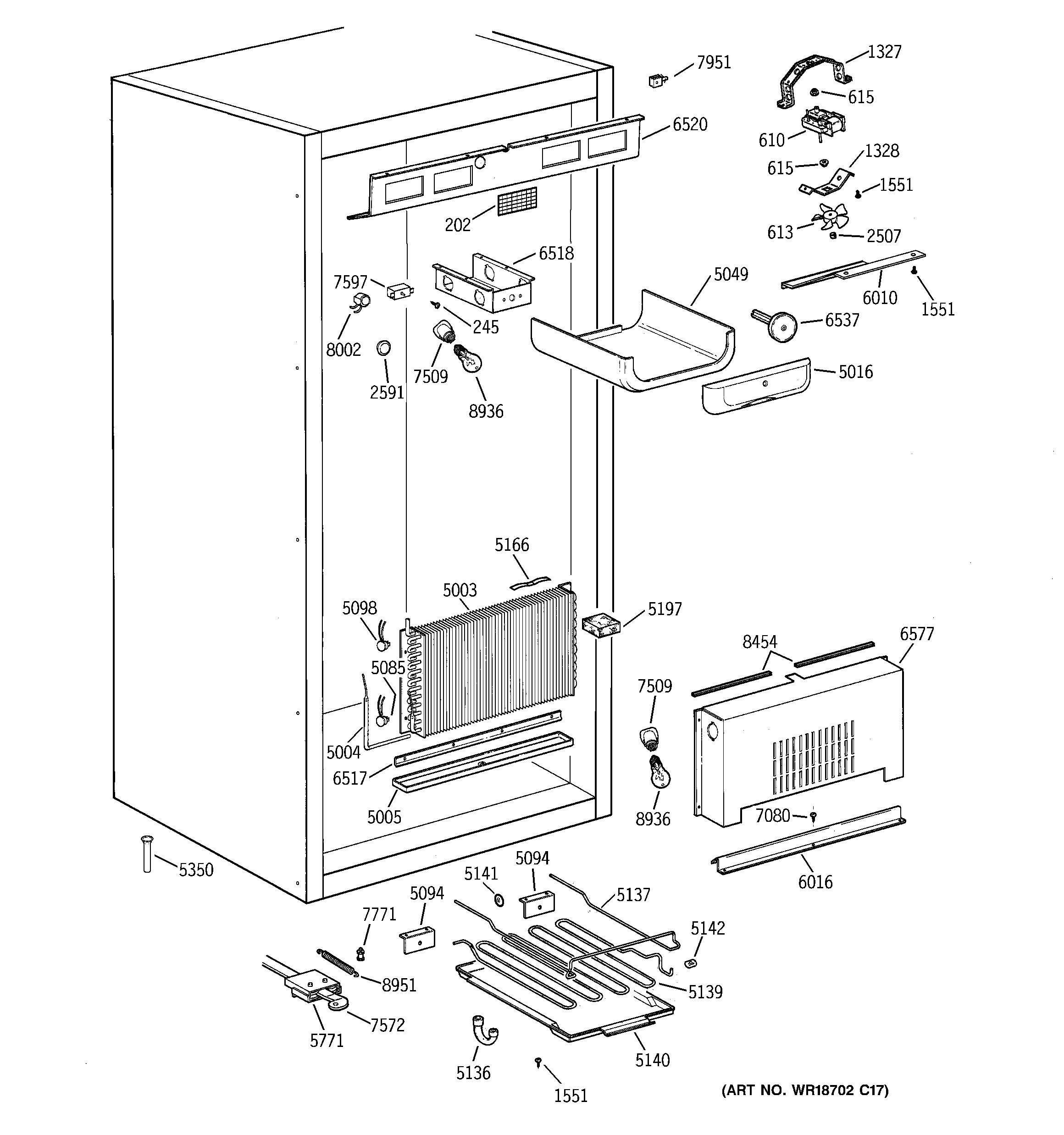

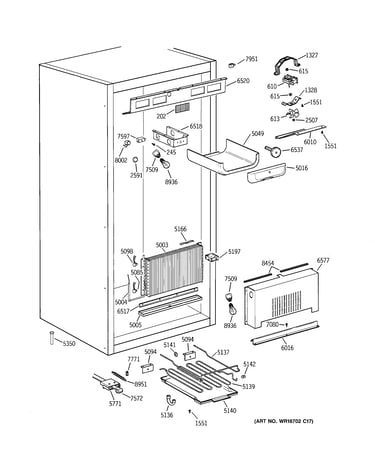

    Cabinet parts (1) Diagram

    $12.96

    In Stock

    Refrigerator Ice Bin

    #5075

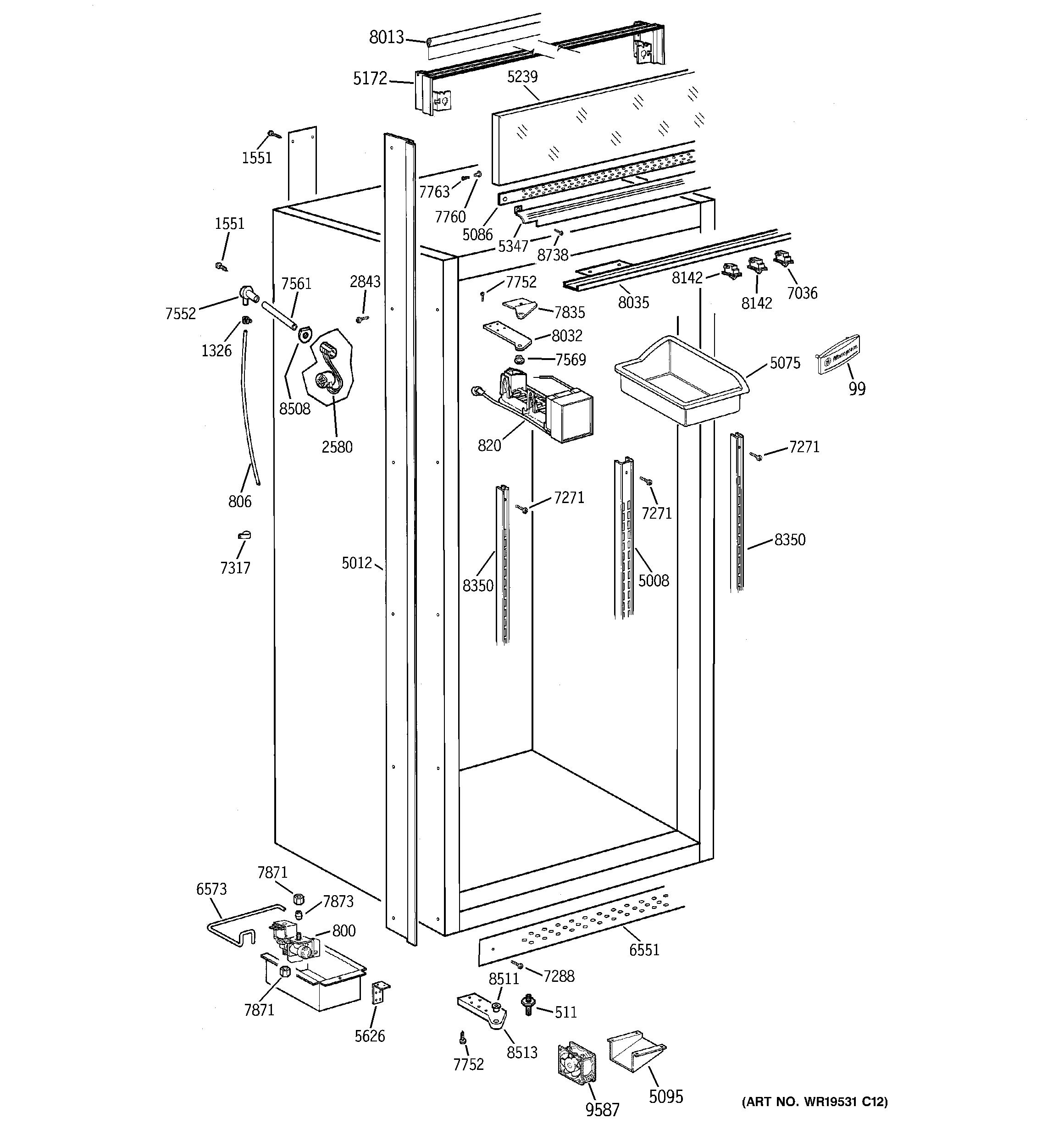

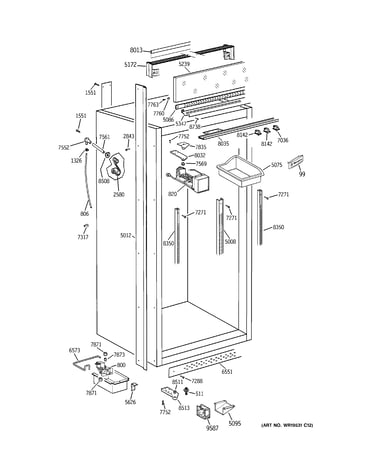

    Cabinet parts (2) Diagram

    Refrigerator ice bin

    Part #WR32X10075
    $58.20

    In Stock

    Refrigerator Door Bin, Right

    #5406

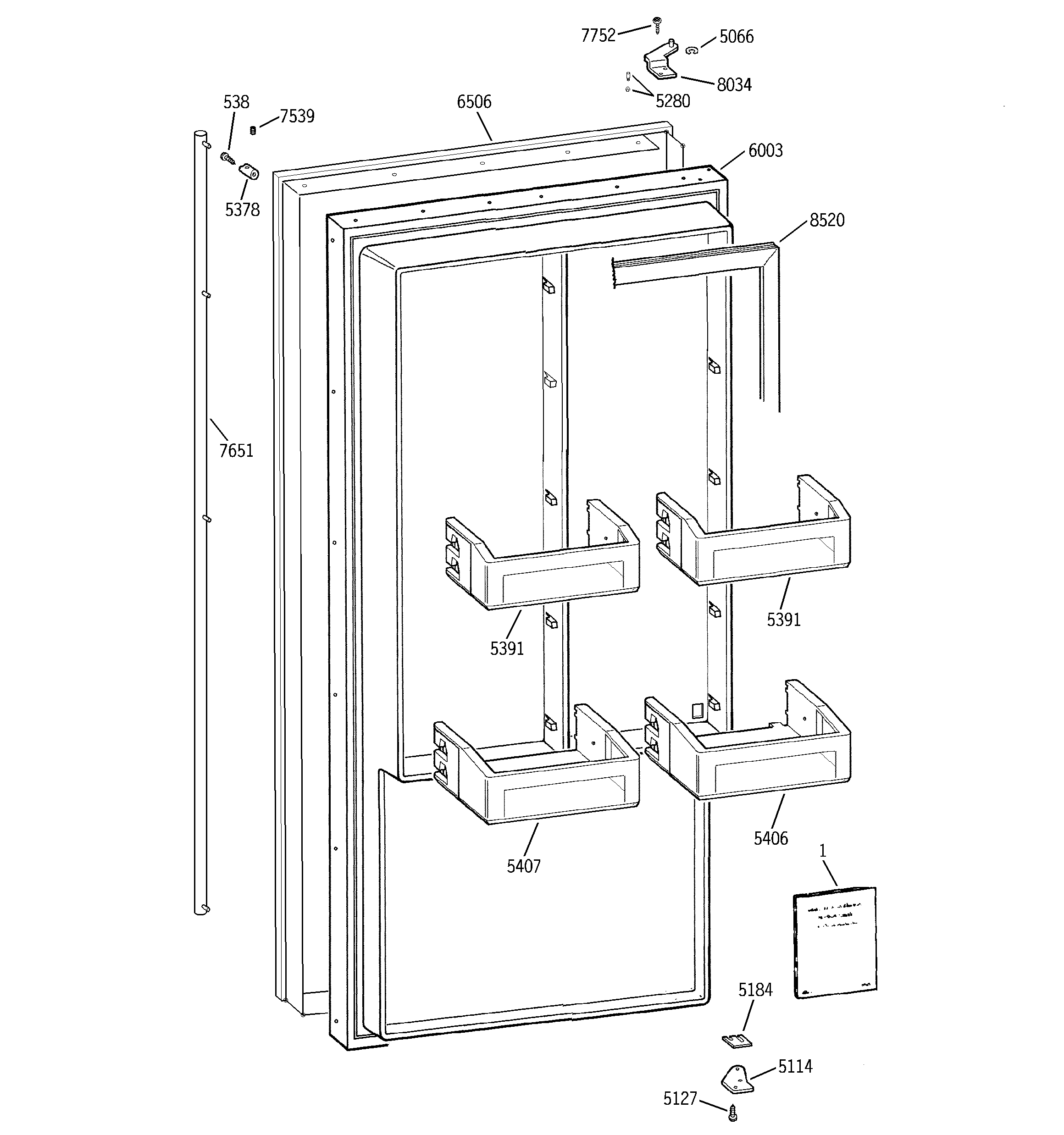

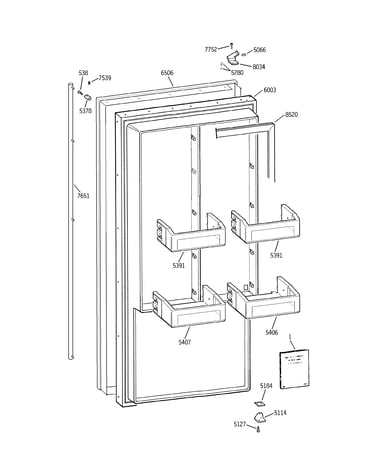

    Freezer door Diagram

    $122.70

    In Stock

    Freezer Evaporator Cover

    #6577

    Cabinet parts (1) Diagram

    Freezer evaporator cover

    Part #WR74X10048
    $68.12

    In Stock

    Refrigerator Evaporator

    #5003

    Cabinet parts (1) Diagram

    Refrigerator evaporator

    Part #WR85X10017
    $286.28

    In Stock

    Freezer Evaporator Support

    #6016

    Cabinet parts (1) Diagram

    $19.79

    In Stock

    Refrigerator Crisper Drawer Lid

    #5146

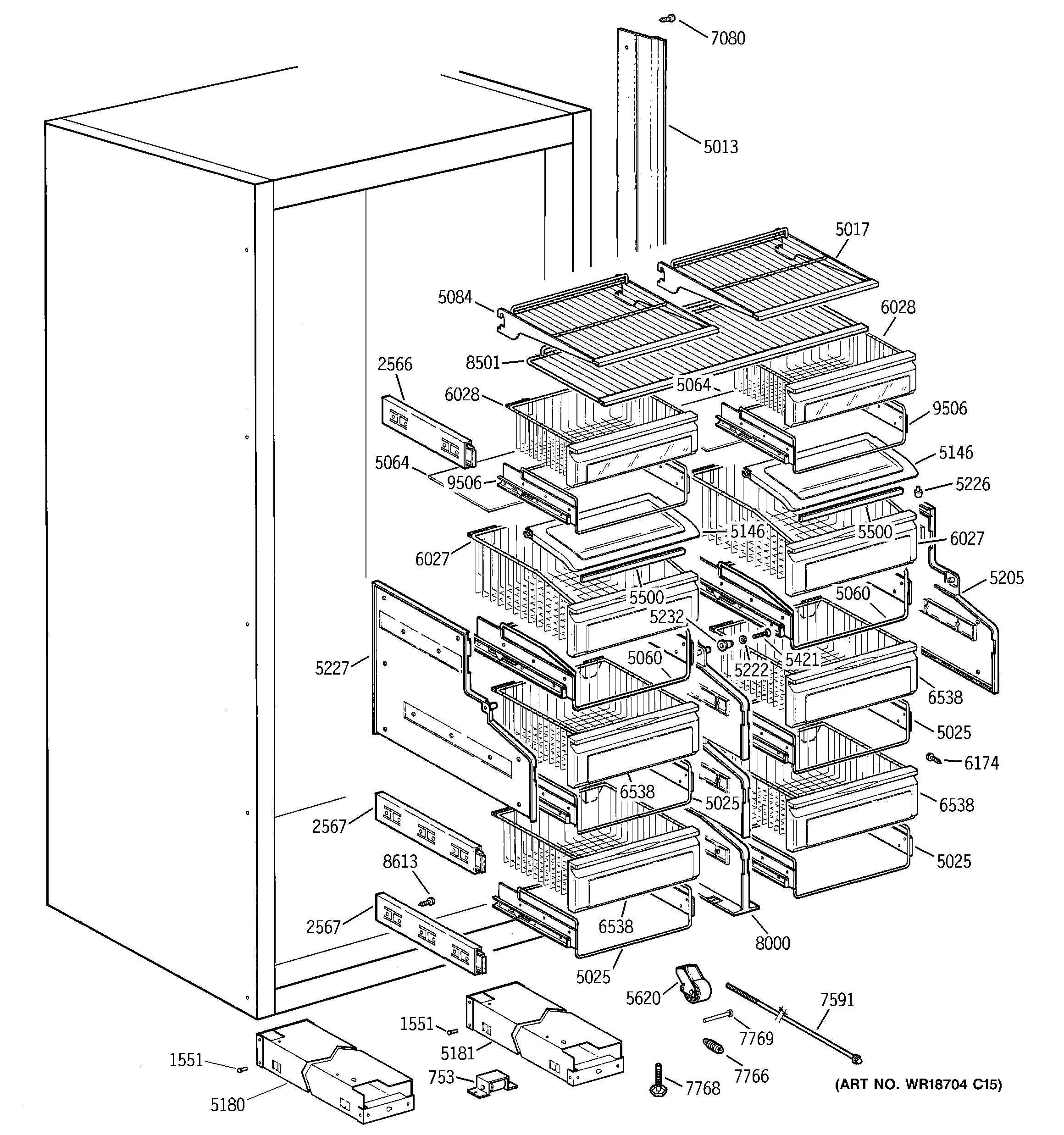

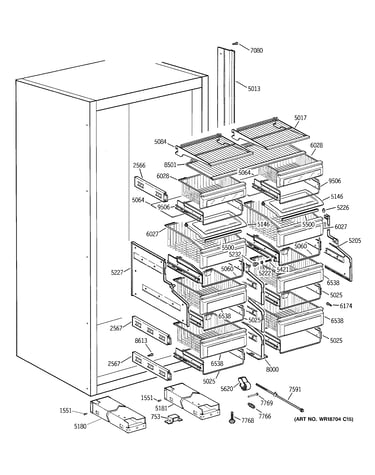

    Shelves & drawers Diagram

    $95.04

    In Stock

    Refrigerator Ice Maker Fill Tube and Heater

    #2580

    Cabinet parts (2) Diagram

    $61.63

    In Stock

    Refrigerator Screw

    #6174

    Shelves & drawers Diagram

    Refrigerator screw

    Part #WR01X10449
    This item is not returnable
    $4.35

    In Stock

    Cond Side Ba

    #8129

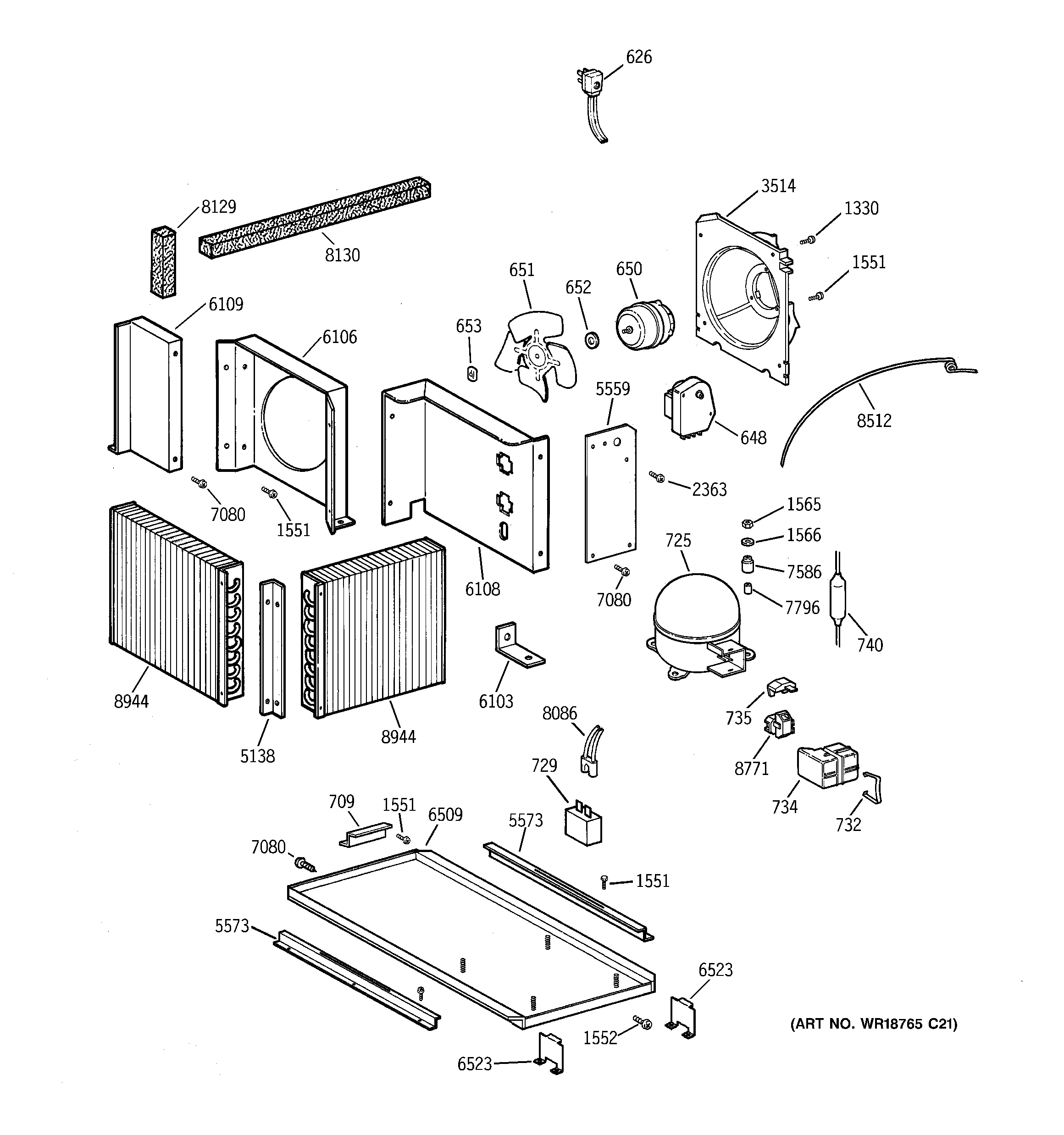

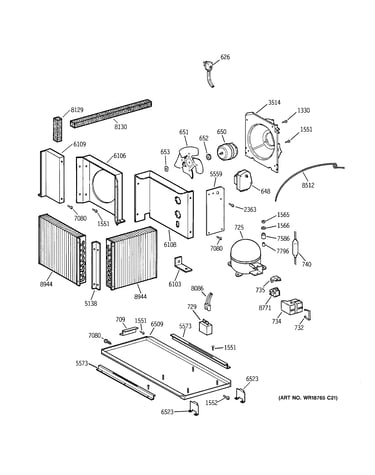

    Unit parts Diagram

    Cond side ba

    Part #WR14X10042
    $12.34

    In Stock
