KitchenAid KSSS36DAW04 built-in refrigerator

KitchenAid KSSS36DAW04 built-in refrigerator Parts

Here are the diagrams and repair parts for KitchenAid KSSS36DAW04 built-in refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

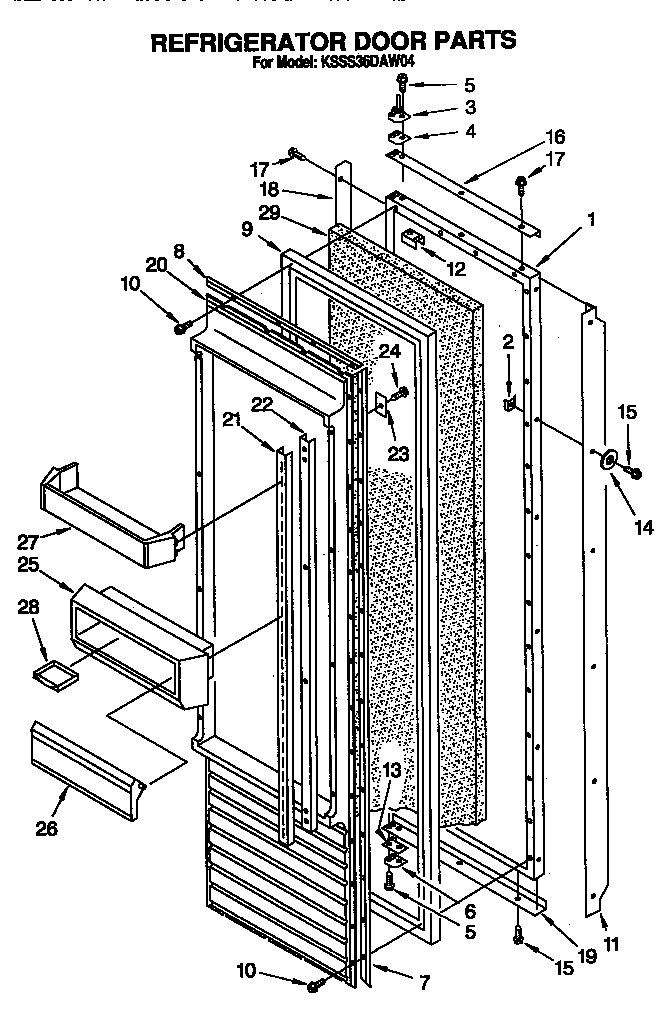

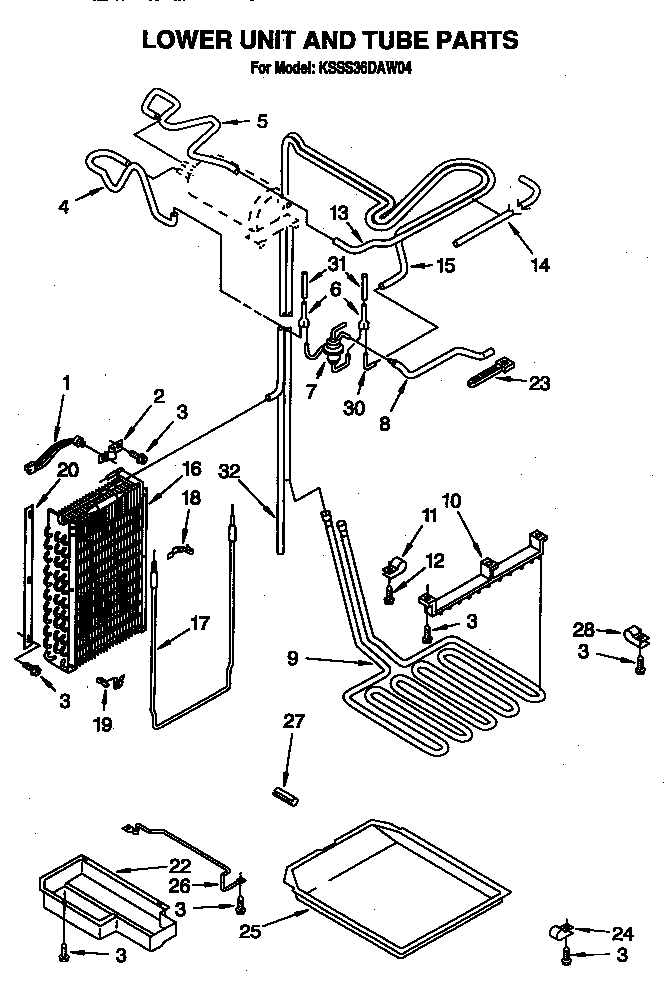

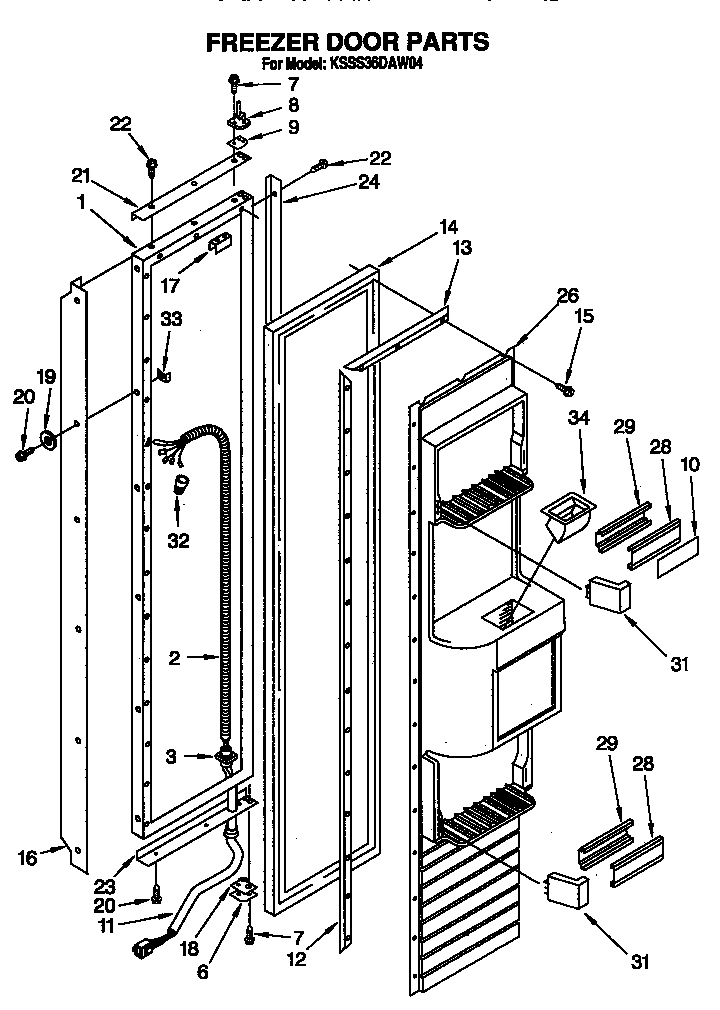

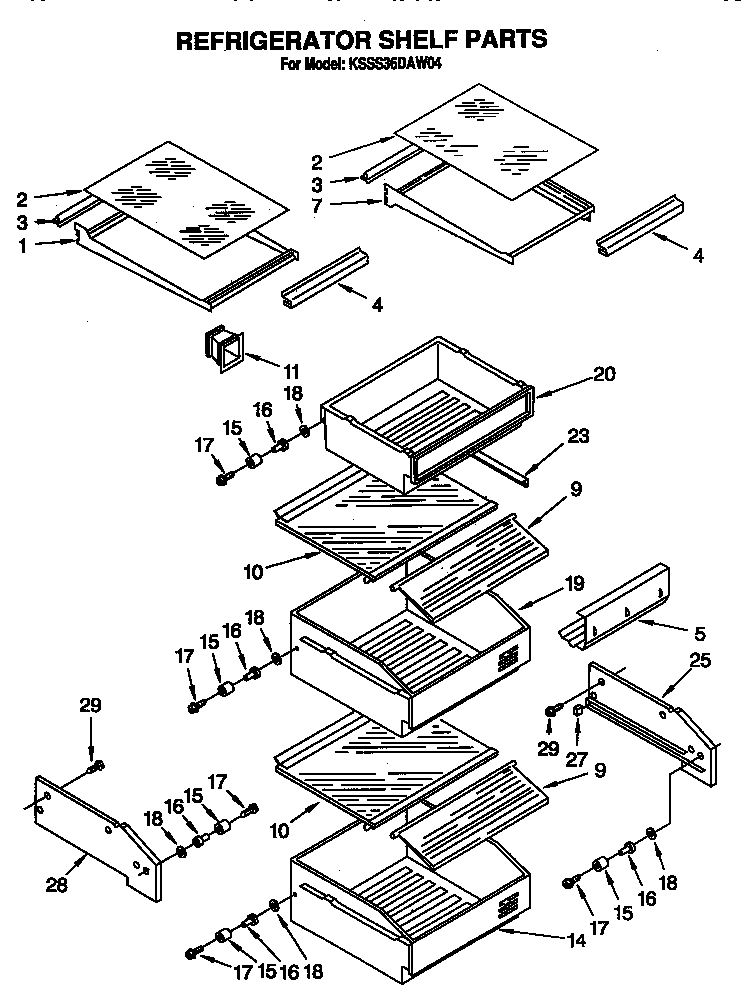

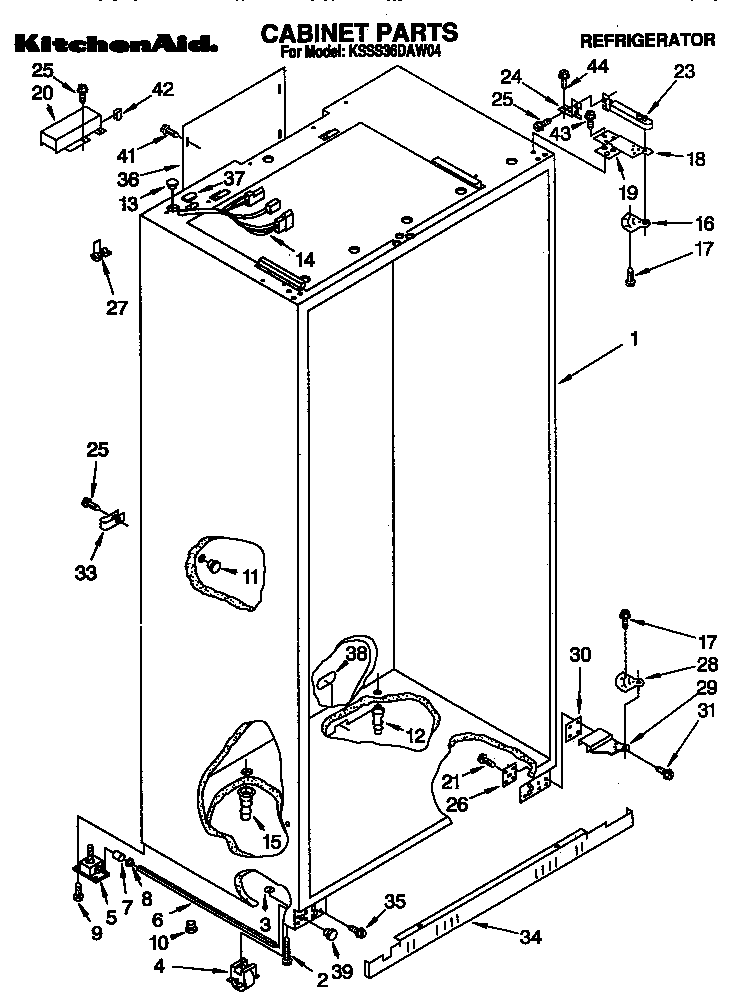

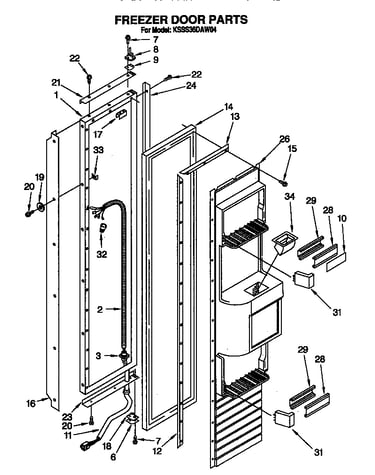

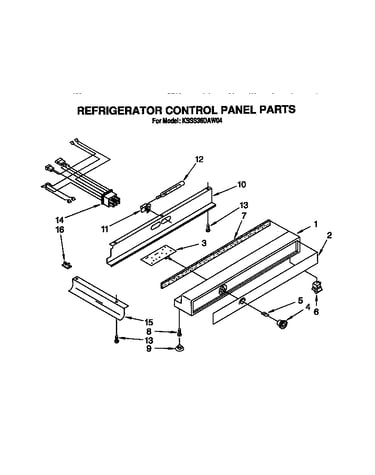

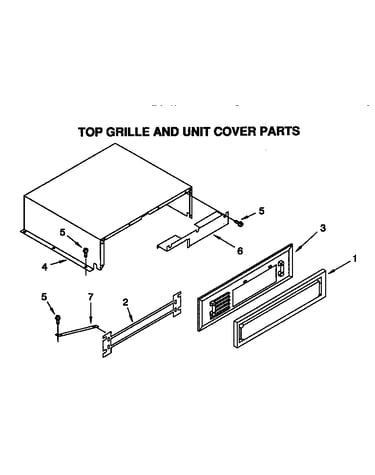

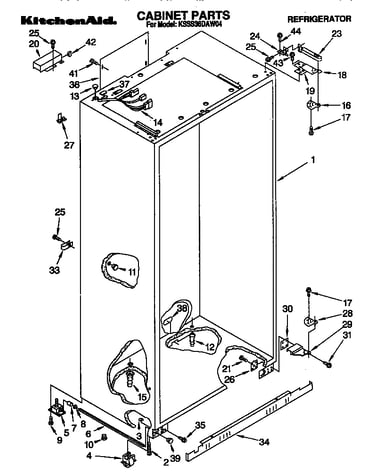

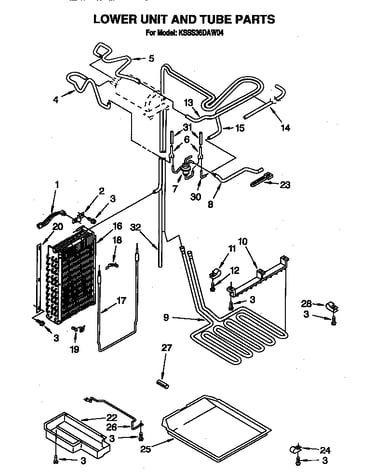

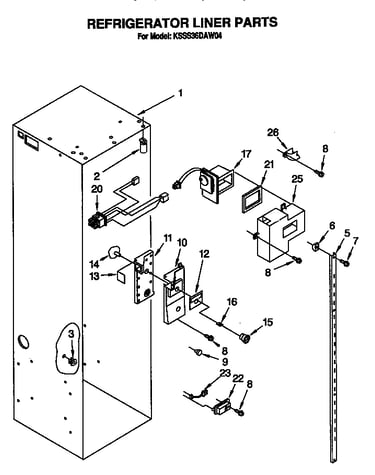

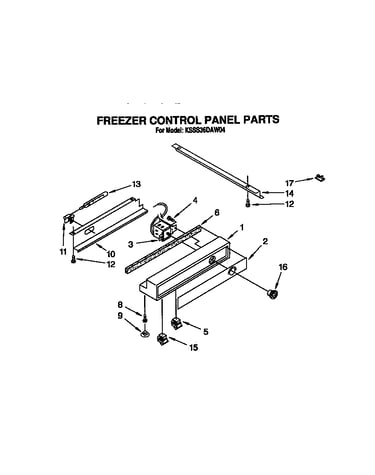

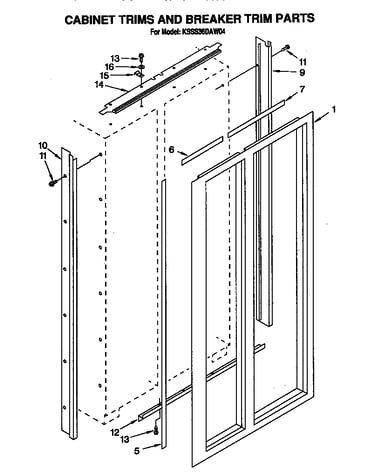

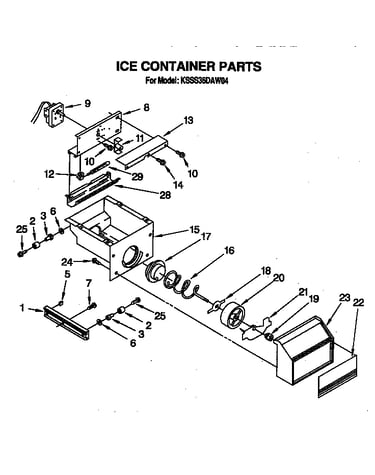

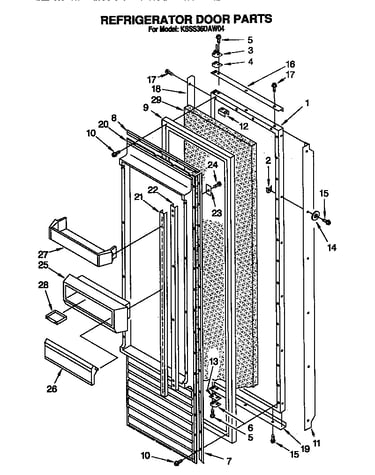

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KSSS36DAW04 Refrigerators

  • Refrigerator Uv Filter Dryer for KitchenAid KSSS36DAW04 - Part WPW10143759

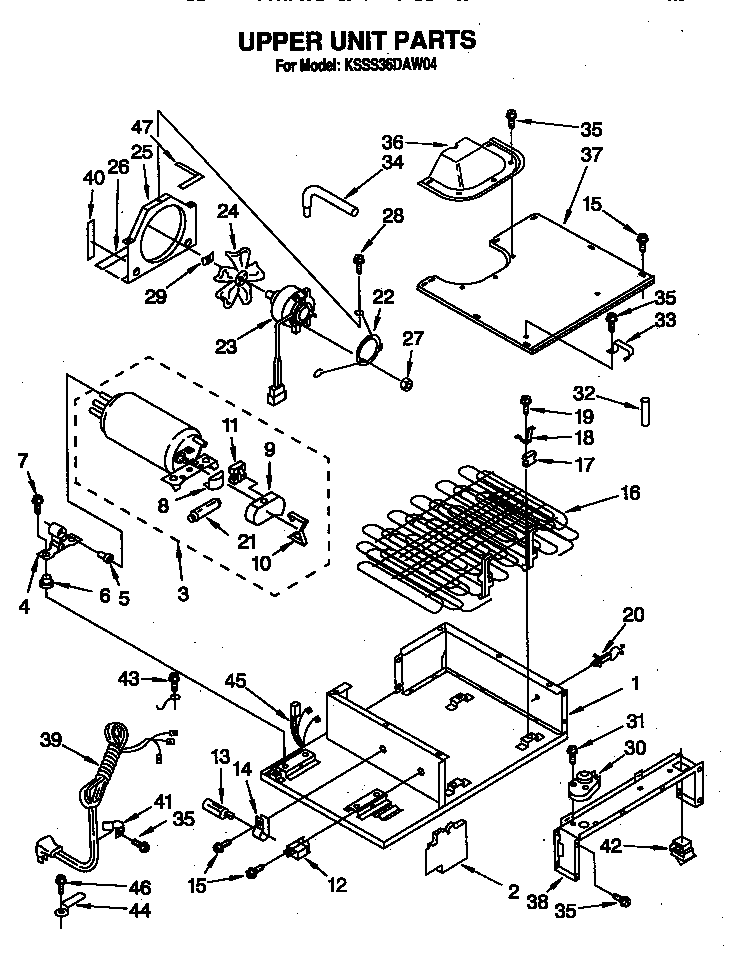

    Upper unit diagram

    Drier Tube

    Part #1108023

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces 1108023. Substitute parts can look different from the original.
    In Stock
    $22.85
    21% OFF Phone Price : $28.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool for KitchenAid KSSS36DAW04 - Part 4317943

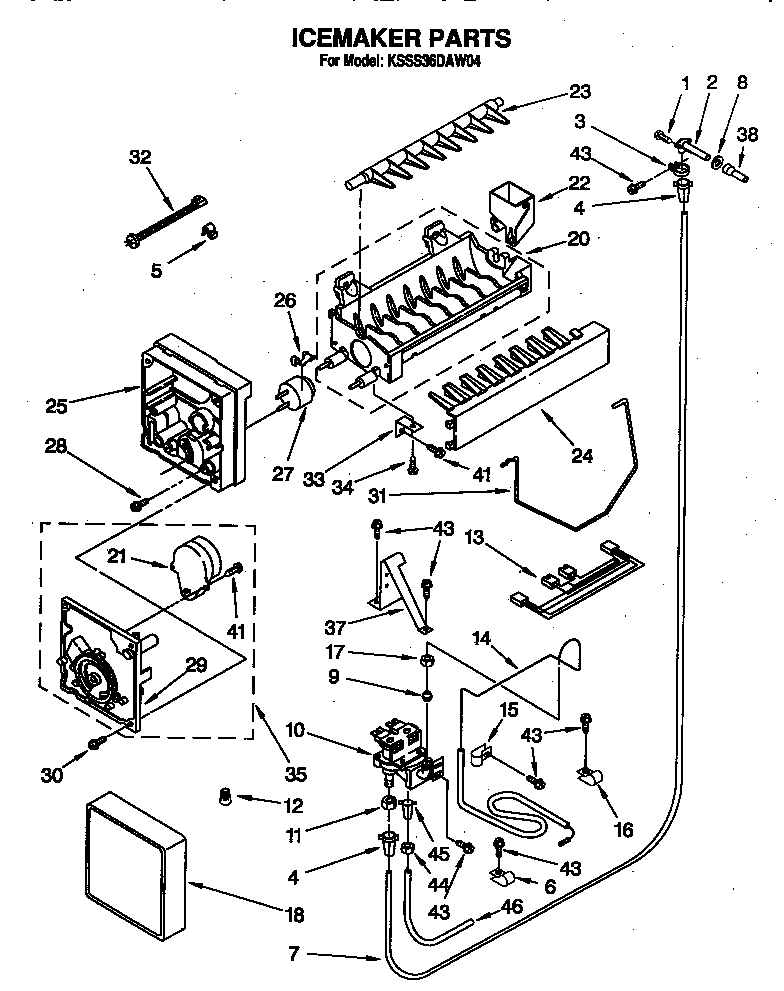

    Icemaker diagram

    Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool

    Part #4317943
    In Stock
    $112.07
    10% OFF Phone Price : $124.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Dryer Drum Light Bulb for KitchenAid KSSS36DAW04 - Part WP22002263

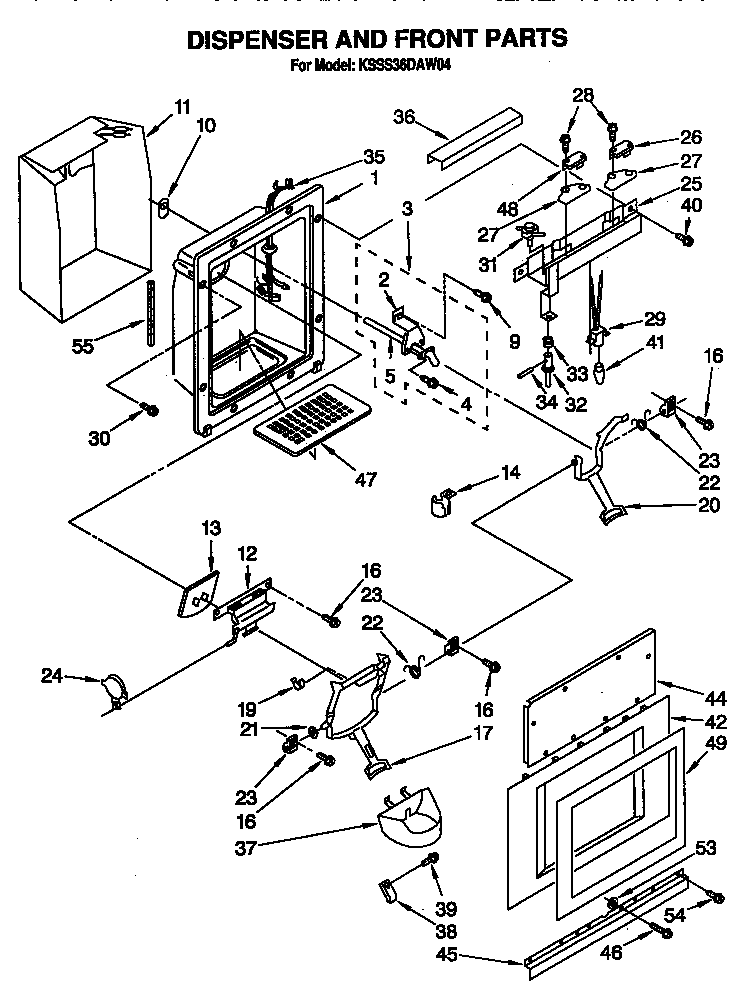

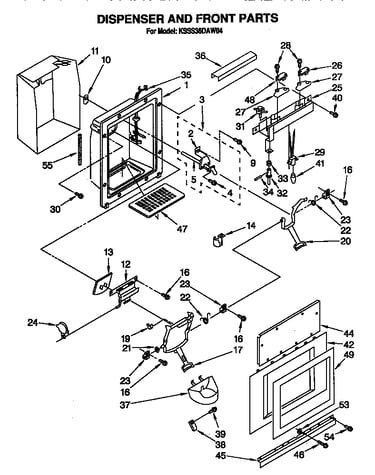

    Dispenser and front diagram

    Refrigerator Bulb

    Part #851389

    Replaced by #WP22002263

    Info Icon
    Manufacturer substitution
    This part replaces 851389. Substitute parts can look different from the original.
    In Stock
    $12.25
    14% OFF Phone Price : $14.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for KitchenAid KSSS36DAW04 - Part WP2169142

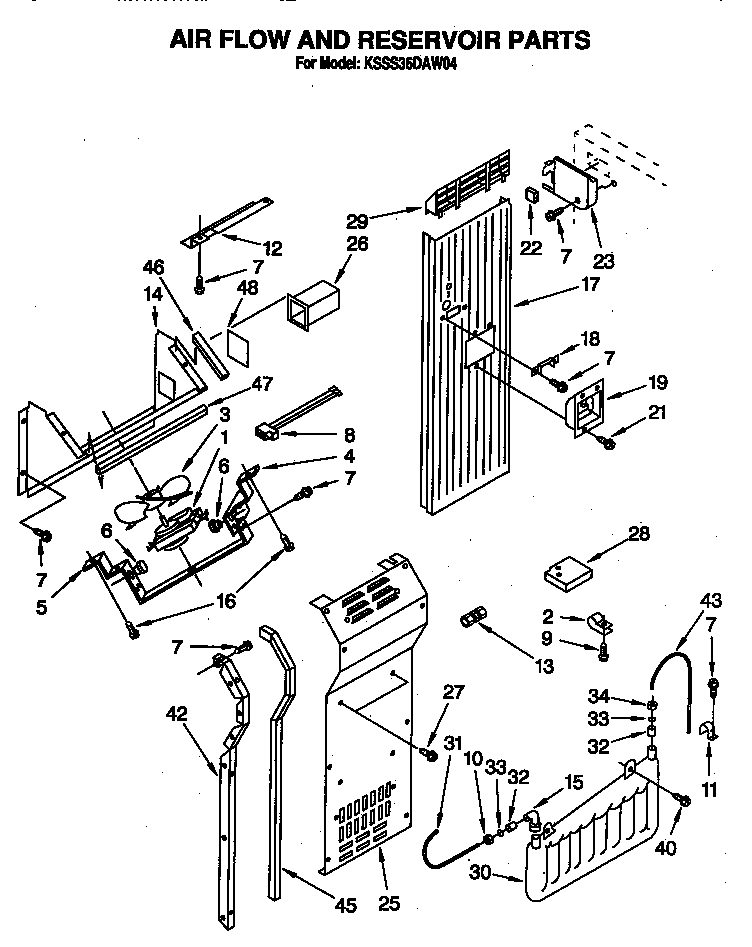

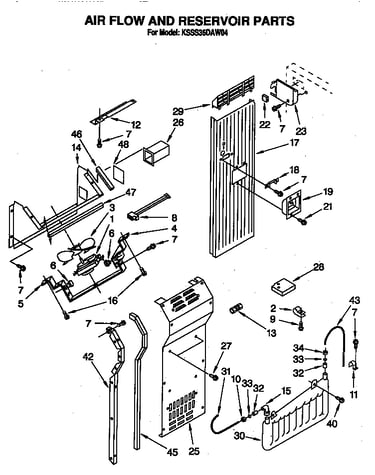

    Air flow and reservoir diagram

    Refrigerator Fan Blade

    Part #2154800

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 2154800. Substitute parts can look different from the original.
    In Stock
    $25.00
    19% OFF Phone Price : $31.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for KitchenAid KSSS36DAW04 - Part W11384469

    Switch

    Part #1108112

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 1108112. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for KitchenAid KSSS36DAW04 - Part WP488729

    Screw

    Part #487052

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 487052. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for KitchenAid KSSS36DAW04 - Part WP488729

    Air flow and reservoir diagram

    Screw

    Part #487539

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 487539. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Shut-off Arm for KitchenAid KSSS36DAW04 - Part W11342242

    Icemaker diagram

    Refrigerator Arm

    Part #2171593

    Replaced by #W11342242

    Info Icon
    Manufacturer substitution
    This part replaces 2171593. Substitute parts can look different from the original.
    In Stock
    $42.72
    12% OFF Phone Price : $48.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve for KitchenAid KSSS36DAW04 - Part W10853654

    Icemaker diagram

    Refrigerator Inlet Valve

    Part #2155062

    Replaced by #W10853654

    Info Icon
    Manufacturer substitution
    This part replaces 2155062. Substitute parts can look different from the original.
    In Stock
    $118.46
    9% OFF Phone Price : $130.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for KitchenAid KSSS36DAW04 - Part WP4389155

    Air flow and reservoir diagram

    Refrigerator Evaporator Fan Motor

    Part #2001086

    Replaced by #WP4389155

    Info Icon
    Manufacturer substitution
    This part replaces 2001086. Substitute parts can look different from the original.
    In Stock
    $156.10
    7% OFF Phone Price : $168.10Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Stop Roller 1113169

Stop Roller

Part #1113169
This item is not returnable
In Stock
$14.73
12% OFF Phone Price : $16.73Info Icon
Minus Item
Qty
Plus Item

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why is my freezer not cold enough?

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Read more

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more

Why isn't my refrigerator cooling well?

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Read more

Why won't my refrigerator cool at all?

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Read more

Why is water dripping from my refrigerator onto the floor?

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Read more

Why is frost building up in my refrigerator's freezer?

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Read more

What routine maintenance does my refrigerator need?

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Read more

Why won't my refrigerator ice maker make ice?

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Read more

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

View all
How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Read more

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Read more

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Read more

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

View all
How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

Read more
How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Read more
Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Read more
