Model # 536772350 Official Craftsman edger

Here are the diagrams and repair parts for Official Craftsman 536772350 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Nut 46023
#16

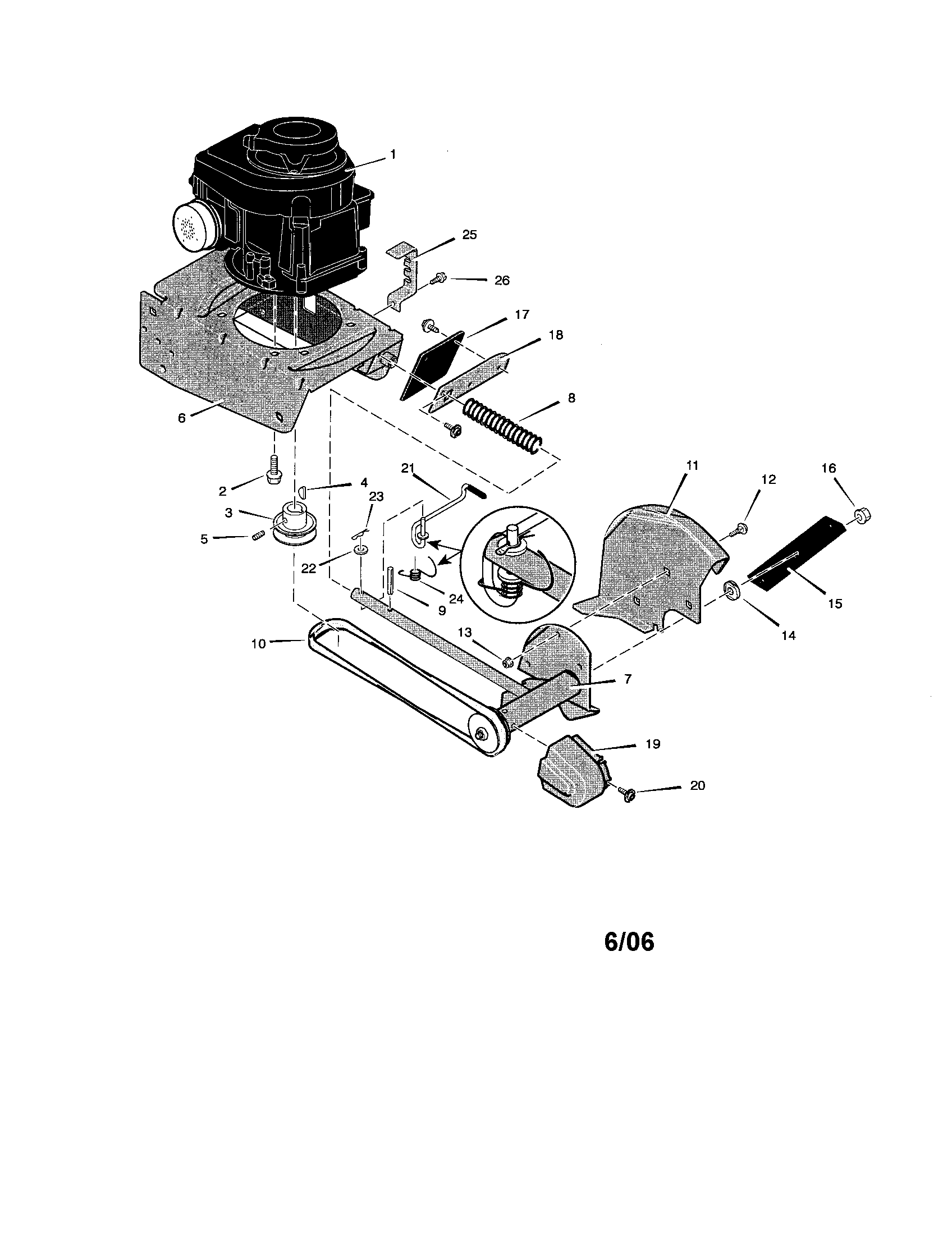

Edger blade assembly diagram

Nut

Part #46023

Replaced by #46023MA

?
Manufacturer substitution
This part replaces 46023. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Deflector 338582
#17

Edger blade assembly diagram

Deflector

Part #338582

Replaced by #338582MA

?
Manufacturer substitution
This part replaces 338582. Substitute parts can look different from the original.
This item is not returnable
$15.79 |
11% OFF Phone Price : $17.79
In Stock
Tapping Screw 26X245
#20

Edger blade assembly diagram

Tapping screw

Part #26X245

Replaced by #26X245MA

?
Manufacturer substitution
This part replaces 26X245. Substitute parts can look different from the original.
This item is not returnable
$6.74 |
13% OFF Phone Price : $7.74
In Stock
Spring 25644
#14

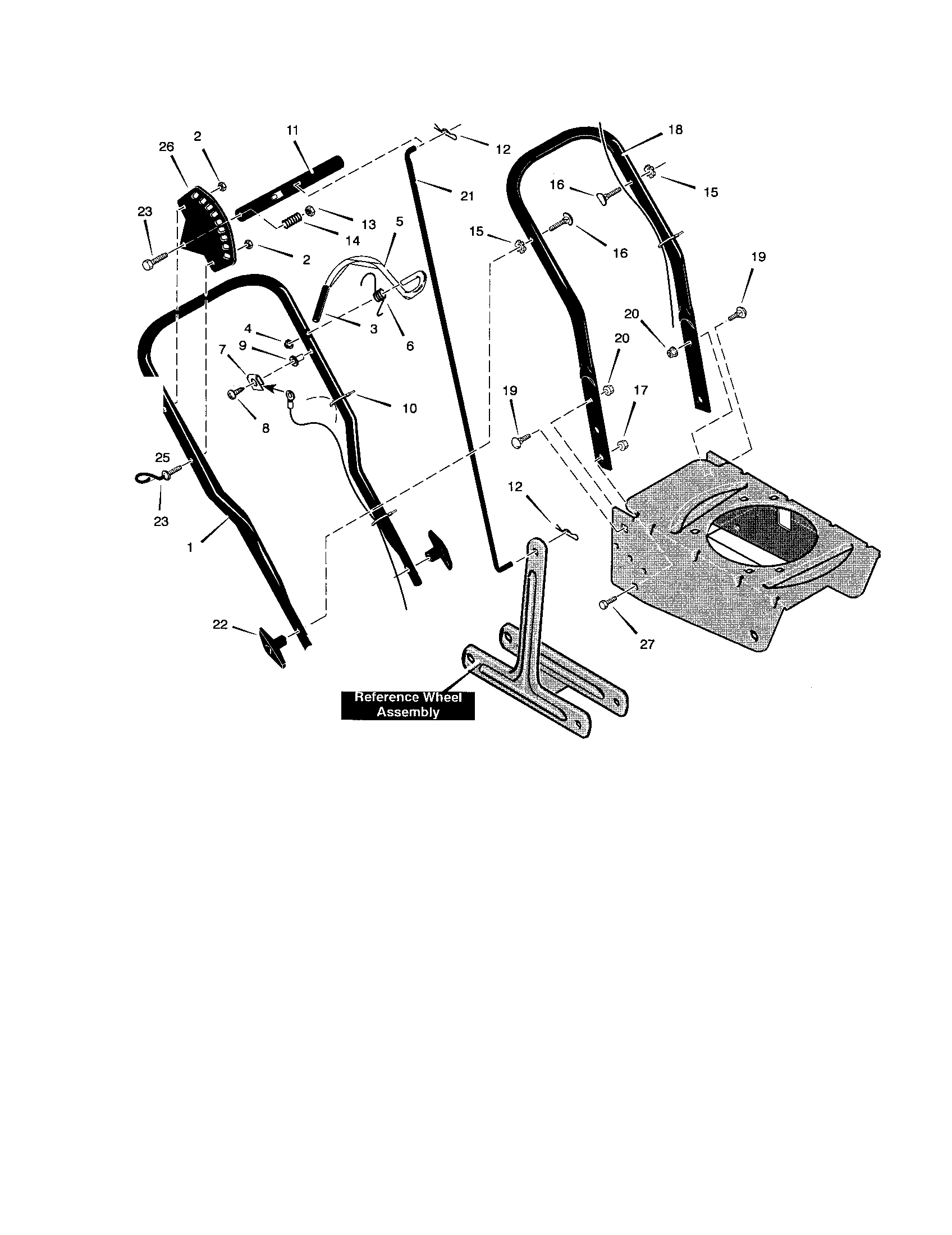

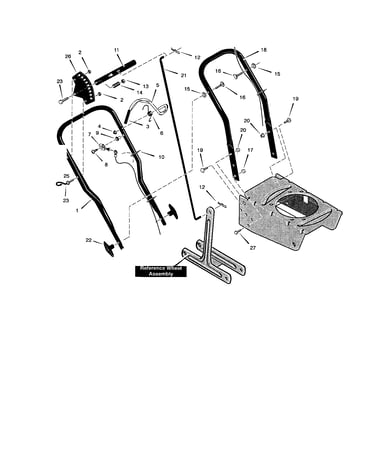

Handle assembly diagram

Spring

Part #25644

Replaced by #25644MA

?
Manufacturer substitution
This part replaces 25644. Substitute parts can look different from the original.
$7.60
In Stock
Edger Spindle Pulley 1687499YP
#7A

Edger blade assembly diagram

Edger spindle pulley

Part #1687499YP

$54.69
In Stock
Washer 845
#4

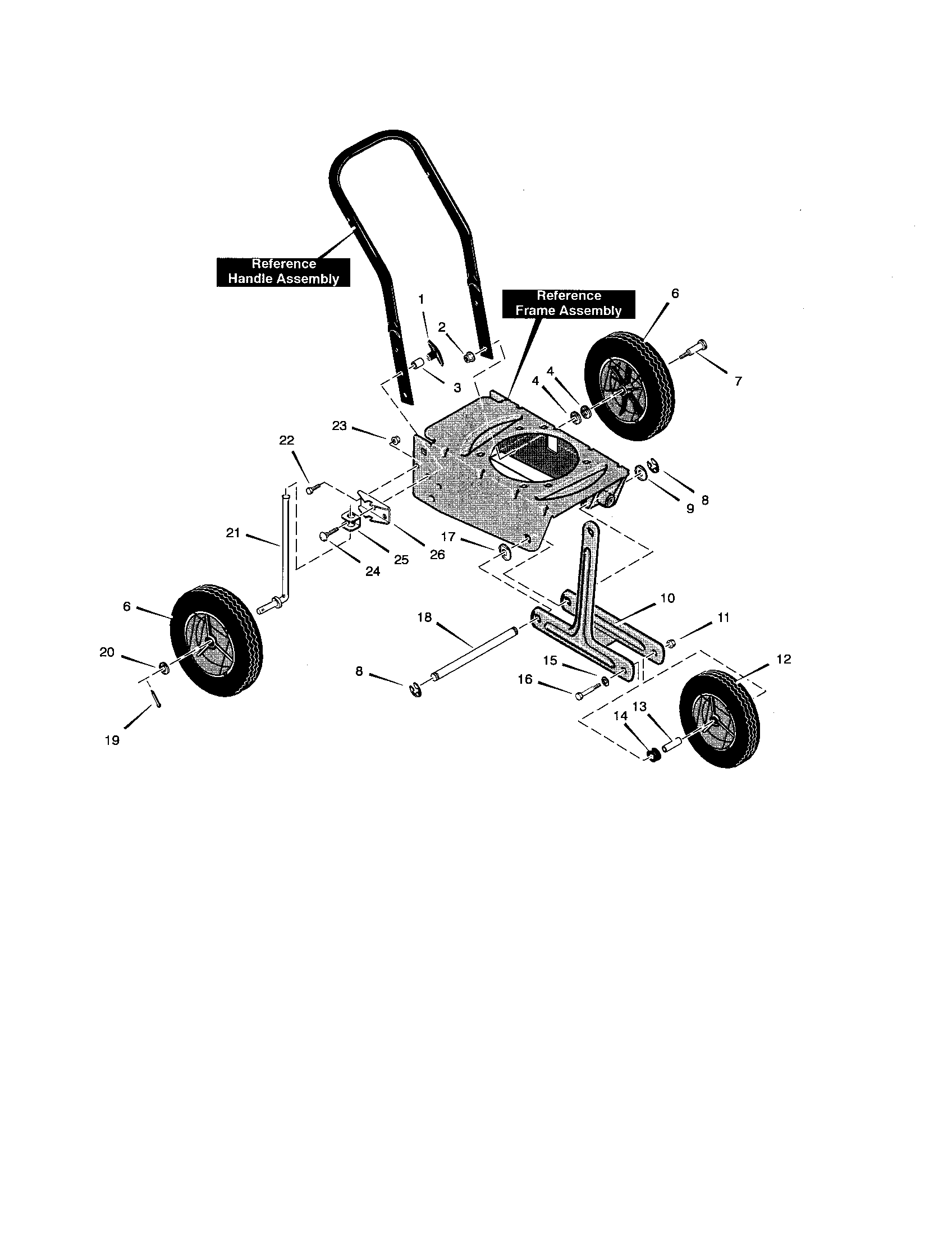

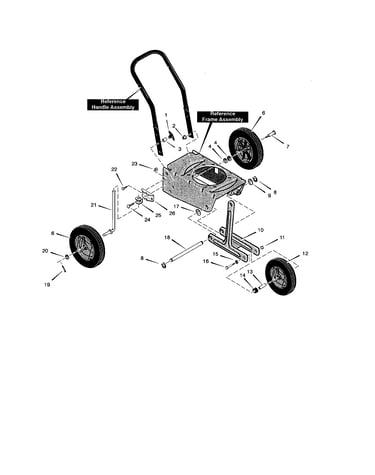

Wheel assembly diagram

Washer

Part #845

Replaced by #17X168ZMA

?
Manufacturer substitution
This part replaces 845. Substitute parts can look different from the original.
$11.26
In Stock
Pin-cotter.0 030X20
#19

Wheel assembly diagram

Pin-cotter.0

Part #030X20

Replaced by #703312

?
Manufacturer substitution
This part replaces 030X20. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Pulley 52052
#3

Edger blade assembly diagram

Pulley

Part #52052

Replaced by #52052MA

?
Manufacturer substitution
This part replaces 52052. Substitute parts can look different from the original.
$43.79 |
10% OFF Phone Price : $48.79
In Stock
Wheel And Tire Assembly 336545
#6

Wheel assembly diagram

Wheel and tire assembly

Part #336545

Replaced by #336545MA

?
Manufacturer substitution
This part replaces 336545. Substitute parts can look different from the original.
$44.59 |
10% OFF Phone Price : $49.59
In Stock
Bolt 315288
#16

Handle assembly diagram

Bolt

Part #315288

Replaced by #315288MA

?
Manufacturer substitution
This part replaces 315288. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
