Eureka
Upright Vacuum

Model # 9873AT Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 9873AT upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

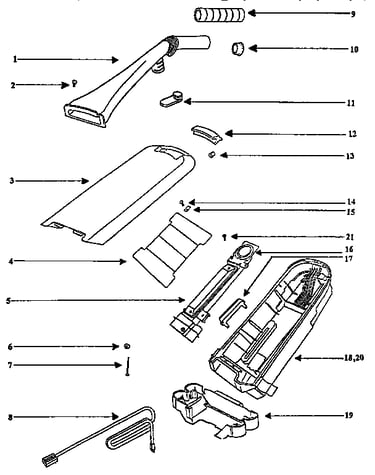

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Gasket Set 57949-1
Gasket set

Part #57949-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-18
#4

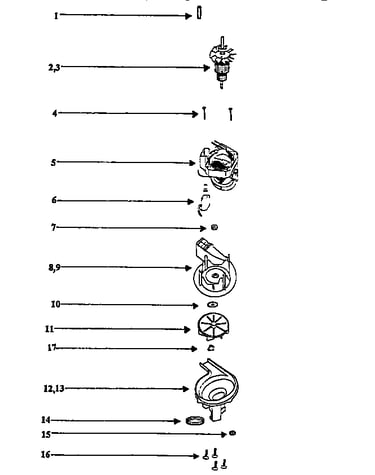

Field assembly diagram

Vacuum screw, 10-pack

Part #53238-18

The manufacturer no longer makes this part, and there's no substitute part

Slide 38240-1
#8

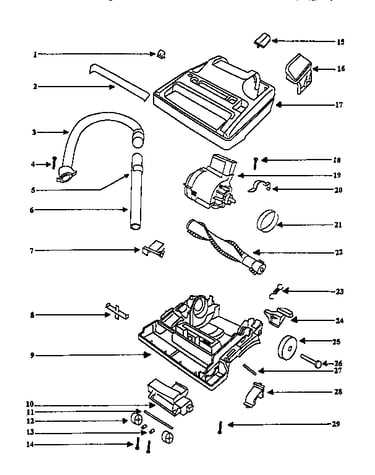

Nozzle and motor assembly diagram

Slide

Part #38240-1

The manufacturer no longer makes this part, and there's no substitute part

Hardware P 58477
#4

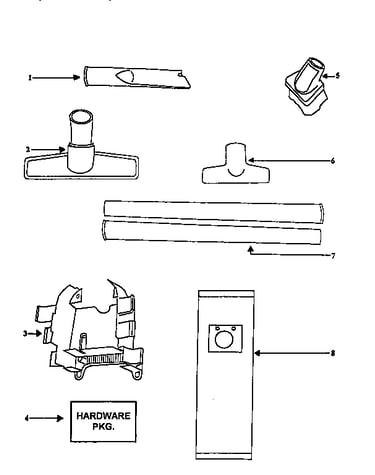

Attachment parts diagram

Hardware p

Part #58477

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-13
#18

Nozzle and motor assembly diagram

Vacuum screw, 10-pack

Part #53238-13

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-8
Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 60106
#17

Field assembly diagram

Lock washer

Part #60106

The manufacturer no longer makes this part, and there's no substitute part

Axle 57567-1
#11

Nozzle and motor assembly diagram

Axle

Part #57567-1

The manufacturer no longer makes this part, and there's no substitute part

Knob 38241-1
#1

Nozzle and motor assembly diagram

Knob

Part #38241-1

The manufacturer no longer makes this part, and there's no substitute part

Spring Axle 53076-2
#23

Nozzle and motor assembly diagram

Spring axle

Part #53076-2

The manufacturer no longer makes this part, and there's no substitute part
