GE DRB4200SBLWW dryer Parts
Here are the diagrams and repair parts for GE DRB4200SBLWW dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

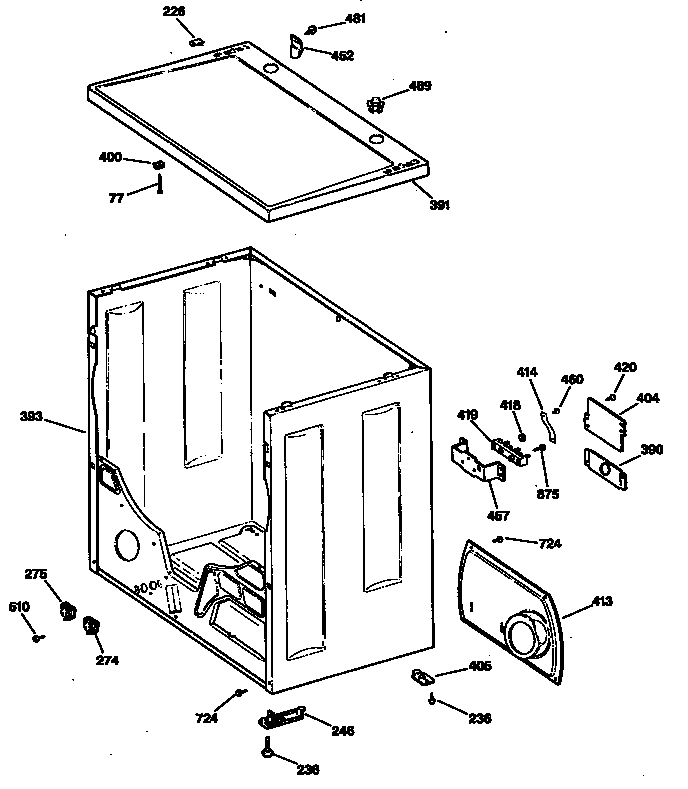

Browse Parts for DRB4200SBLWW Dryer

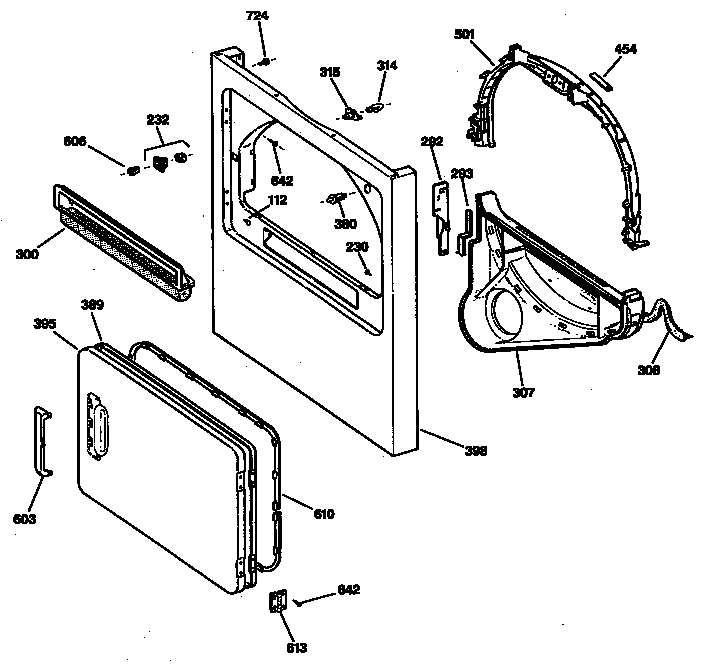

Door diagram
Handle,doo
Part #WE1X1188Replaced by #WE01X20419
Manufacturer substitutionThis part replaces WE1X1188. Substitute parts can look different from the original.This item is not returnableIn Stock$25.5319% OFF Phone Price : $31.53
Qty
Door diagram
Hinge
Part #WE1X1189Replaced by #WE1M1033
Manufacturer substitutionThis part replaces WE1X1189. Substitute parts can look different from the original.This item is not returnableIn Stock$8.6910% OFF Phone Price : $9.69QtyBlower & drive assembly diagram
Blower Wheel
Part #WE16X17Replaced by #WE16M15
Manufacturer substitutionThis part replaces WE16X17. Substitute parts can look different from the original.In Stock$69.818% OFF Phone Price : $75.81QtyBlower & drive assembly diagram
Screw
Part #WE2X153Replaced by #WE2X153D
Manufacturer substitutionThis part replaces WE2X153. Substitute parts can look different from the original.In Stock$42.40QtyDoor diagram
Lamp
Part #WE4X718Replaced by #WE05X20431
Manufacturer substitutionThis part replaces WE4X718. Substitute parts can look different from the original.In Stock$12.5214% OFF Phone Price : $14.52QtyDoor diagram
Dryer Door Switch
Part #WE4X197
The manufacturer no longer makes this part, and there's no substitute part

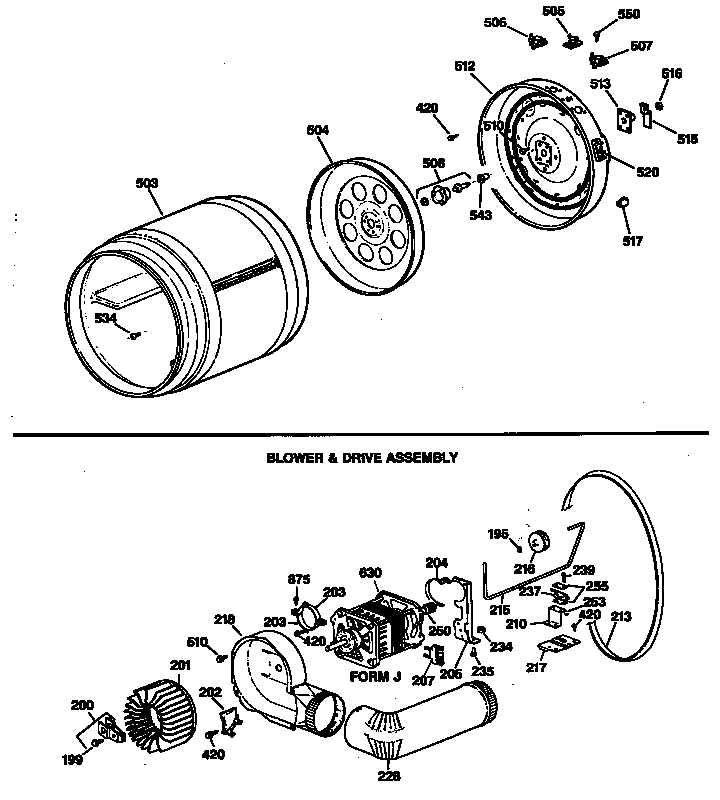

Blower & drive assembly diagram
Terminal Receptacle
Part #WE1X1177
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Dryer Screw
Part #WE2X378
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Hanger Cable
Part #WZ20X07
The manufacturer no longer makes this part, and there's no substitute part

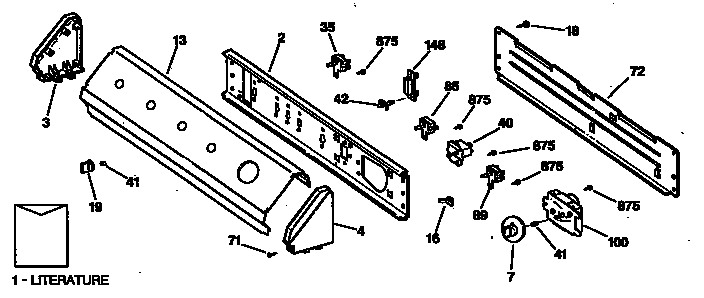

Control panel diagram
79-9046
Part #79-9042
The manufacturer no longer makes this part, and there's no substitute part
