Craftsman 917255373 36" 11-hp electric start riding lawn tractor Parts
Here are the diagrams and repair parts for Craftsman 917255373 36" 11-hp electric start riding lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part

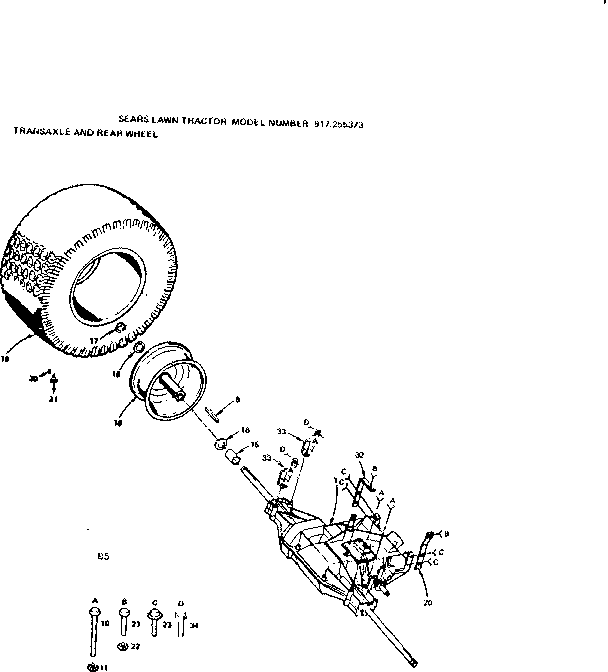

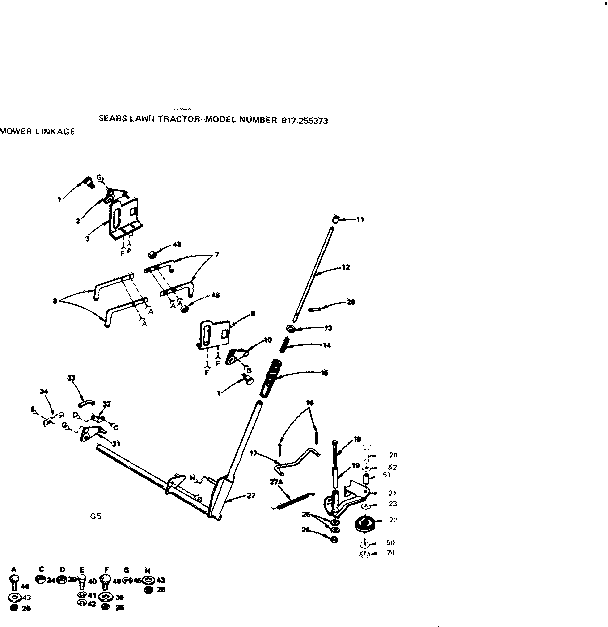

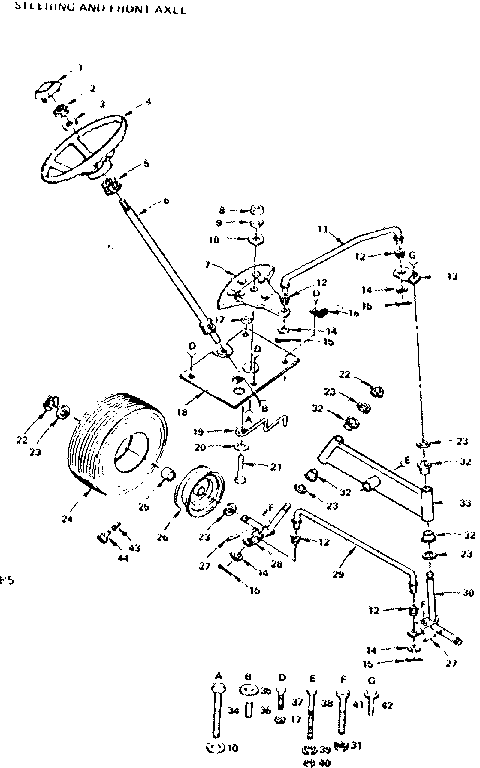

SELECT DIAGRAM
Browse Parts for 917255373 Riding Mowers & Tractors

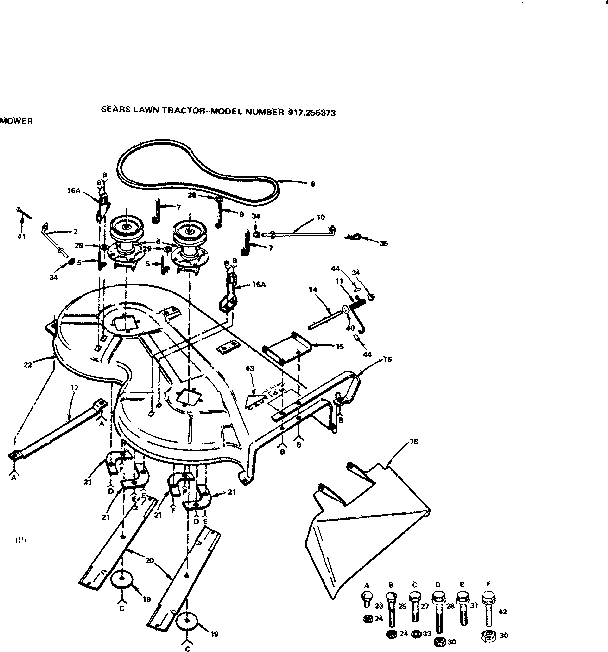

Mower diagram
Label
Part #3495JReplaced by #539913010
Manufacturer substitutionThis part replaces 3495J. Substitute parts can look different from the original.This item is not returnableIn Stock$7.40
Qty

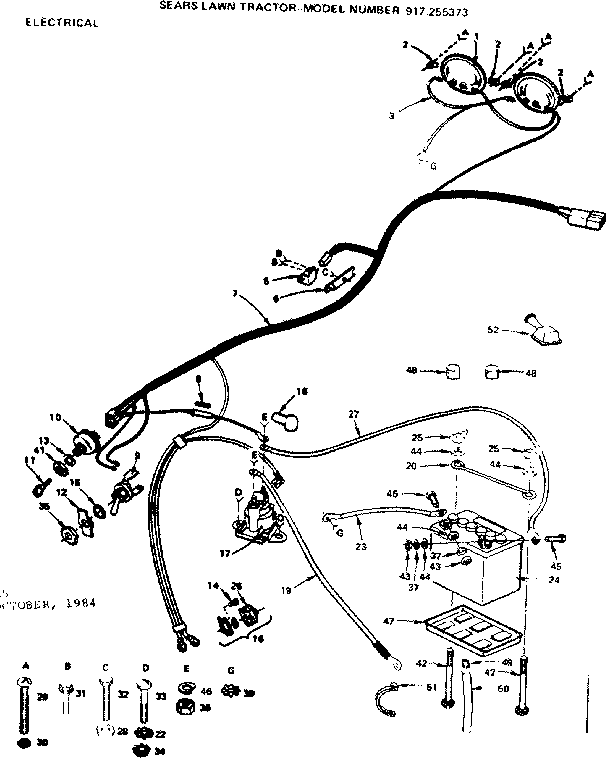

Electrical diagram
Washer
Part #19111012Replaced by #819111012

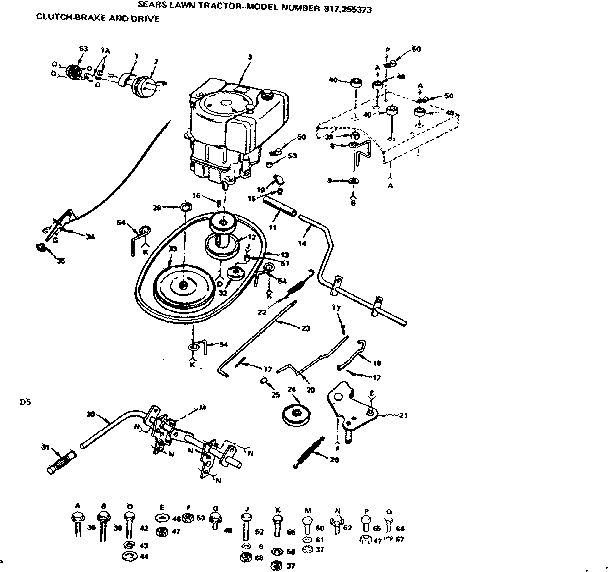

Manufacturer substitutionThis part replaces 19111012. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyClutch-brake and drive diagram
Spacer
Part #4470JReplaced by #532124965
Manufacturer substitutionThis part replaces 4470J. Substitute parts can look different from the original.This item is not returnableIn Stock$6.5213% OFF Phone Price : $7.52
QtyWasher
Part #19131216Replaced by #STD551025

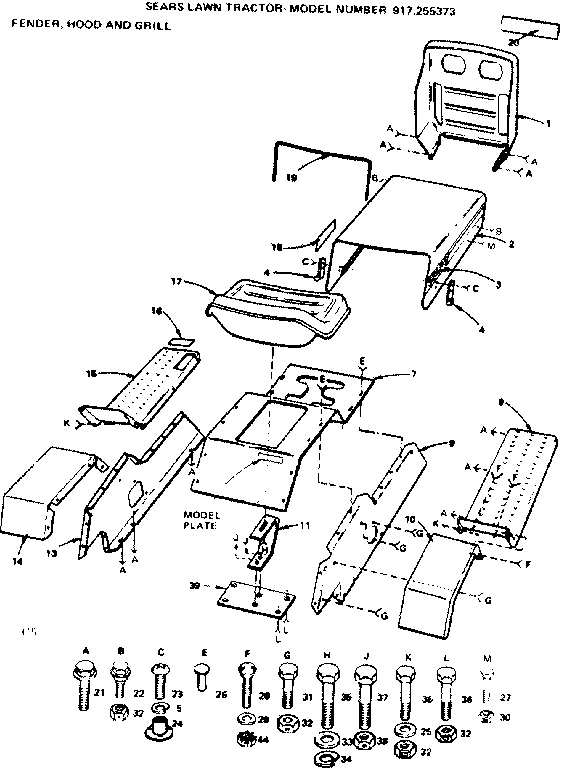

Manufacturer substitutionThis part replaces 19131216. Substitute parts can look different from the original.In Stock$36.61QtyFender,hood and grill diagram
Latch
Part #100225LReplaced by #532109808
Manufacturer substitutionThis part replaces 100225L. Substitute parts can look different from the original.In Stock$7.3612% OFF Phone Price : $8.36QtyMower diagram
Screw
Part #17490612Replaced by #817000612
Manufacturer substitutionThis part replaces 17490612. Substitute parts can look different from the original.In Stock$6.7213% OFF Phone Price : $7.72QtyElectrical diagram
Solenoid
Part #2008JReplaced by #532146154
Manufacturer substitutionThis part replaces 2008J. Substitute parts can look different from the original.In Stock$38.8113% OFF Phone Price : $44.81QtyScrew
Part #98000132Replaced by #596030701

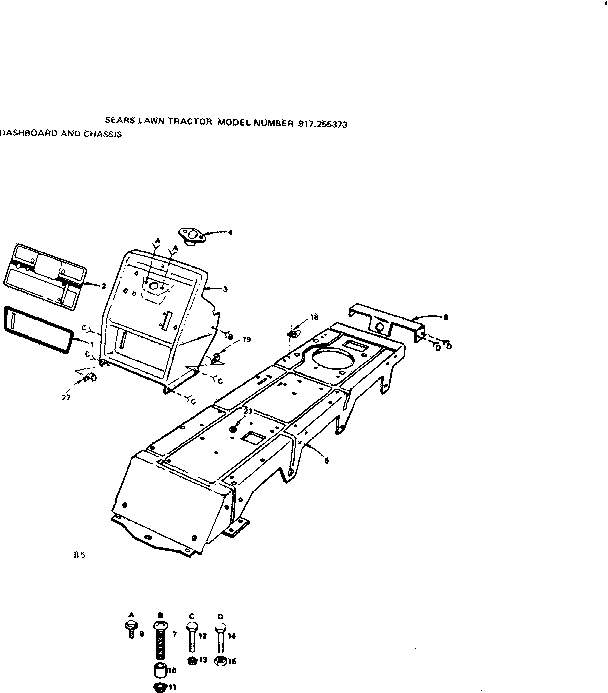

Manufacturer substitutionThis part replaces 98000132. Substitute parts can look different from the original.In Stock$22.77QtyDashborad and chassis diagram
Bushing
Part #102803XReplaced by #532155107
Manufacturer substitutionThis part replaces 102803X. Substitute parts can look different from the original.In Stock$11.4315% OFF Phone Price : $13.43QtyFender,hood and grill diagram
Lawn & Garden Equipment Lock Nut
Part #73680400Replaced by #586668901
Manufacturer substitutionThis part replaces 73680400. Substitute parts can look different from the original.This item is not returnableIn Stock$6.4713% OFF Phone Price : $7.47Qty
