Maytag NT156MW/DC05A refrigerator Parts
Here are the diagrams and repair parts for Maytag NT156MW/DC05A refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

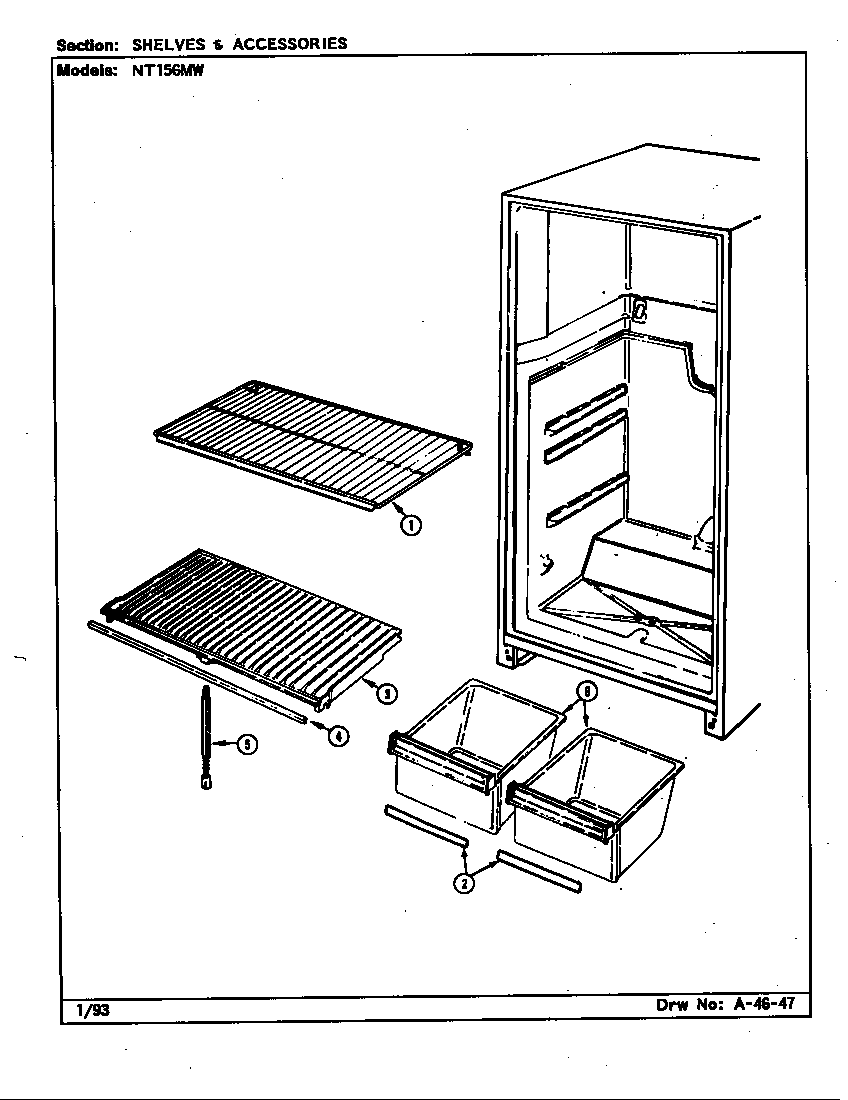

Browse Parts for NT156MW/DC05A Refrigerator

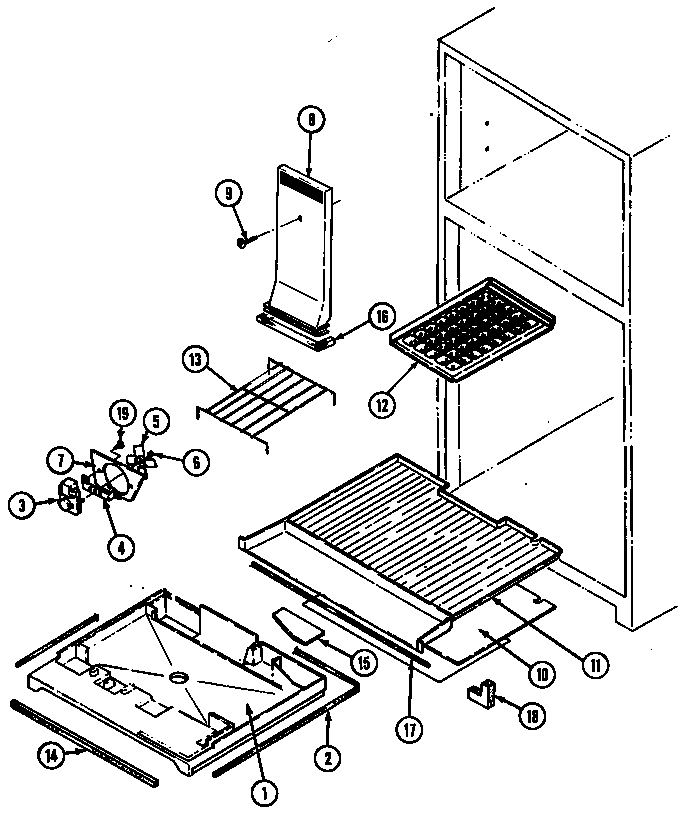

Freezer compartment diagram
Refrigerator Screw
Part #400015-36Replaced by #W11233072
Manufacturer substitutionThis part replaces 400015-36. Substitute parts can look different from the original.In Stock$17.63
Qty

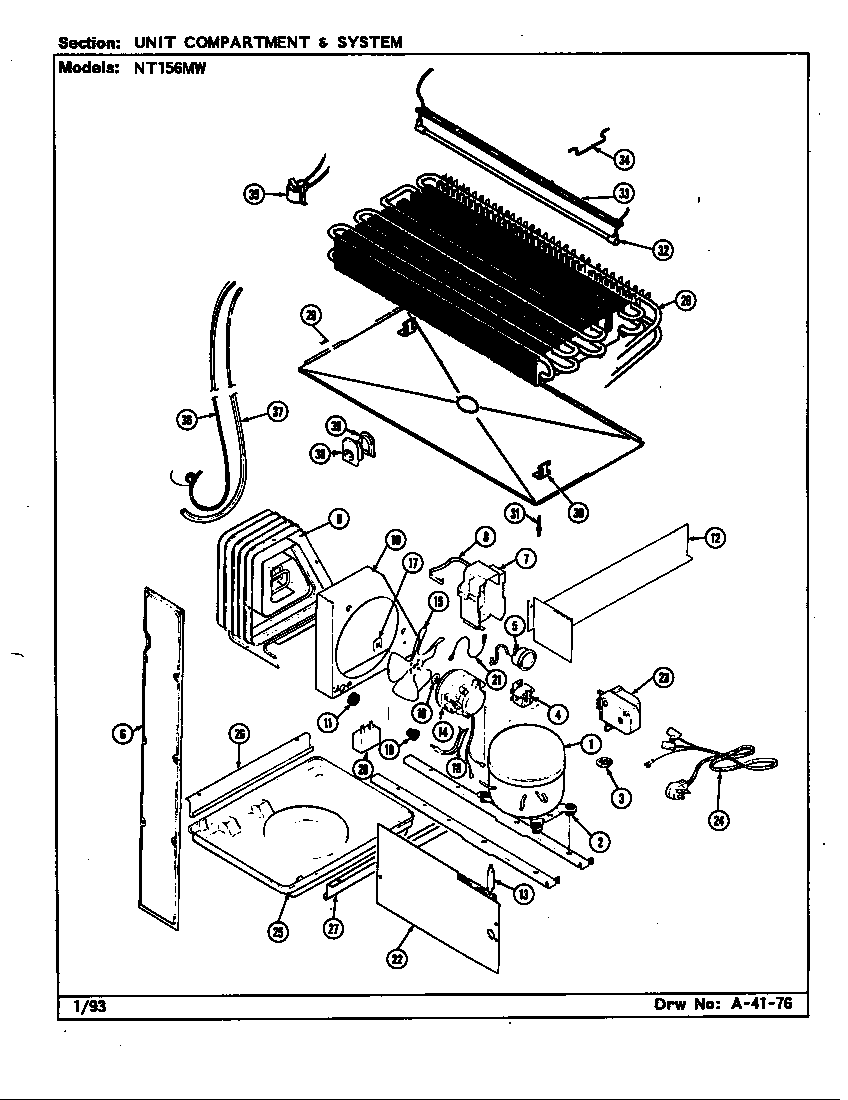

Unit compartment & system diagram
Refrigerator Evaporator Defrost Heater
Part #60106-34Replaced by #WP60106-34
Manufacturer substitutionThis part replaces 60106-34. Substitute parts can look different from the original.In Stock$86.386% OFF Phone Price : $92.38
QtyUnit compartment & system diagram
Refrigerator Condenser Blade
Part #60683-1Replaced by #WP12587601
Manufacturer substitutionThis part replaces 60683-1. Substitute parts can look different from the original.In Stock$78.997% OFF Phone Price : $84.99QtyUnit compartment & system diagram
Refrigerator Start Relay
Part #66588-1Replaced by #2154436

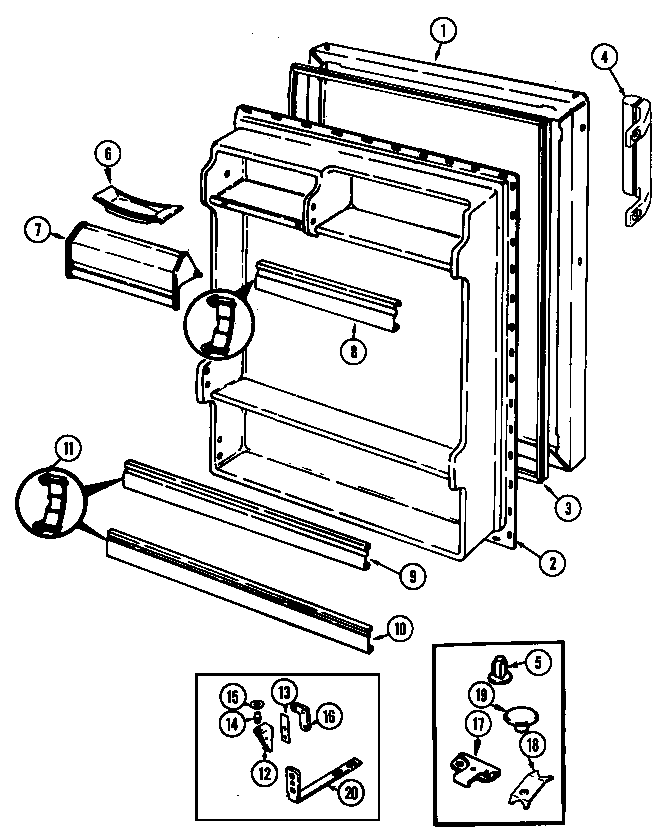

Manufacturer substitutionThis part replaces 66588-1. Substitute parts can look different from the original.In Stock$75.087% OFF Phone Price : $81.08QtyRefrigerator Door Shelf Retainer Clip
Part #65245-1Replaced by #WP65245-1

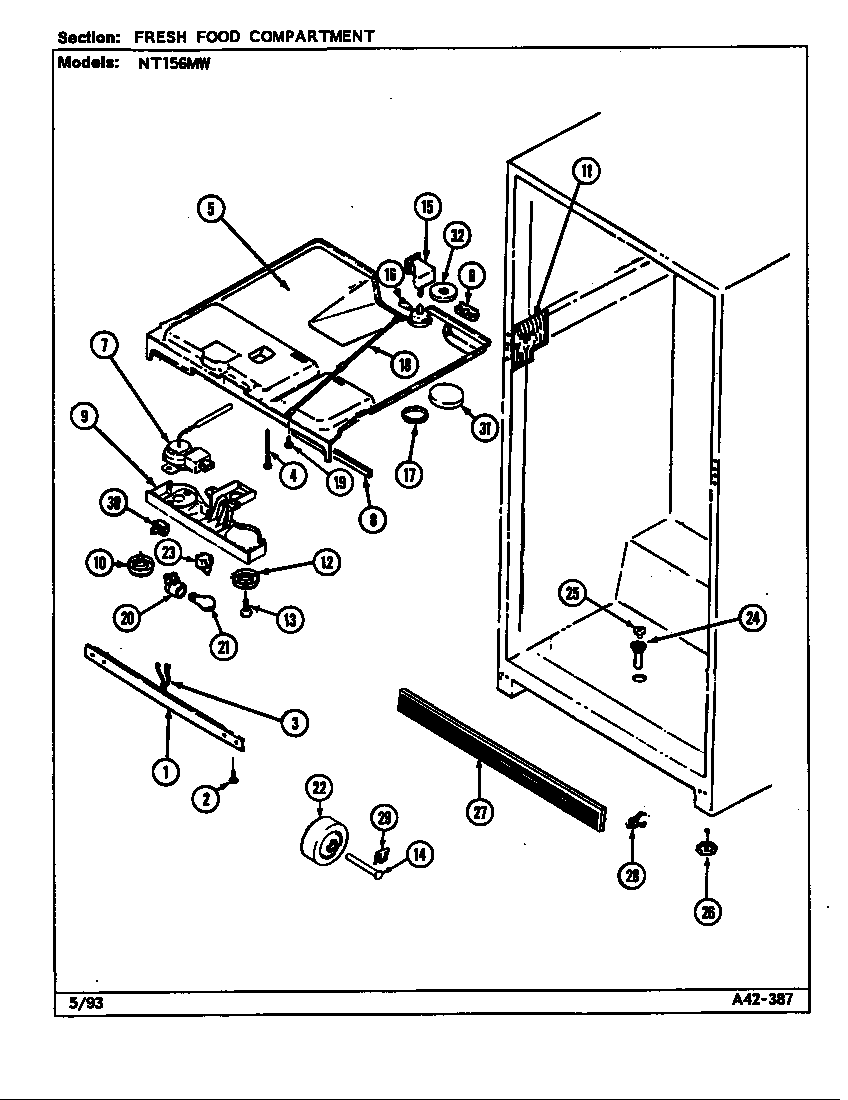

Manufacturer substitutionThis part replaces 65245-1. Substitute parts can look different from the original.In Stock$8.9410% OFF Phone Price : $9.94QtyFresh food compartment diagram
Freezer Knob
Part #69417-10Replaced by #WP61006073
Manufacturer substitutionThis part replaces 69417-10. Substitute parts can look different from the original.This item is not returnableIn Stock$26.5118% OFF Phone Price : $32.51QtyUnit compartment & system diagram
Refrigerator Overload
Part #69105-10Replaced by #2176790
Manufacturer substitutionThis part replaces 69105-10. Substitute parts can look different from the original.In Stock$111.31QtyFreezer compartment diagram
Refrigerator Ice Tray
Part #59281-2Replaced by #WP841180A
Manufacturer substitutionThis part replaces 59281-2. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1511% OFF Phone Price : $9.15QtyUnit compartment & system diagram
Refrigerator Compressor
Part #RA1011Replaced by #W10439652
Manufacturer substitutionThis part replaces RA1011. Substitute parts can look different from the original.In Stock$300.29$12.00 OFF Phone Price : $312.29QtyUnit compartment & system diagram
Refrigerator Compressor Kit
Part #12000046Replaced by #W10439652
Manufacturer substitutionThis part replaces 12000046. Substitute parts can look different from the original.In Stock$300.29$12.00 OFF Phone Price : $312.29Qty
