Model # 360796900 Official Craftsman backpack air blower

Here are the diagrams and repair parts for Official Craftsman 360796900 backpack air blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

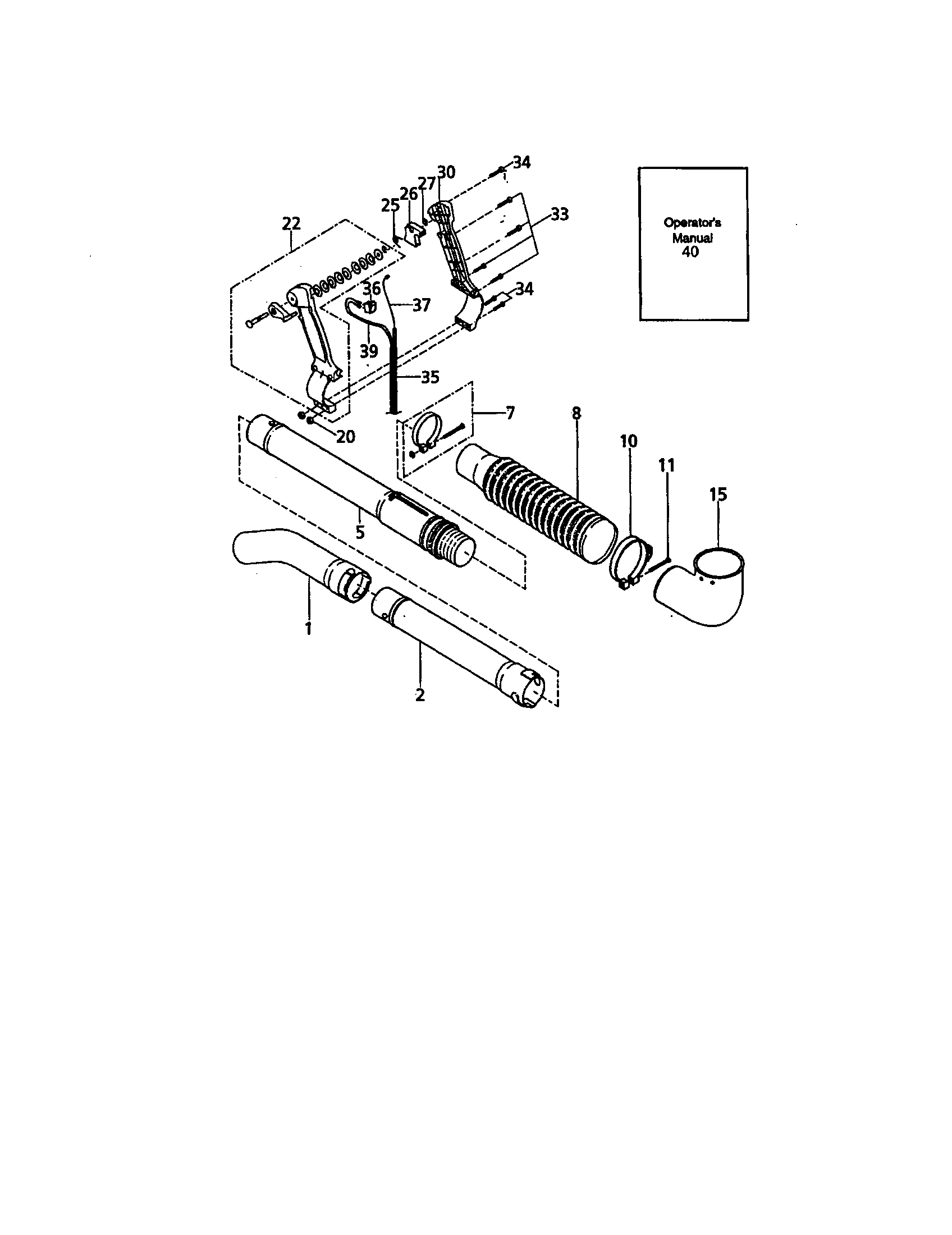

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |

Strap Holder 4074412
#57

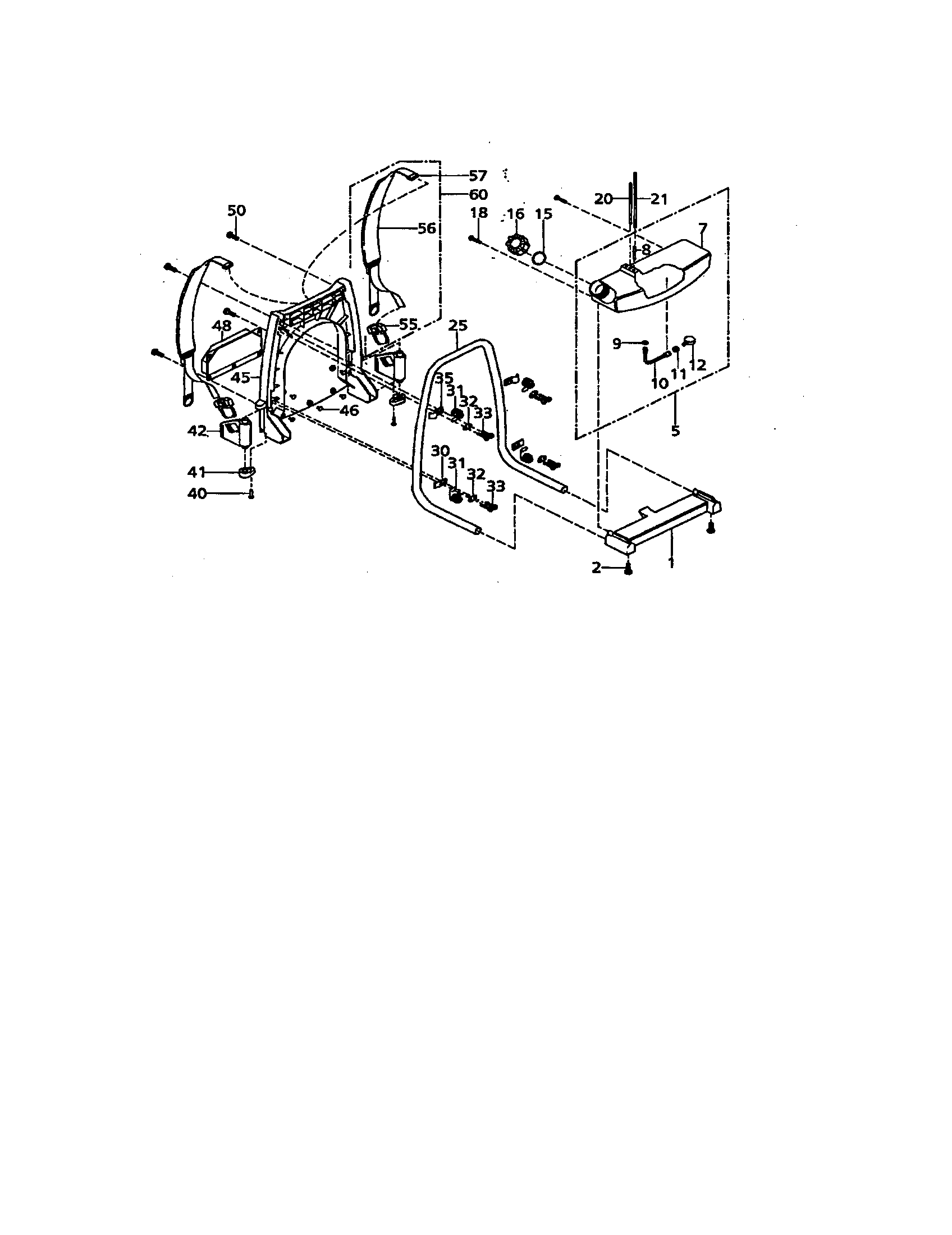

Fuel tank diagram

Strap holder

Part #4074412

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Washer 0034152
#22

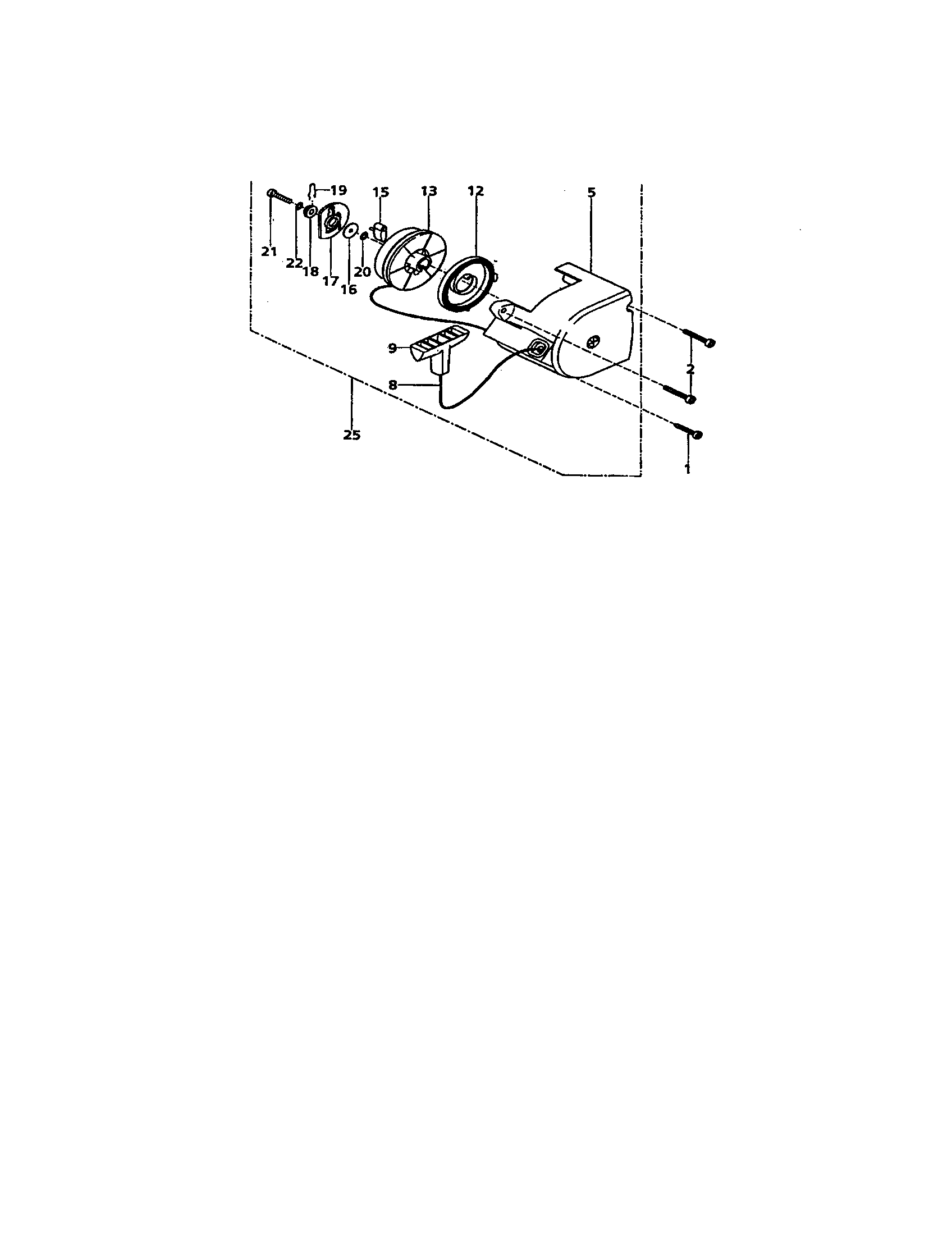

Starter diagram

Lawn & garden equipment washer

Part #0034152

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Strap (2) 4300355
#56

Fuel tank diagram

Shoulder strap (2)

Part #4300355

The manufacturer no longer makes this part, and there's no substitute part

Housing 2 4073677DGN
#140

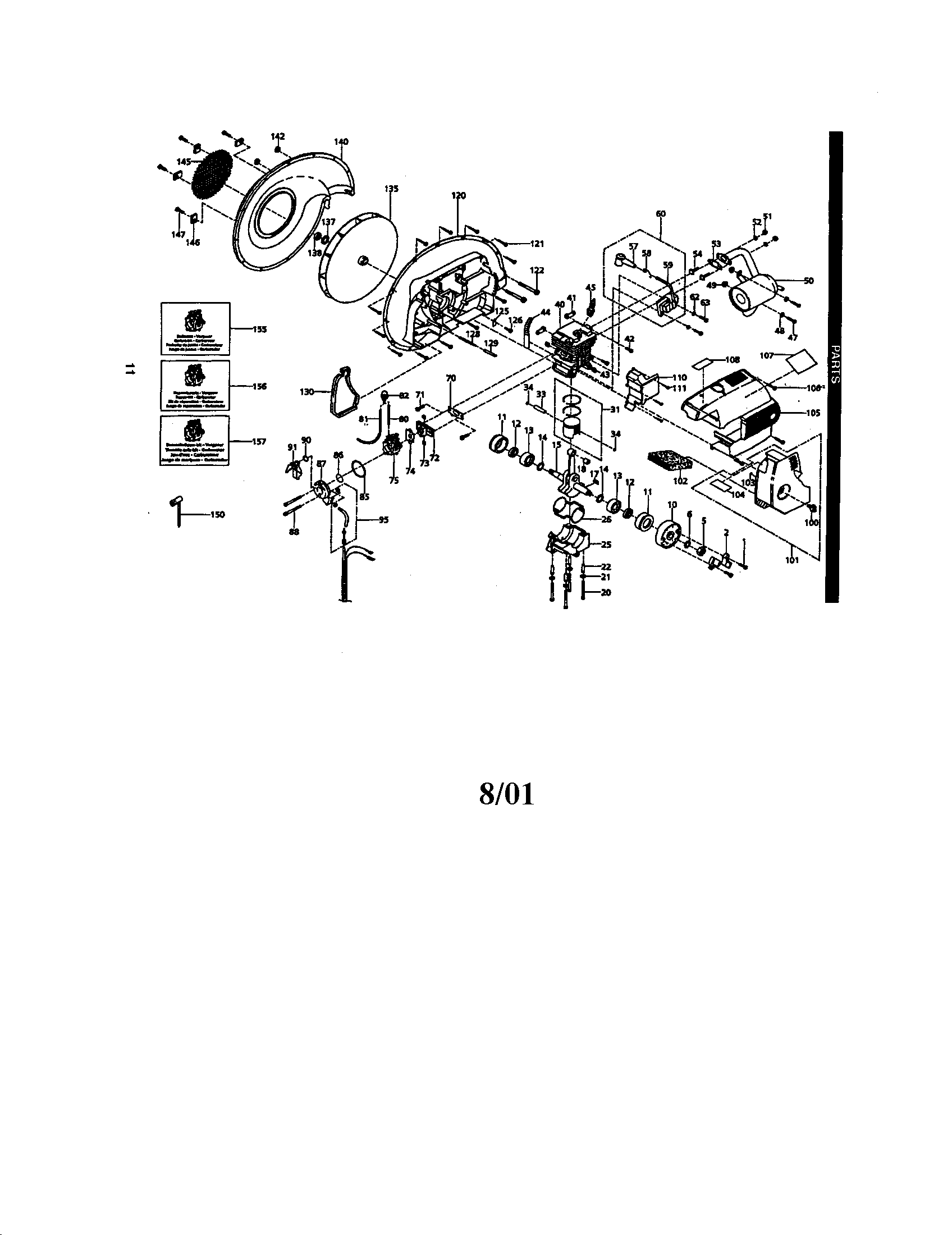

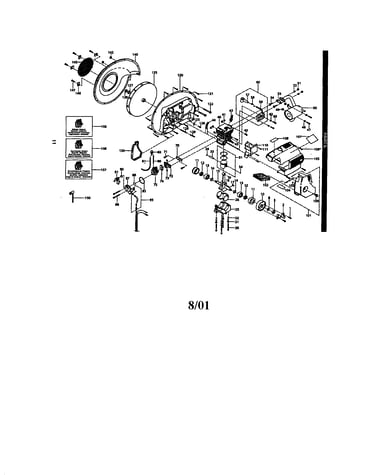

Blower housing diagram

Housing 2

Part #4073677DGN

The manufacturer no longer makes this part, and there's no substitute part

Socket 0067114
#8

Fuel tank diagram

Socket

Part #0067114

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Carburetor 2300805
#75

Blower housing diagram

Leaf blower carburetor

Part #2300805

The manufacturer no longer makes this part, and there's no substitute part

Clamping Plate 2042667
#125

Blower housing diagram

Clamping plate

Part #2042667

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Nut 0021256
#43

Blower housing diagram

Leaf blower nut

Part #0021256

The manufacturer no longer makes this part, and there's no substitute part

Spacer Tube 0033358
#22

Blower housing diagram

Spacer tube

Part #0033358

The manufacturer no longer makes this part, and there's no substitute part

Nut 0028100
#51

Blower housing diagram

Nut

Part #0028100

The manufacturer no longer makes this part, and there's no substitute part
