Kenmore 6289398490 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289398490 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

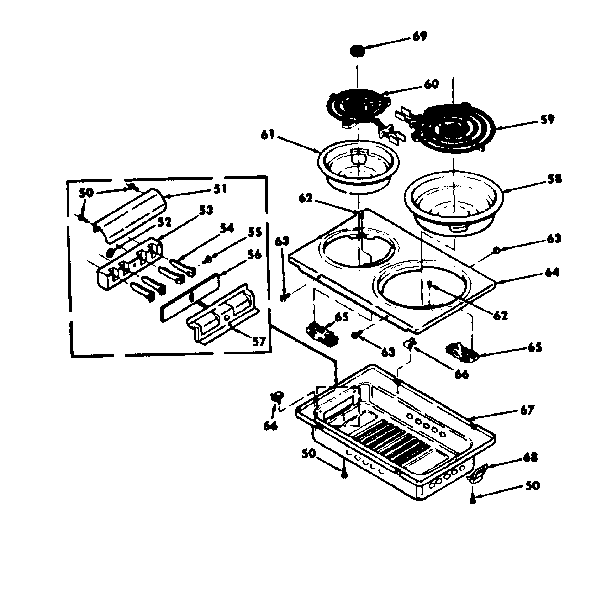

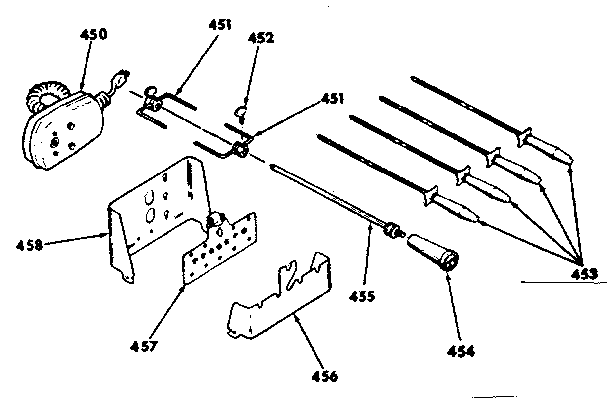

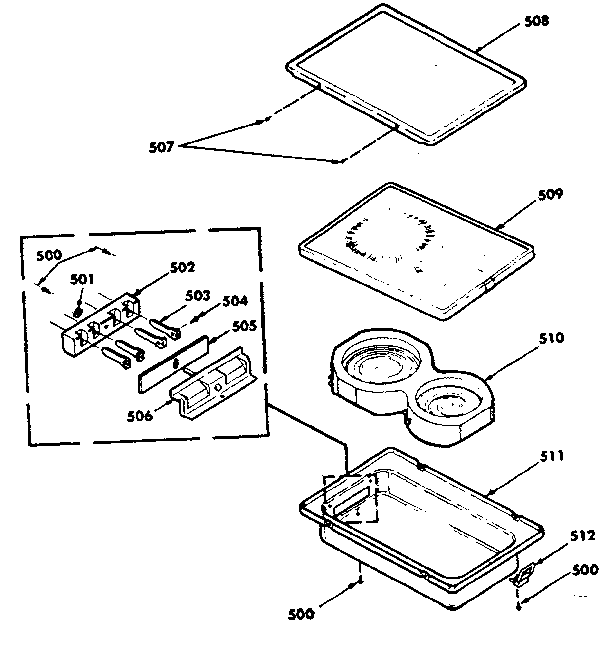

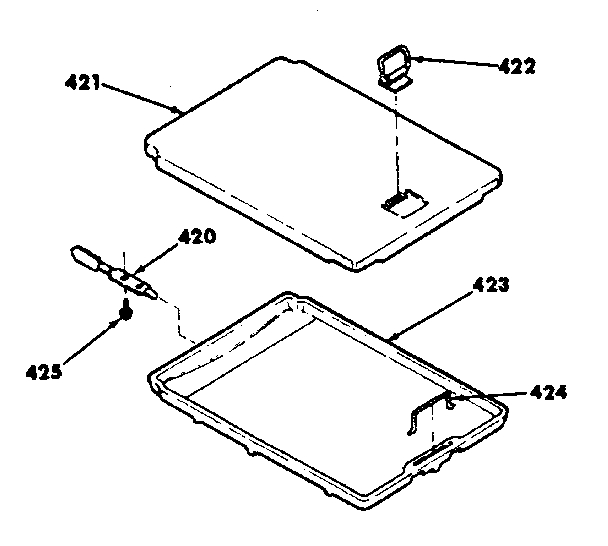

Browse Parts for 6289398490 Ranges

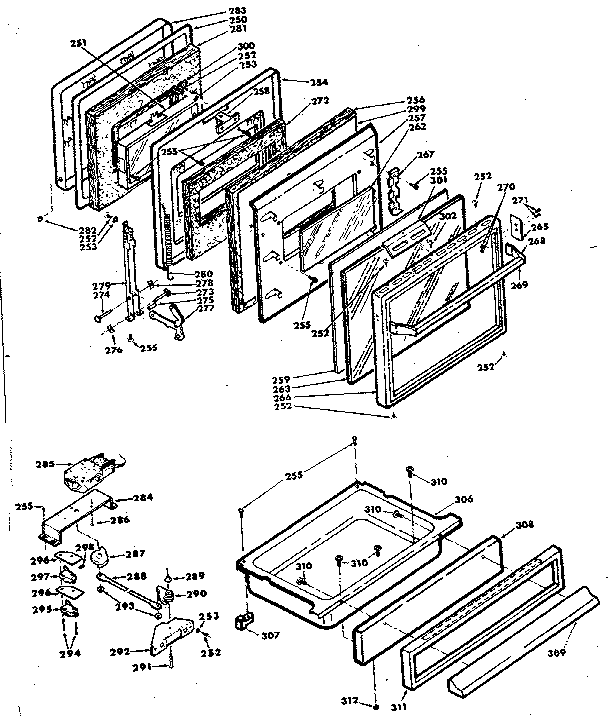

Door, latch mechanism and drawer assemblies diagram
Axle
Part #1303756Replaced by #5308012004
Manufacturer substitutionThis part replaces 1303756. Substitute parts can look different from the original.In Stock$32.30
Qty

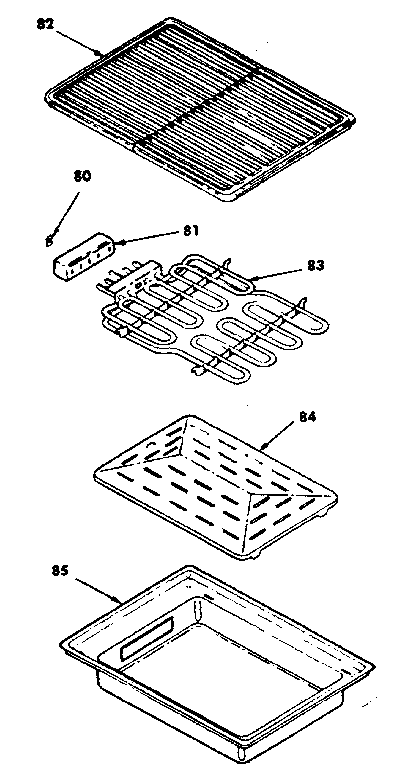

Steak grill kit no. 4998240 diagram
Shield
Part #1323992Replaced by #5303210093
Manufacturer substitutionThis part replaces 1323992. Substitute parts can look different from the original.In Stock$66.60Qty#NI
All parts diagram

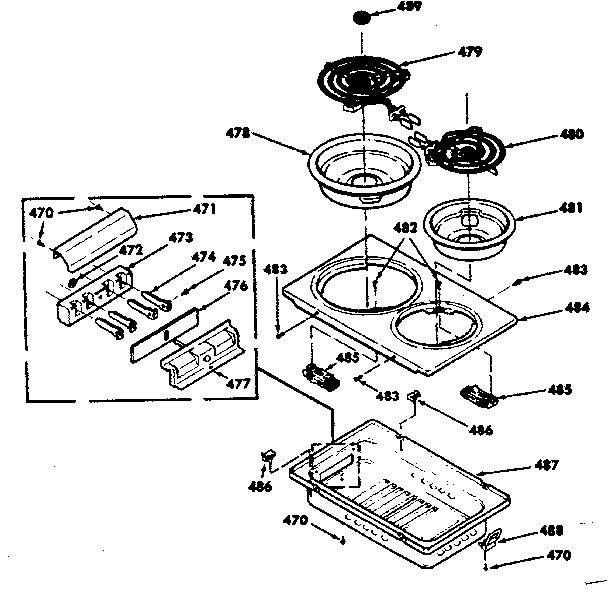

Coil Module
Part #49902Replaced by #5304402482

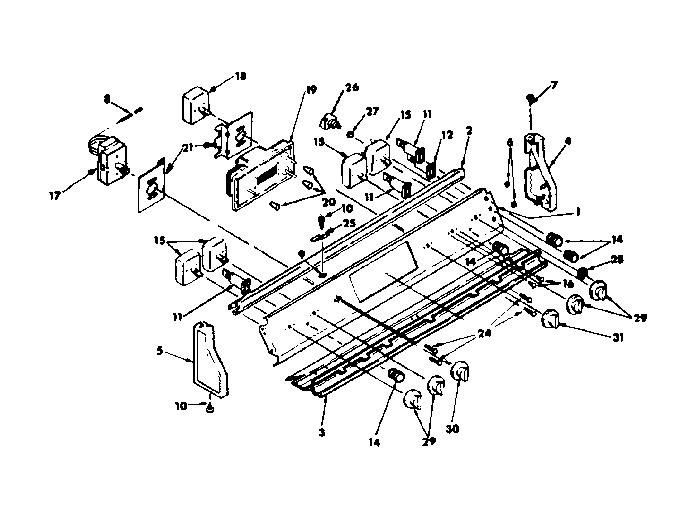

Manufacturer substitutionThis part replaces 49902. Substitute parts can look different from the original.In Stock$278.79QtyControl panel assembly diagram
Pilot Light
Part #5005802Replaced by #5301167858
Manufacturer substitutionThis part replaces 5005802. Substitute parts can look different from the original.In Stock$133.06QtyDoor, latch mechanism and drawer assemblies diagram
Drawer Guide
Part #1324091Replaced by #5303209487
Manufacturer substitutionThis part replaces 1324091. Substitute parts can look different from the original.In Stock$43.25QtyDoor, latch mechanism and drawer assemblies diagram
Screw
Part #1164566Replaced by #5300806656
Manufacturer substitutionThis part replaces 1164566. Substitute parts can look different from the original.In Stock$28.68QtyReceptacle
Part #1315282Replaced by #5308005354
Manufacturer substitutionThis part replaces 1315282. Substitute parts can look different from the original.In Stock$95.30QtyDoor, latch mechanism and drawer assemblies diagram
Retainer
Part #1317628Replaced by #318122100

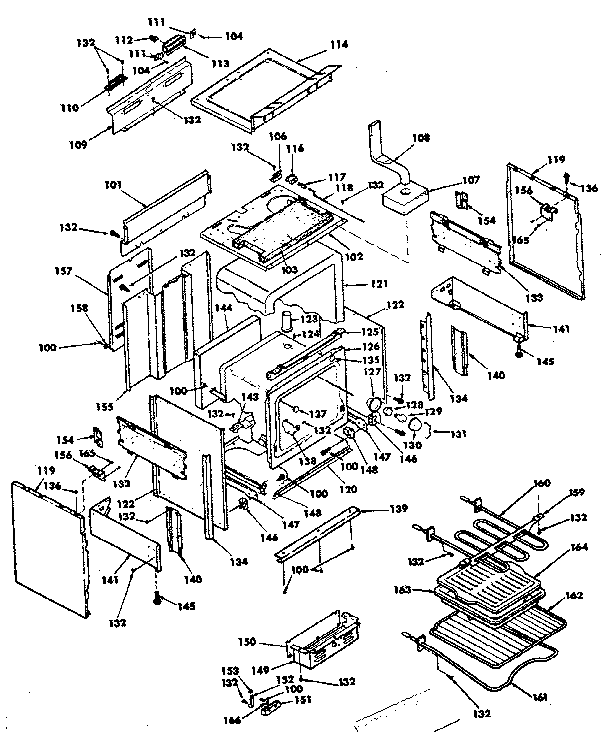

Manufacturer substitutionThis part replaces 1317628. Substitute parts can look different from the original.In Stock$45.75QtyBody assembly diagram

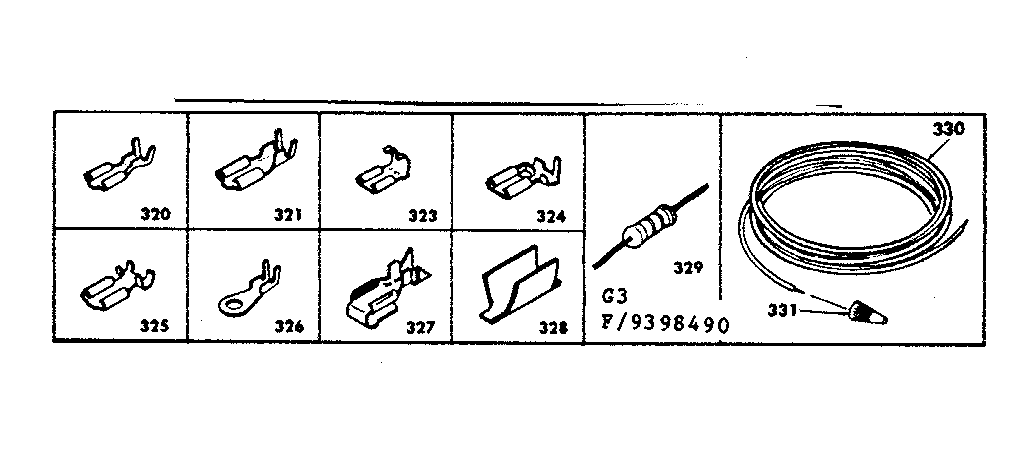

Connector
Part #1322682Replaced by #08007444
Manufacturer substitutionThis part replaces 1322682. Substitute parts can look different from the original.In Stock$27.57QtyMain top and backguard assemblies diagram
Speed Clip
Part #1164567Replaced by #5303322996
Manufacturer substitutionThis part replaces 1164567. Substitute parts can look different from the original.In Stock$25.40Qty
