Upright Freezer

Model # EVL201NXRQ05 Official Whirlpool upright freezer

Here are the diagrams and repair parts for Official Whirlpool EVL201NXRQ05 upright freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

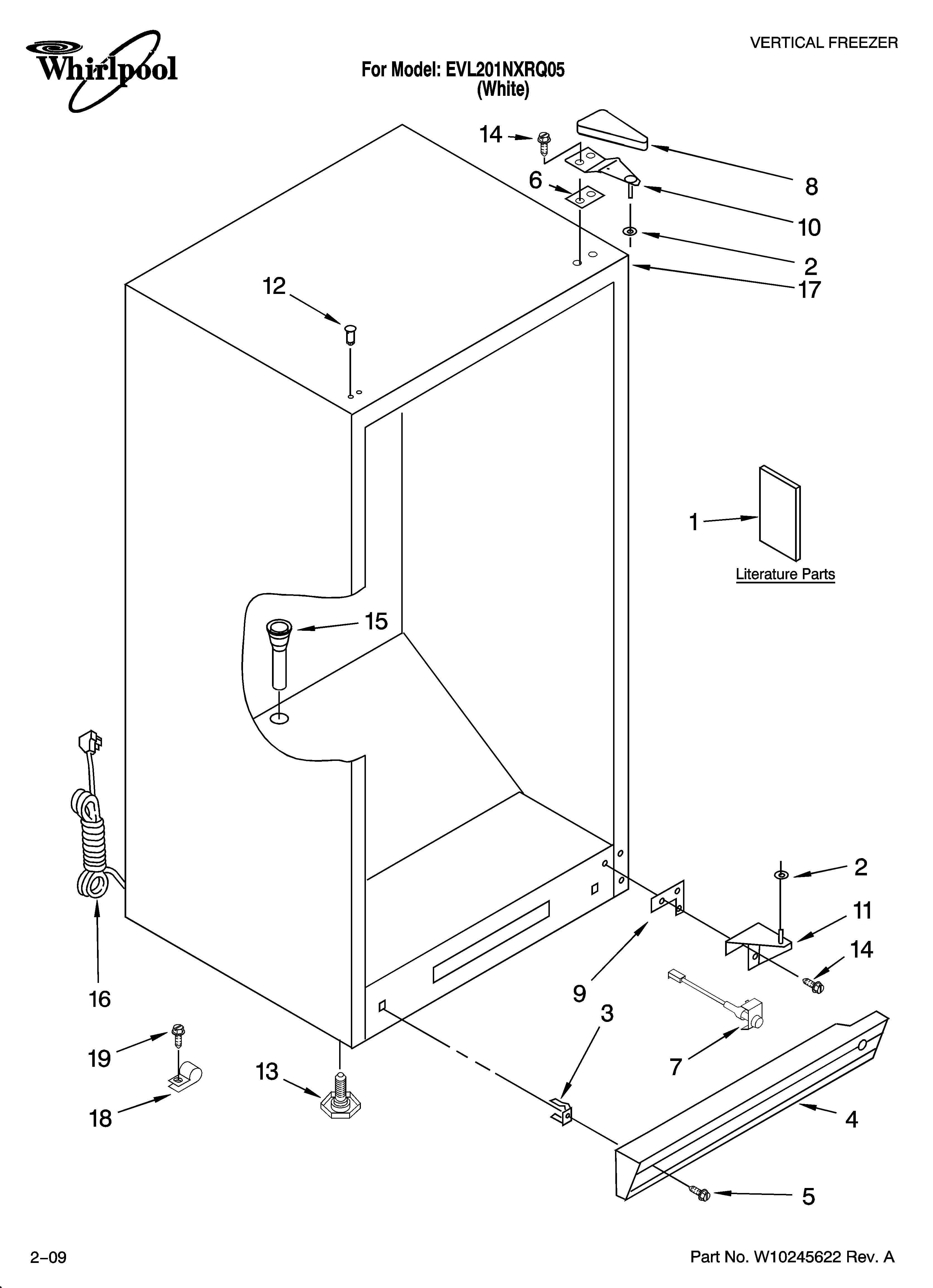

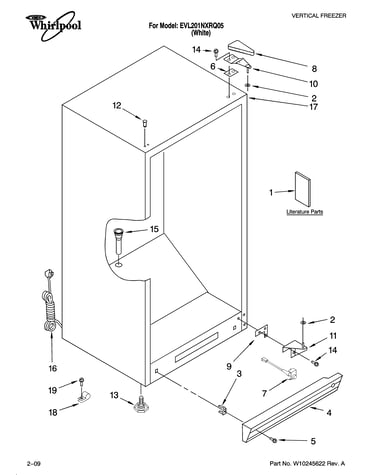

Browse Parts forEVL201NXRQ05 Freestanding Freezers

  • Switch 4390513
    #11

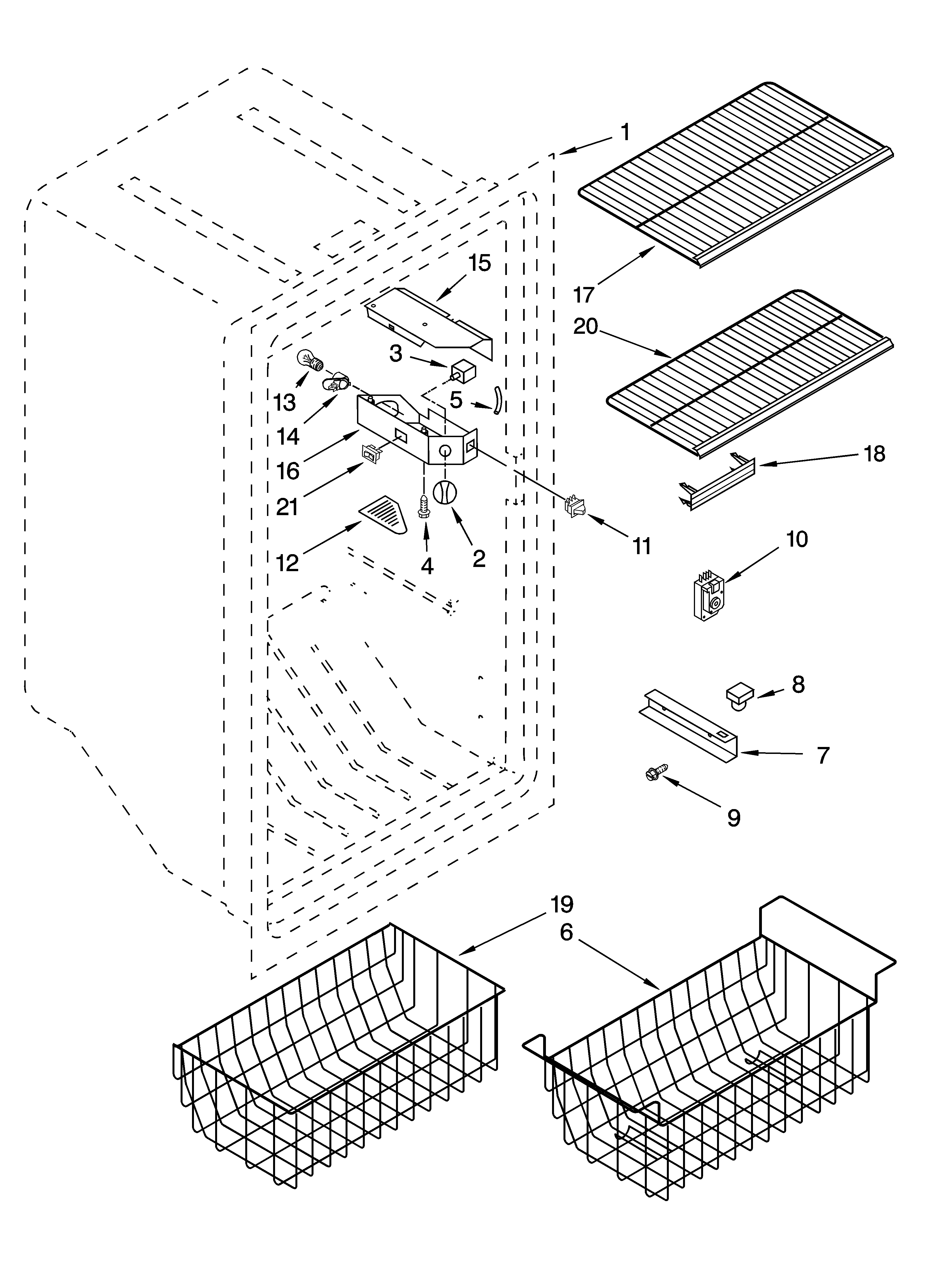

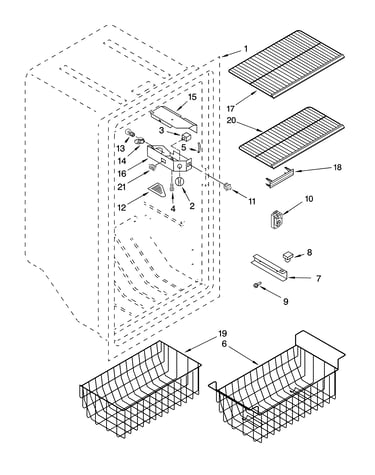

    Liner parts diagram

    Switch

    Part #4390513

    Replaced by #W11384469

    ?
    Manufacturer substitution
    This part replaces 4390513. Substitute parts can look different from the original.
    BEST SELLER
    $20.49 |
    23% OFF Phone Price : $26.49
    In Stock
  • Drier Tube 4357299
    #16

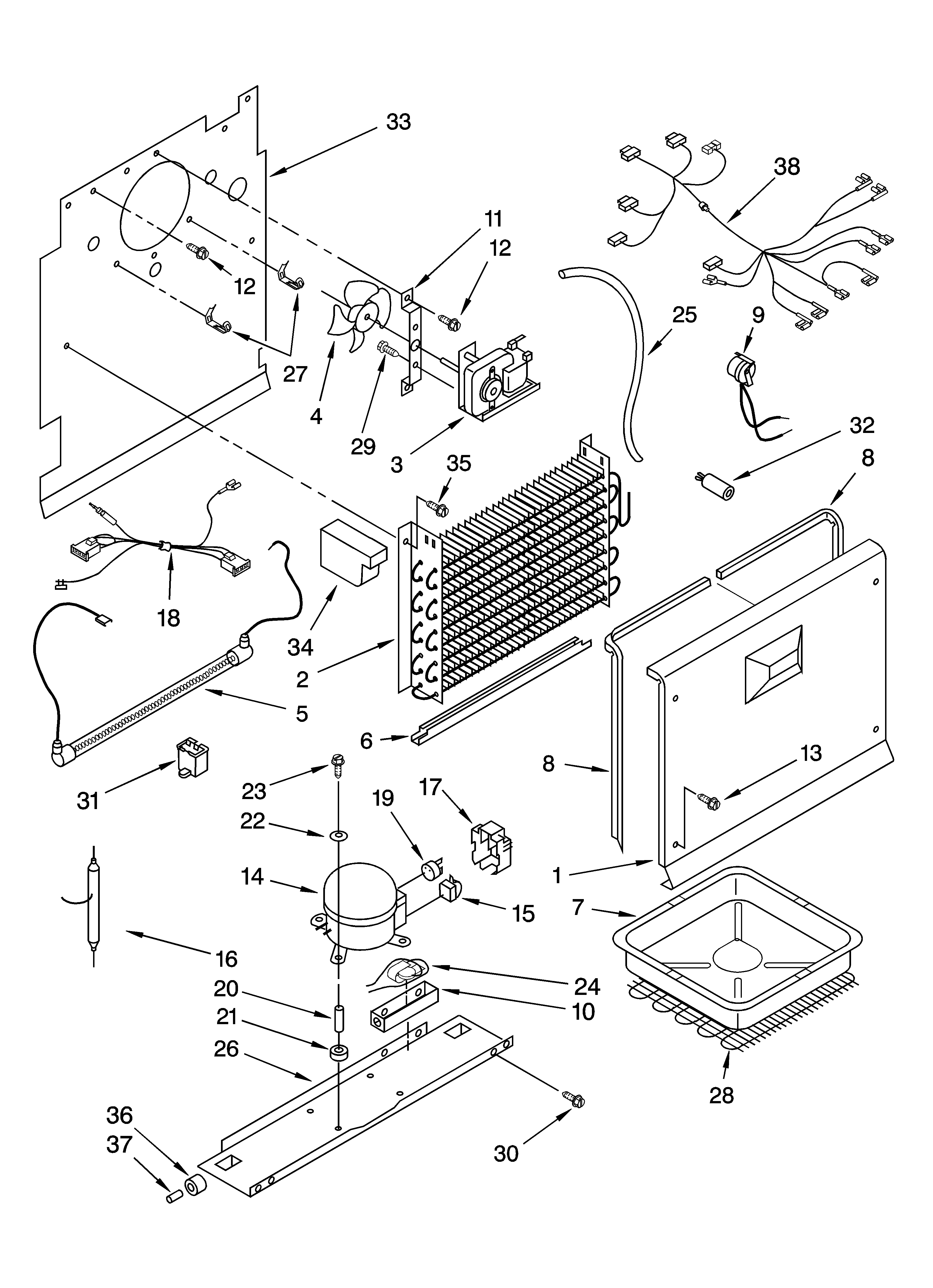

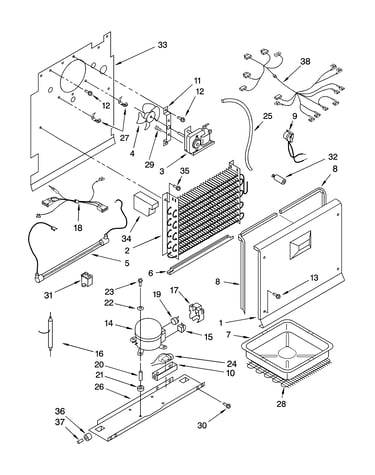

    Unit parts diagram

    Drier tube

    Part #4357299

    Replaced by #W10843121

    ?
    Manufacturer substitution
    This part replaces 4357299. Substitute parts can look different from the original.
    BEST SELLER
    $30.51 |
    16% OFF Phone Price : $36.51
    In Stock
  • Spray Paint (white) 350930
    #NI

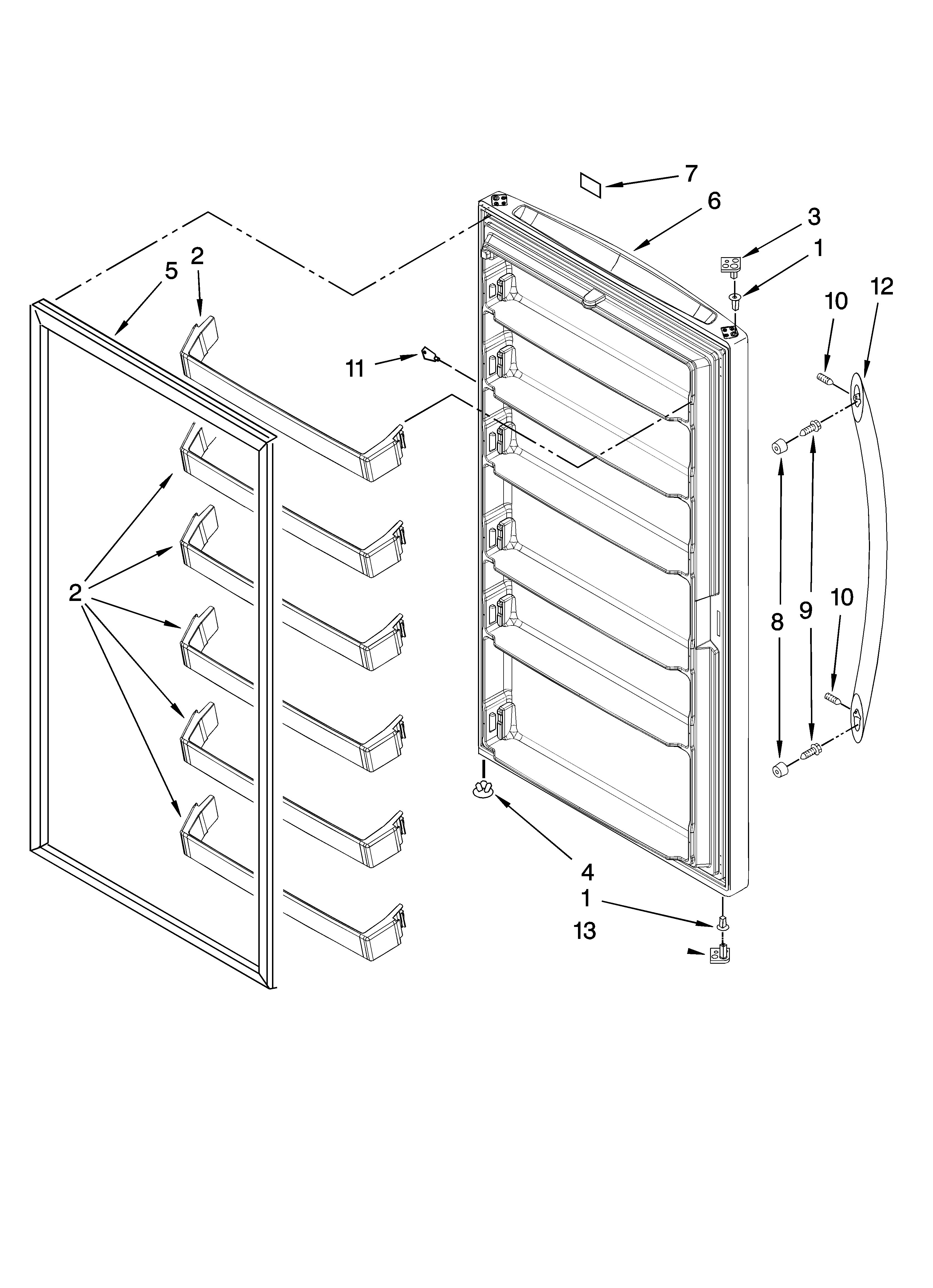

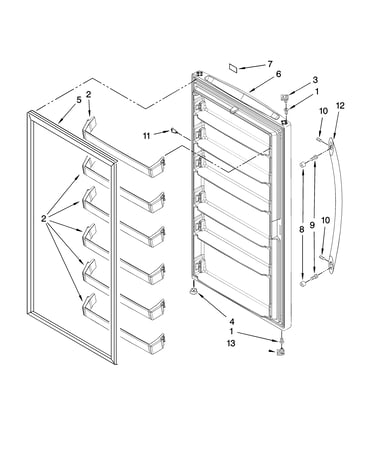

    Door parts, optional parts (not included) diagram

    Spray paint (white)

    Part #350930

    Replaced by #350930

    ?
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $16.44 |
    11% OFF Phone Price : $18.44
    In Stock
  • Screw 4357243
    Screw

    Part #4357243

    Replaced by #WP489478

    ?
    Manufacturer substitution
    This part replaces 4357243. Substitute parts can look different from the original.
    This item is not returnable
    $4.33 |
    19% OFF Phone Price : $5.33
    In Stock
  • Barrier 4356800
    #5

    Liner parts diagram

    Barrier

    Part #4356800

    Replaced by #WP2196003

    ?
    Manufacturer substitution
    This part replaces 4356800. Substitute parts can look different from the original.
    This item is not returnable
    $5.27 |
    16% OFF Phone Price : $6.27
    In Stock
  • Refrigerator Door Handle Mounting Stud 2219698
    #8

    Door parts, optional parts (not included) diagram

    Refrigerator door handle mounting stud

    Part #2219698

    Replaced by #WPW10170540

    ?
    Manufacturer substitution
    This part replaces 2219698. Substitute parts can look different from the original.
    This item is not returnable
    $8.12 |
    11% OFF Phone Price : $9.12
    In Stock
  • Defrost Timer 8210253
    #9

    Unit parts diagram

    Defrost timer

    Part #8210253

    Replaced by #WP1-81801-001

    ?
    Manufacturer substitution
    This part replaces 8210253. Substitute parts can look different from the original.
    $51.82 |
    10% OFF Phone Price : $57.82
    In Stock
  • Level Legs W10177675
    #13

    Cabinet parts diagram

    Level legs

    Part #W10177675

    Replaced by #WP3-82710-001

    ?
    Manufacturer substitution
    This part replaces W10177675. Substitute parts can look different from the original.
    This item is not returnable
    $10.62 |
    16% OFF Phone Price : $12.62
    In Stock
  • Heater W10164625
    #5

    Unit parts diagram

    Heater

    Part #W10164625

    Replaced by #WP3-80405-003

    ?
    Manufacturer substitution
    This part replaces W10164625. Substitute parts can look different from the original.
    $93.48 |
    6% OFF Phone Price : $99.48
    In Stock
  • Door Hinge 8210222
    #10

    Cabinet parts diagram

    Door hinge

    Part #8210222

    Replaced by #2-81016-105

    ?
    Manufacturer substitution
    This part replaces 8210222. Substitute parts can look different from the original.
    This item is not returnable
    $23.07 |
    21% OFF Phone Price : $29.07
    In Stock
