Kenmore
Canister Vacuum

Model # 1162839880 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162839880 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Terminal 4150572
#9

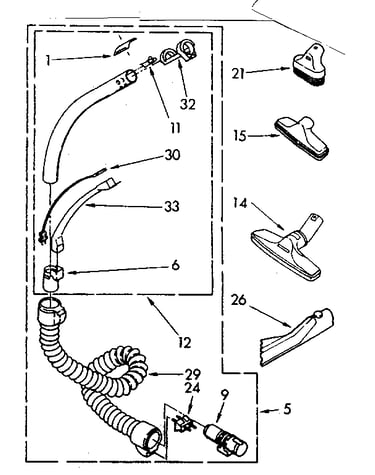

Attachment parts diagram

Terminal

Part #4150572

The manufacturer no longer makes this part, and there's no substitute part

Gasket 4150516
#11

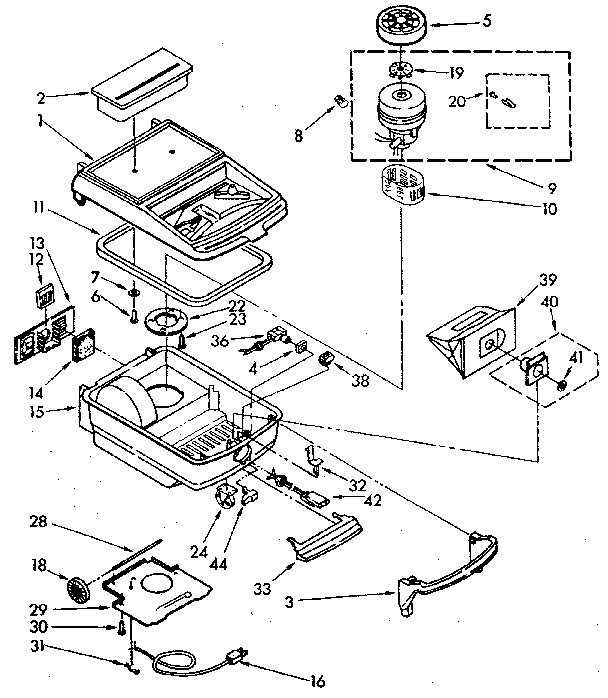

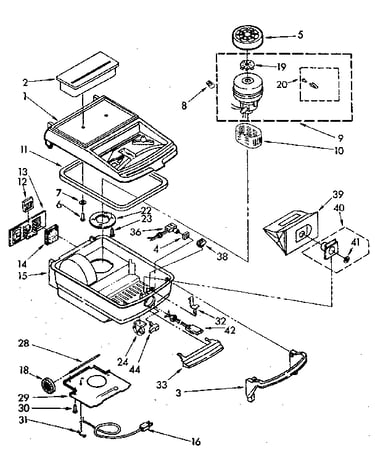

Vacuum cleaner parts diagram

Gasket

Part #4150516

The manufacturer no longer makes this part, and there's no substitute part

Male Plug 4150571
#24

Attachment parts diagram

Male plug

Part #4150571

The manufacturer no longer makes this part, and there's no substitute part

Base 4150520
#15

Vacuum cleaner parts diagram

Base

Part #4150520

The manufacturer no longer makes this part, and there's no substitute part

Floor Brush 4150550
#14

Attachment parts diagram

Floor brush

Part #4150550

The manufacturer no longer makes this part, and there's no substitute part

Cover 4150508
#13

Vacuum cleaner parts diagram

Cover

Part #4150508

The manufacturer no longer makes this part, and there's no substitute part

Wheel 4150513
#24

Vacuum cleaner parts diagram

Wheel

Part #4150513

The manufacturer no longer makes this part, and there's no substitute part

Pedal Switch 4150514
#33

Vacuum cleaner parts diagram

Pedal switch

Part #4150514

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 4150547
#26

Attachment parts diagram

Crevice tool

Part #4150547

The manufacturer no longer makes this part, and there's no substitute part

Brush Kit 588867
#20

Vacuum cleaner parts diagram

Brush kit

Part #588867

The manufacturer no longer makes this part, and there's no substitute part
