Model # MDH40YG2 Official Gibson dehumidifier - 5995287447

Here are the diagrams and repair parts for Official Gibson MDH40YG2 dehumidifier - 5995287447, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

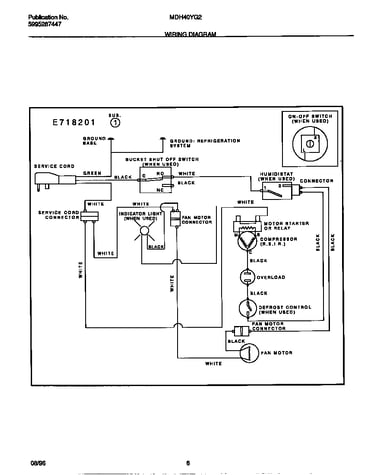

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Relay 3204486
#42

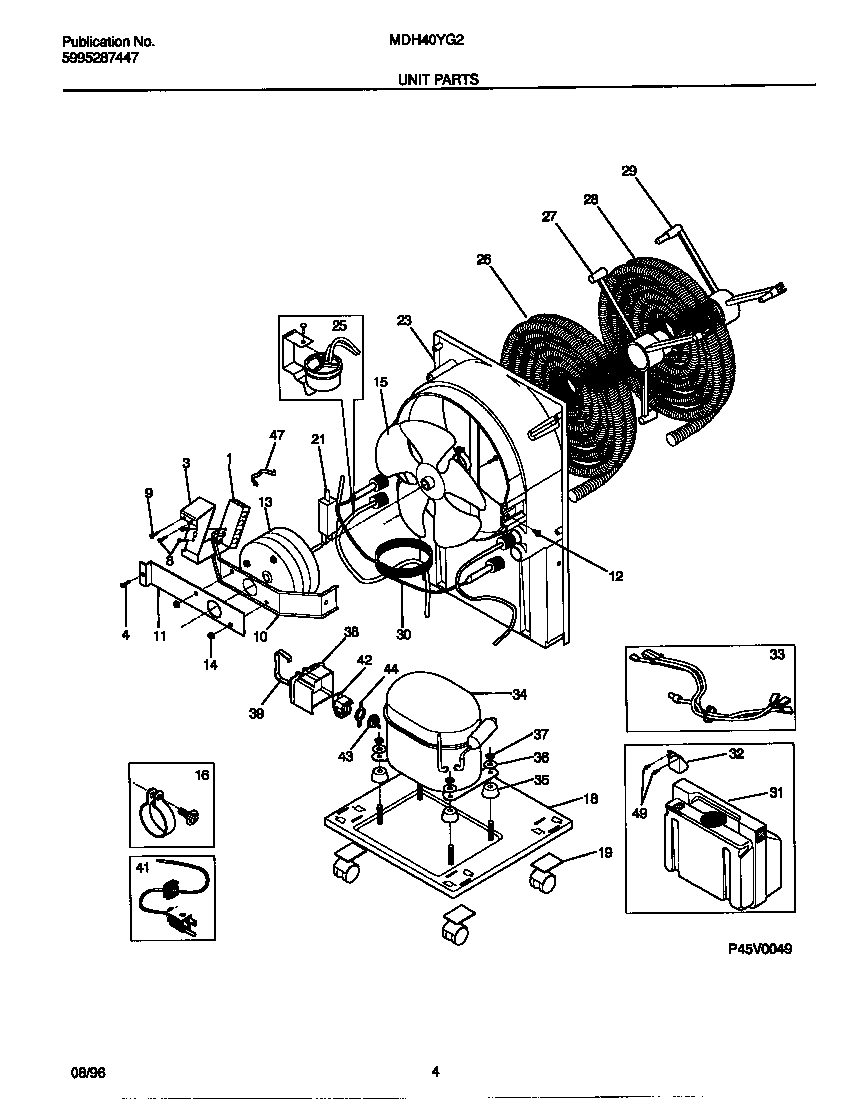

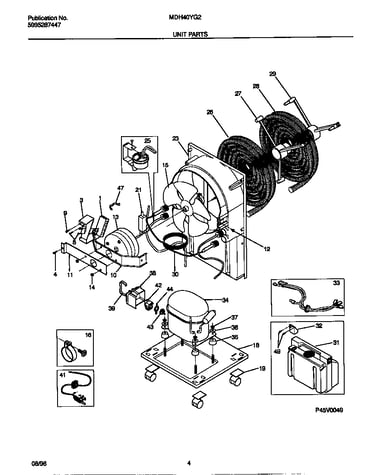

Unit parts diagram

Relay

Part #3204486

Replaced by #216594300

?
Manufacturer substitution
This part replaces 3204486. Substitute parts can look different from the original.
$53.69
9% OFF Phone Price : $58.69
In Stock
Room Air Conditioner Lock Nut 08007481
#14

Unit parts diagram

Room air conditioner lock nut

Part #08007481

This item is not returnable
In Stock
Dehumidifier Screw 5303007620
#8

Unit parts diagram

Dehumidifier screw

Part #5303007620

In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Trim 3002958
#2

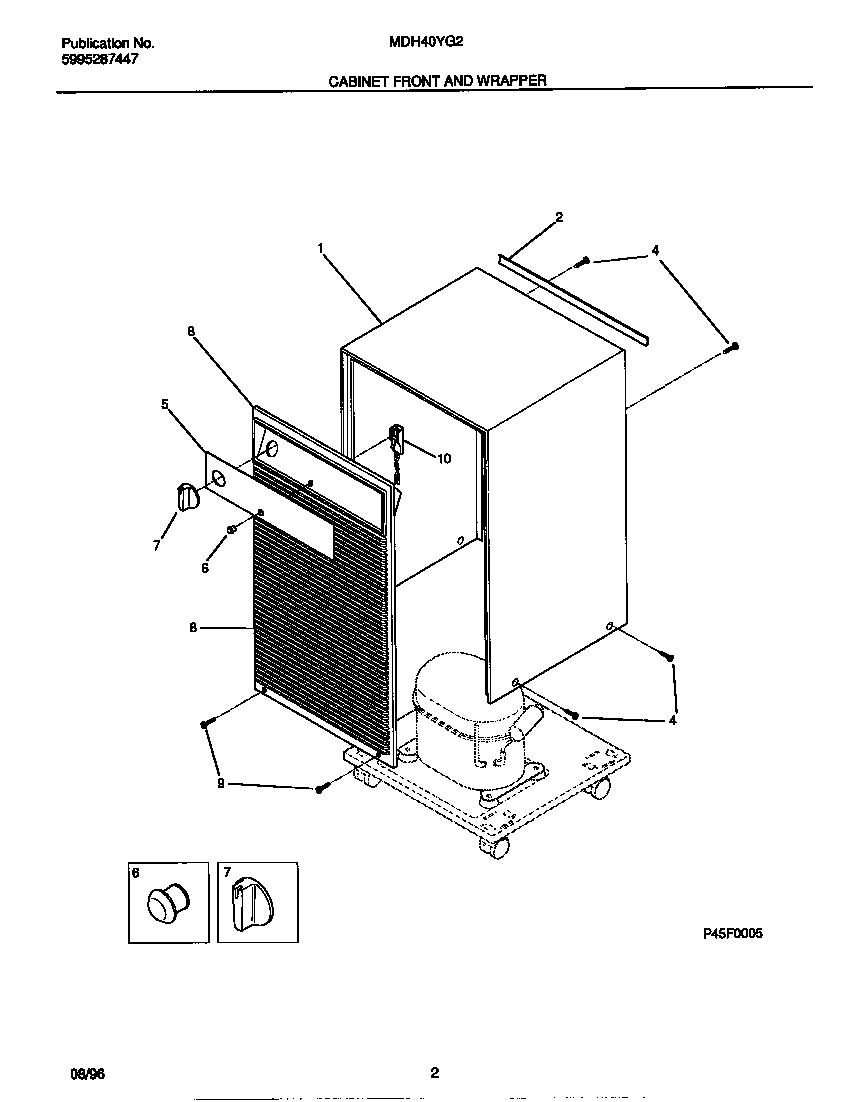

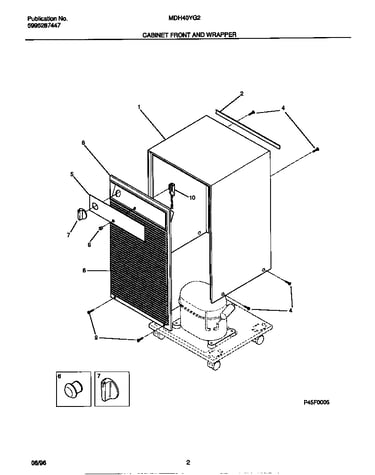

Cabinet front and wrapper diagram

Trim

Part #3002958

The manufacturer no longer makes this part, and there's no substitute part

Light Lens 08012705
#6

Cabinet front and wrapper diagram

Light lens

Part #08012705

The manufacturer no longer makes this part, and there's no substitute part

Washer 08002956
#36

Unit parts diagram

Washer

Part #08002956

The manufacturer no longer makes this part, and there's no substitute part

Float 5303272520
#32

Unit parts diagram

Float

Part #5303272520

The manufacturer no longer makes this part, and there's no substitute part

Clamp 08016454
#29

Unit parts diagram

Clamp

Part #08016454

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water Bucket Safety Switch 5308016437
#21

Unit parts diagram

Dehumidifier water bucket safety switch

Part #5308016437

The manufacturer no longer makes this part, and there's no substitute part
