On a Frigidaire LFHB2741PF5A bottom-mount refrigerator, people usually mean one of two things by “the bottom part”: the freezer drawer at the bottom of the cabinet, or the lower front area (toe grille or kickplate) that covers access to components underneath.

Common names for “the bottom part”

Here are the most common terms we see customers use:

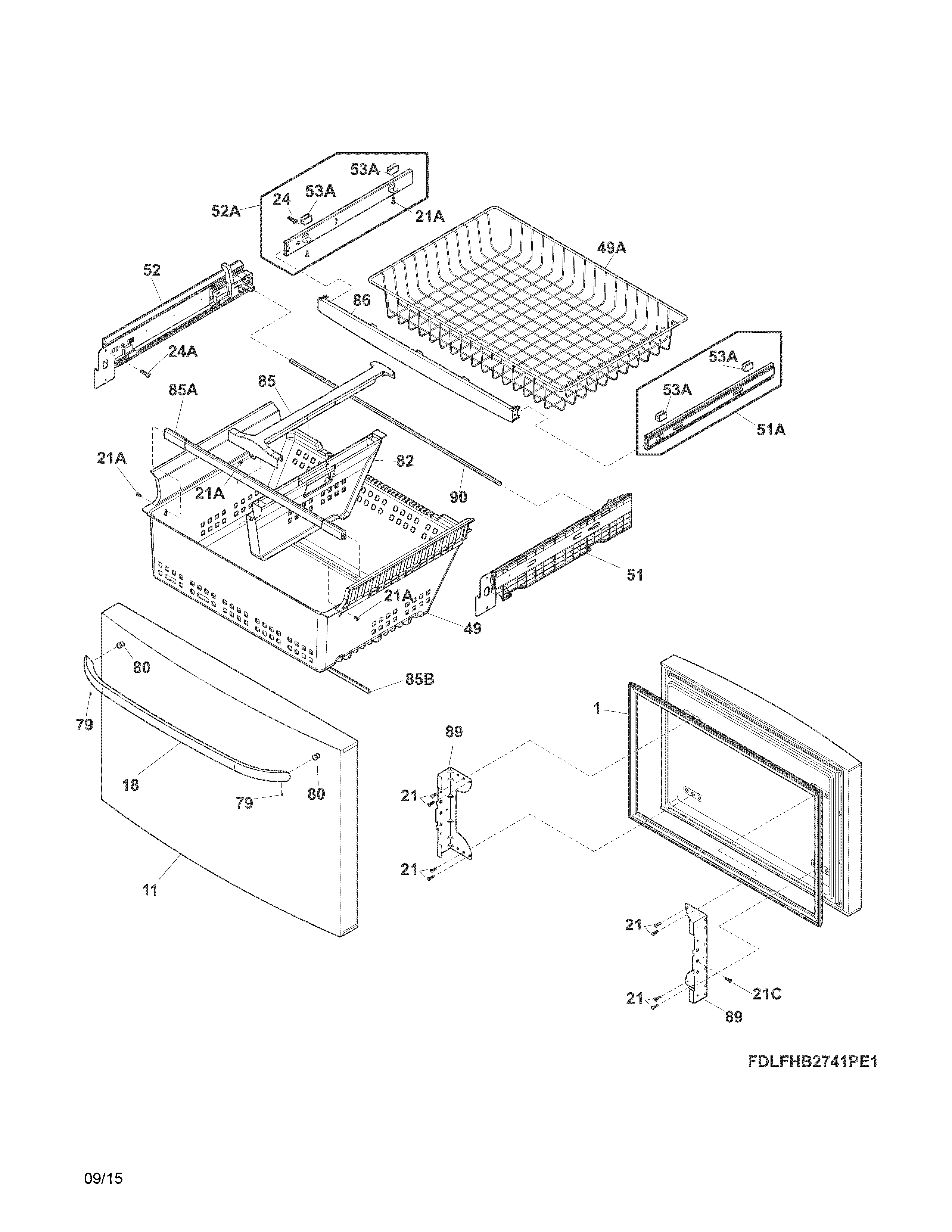

• Freezer drawer: the bottom freezer compartment that pulls out.
• Toe grille (kickplate): the lower front cover near the floor.

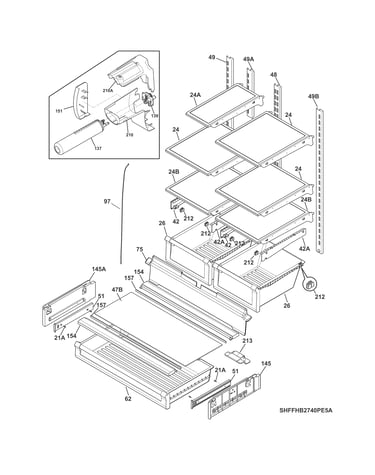

• Crisper drawers: the produce drawers located at the bottom of the fresh food compartment.
• Lower hinge area: where the door stop and hinge hardware sit.
• Bottom compartment area: a general term for the lowest storage zone.

What your LFHB2741PF5A manual calls it

In the LFHB2741PF5A documentation, the bottom storage areas are described as:

• “Freezer drawer” (leveling and gasket seal checks reference the freezer drawer)
• “Drawers” and “Crispers” (drawers are in fixed positions at the bottom of the fresh food compartment; crisper drawers are for fruits and vegetables)

For the exact terminology used for your configuration, we recommend checking the LFHB2741PF5A owner's manual.

Quick guide: which “bottom part” matches your situation?

If you mean…	What it’s usually called	Why you’d look there
The pull-out bottom section	Freezer drawer	Ice buildup, drawer not sealing, drawer alignment
The lowest drawers in the fridge section	Crisper drawers	Produce storage, humidity, water under drawers
The lower front cover by the floor	Toe grille (kickplate)	Cleaning, airflow, access underneath

Why it matters

Using the right name helps you find the correct instructions and parts faster. For example, a “freezer drawer gasket seal” issue is handled differently than moisture around the “crisper drawer” area, and both are different from problems behind the toe grille.

If you are troubleshooting sealing or alignment at the bottom, the installation guide covers leveling and door and drawer sealing checks.

Last updated: February 2026

On a Frigidaire LFHB2741PF5A refrigerator, the 5Y EF (also shown as SY EF) error code points to a problem in the evaporator fan circuit. The refrigerator may not cool evenly because the evaporator fan is not moving air across the evaporator and through the fresh food section.

What you’ll notice when 5Y EF is active

• Warm fresh food section while the freezer seems closer to normal
• Little to no airflow from the refrigerator vents
• Unusual fan noise (rubbing, buzzing) or no fan sound at all
• Frost buildup on the rear freezer panel
• Temperature display may flash or show a performance-related message

Quick checks we recommend (safe, no tools)

1. Power reset: Unplug the refrigerator for 5 minutes, then plug it back in (use a dedicated, grounded outlet as described in the LFHB2741PF5A owner's manual).
2. Confirm doors seal and close fully: Poor sealing can worsen cooling and airflow symptoms.
3. Listen for the evaporator fan: After the unit runs a bit, you should typically hear a steady fan sound when cooling is called for.
4. Check for heavy frost: If the freezer back wall is iced over, airflow can be blocked and the fan can struggle.

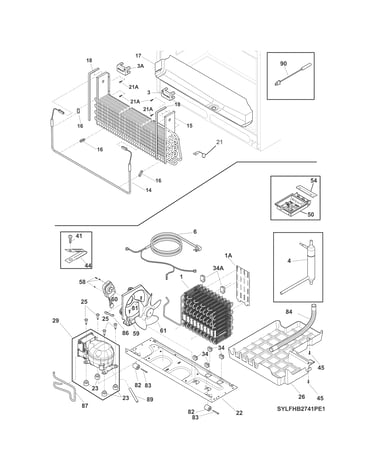

Parts commonly involved

If the code returns after a reset, the issue is usually the fan circuit itself (fan, wiring, or control). These parts on our list are commonly related to airflow and cooling:

Symptom	Most likely area	Example part from this model’s parts list
No airflow, fan not running	Evaporator fan area	Refrigerator fan 5304493604
Fan runs but noisy or rubbing	Fan blade interference/damage	Refrigerator evaporator fan blade 5308000010
Frost/ice buildup affecting airflow	Defrost system	Refrigerator defrost heater 5303918410 or refrigerator defrost bi-metal thermostat 5304521781

Why it matters

The evaporator fan is what distributes cold air. When the fan circuit has a fault, temperatures swing, food spoils faster, and the refrigerator can run longer than normal trying to recover.

Helpful DIY reference

• Use our Frigidaire refrigerator error codes guide to match display messages and narrow down the most likely circuit or component.

You can order replacement parts for your LFHB2741PF5A from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On a Frigidaire LFHB2741PF5A bottom-mount refrigerator, ice collecting on the freezer floor almost always means the defrost drain is clogged or frozen, so melt the ice, clear the drain opening, and flush it with hot water until it drains freely (then dry and reassemble).

Quick fix steps (safe and effective)

• Unplug the refrigerator (or switch off power at the breaker).
• Pull out the freezer drawer for access; follow the drawer removal steps in the LFHB2741PF5A installation guide.
• Remove the rear panel inside the freezer compartment.
• Melt the ice with a hair dryer on low or by placing towels and using warm water (avoid overheating plastic).
• Find the drain hole/trough under the evaporator area; remove any slush, food debris, or ice.
• Flush the drain with hot water until you hear/see steady draining into the drain pan underneath.

What to check if the ice comes back

Common causes

• Drain hole iced over again (door left ajar, heavy humidity, frequent openings).
• Drain trough packed with frost because airflow is restricted.
• Door not sealing, letting moist air in.

Fast checks you can do

• Make sure the freezer drawer closes fully and nothing is blocking the rails.
• Inspect the door seal for gaps, tears, or areas that do not grip paper well; use our refrigerator door gasket 5304537408 if the gasket is damaged.
• Confirm the freezer temperature is set correctly (most homes do best around 0°F).

Symptoms and what they usually mean

Symptom	Most likely cause	What to do
Solid sheet of ice on freezer floor	Clogged/frozen defrost drain	Thaw and flush drain until clear
Water puddles that refreeze every few days	Partial drain restriction	Repeat flush; clear debris thoroughly
Frost buildup plus ice on floor	Air leak or poor airflow	Check gasket, loading, and vents

Why it matters

A blocked defrost drain forces meltwater to overflow into the freezer bottom, where it refreezes into a thick ice layer. Clearing the drain prevents recurring ice, drawer sticking, and temperature swings.

For replacement parts for LFHB2741PF5A (like gaskets, fans, or ice maker components), order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

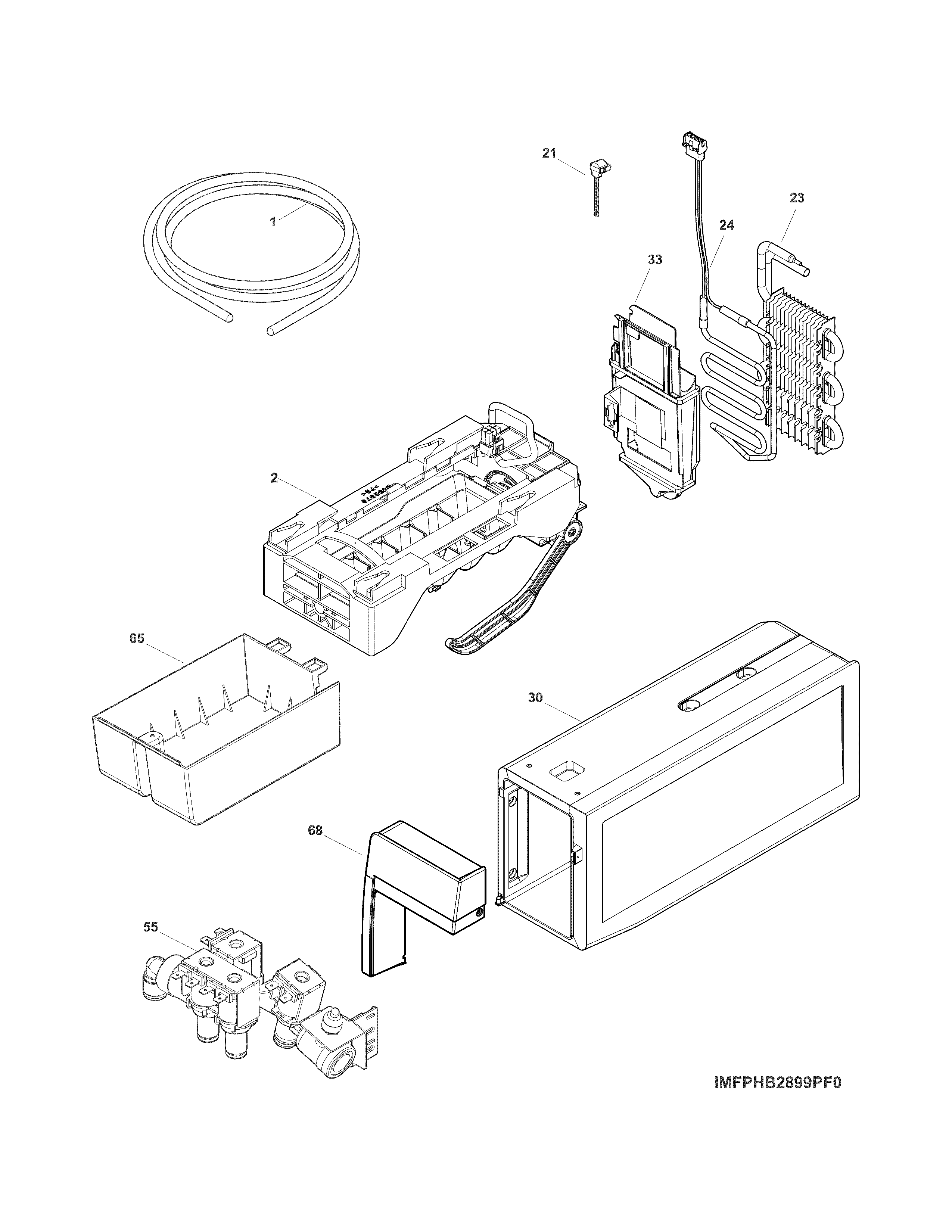

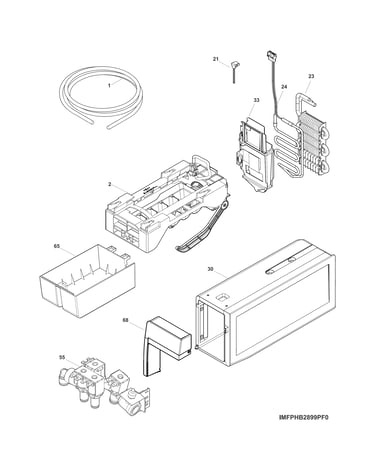

If the ice maker in your Frigidaire LFHB2741PF5A is leaking from the bottom, the most common causes are a restricted water supply (kinked line, low pressure), a clogged or mis-seated water filter, or a leaking inlet valve connection. Fixing the water supply and filter seating usually stops the leak.

Quick checks that solve most leaks

• Turn off the ice maker and shut off the household water supply.
• Pull the refrigerator out and inspect the water line for kinks or pinches.
• Confirm the shutoff valve is fully open (avoid self-piercing saddle valves).
• Reseat the water filter; a filter that is not seated properly can cause poor fill and leaking.
• Dump the ice bin and let the unit make a fresh batch; hollow cubes can break and leak water into the bin.

What “leaking from the bottom” usually means

In this model, “bottom leak” complaints typically come from one of these situations:

Symptom you see	Most likely cause	What to do first
Water under/around ice bin, cubes stuck together	Hollow cubes from underfilling	Replace/reseat filter; check for restricted supply
Drips after fill cycles	Water line connection or valve seep	Inspect fittings; check valve body for seepage
Intermittent puddles near front	Door not sealing, warm air causing melt	Check gasket seal and door alignment

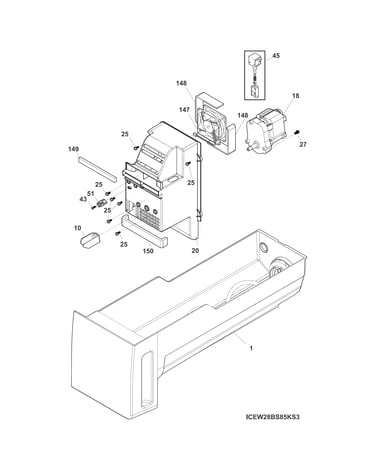

Parts that commonly relate to ice maker leaks

If the water supply line and filter seating check out, the next suspect is the inlet valve or the ice maker assembly.

• Refrigerator water inlet valve assembly 242253002 (controls water flow to the ice maker)
• Refrigerator ice maker assembly 243297613 (ice maker module and mold)
• Refrigerator water filter housing 242009604 (can leak if cracked or not sealing)

Installation details that prevent repeat leaks

Your installation guide and manual both emphasize water-line practices that directly affect leaking:

• Use copper or stainless steel braided tubing; 1/4-inch plastic tubing is not recommended.
• Do not reuse compression fittings and do not use thread seal tape on compression connections.
• Do not route the water line where it can freeze.

For the exact water supply hookup guidance for LFHB2741PF5A, follow the installation guide and the owner's manual.

Why it matters

Ice maker leaks can turn into ice clumps, dispenser jams, and water damage under the refrigerator. Correcting underfill and supply restrictions also improves cube quality and keeps the bin from freezing into a solid block.
