Model #SSGT19LF Official Speed Queen dryer

Here are the diagrams and repair parts for Speed Queen SSGT19LF dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 199 parts

    Screw

    See All Related Diagrams

    Screw

    Part #503688

    The manufacturer no longer makes this part, and there's no substitute part

    Dryer Drive Motor#4

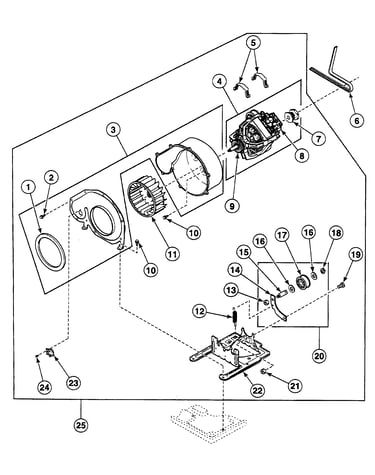

    Motor assy Diagram

    Dryer drive motor

    Part #511629P

    The manufacturer no longer makes this part, and there's no substitute part

    Ring

    See All Related Diagrams

    Ring

    Part #23748

    The manufacturer no longer makes this part, and there's no substitute part

    Bracket#13

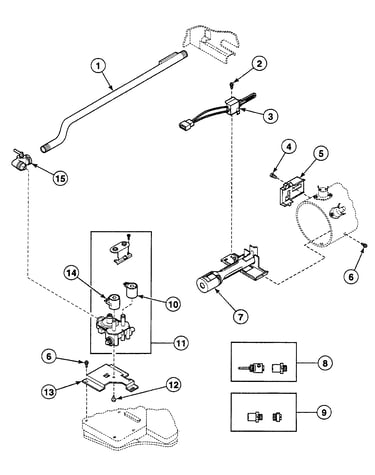

    Gas valve Diagram

    Bracket

    Part #510128

    The manufacturer no longer makes this part, and there's no substitute part

    Dryer Blower Motor and Fan Kit#25

    Motor assy Diagram

    Dryer blower motor and fan kit

    Part #510717P

    The manufacturer no longer makes this part, and there's no substitute part

    Laundry Appliance Idler Pulley Shaft

    See All Related Diagrams

    Laundry appliance idler pulley shaft

    Part #56461P

    The manufacturer no longer makes this part, and there's no substitute part

    Terminal#6

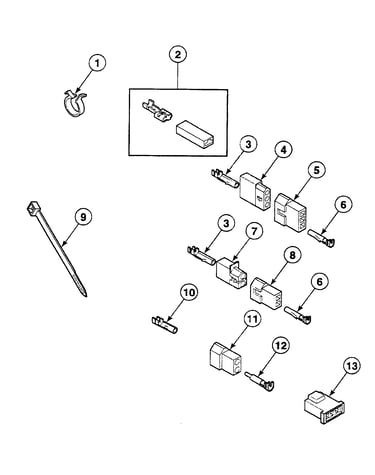

    Terminals Diagram

    Terminal

    Part #00116

    The manufacturer no longer makes this part, and there's no substitute part

    Hinge#5

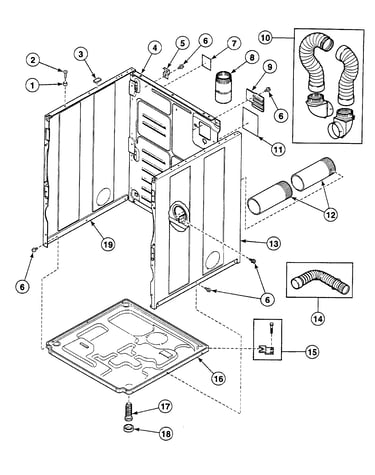

    Cabinet Diagram

    Hinge

    Part #510136

    The manufacturer no longer makes this part, and there's no substitute part

    Rubber Foot#18

    Cabinet Diagram

    Rubber foot

    Part #501855

    The manufacturer no longer makes this part, and there's no substitute part

    Wedge Kit#14

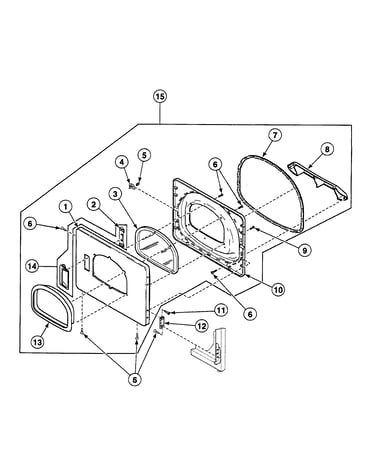

    Door assy Diagram

    Wedge kit

    Part #510103LP

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
