Whirlpool ED5HHGXTQ00 side-by-side refrigerator Parts

Yes. On a Whirlpool ED5HHGXTQ00 side-by-side refrigerator, we can usually replace many common parts ourselves (filters, bins, ice maker components, door hardware) with basic tools and careful safety steps; sealed-system and complex electrical repairs are best handled by a technician.

What you can typically replace yourself

These repairs are usually straightforward DIY jobs when you disconnect power first and follow the steps in the owner's manual:

• Refrigerator water filter and filter cap
• Ice maker assembly and ice container
• Crisper pan and meat pan
• Door closer cam and some door sealing issues
• Basic cleaning and maintenance (base grille, condenser area)

Safety steps we follow first (important)

The manual calls out key precautions that matter for any service work:

• Unplug the refrigerator (or disconnect power) before servicing
• Replace all parts and panels before operating
• Plug into a grounded 3-prong outlet (no adapter, no extension cord)
• Use nonflammable cleaner for cleaning tasks
• Use two or more people when moving the refrigerator

Quick guide: DIY-friendly vs. technician-level repairs

Repair type	Examples	Best choice
DIY part swap	filter, bins, ice maker, door cam	DIY
Water supply diagnosis	low water flow, no ice, dispenser issues	DIY first, then service if needed
Electrical diagnosis	control issues, wiring faults	Technician
Sealed-system	compressor, refrigerant, capillary tube	Technician

Parts that commonly solve the problem

If the symptom points to a specific component, these model-matched parts are common starting points:

• Water taste/flow issues: refrigerator water filter EDR3RXD1
• No water to dispenser/ice maker: refrigerator inlet valve W10408179

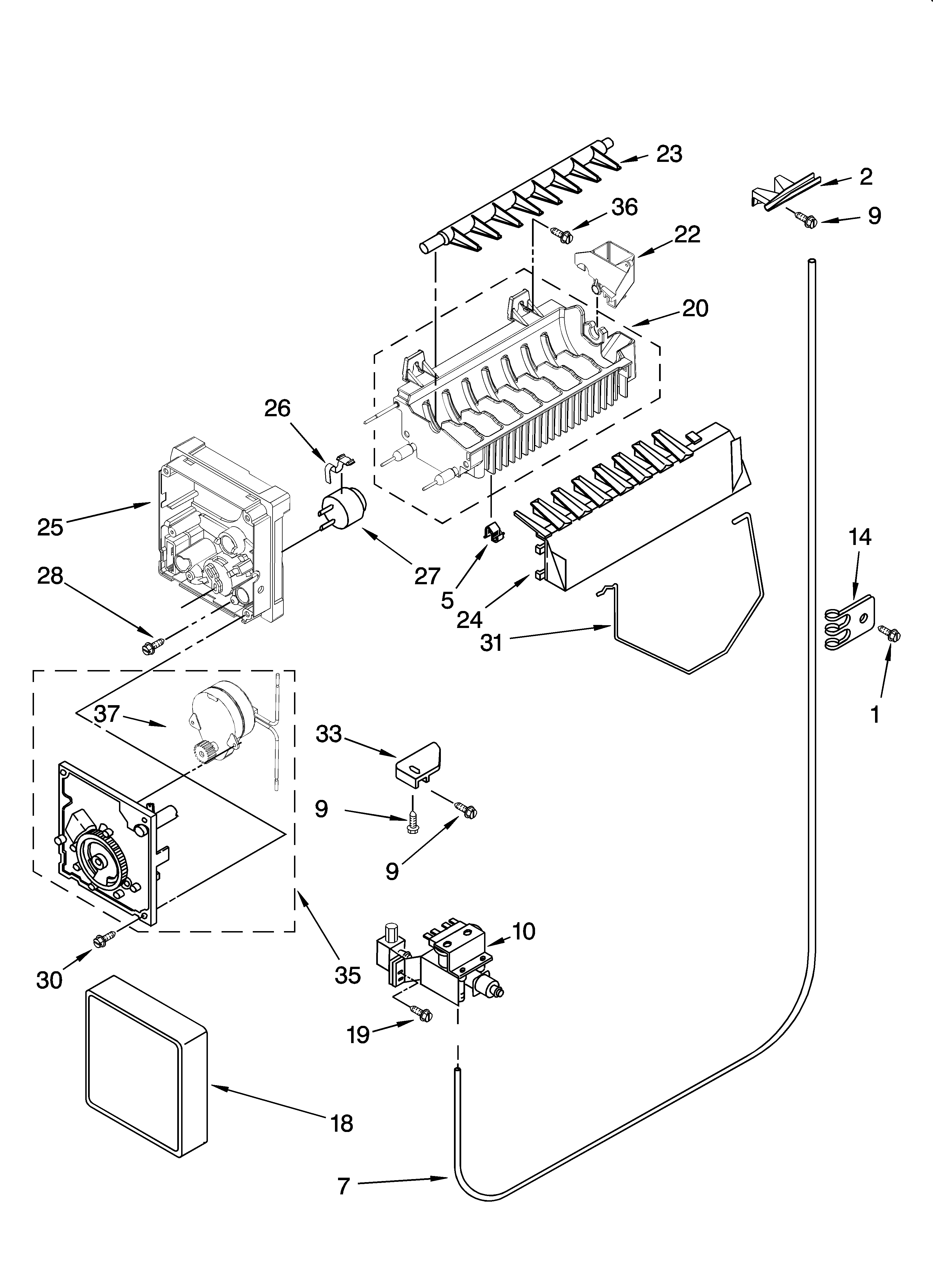

• No ice production (with good water supply): refrigerator ice maker WPW10190965
• Door not closing smoothly: refrigerator door closer cam WPW10329686

Why it matters

DIY replacement can restore cooling, water dispensing, and ice production faster and at lower cost, but safety matters. Disconnecting power before servicing and reinstalling panels helps prevent shock hazards and protects the refrigerator from damage.

Last updated: February 2026

In a Whirlpool side-by-side refrigerator like model ED5HHGXTQ00, the most commonly replaced parts are the ones that affect cooling, water and ice, and door sealing. That typically includes the water filter, ice maker components, water inlet valve, defrost parts, thermostats, and door gaskets, plus bins and pans that crack over time.

Commonly replaced parts (and what they do)

• Water filter: improves taste and reduces contaminants; replace when flow drops or on your schedule (many owners replace about every 6 months).
• Ice maker and dispenser parts: restore ice production, stop leaks, or fix dispensing issues.
• Water inlet valve: controls water to the dispenser and ice maker; a common cause of no water, slow fill, or leaking.
• Defrost parts: help prevent frost buildup that blocks airflow and causes warm temperatures.
• Temperature controls (thermostat/thermistor): help regulate compressor and fan run time.
• Door gaskets and door closing parts: stop warm air leaks that cause sweating, frost, and long run times.

Model ED5HHGXTQ00 parts we see replaced often

Symptom	Common part category	Example part for this model
Bad taste, odor, slow water flow	Water filtration	Refrigerator water filter EDR3RXD1
No ice, small cubes, leaking at back	Water supply	Refrigerator inlet valve W10408179
No ice production	Ice maker assembly	Refrigerator ice maker WPW10190965
Frost buildup, warm fridge	Defrost system	Refrigerator defrost timer W10822278

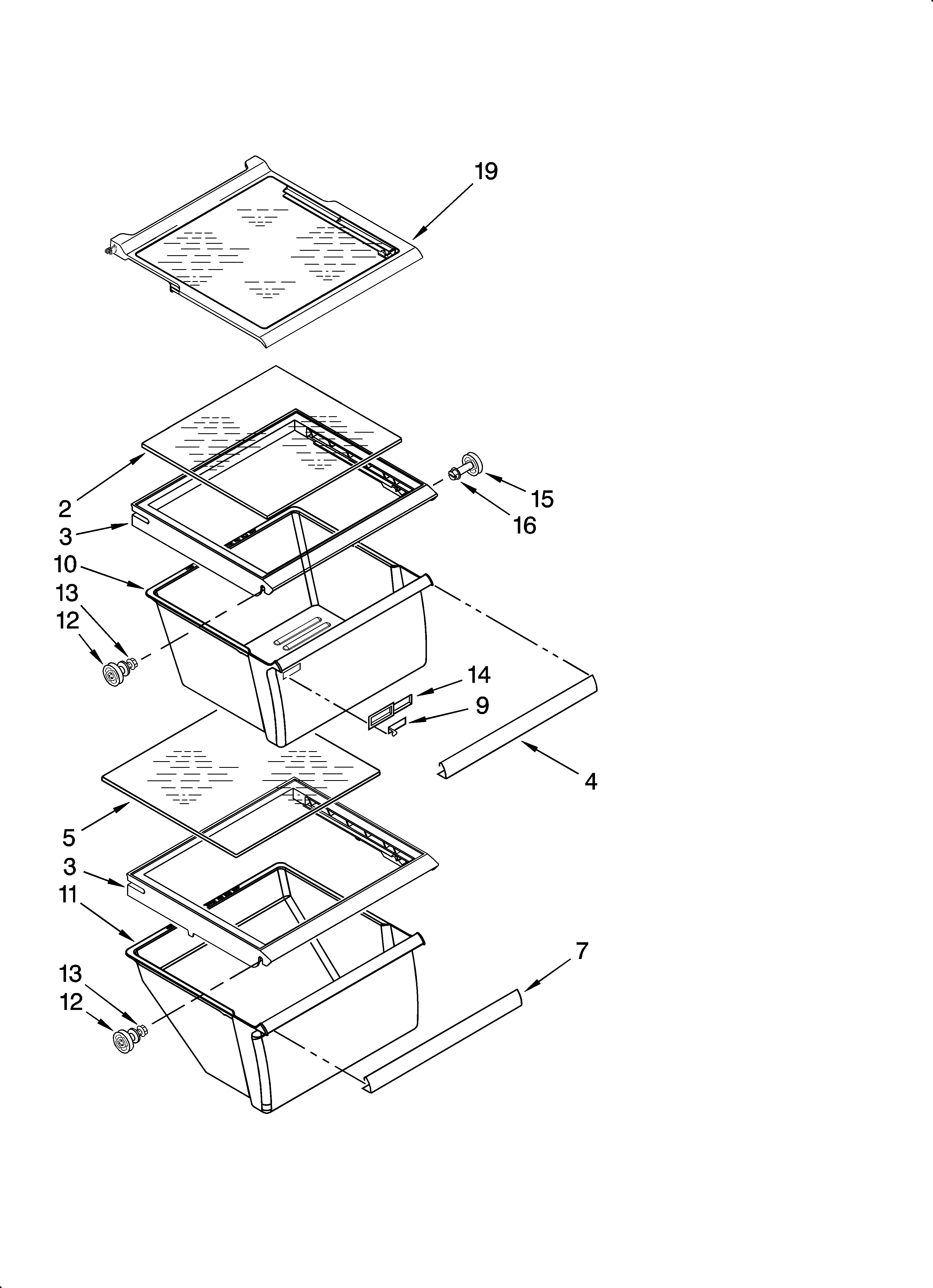

Cracked drawer, poor fit	Storage hardware	Refrigerator crisper pan WP2188656

How we recommend choosing the right replacement part

• Match by model number (ED5HHGXTQ00) first, then confirm the part ID.
• Start with the symptom: water and ice issues usually point to the filter, valve, or ice maker.
• For cooling complaints, check airflow and frost patterns before replacing parts.
• Replace all panels and covers before running the refrigerator after service.
• Use the cleaning and care guidance in the owner's manual to reduce odors and improve efficiency.

Why it matters

Replacing the right part restores temperature stability, reduces energy waste from air leaks, and prevents secondary problems like frost buildup, puddles, and weak ice production.

Last updated: February 2026

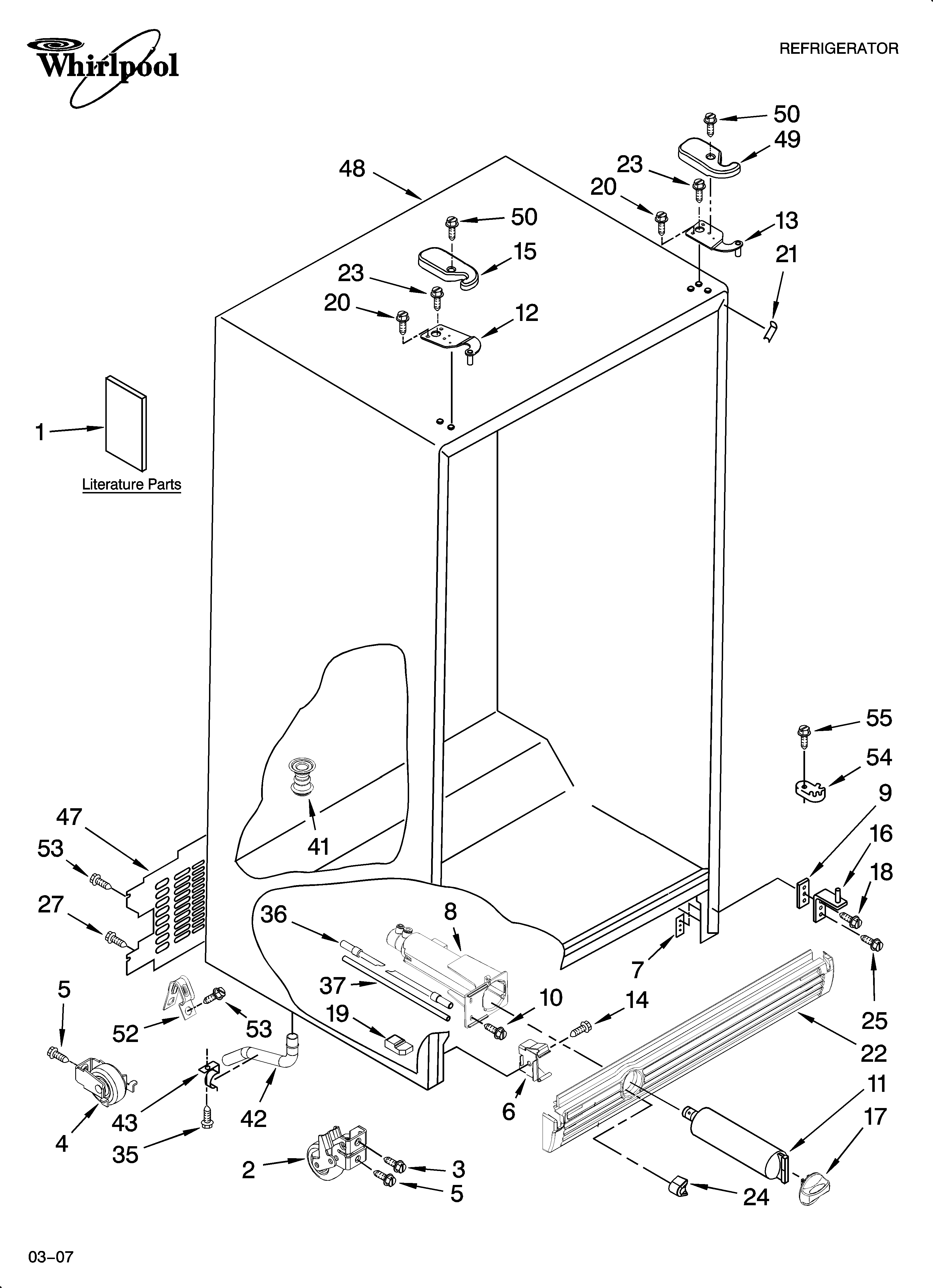

On the Whirlpool ED5HHGXTQ00 side-by-side refrigerator, the water filter is located in the base grille at the bottom front of the refrigerator. You access it from the front by opening the base grille area and removing the filter straight out.

How to find and remove the filter

Use these steps to locate the filter quickly and avoid damaging the cap or housing:

• Look at the bottom front of the refrigerator for the base grille (toe-kick) area.
• Find the filter handle or end-cap in the grille opening.
• Lift or pull the release as shown in the owner's manual.
• Pull the filter straight out (do not twist unless your filter style requires it).
• Keep the filter cap; it transfers to the replacement filter.

What to do if your model uses a cap in the base grille

Some versions of this Whirlpool design use a removable cap in the base grille when running without a filter. The cap is part of the refrigerator and should be saved for future use.

Situation	What you will see	What to do
Filter installed	Filter body visible in base grille	Remove filter, move cap to new filter if required
No filter installed	A cap/plug in the base grille	Remove cap, install filter, save cap

Which replacement filter fits

For ED5HHGXTQ00, the standard base filter cartridge is part number 4396841. On our parts list, you can match that to the refrigerator water filter EDR3RXD1 listing.

Why it matters

Knowing the filter location helps you restore normal water flow and ice production. A clogged filter commonly causes slow dispensing, small ice cubes, or reduced ice maker fill.

Helpful tip

If water flow is still weak after a filter change, flush the system by dispensing and discarding several containers of water to clear air from the line.

Last updated: February 2026
