Model #AES3760BCS16 Amana 30" electric slide-in range

Here are the diagrams and repair parts for Amana AES3760BCS16 30" electric slide-in range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

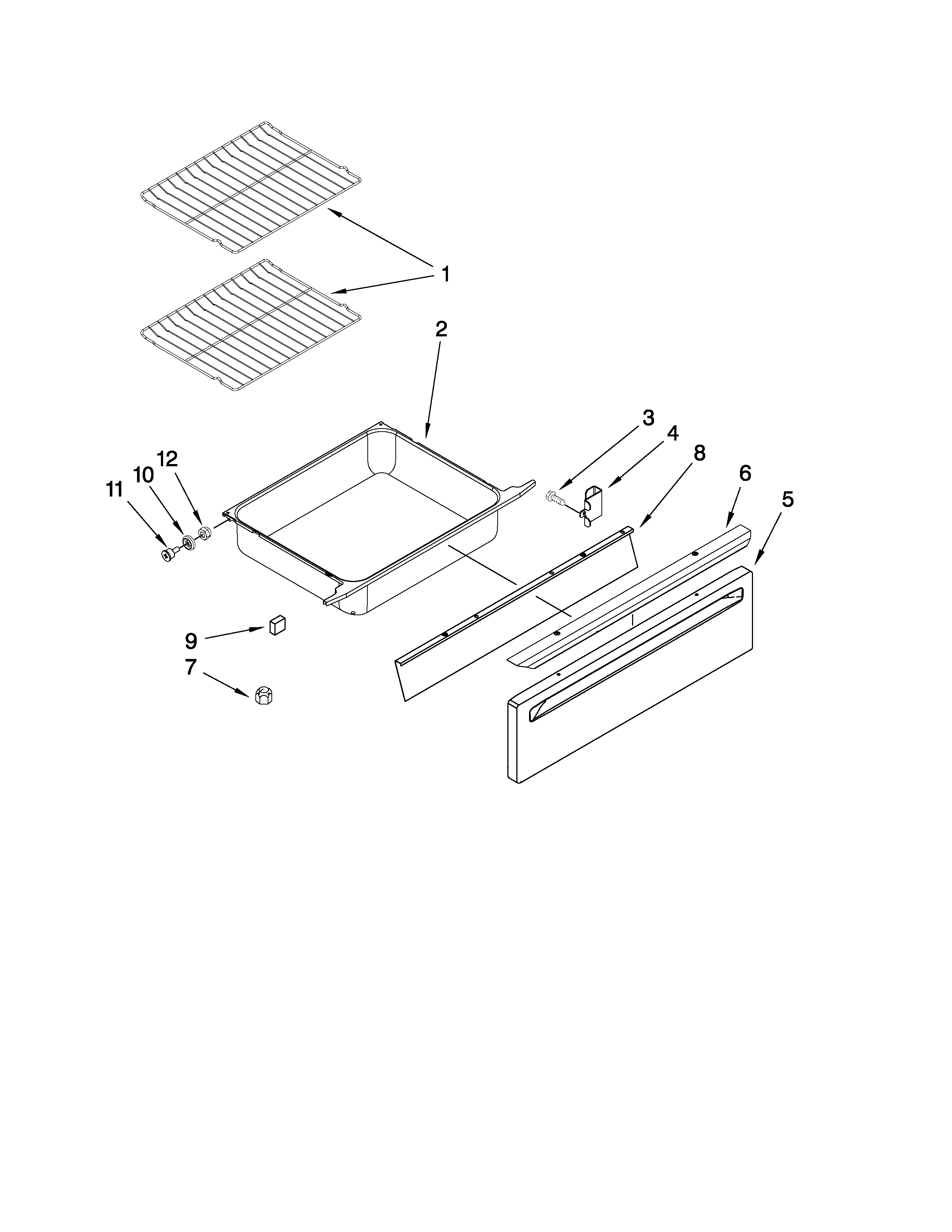

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 130 parts

Appliance Spray Paint (Black)

#NI

Optional parts (not included) Diagram

$17.97
10% OFFMSRP:$20.00

In Stock

Screen

#20

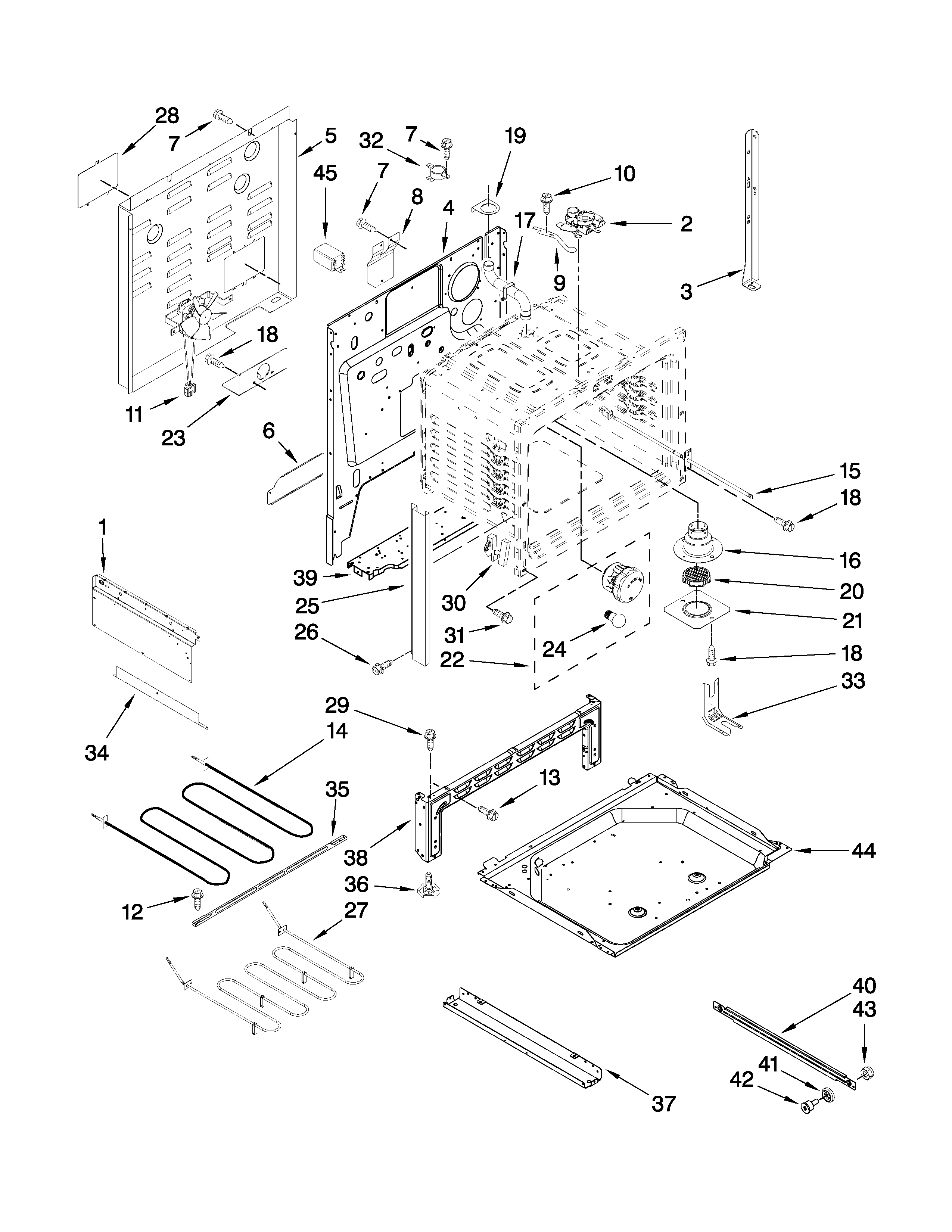

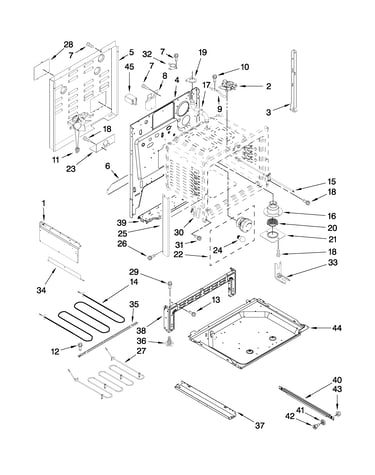

Chassis parts Diagram

Screen

Part #8034P008-60
$21.76

In Stock

Appliance Paint, 1-qt (Bisque)

#NI

Optional parts (not included) Diagram

$87.12
15% OFFMSRP:$101.98

In Stock

Cook Guide

#1E

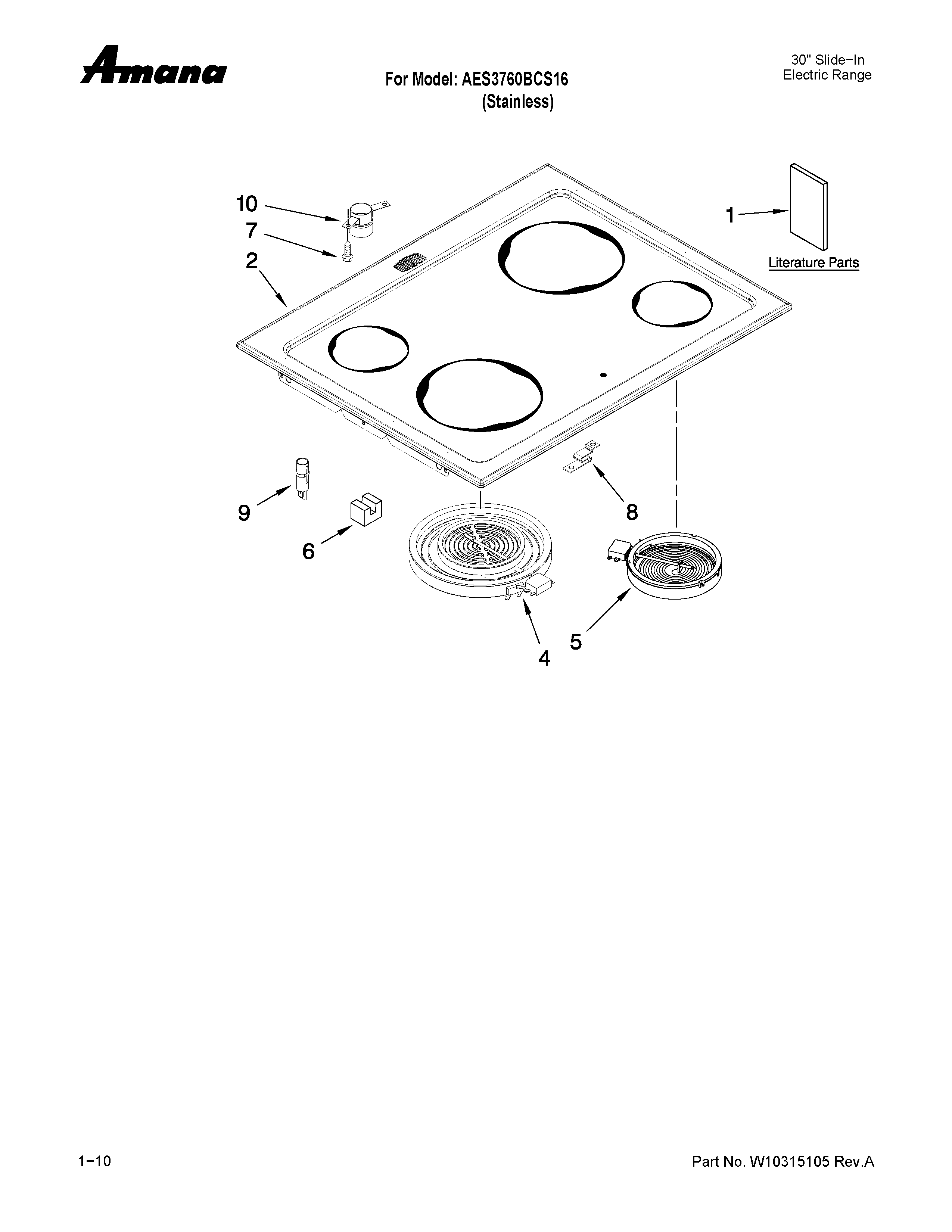

Cooktop parts Diagram

Cook guide

Part #9762761
This item is not returnable
$2.31
55% OFFMSRP:$5.13

In Stock

Insulation

#NI

Chassis parts Diagram

Insulation

Part #7002P456-60
$55.32

In Stock

Control Panel

#2

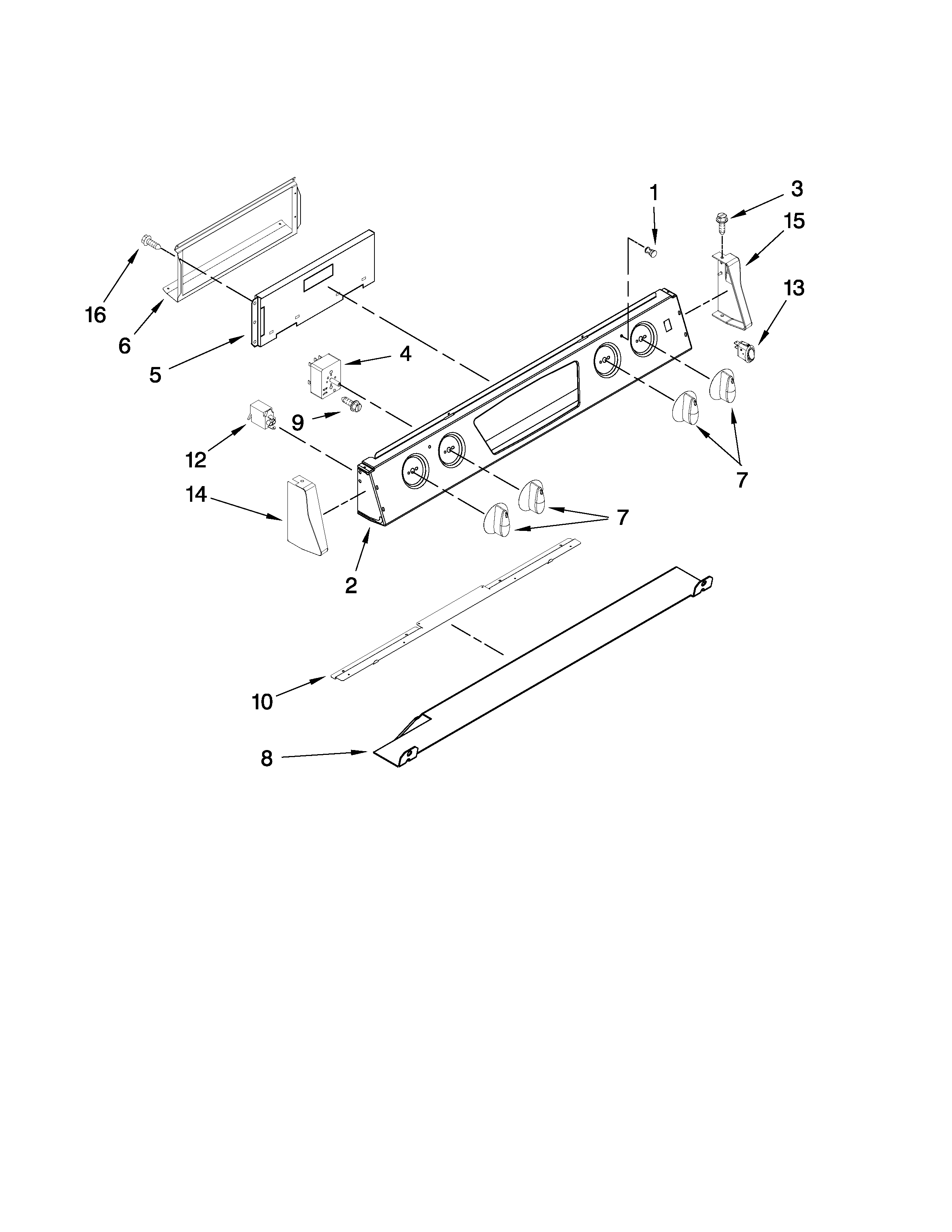

Control panel parts Diagram

Control panel

Part #2614N145-50
$94.33

In Stock

Retainer

#15A

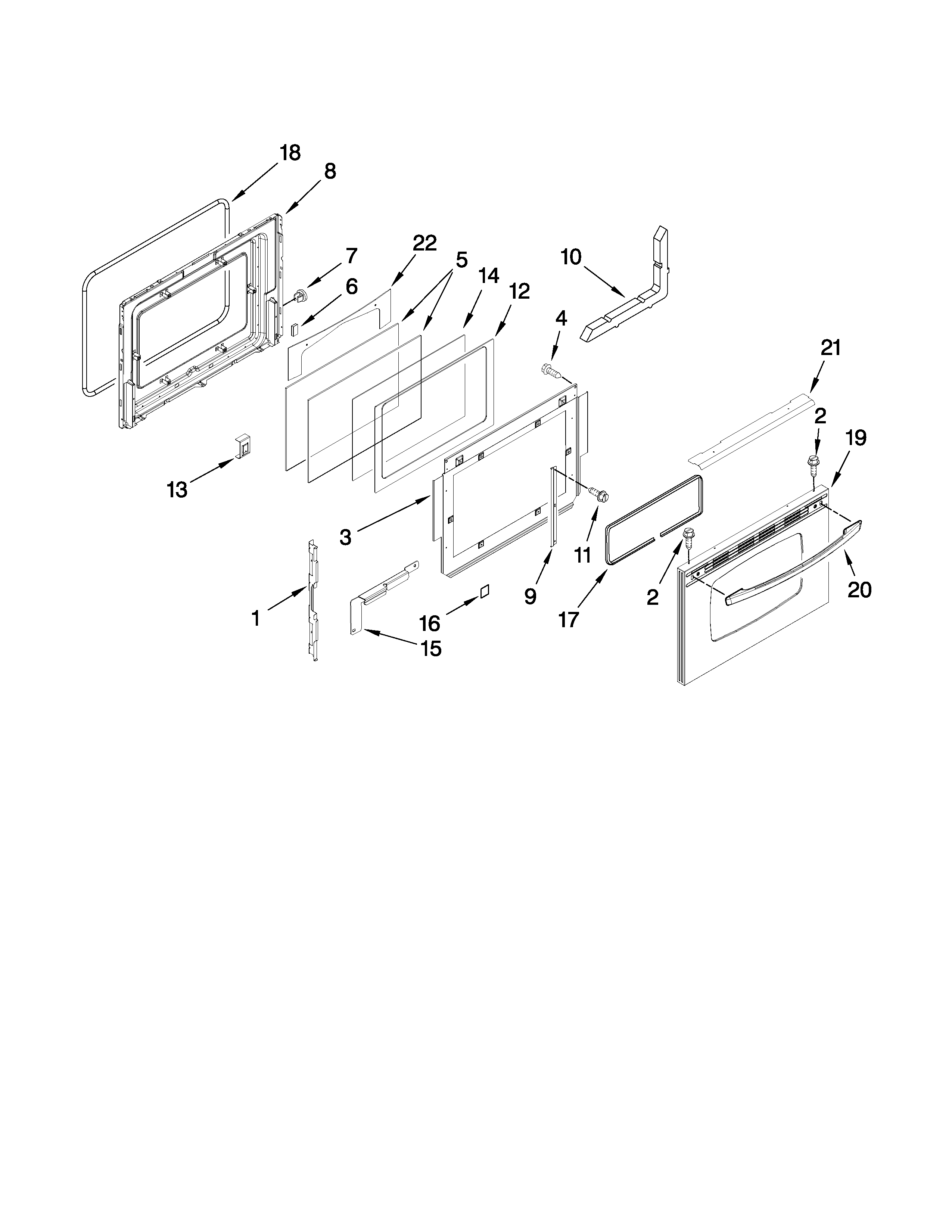

Door parts Diagram

Retainer

Part #3804F307-51
$71.10

In Stock

Range Rear Panel

#5

Chassis parts Diagram

Range rear panel

Part #4005F810-51
$92.67

In Stock

INSULATOR, CORD

#8

Chassis parts Diagram

Insulator, cord

Part #7003P101-60
$10.59

In Stock

Range Base Rail Support

#37

Chassis parts Diagram

Range base rail support

Part #4020W035-80
$44.27

In Stock

Symptoms common to all ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
Main causes: broken broiler element, weak or broken boil burner igniter, control system failure, faulty temperature sensor, wiring failure
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter
