Does anyone make a 30 inch side by side refrigerator?
Yes. Several brands make 30-inch class side-by-side refrigerators, but true 30-inch-wide side-by-sides are less common than 33-inch and 36-inch models. For fit, we recommend confirming your exact opening width and the required installation clearances in the FRS6R5EMBC installation guide before choosing a replacement.
What “30 inch” usually means (and what to measure)
Manufacturers often market a refrigerator as “30-inch” even when the actual cabinet width is slightly under 30 inches, and the doors and hinges can require extra space.
Measure these before you shop:
- Cabinet opening width (wall to wall)
- Depth (including door and handles if needed)
- Height (floor to cabinet or soffit)
- Door swing clearance (especially next to a wall)
- Water line location (if you want ice and water)
Clearances to plan for (based on this model’s guidance)
Your Frigidaire FRS6R5EMBC installation guidance calls for airflow and connection space around the cabinet.
| Location | Typical minimum clearance for this setup |
|---|---|
| Sides and top | 3/8 in. |
| Back | 1 in. |
| Next to a wall at hinge side | 1/2 in. minimum for door swing |
Why it matters
A refrigerator that is “30-inch class” can still bind on the hinges, fail to open fully, or run warmer if it is packed too tightly into the cutout. Proper clearance protects door sealing, airflow, and ice maker water connections.
If you are replacing this refrigerator
If your new unit will use a water filter and dispenser, plan to replace the filter after installation and flushing.
Helpful related resources:
Last updated: February 2026
How do you tell what Frigidaire model you have?
For your Frigidaire refrigerator, the model number is printed on the serial plate inside the fresh food (refrigerator) compartment. On the FRS6R5EMBC, you will find it on a label inside the refrigerator section; match that model number exactly when ordering parts or using the owner's manual.
Where to look (fast checklist)
- Open the refrigerator (fresh food) door
- Look along the inside walls near the top front
- Check around the crisper drawer area (side walls or ceiling)
- Look for a label that lists Model Number and Serial Number
- Write the model number exactly as shown (letters and numbers)
What the model tag typically includes
| Label item | What it’s used for | Example for this page |
|---|---|---|
| Model number | Correct parts list, diagrams, and manual | FRS6R5EMBC |
| Serial number | Production info and service identification | Varies by unit |
| Purchase date (you record it) | Warranty and maintenance tracking | Your date |
Why it matters
Using the exact model number prevents ordering the wrong refrigerator water filter, door gasket, or ice maker parts. Even small model-number differences can change fit, wiring, or mounting points.
Pro tip for parts matching
- Use the model number from the serial plate (not the sticker on the outside)
- If you are replacing a water filter, confirm the filter style shown for your model before buying (for example, Frigidaire puresource plus refrigerator water filter WFCB).
- Keep a photo of the serial plate on your phone for quick reference
Last updated: February 2026
How to fix sy ef error code Frigidaire?

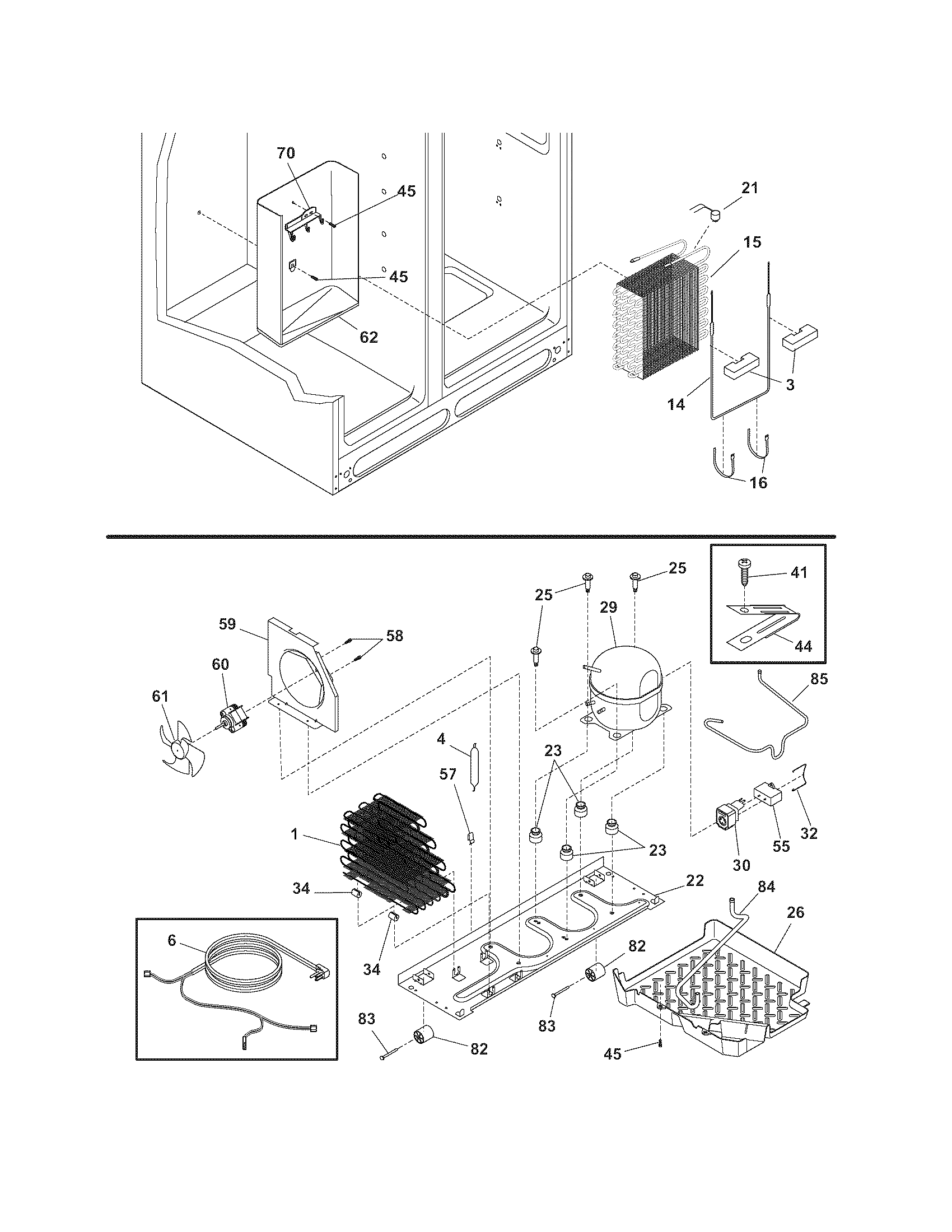

On a Frigidaire FRS6R5EMBC, the SY EF error points to an evaporator fan problem (fan not running, fan blocked by ice, or a wiring/control issue). We fix it by safely powering the refrigerator off, checking the fan area for ice or obstructions, and verifying the fan motor and connections.
What to do first (safe, fast checks)
- Unplug the refrigerator (or switch off the breaker) before accessing panels.
- Listen for the evaporator fan: it should run when the unit is cooling and the freezer door switch is held closed.
- Check for heavy frost or ice buildup on the freezer back wall; that can stop the fan blade.
- Make sure vents are not blocked by packages; poor airflow can mimic a fan failure.
- If the refrigerator has been running long or temperatures are drifting, inspect door sealing and condenser cleanliness.
Step-by-step: clear ice and confirm airflow
- Power off the refrigerator.
- Remove items from the freezer section near the rear panel.
- If you see ice around the fan area, fully defrost the freezer (doors open, towels down). Do not chip ice with sharp tools.
- After defrosting, spin the fan blade by hand; it should turn freely without rubbing.
- Restore power and confirm the fan runs during a cooling call.
Common parts and areas involved
| Symptom | Most likely area | What it affects |
|---|---|---|
| Fan noisy or rubbing | Fan blade or ice | Airflow across evaporator |
| Fan never runs | Fan motor, wiring, control | Cooling in both sections |
| Heavy frost returns quickly | Defrost system | Fan gets blocked again |
When a part replacement is likely

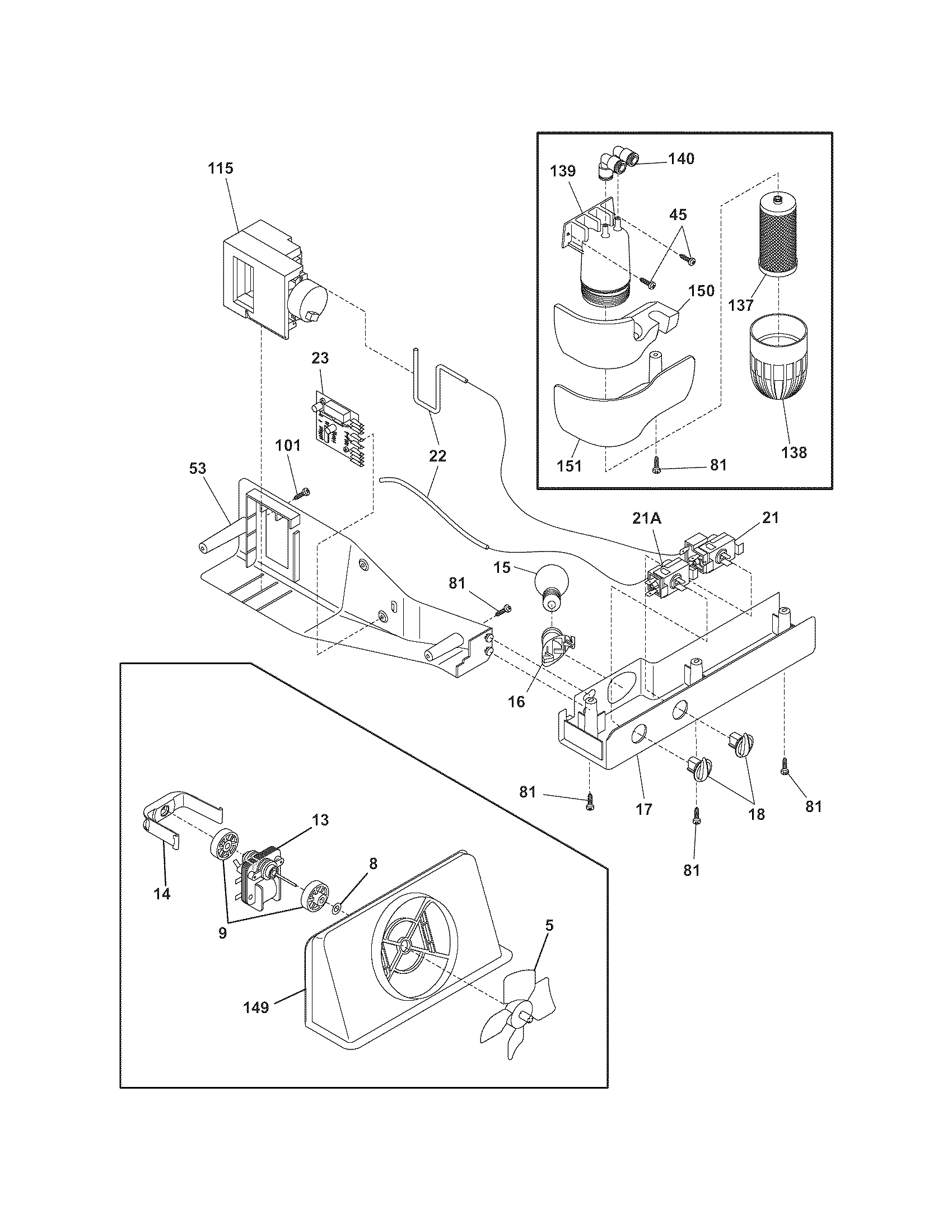

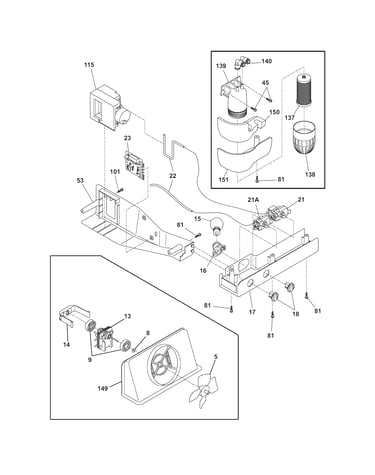

If the fan blade is damaged or wobbling, replacing the blade is a common fix. For this model, we stock the refrigerator evaporator fan blade 5308000010. For defrost-related frost that keeps coming back, the refrigerator defrost bi-metal thermostat 5303918214 is one of the components often checked.
Why it matters
The evaporator fan moves cold air from the evaporator to the freezer and fresh food sections. When it stops, temperatures rise, the refrigerator can run too long, and frost can build up faster.
For model-specific access steps and panel removal details, follow the owner's manual. For Frigidaire-specific code meaning and related checks, use Frigidaire refrigerator error codes.
Last updated: February 2026
Why is my Frigidaire side by side freezer frosting up?
Freezer frost in your Frigidaire FRS6R5EMBC usually happens when warm, humid air leaks into the freezer or airflow is restricted. Start by confirming the freezer door closes fully and the door gasket seals tightly; then check for blocked vents and an ice chute that is not closing.
Quick checks that fix most frosting
- Make sure packages are not preventing the freezer door from closing completely.
- Inspect the door gasket for gaps, tears, or areas that look flattened.
- Clean the gasket and the cabinet sealing surface with mild soap and water; dry fully.
- Check that interior vents are not blocked by food items (blocked airflow causes cold spots and frost).

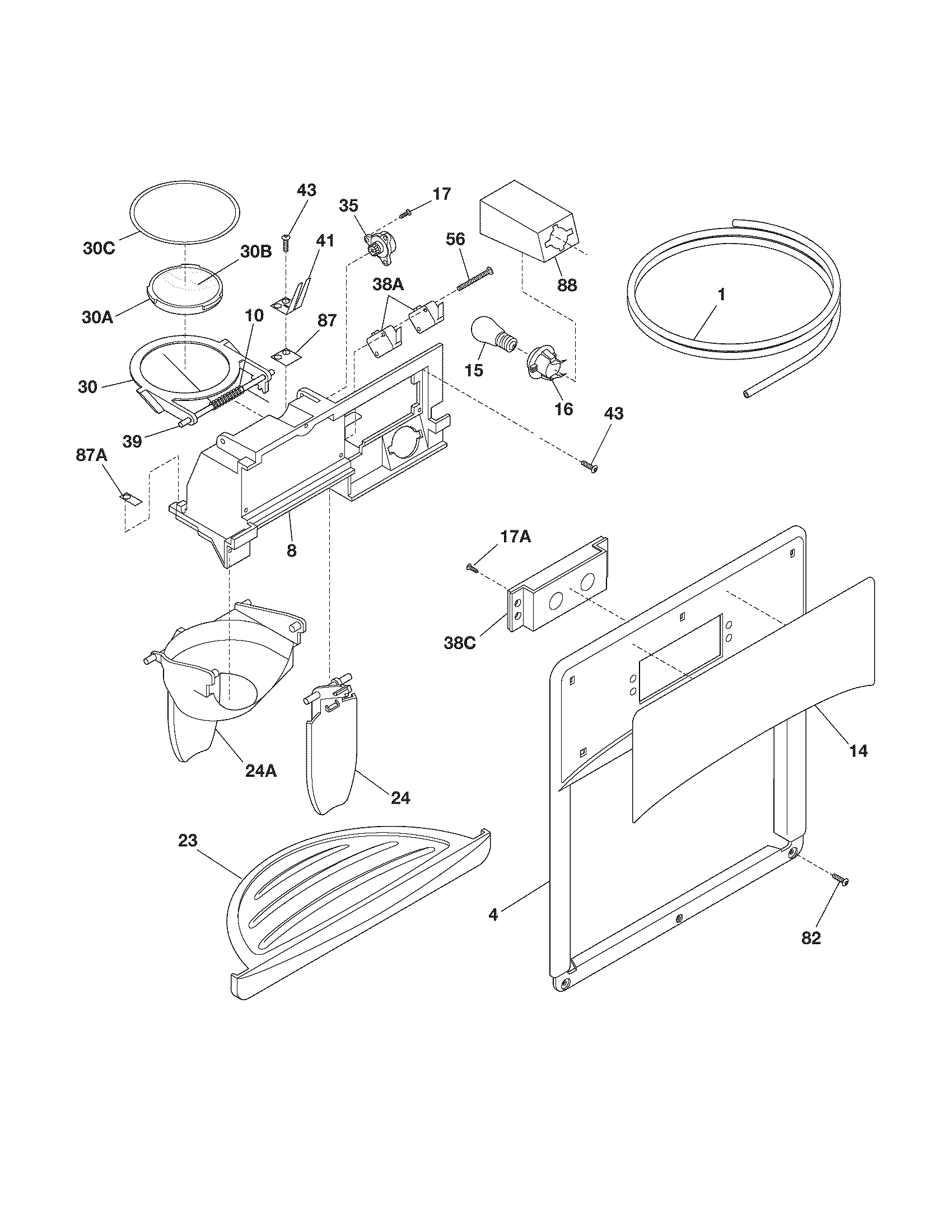

- Look at the dispenser ice chute area; remove any ice that could hold the chute door open.
- Reduce long door openings; frequent openings drive moisture into the freezer.
What to do next (step-by-step)
- Do the “paper test” on the gasket: close the door on a sheet of paper and pull. Strong resistance around the perimeter indicates a good seal.
- Clear airflow paths: move items away from return vents and supply vents so air can circulate.

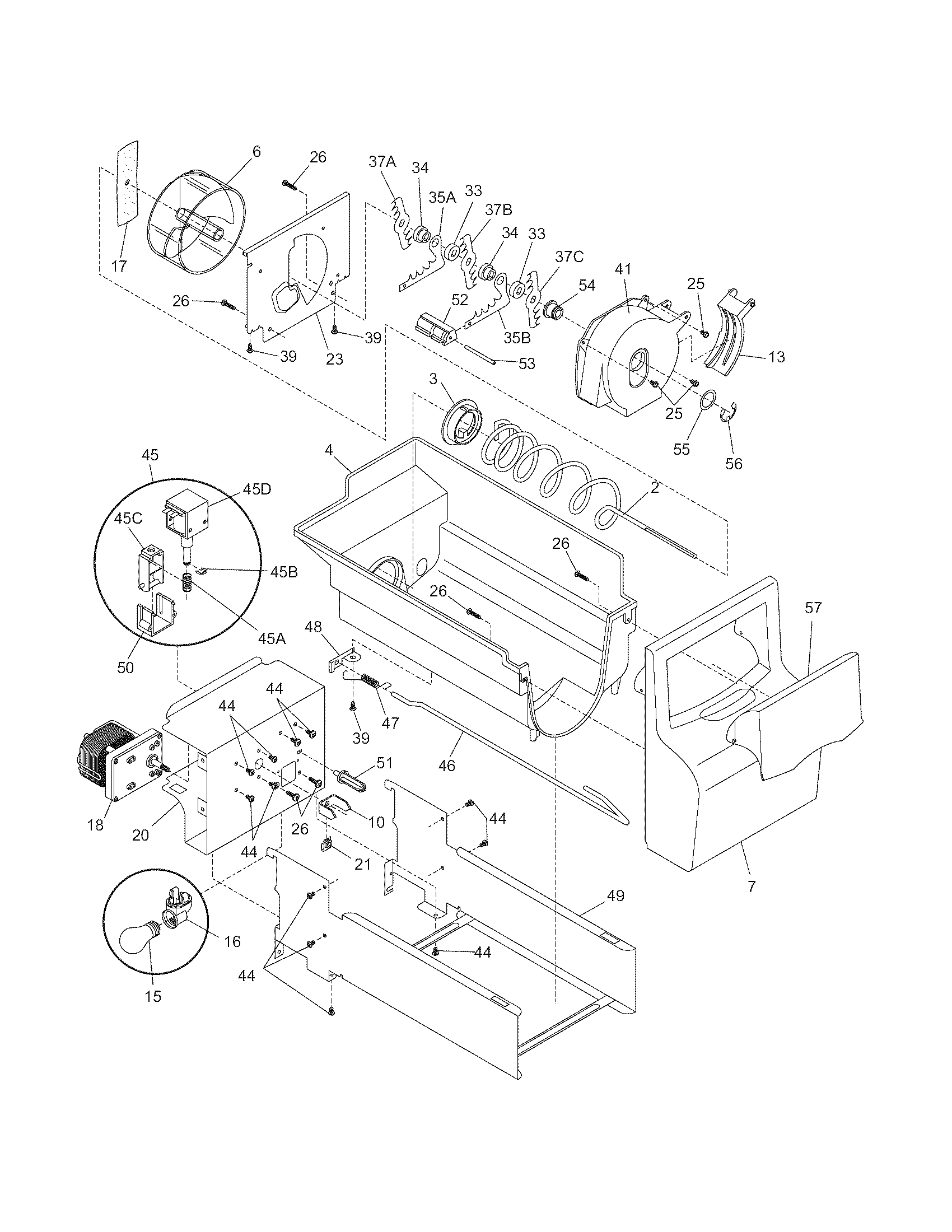

- Check for ice clumps in the bin: power failures or infrequent use can melt and refreeze cubes, which can jam the dispenser and keep the chute area from sealing well. Follow the cleaning and bin removal guidance in the owner's manual.
Parts that commonly solve frost-causing air leaks
If the gasket is worn, cracked, or no longer sealing, replacing it restores the air seal and reduces frost.
| Symptom you see | Most likely cause | What to check/replace |
|---|---|---|

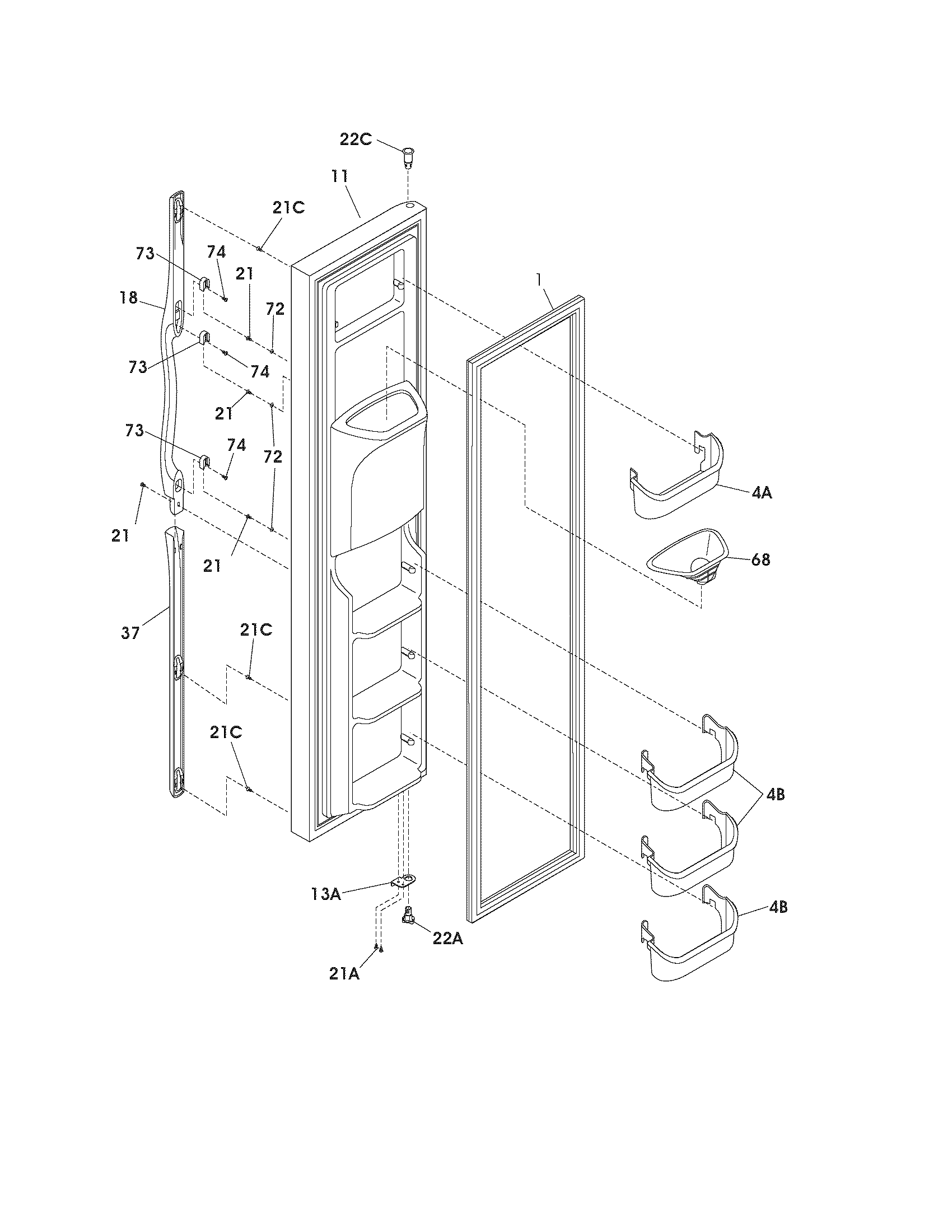

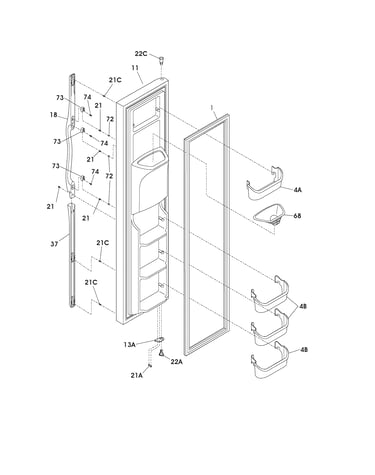

| Frost mainly near door edge | Door not sealing | Inspect/replace refrigerator freezer gasket 241786014 |
| Frost plus moisture between doors | Door slightly open or gasket issue | Level unit, clean gasket, verify closure |
| Frost after lots of dispenser use | Chute not closing due to ice | Clear ice, confirm chute closes freely |
Why it matters
Frost buildup reduces airflow, makes the refrigerator run longer, and can lead to temperature swings that affect food quality. Fixing the air leak or airflow restriction restores normal defrost performance and steadier freezer temperatures.
Last updated: February 2026
