Model # WPSQ4160TAWW Official GE washer

Here are the diagrams and repair parts for Official GE WPSQ4160TAWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

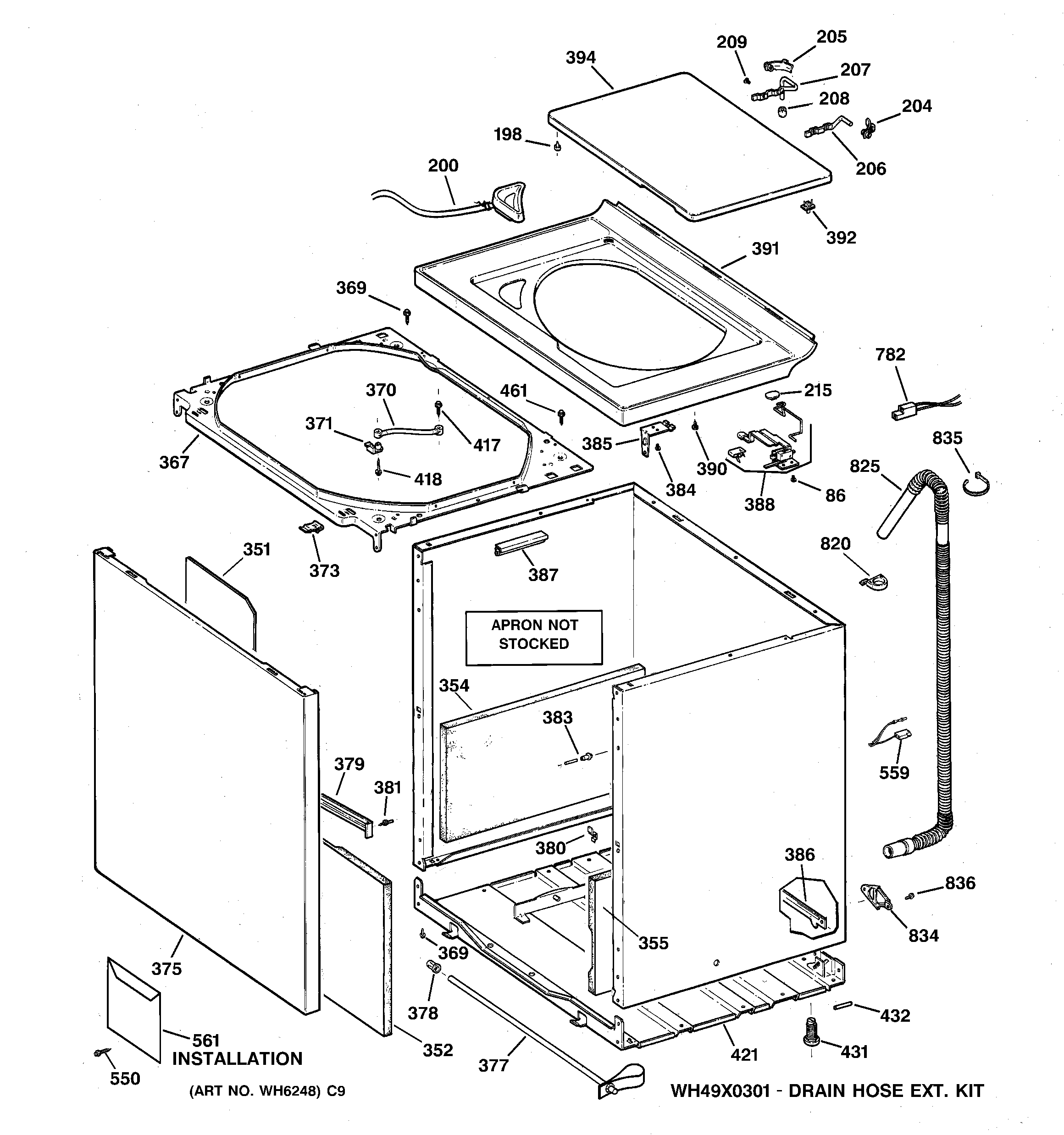

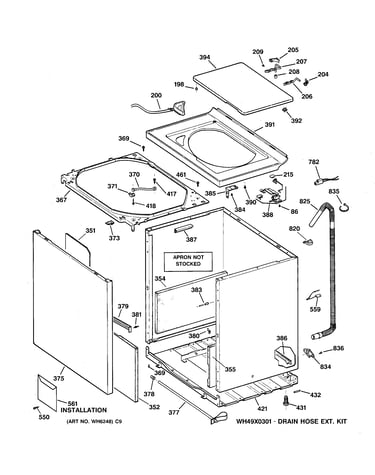

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Hub Nut WH02X1193
#325

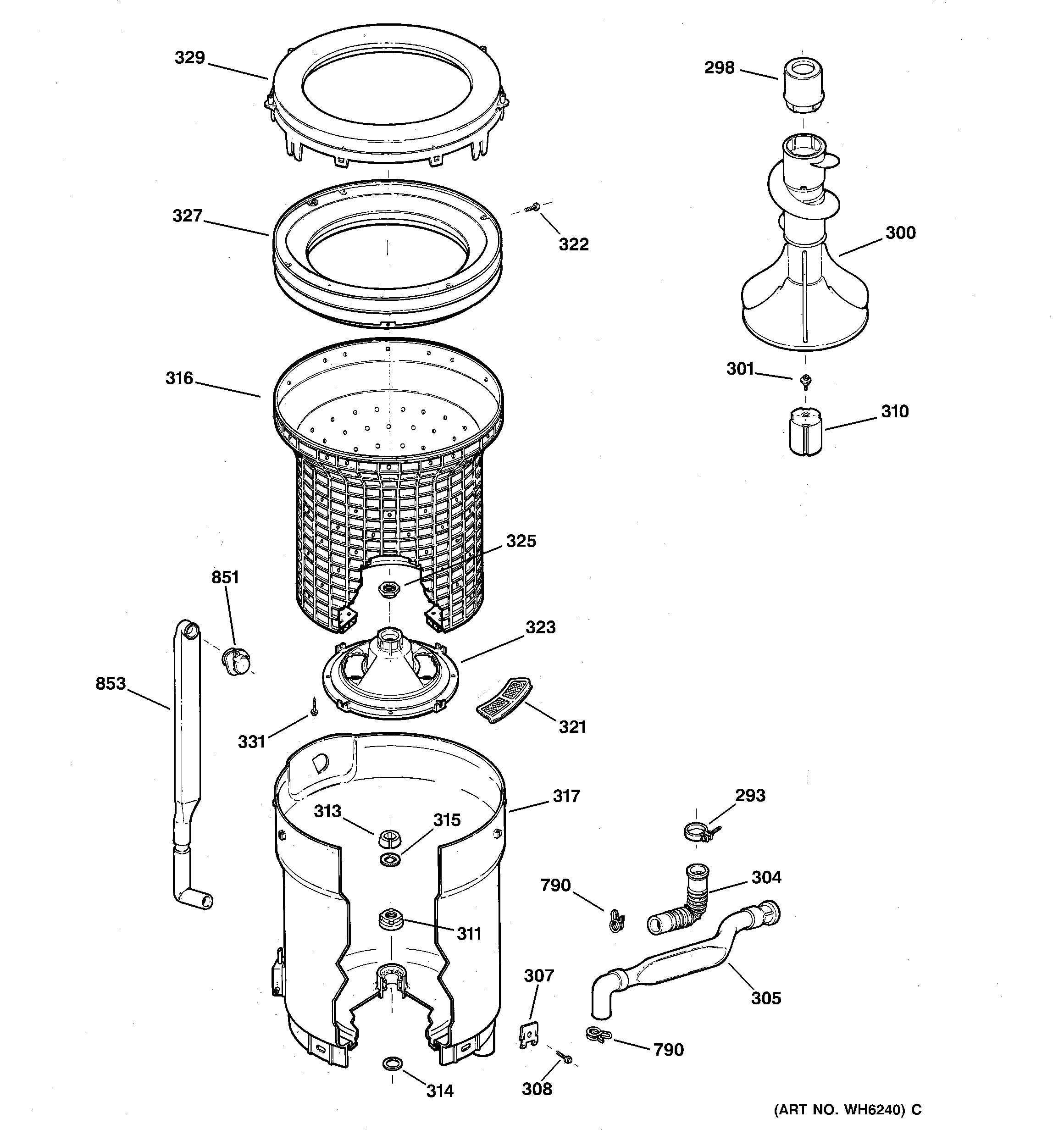

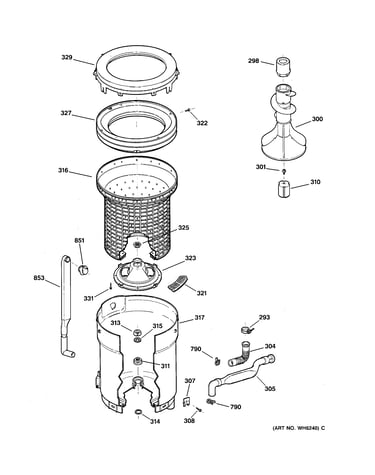

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH02X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Tub Seal WH02X1196
#311

Tub, basket & agitator diagram

Tub seal

Part #WH02X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X1196. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Agitator Assembly WH43X0142
#300

Tub, basket & agitator diagram

Agitator assembly

Part #WH43X0142

Replaced by #WH43X10034

?
Manufacturer substitution
This part replaces WH43X0142. Substitute parts can look different from the original.
BEST SELLER
$56.10 |
8% OFF Phone Price : $61.10
In Stock
Tub Bearing WH02X1197
#314

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1197

Replaced by #WH2X1197

?
Manufacturer substitution
This part replaces WH02X1197. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Knob Clip WH01X2721
#19

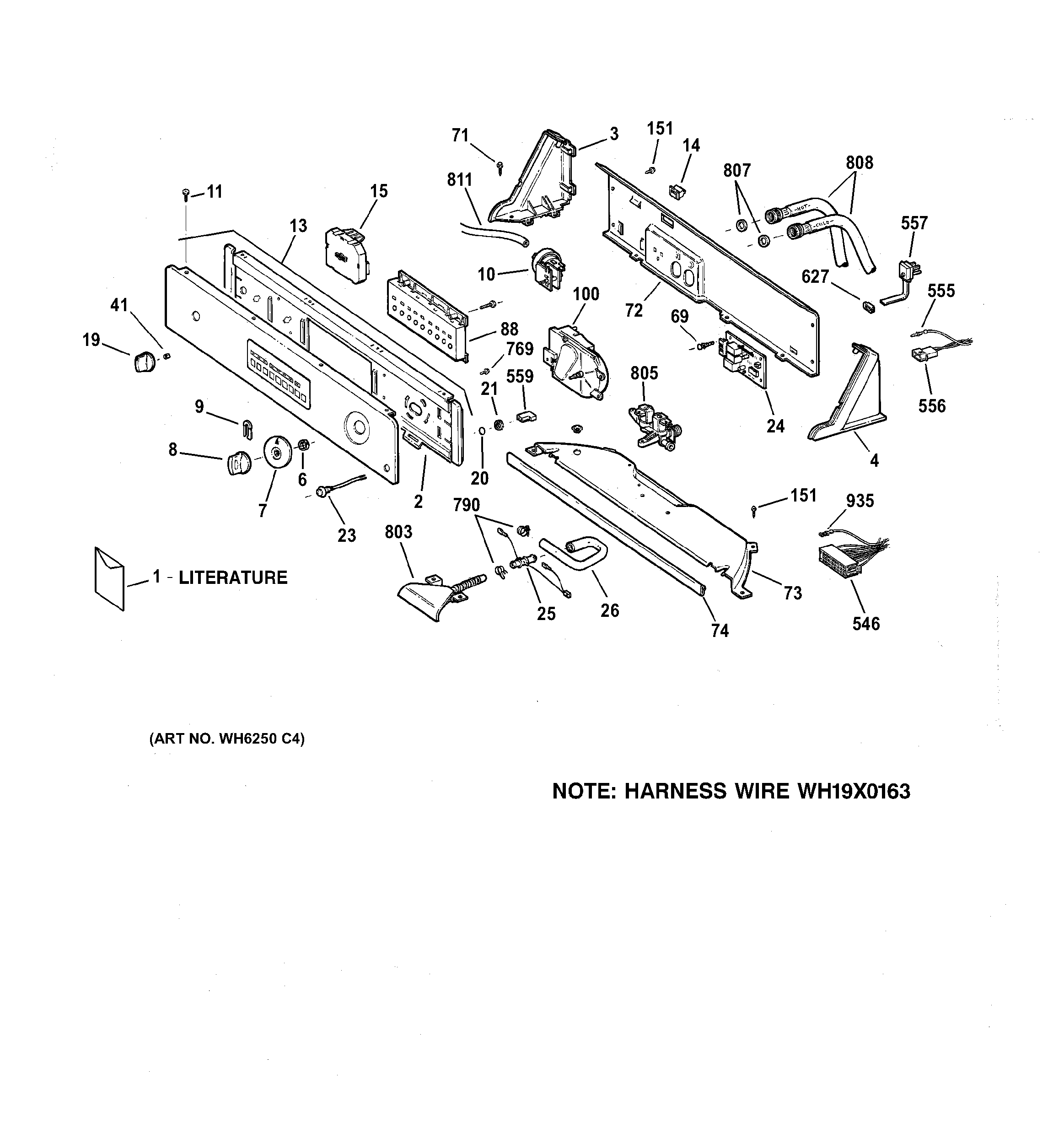

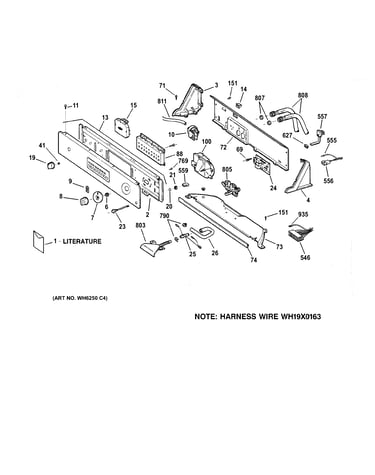

Controls & backsplash diagram

Knob clip

Part #WH01X2721

Replaced by #WH1X2721

?
Manufacturer substitution
This part replaces WH01X2721. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Valve WH13X0086
#805

Controls & backsplash diagram

Valve

Part #WH13X0086

Replaced by #WH13X10024

?
Manufacturer substitution
This part replaces WH13X0086. Substitute parts can look different from the original.
BEST SELLER
$68.35 |
7% OFF Phone Price : $73.35
In Stock
Rod/sprg Blk WH16X0544
#414

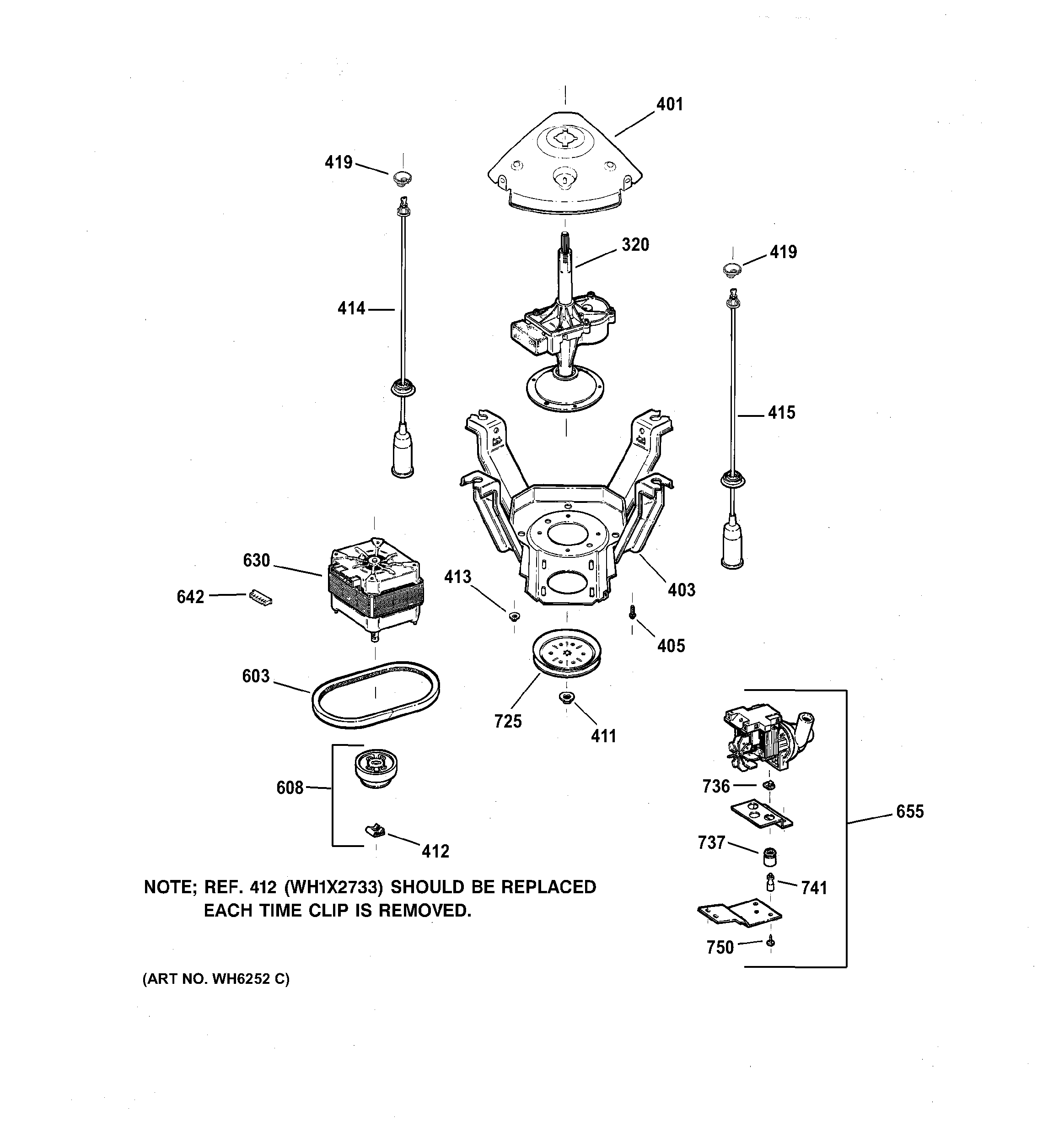

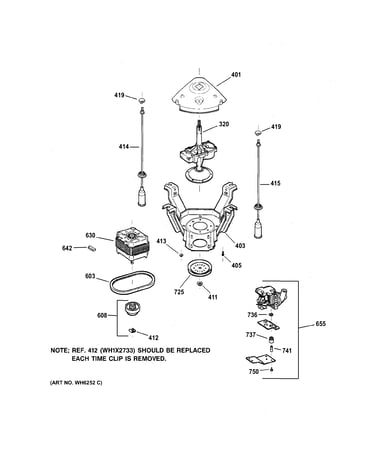

Suspension, pump & drive components diagram

Rod/sprg blk

Part #WH16X0544

Replaced by #WH16X544

?
Manufacturer substitution
This part replaces WH16X0544. Substitute parts can look different from the original.
BEST SELLER
$34.24 |
13% OFF Phone Price : $39.24
In Stock
Hose Pressure Switch WH41X0365
#811

Controls & backsplash diagram

Hose pressure switch

Part #WH41X0365

Replaced by #WH41X365

?
Manufacturer substitution
This part replaces WH41X0365. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hub WH45X10013
#323

Tub, basket & agitator diagram

Hub

Part #WH45X10013

Replaced by #WH45X10027

?
Manufacturer substitution
This part replaces WH45X10013. Substitute parts can look different from the original.
$81.96 |
6% OFF Phone Price : $86.96
In Stock
