Kenmore 198714601 freezer Parts
Here are the diagrams and repair parts for Kenmore 198714601 freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 198714601 Freestanding Freezers

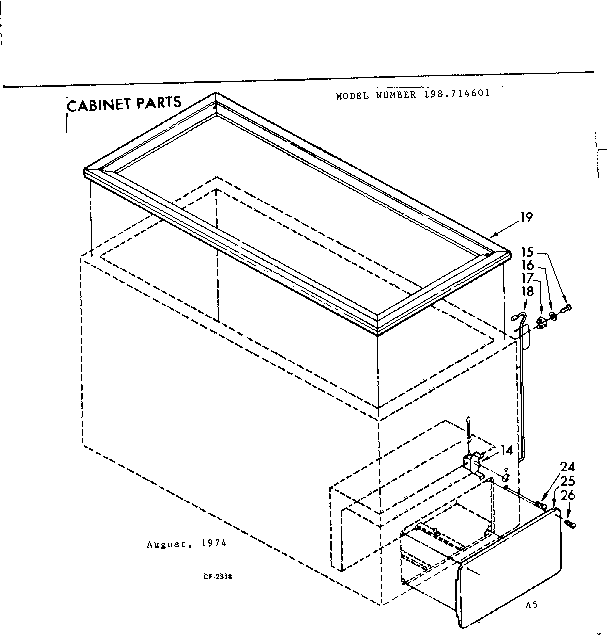

Cabinet parts diagram
Screw
Part #595022
The manufacturer no longer makes this part, and there's no substitute part

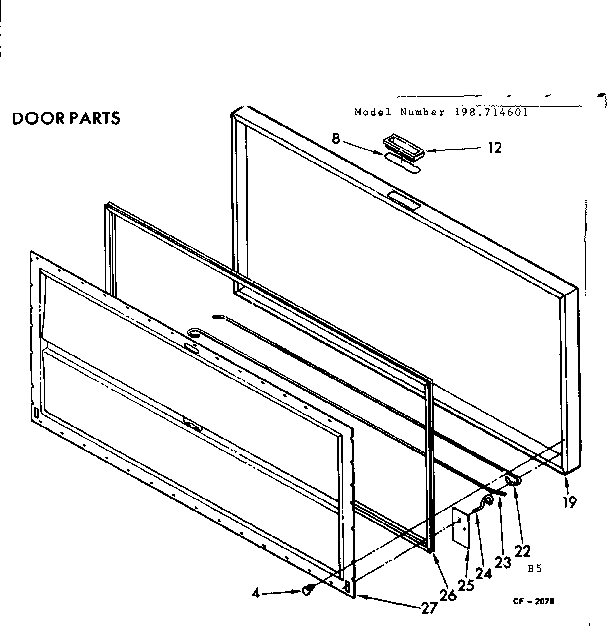

Door parts diagram
Gasket
Part #845758
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Rod Holder
Part #556013
The manufacturer no longer makes this part, and there's no substitute part

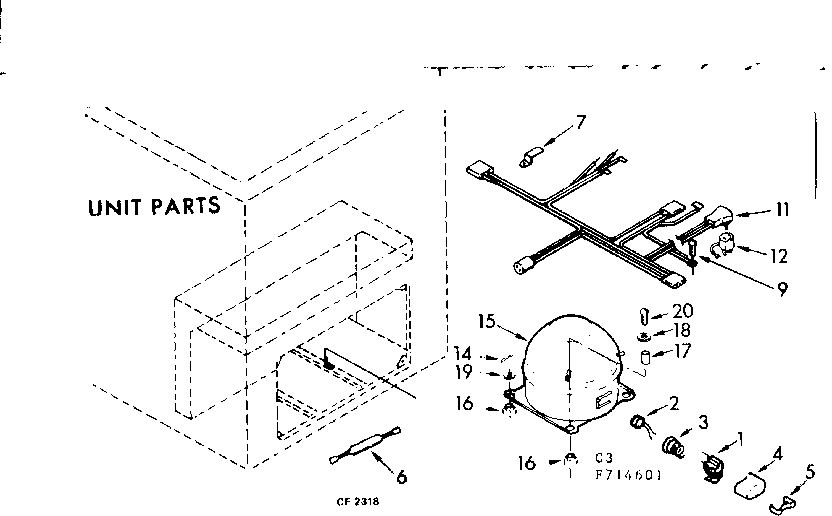

Unit parts diagram
Adapter
Part #596199
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Thermostat
Part #586210
The manufacturer no longer makes this part, and there's no substitute part
For Field Installable Icemaker Repair Parts List, Refer To Model 106.8560
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Door parts diagram
Bar
Part #586896
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Door (white)
Part #556069
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Paint
Part #206925
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Epoxy
Part #799832
The manufacturer no longer makes this part, and there's no substitute part
