KitchenAid KBRS22KKBL00 refrigerator Parts
Here are the diagrams and repair parts for KitchenAid KBRS22KKBL00 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

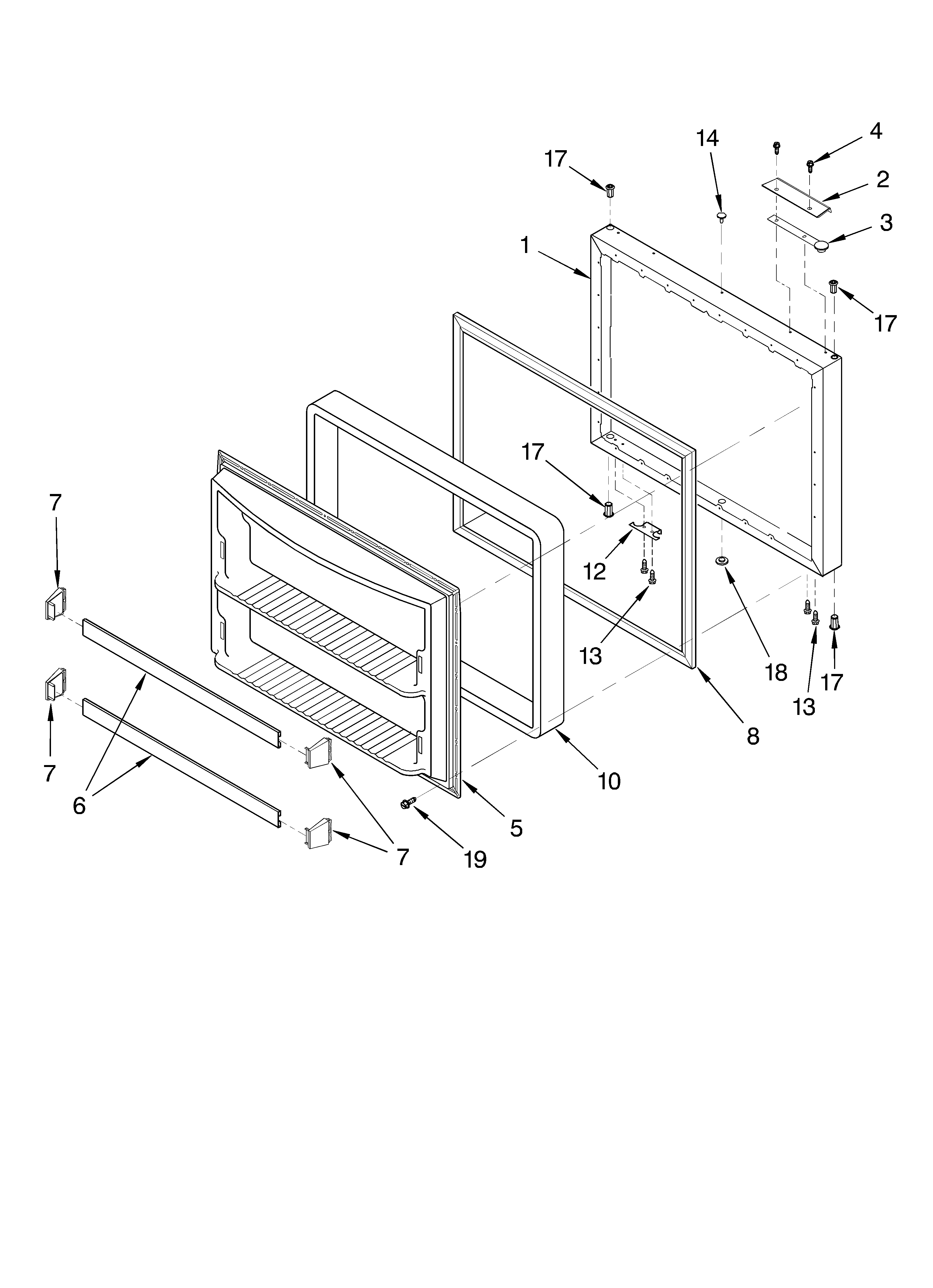

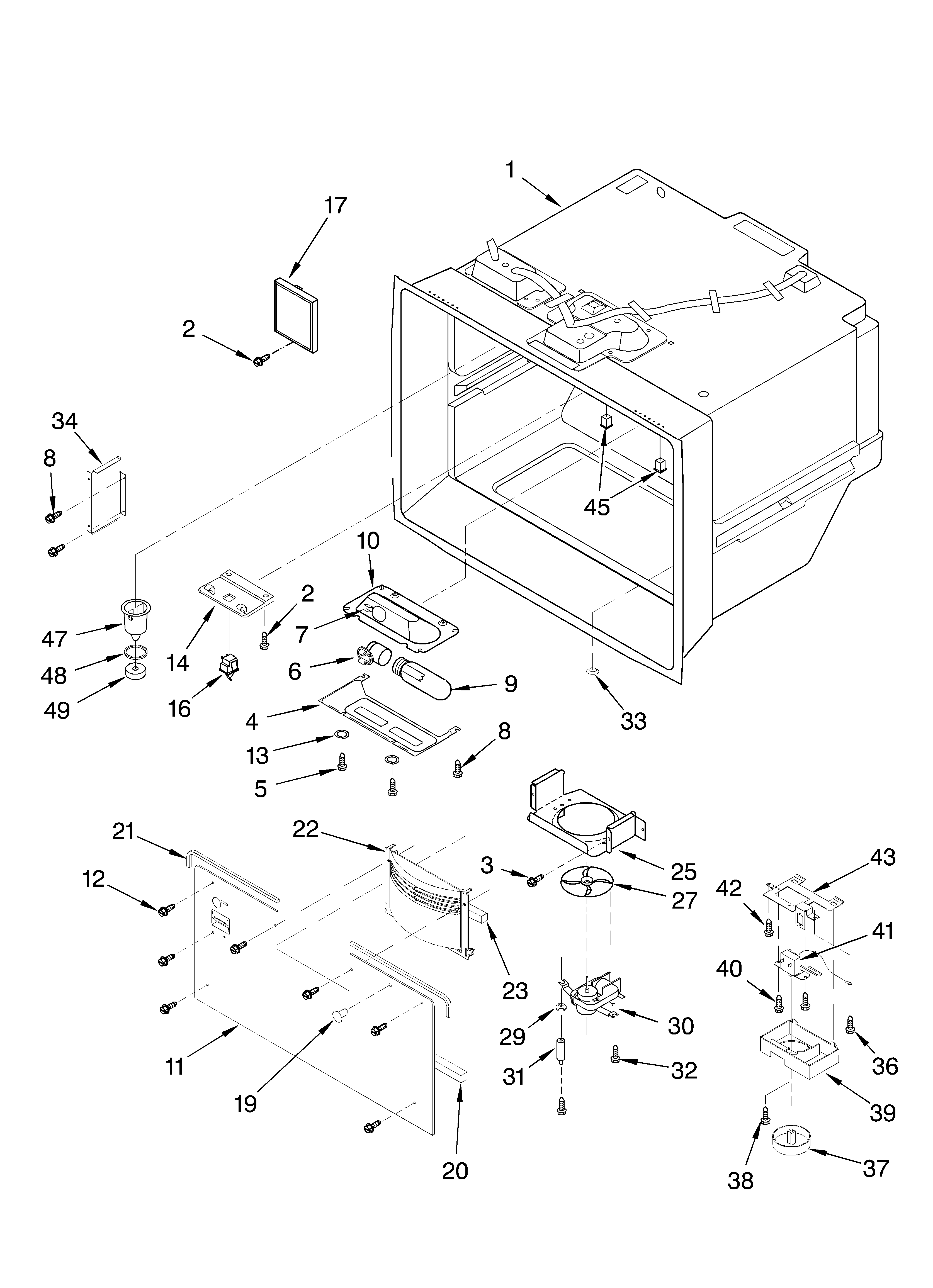

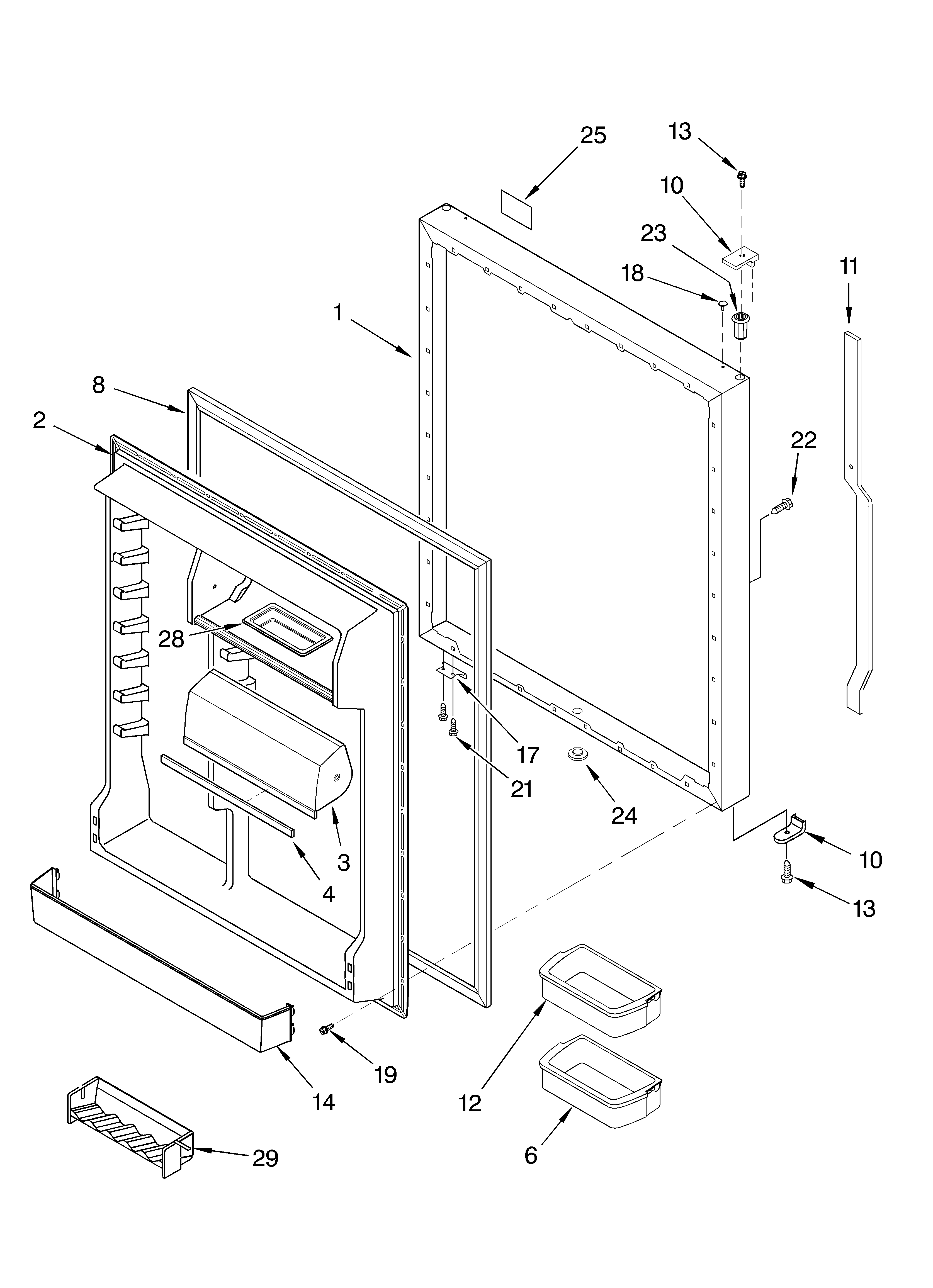

SELECT DIAGRAM
Browse Parts for KBRS22KKBL00 Refrigerators

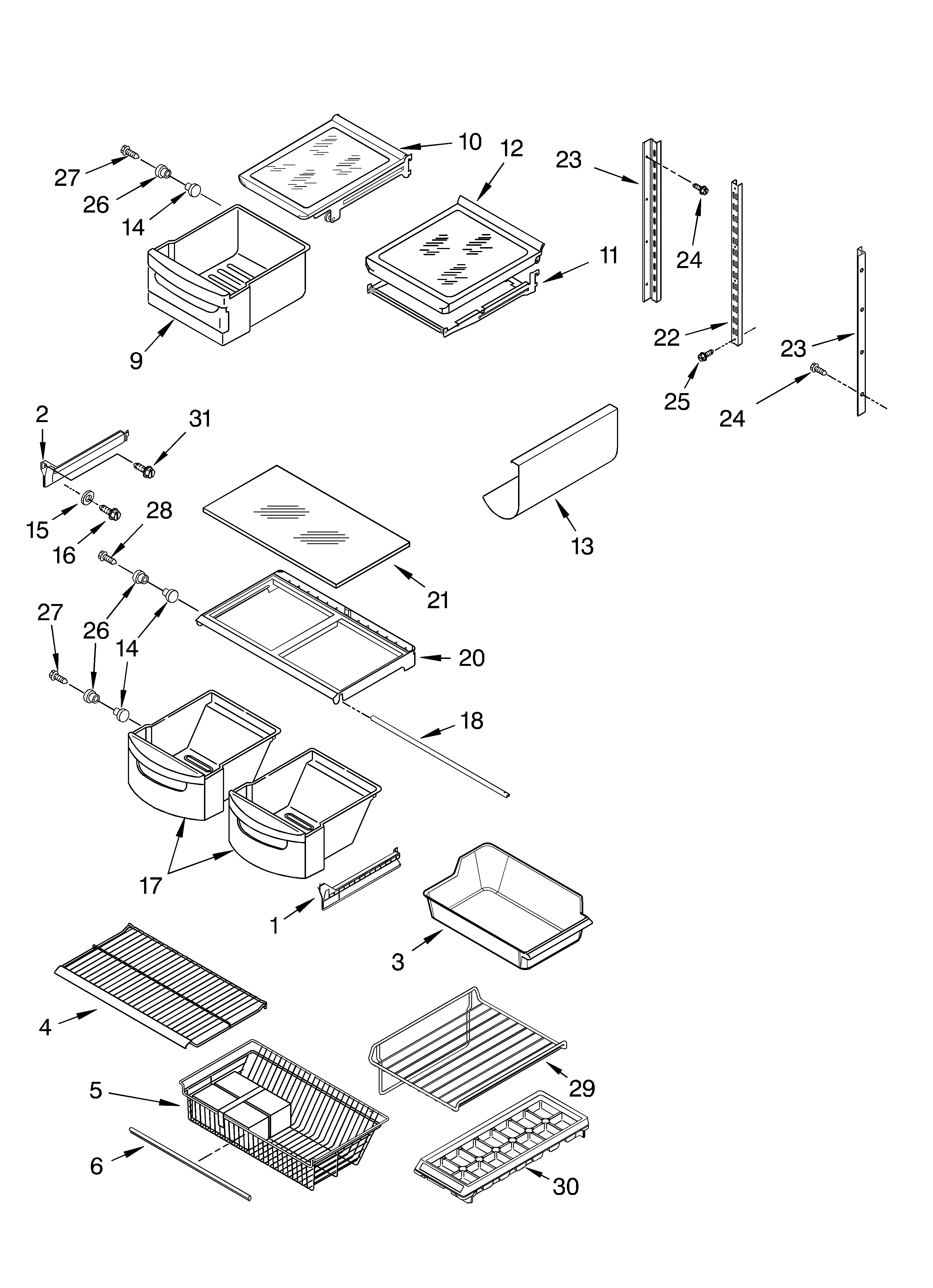

Shelf/optional diagram
Touch Up
Part #72107Replaced by #WP72107
Manufacturer substitutionThis part replaces 72107. Substitute parts can look different from the original.This item is not returnableIn Stock$9.899% OFF Phone Price : $10.89
Qty
Shelf/optional diagram
Appliance Touch-up Paint, 0.6-oz (black)
Part #72032This item is not returnableIn Stock$11.0815% OFF Phone Price : $13.08QtyShelf/optional diagram
Refrigerator Support
Part #4344255Replaced by #WP2172748

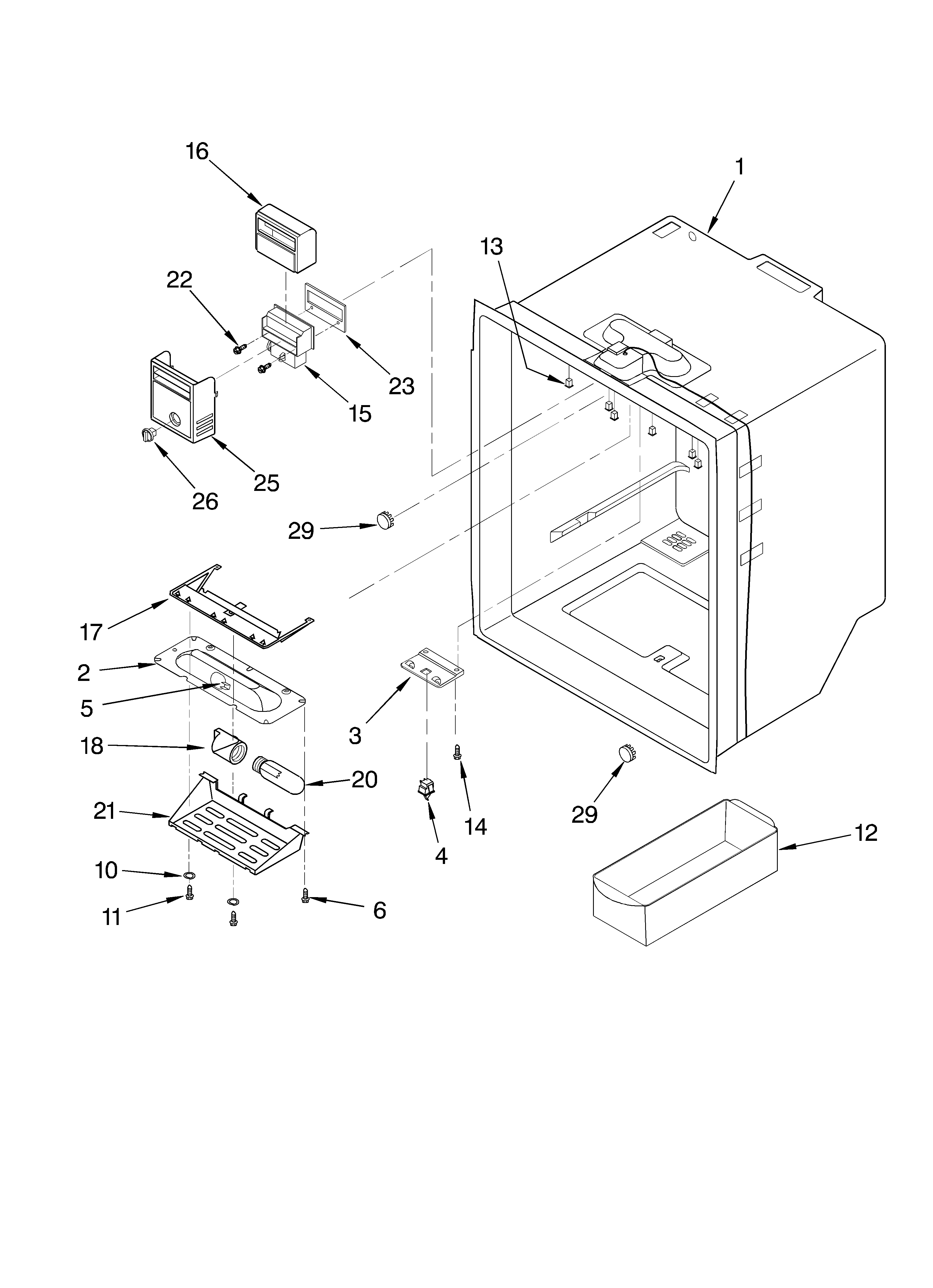

Manufacturer substitutionThis part replaces 4344255. Substitute parts can look different from the original.In Stock$48.8731% OFF Was : $71.06QtyRefrigerator liner diagram
Refrigerator Egg Container
Part #8170709Replaced by #W10136387A
Manufacturer substitutionThis part replaces 8170709. Substitute parts can look different from the original.This item is not returnableIn Stock$12.4514% OFF Phone Price : $14.45QtyShelf/optional diagram
Refrigerator Door Insulation, 2-piece

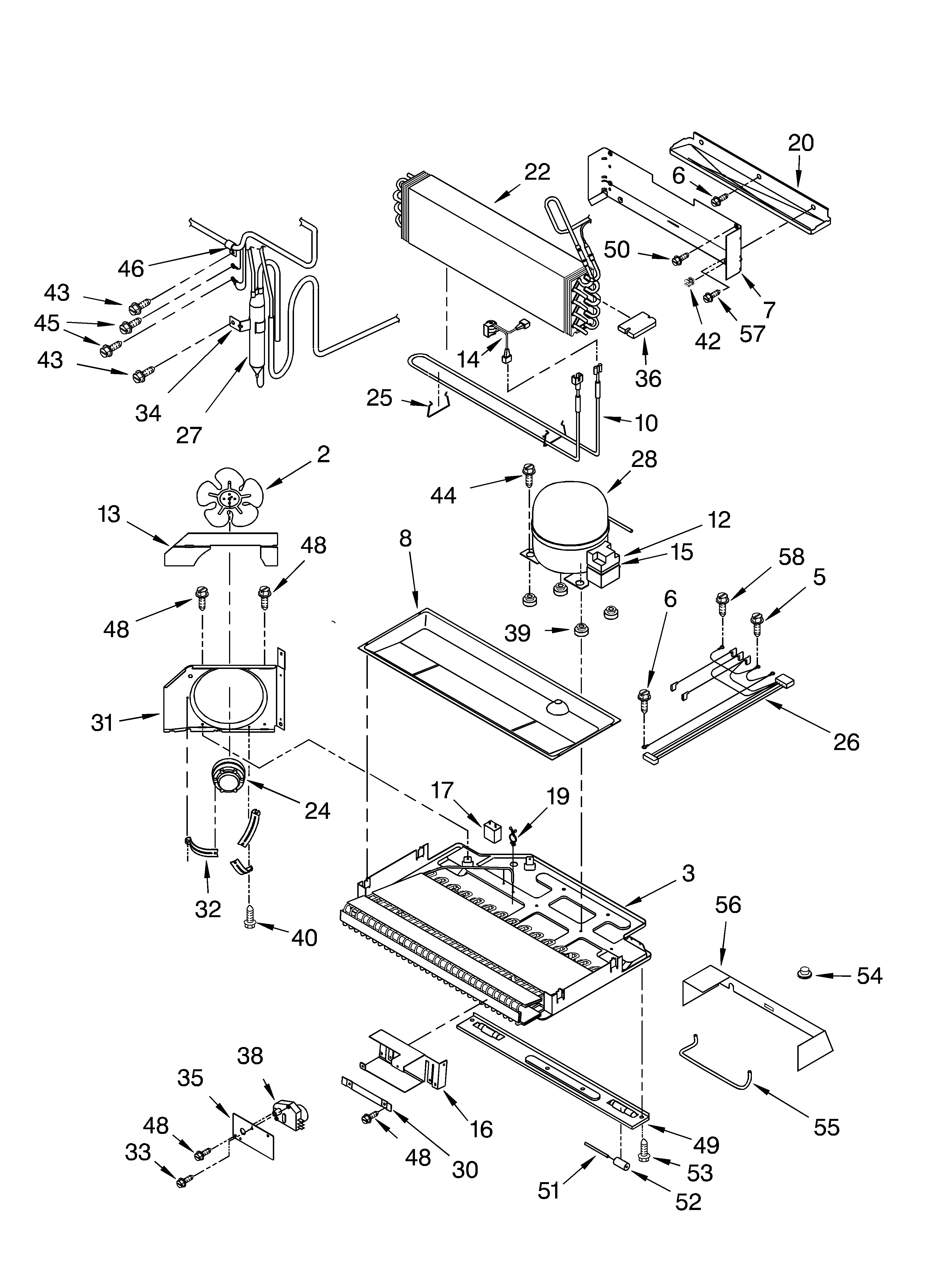

In Stock$130.138% OFF Phone Price : $142.13QtyUnit diagram
Sears Refrigerator Service Valve
In Stock$31.0731% OFF Was : $45.33QtyUnit diagram
Sears Refrigerator Service Valve
In Stock$37.2514% OFF Phone Price : $43.25QtyCabinet/literature diagram
Refrigerator Screw
Part #4344267Replaced by #WP489464
Manufacturer substitutionThis part replaces 4344267. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyShelf/optional diagram
Refrigerator Tray
Part #4344171Replaced by #WP841180A
Manufacturer substitutionThis part replaces 4344171. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1511% OFF Phone Price : $9.15QtyShelf/optional diagram
Insul - 16pk
Part #876305Replaced by #876370
Manufacturer substitutionThis part replaces 876305. Substitute parts can look different from the original.In Stock$130.138% OFF Phone Price : $142.13Qty
