Craftsman S255411 36" lt10 lawn tractor Parts
Here are the diagrams and repair parts for Craftsman S255411 36" lt10 lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part

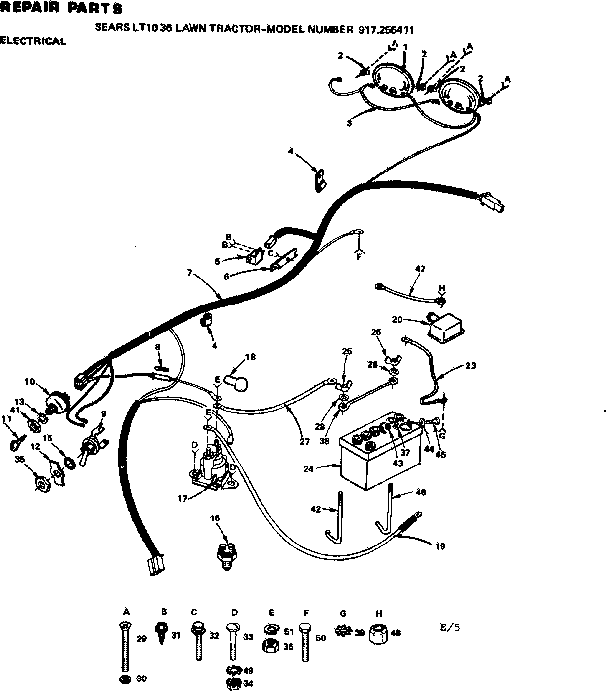

SELECT DIAGRAM
Browse Parts for S255411 Riding Mowers & Tractors
Nut
Part #545PReplaced by #596322601
Manufacturer substitutionThis part replaces 545P. Substitute parts can look different from the original.This item is not returnableIn Stock$5.8715% OFF Phone Price : $6.87
Qty

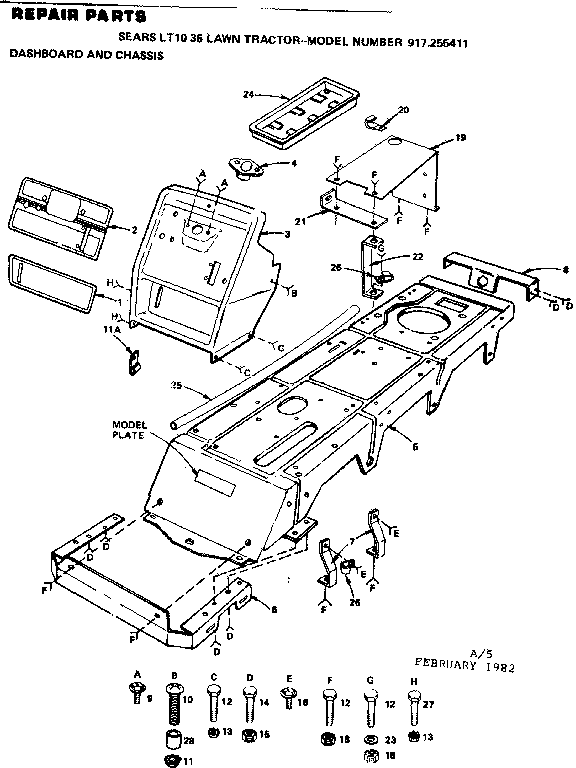

Dashboard and chassis diagram
Screw
Part #6072PReplaced by #874981024

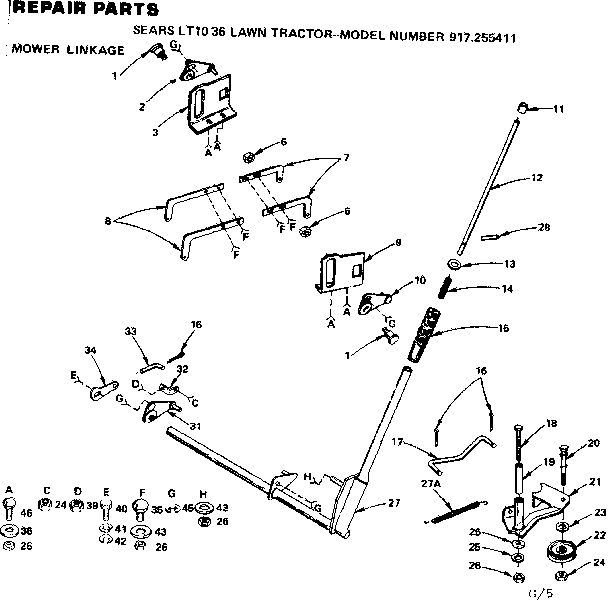

Manufacturer substitutionThis part replaces 6072P. Substitute parts can look different from the original.In Stock$10.4916% OFF Phone Price : $12.49QtyMower linkage diagram
Flat Washer
Part #1509PReplaced by #STD551025

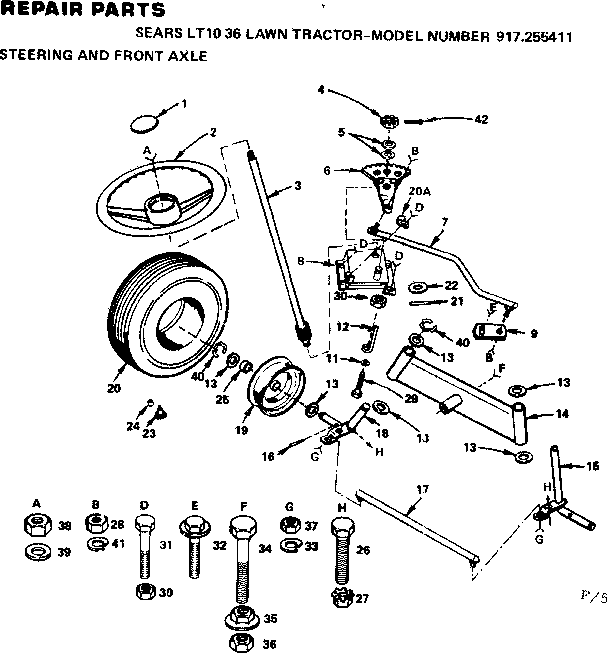

Manufacturer substitutionThis part replaces 1509P. Substitute parts can look different from the original.In Stock$36.61QtySteering and front axle diagram
Keps Nut
Part #518PReplaced by #873510600

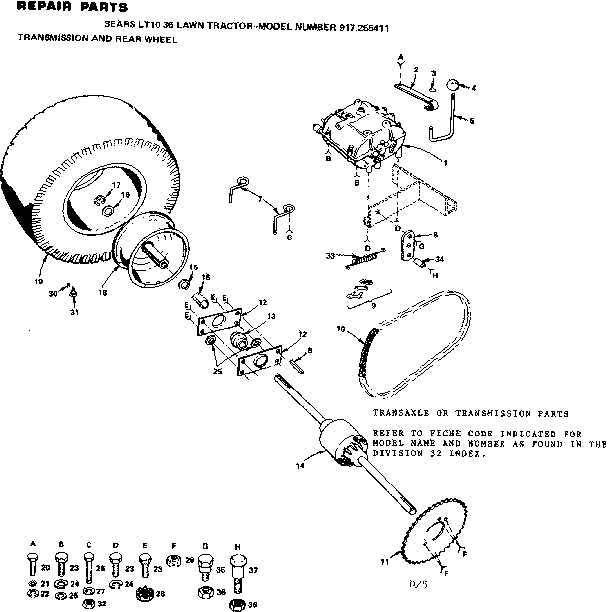

Manufacturer substitutionThis part replaces 518P. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyTransmission and rear wheel diagram
Differential
Part #677A105Replaced by #794248

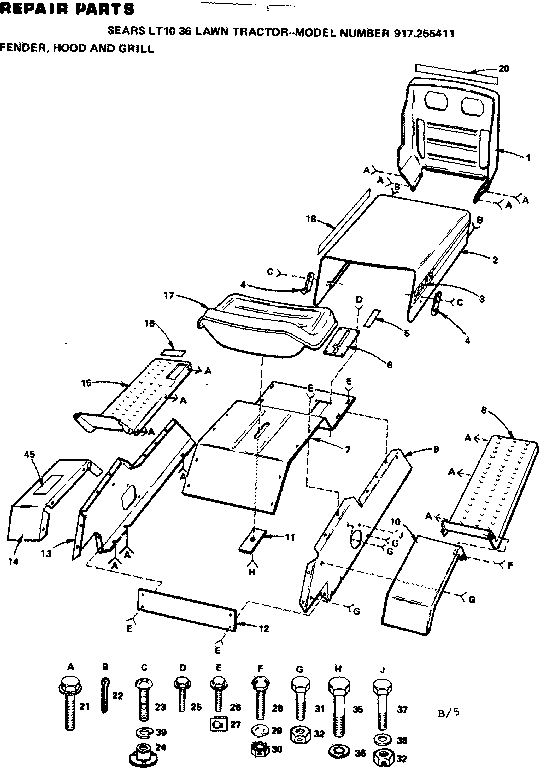

Manufacturer substitutionThis part replaces 677A105. Substitute parts can look different from the original.In Stock$157.80QtyFender, hood and grill diagram
Seat
Part #74766Replaced by #532401042

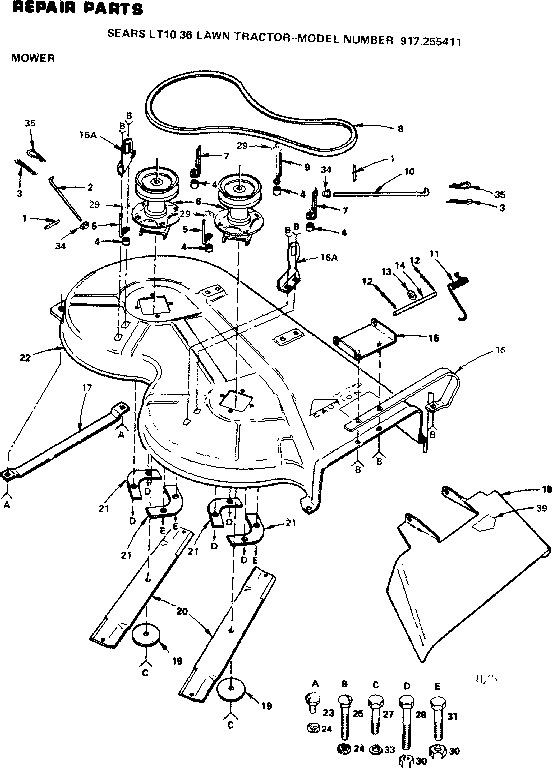

Manufacturer substitutionThis part replaces 74766. Substitute parts can look different from the original.In Stock$274.07$12.00 OFF Phone Price : $286.07QtyMower diagram
Spring Retainer
Part #4921HReplaced by #532004921

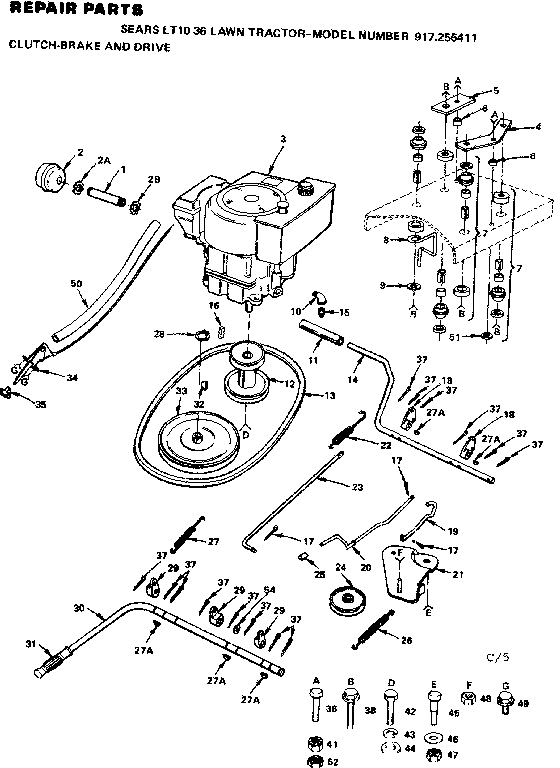

Manufacturer substitutionThis part replaces 4921H. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyXlutch-brake and drive diagram
Pedal Cover (black)
Part #8883RReplaced by #510089501
Manufacturer substitutionThis part replaces 8883R. Substitute parts can look different from the original.In Stock$12.5814% OFF Phone Price : $14.58QtyXlutch-brake and drive diagram
Brake Spring
Part #1635JReplaced by #583685701
Manufacturer substitutionThis part replaces 1635J. Substitute parts can look different from the original.In Stock$44.36QtyMower diagram
Label
Part #3495JReplaced by #539913010
Manufacturer substitutionThis part replaces 3495J. Substitute parts can look different from the original.This item is not returnableIn Stock$7.40Qty
