Frigidaire FGFL67DCD gas range Parts

Yes. Using your Frigidaire gas range model number (FGFL67DCD) is the most accurate way to find compatible replacement parts because it filters results to the exact burner, igniter, control, and hardware variations built into that model.

Where to find the model number on the range

For FGFL67DCD, the model and serial information is typically on the rating plate; the installation guide shows access around the lower drawer area used during setup and gas conversion steps.

• Check the frame area behind the storage or warmer drawer
• Look along the lower front edge of the range body
• Check the oven door frame area (around the opening)
• Write the model number exactly as shown (letters and numbers)

How to use the model number to get the right part

Once you have FGFL67DCD, search by the full model number first, then narrow by the symptom (no bake, won’t ignite, weak flame, etc.). This prevents ordering a similar-looking part that will not fit.

• Match the part name to your symptom (bake, broil, surface burner, light)
• Confirm the part is listed for FGFL67DCD before ordering
• Compare your old part’s markings and connector style when possible

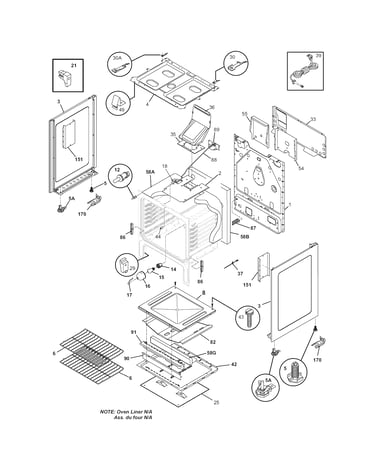

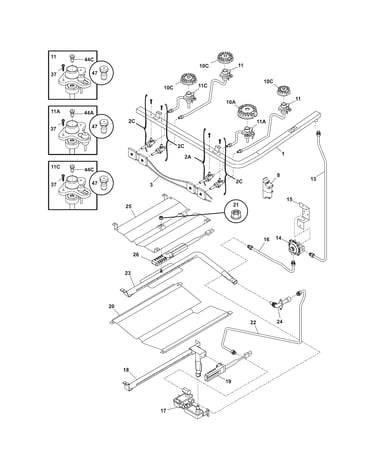

• Use the diagram location (burner, oven cavity, control area) to double-check

Common examples for this model

Symptom	Part to check first	Example part for FGFL67DCD
Oven won’t ignite or takes too long	Oven igniter	Igniter 5303935066
Surface burner flame is uneven	Burner head and cap alignment	Range surface burner head 316212400
Oven light is out	Bulb and socket	Range oven light bulb 316538904

Why it matters

Frigidaire ranges often have multiple burner outputs, orifice sizes, and gas setup details by model. Looking up parts by FGFL67DCD helps ensure the replacement matches your range’s exact configuration and avoids repeat repairs.

Last updated: February 2026

Your Frigidaire gas range model number is printed on the appliance’s rating label; on ranges like FGFL67DCD, it’s most often found around the oven door frame or on/behind the storage drawer area. Once you have the model number, matching parts and installation details becomes straightforward.

Where to look on a Frigidaire range

Check these common spots first (use a flashlight and wipe grease off the label):

• Oven door frame: open the oven door and look along the front frame.
• Storage drawer area: pull the drawer out and look on the frame behind it.
• Broiler/oven cavity edge (some models): along the left or right front edge.
• Rear panel (less common): on the back of the range.

What the model number looks like

Frigidaire model numbers are a mix of letters and numbers (example: FGFL67DCD). Write it exactly as shown.

Quick character check

Looks similar	What to do
0 (zero) vs O (letter)	Compare other characters on the label; Frigidaire often uses both
1 (one) vs I (letter)	Look for consistent font width and spacing
5 vs S	Confirm by re-reading the full string twice

Why the exact model number matters

We use the model number to match the correct Frigidaire parts and specs for your range, including items like the range surface burner head 316212400 or igniter 5303935066. It also ensures you follow the right clearances and gas setup steps in the installation guide.

Tips if the label is hard to read

• Take a close-up photo and zoom in.
• Copy the model number first, then copy the serial number separately.
• If the label is torn, check the other locations listed above before ordering parts.

Last updated: February 2026

To replace the oven igniter on your Frigidaire FGFL67DCD gas range, we shut off power and gas, access the bake burner area, remove the old igniter from the burner tube, then mount and reconnect the new igniter so the oven lights reliably.

Before you start (safety and prep)

• Unplug the range or switch off the circuit breaker.
• Shut off the gas supply valve.
• Let the oven cool completely.
• Wear work gloves; sheet metal edges can be sharp.
• Take a quick photo of wire routing and the connector before disconnecting.

Replacement steps (oven igniter)

1. Remove oven racks.
2. Remove the oven bottom panel to expose the bake burner area (some versions use screws).

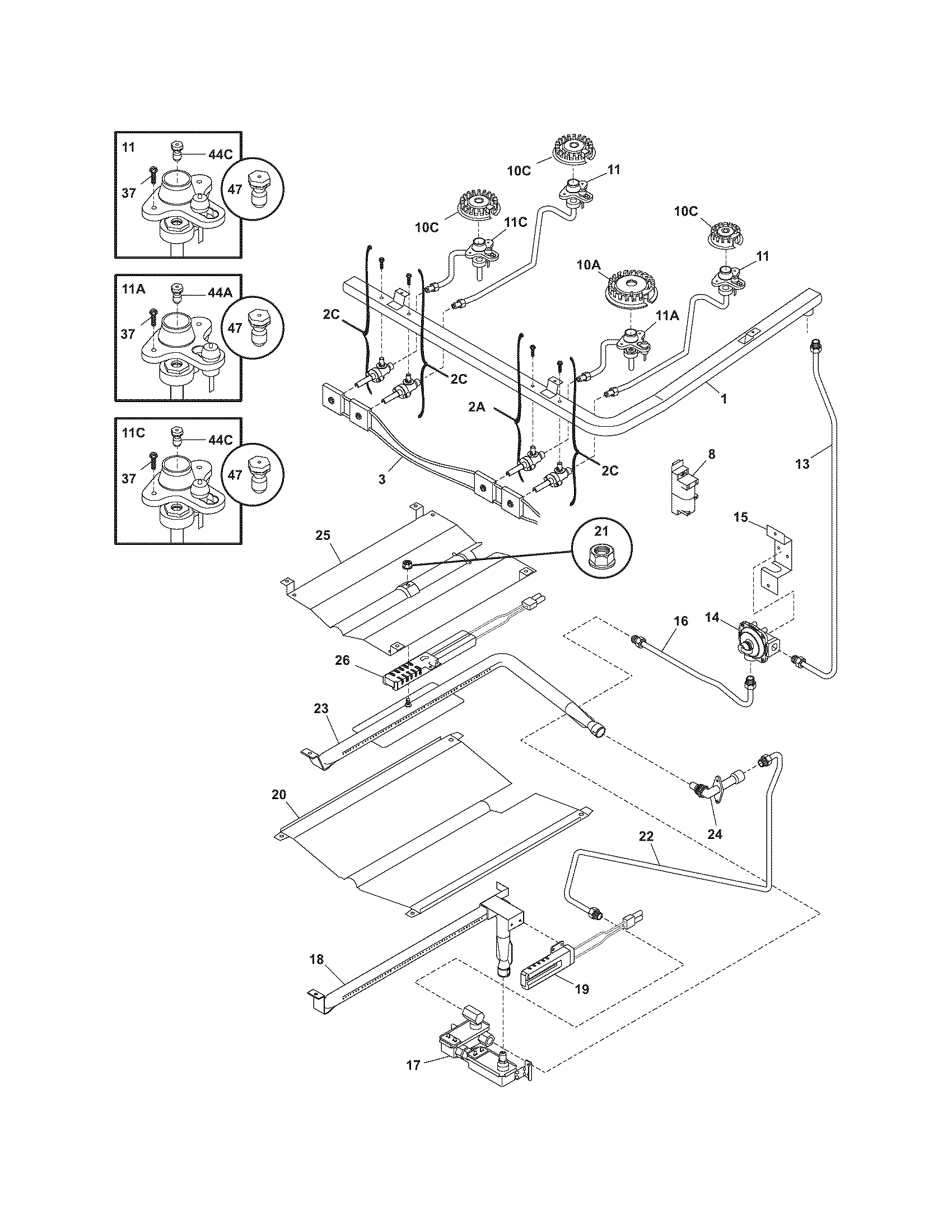

3. Locate the igniter mounted to the bake burner tube.
4. Disconnect the igniter wiring (plug connector or wire nuts, depending on the harness).
5. Remove the mounting screws and take off the old igniter.
6. Install the new igniter in the same position on the burner tube and secure it.
7. Reconnect wiring exactly as it was; reinstall the oven bottom panel and racks.
8. Restore gas and power; test Bake for normal ignition and preheat.

What to check if the oven still will not light

• No glow at the igniter: check power supply, wiring, and connections.
• Igniter glows but no flame: the igniter is weak or the oven gas valve is not opening.
• Delayed ignition or gas smell: stop using the oven; recheck installation and burner alignment.

Parts commonly involved

Symptom	Part to inspect	What we look for
No bake ignition, igniter not working	Igniter 5303935066	Cracks, no glow, or weak glow causing long preheat
Burner lights inconsistently	Range bake burner 316404400	Misalignment, corrosion, or blocked burner ports

Why it matters

A working igniter draws enough current to open the oven gas valve and light the bake burner. Replacing a failing igniter restores normal preheat times and helps prevent delayed ignition.

For gas reconnection and setup checks, follow the FGFL67DCD installation guide.

Last updated: February 2026
