Model #110088732791 Kenmore washer/dryer laundry system

Here are the diagrams and repair parts for Kenmore 110088732791 washer/dryer laundry system, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

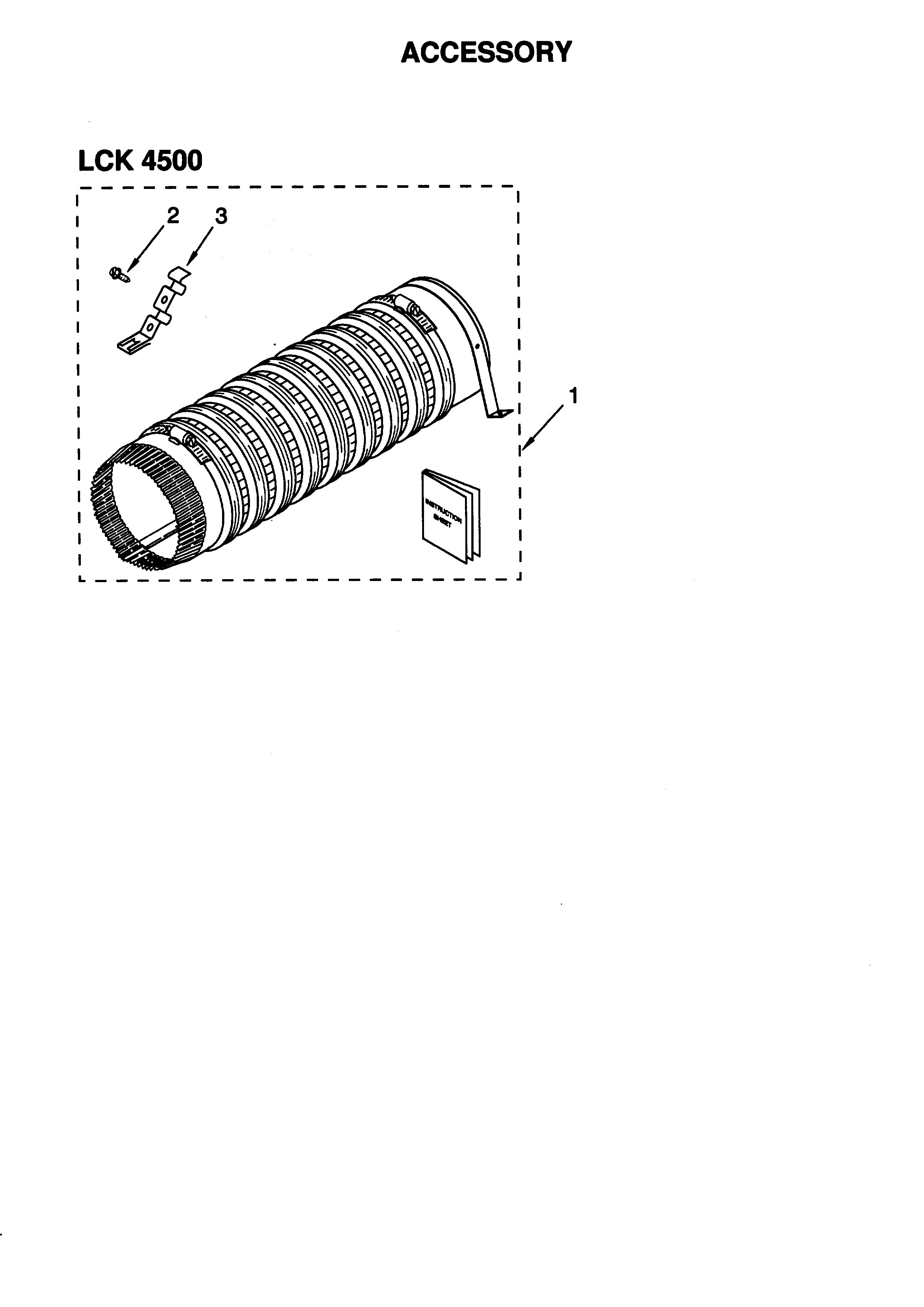

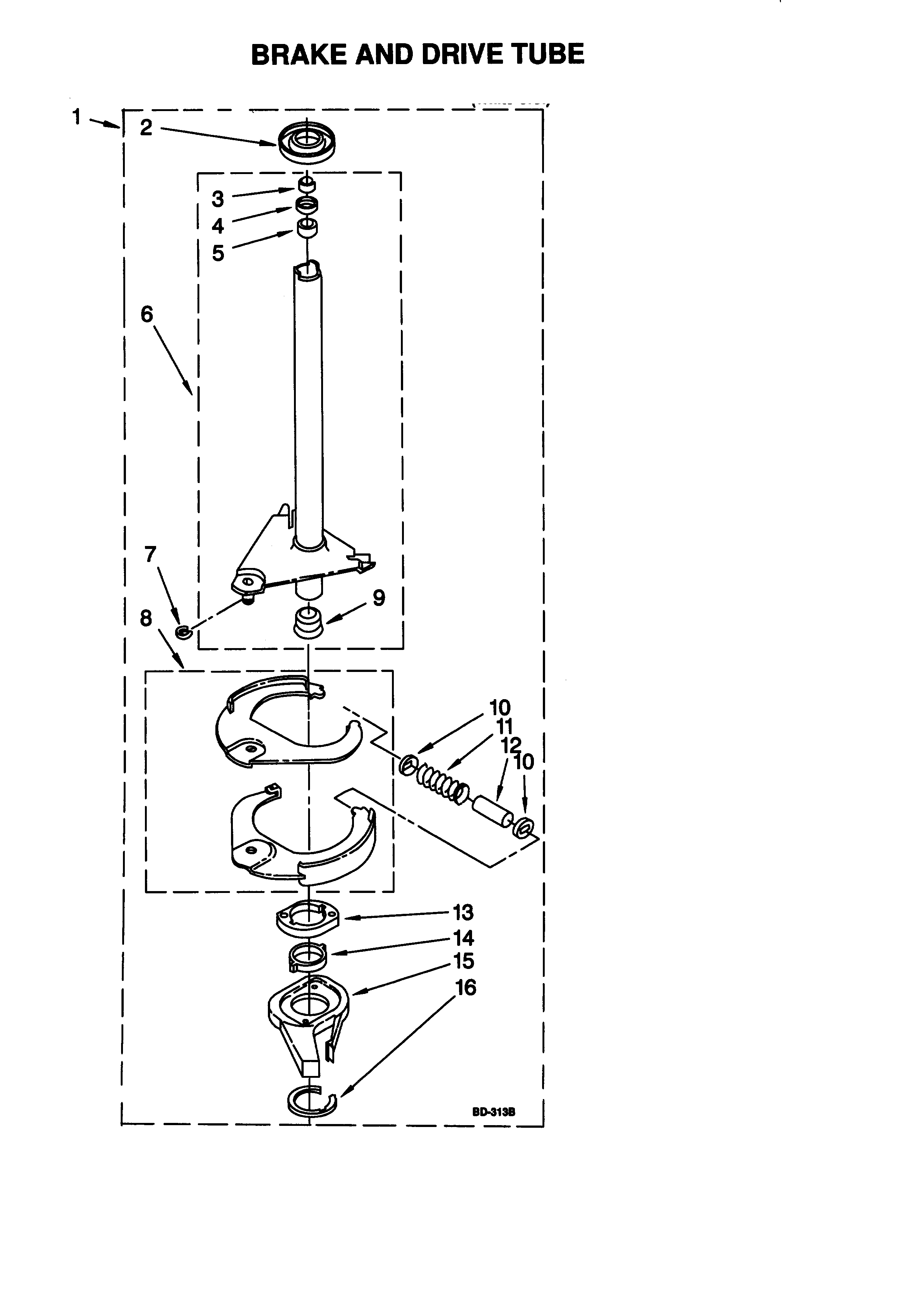

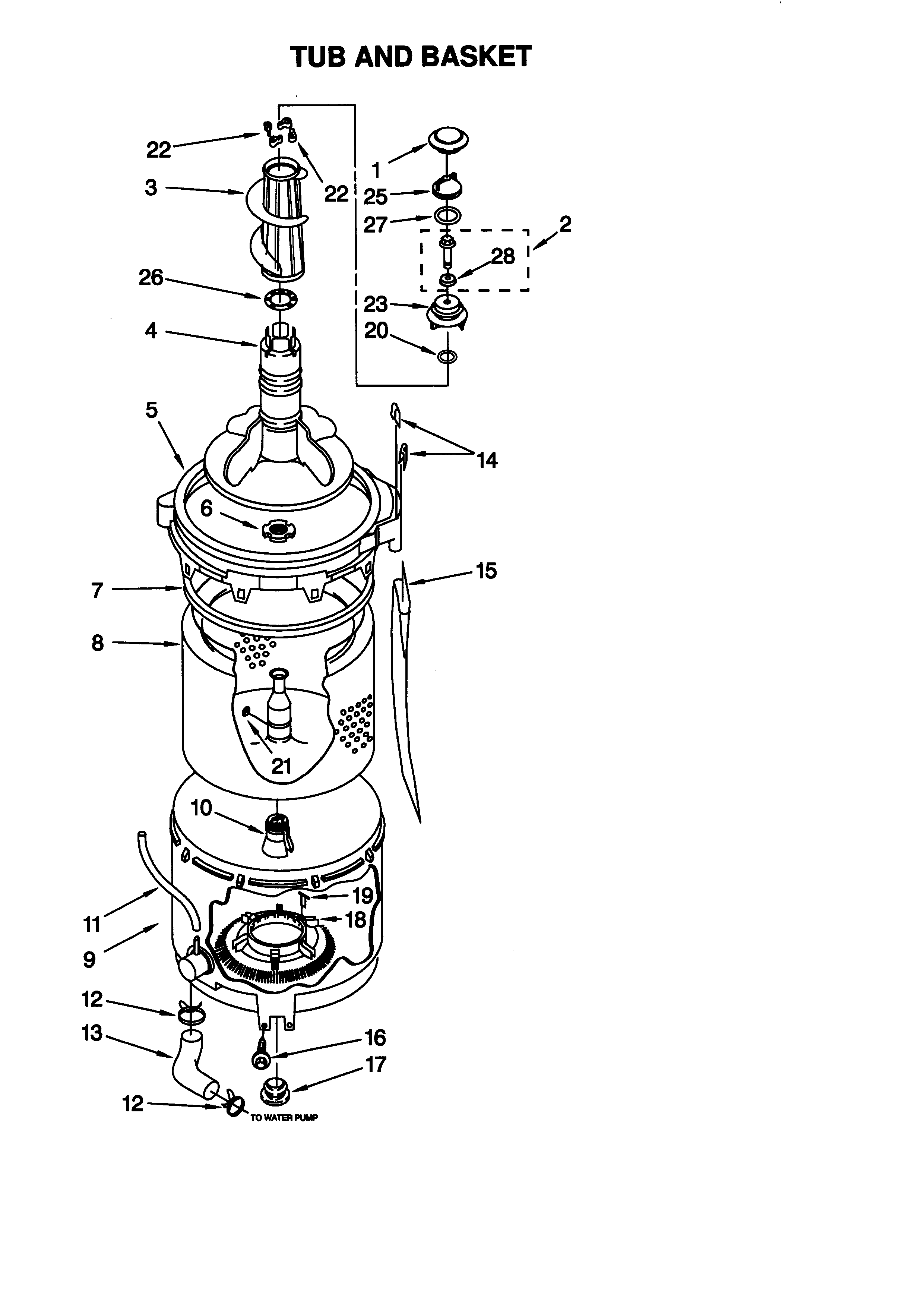

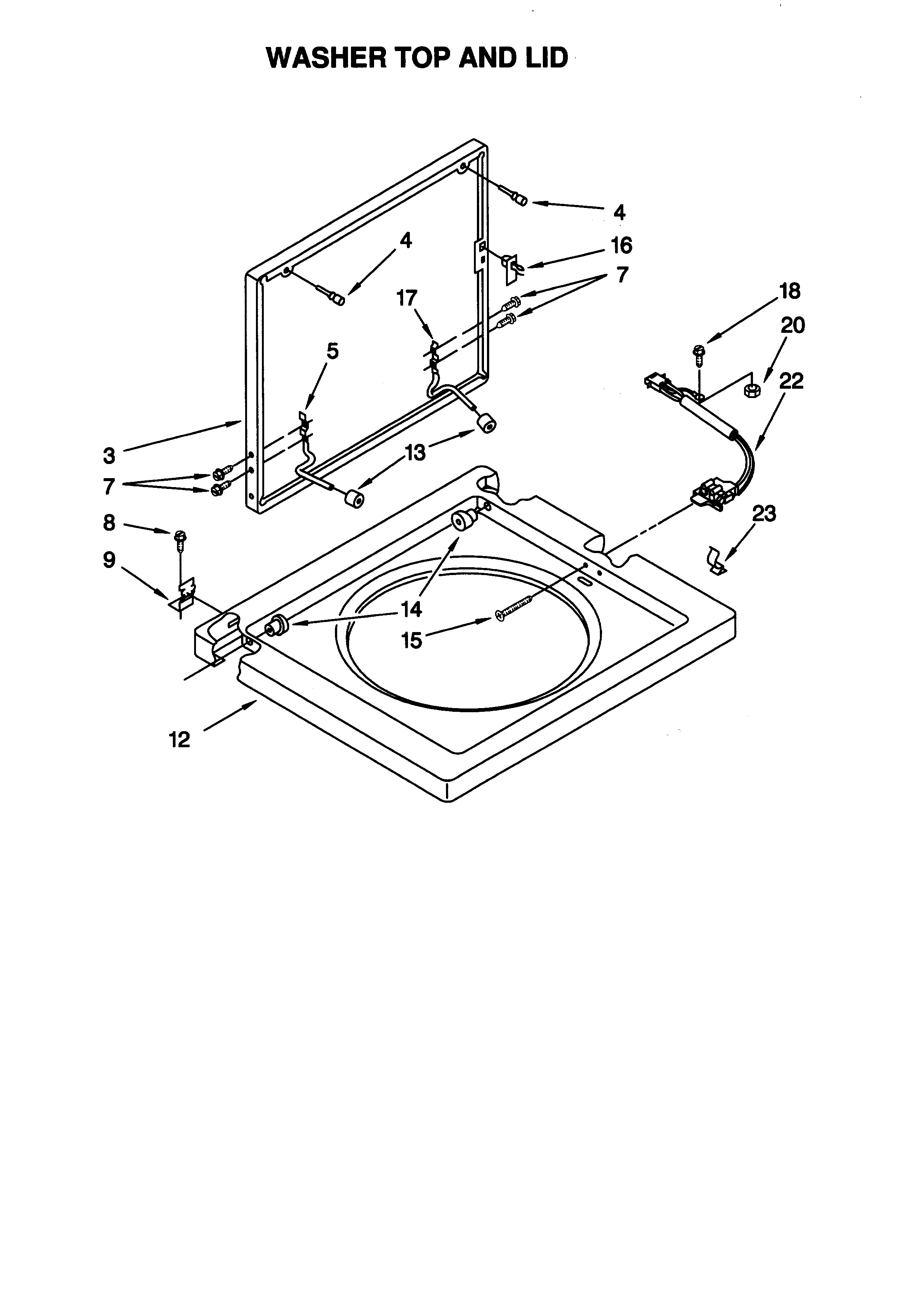

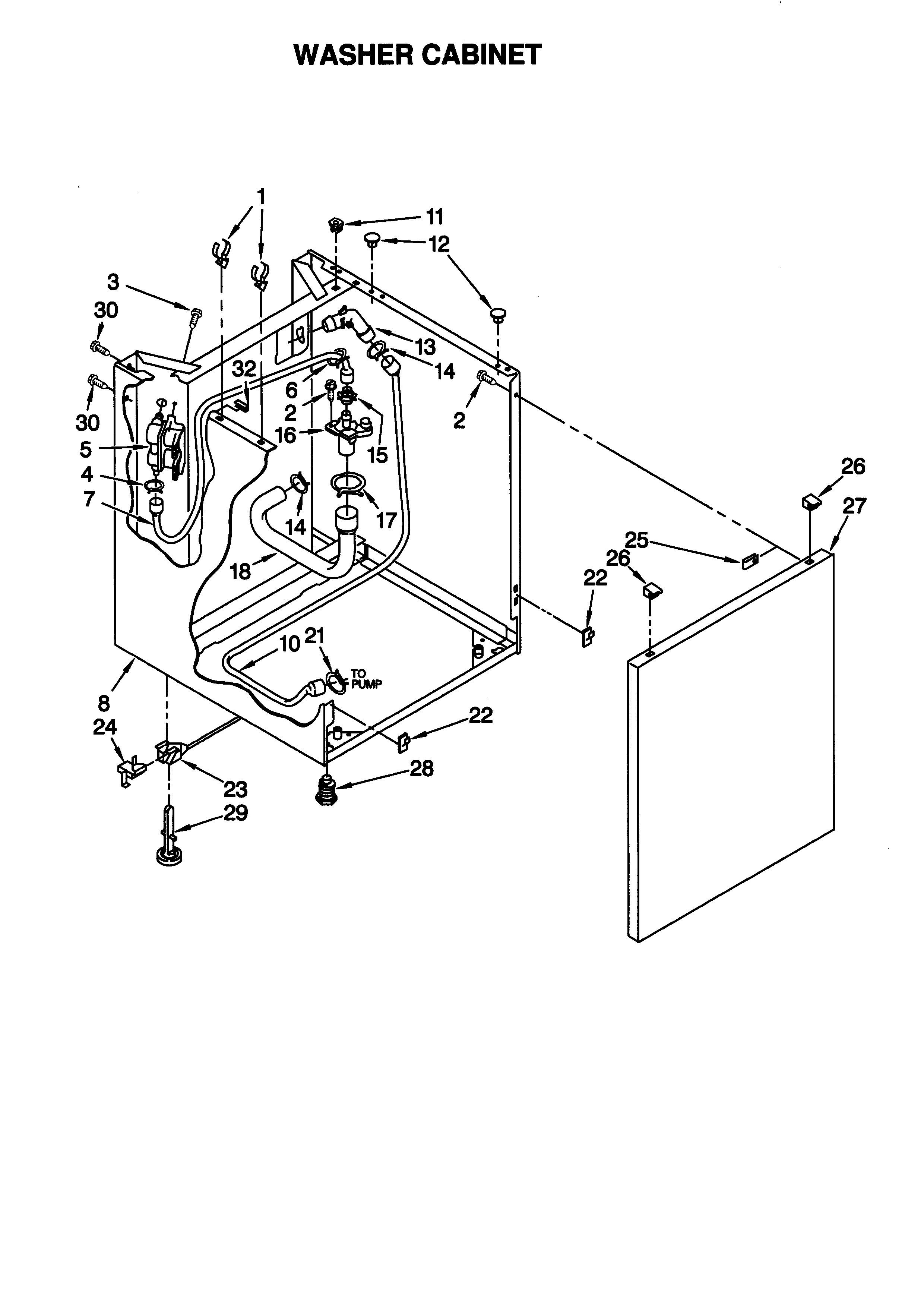

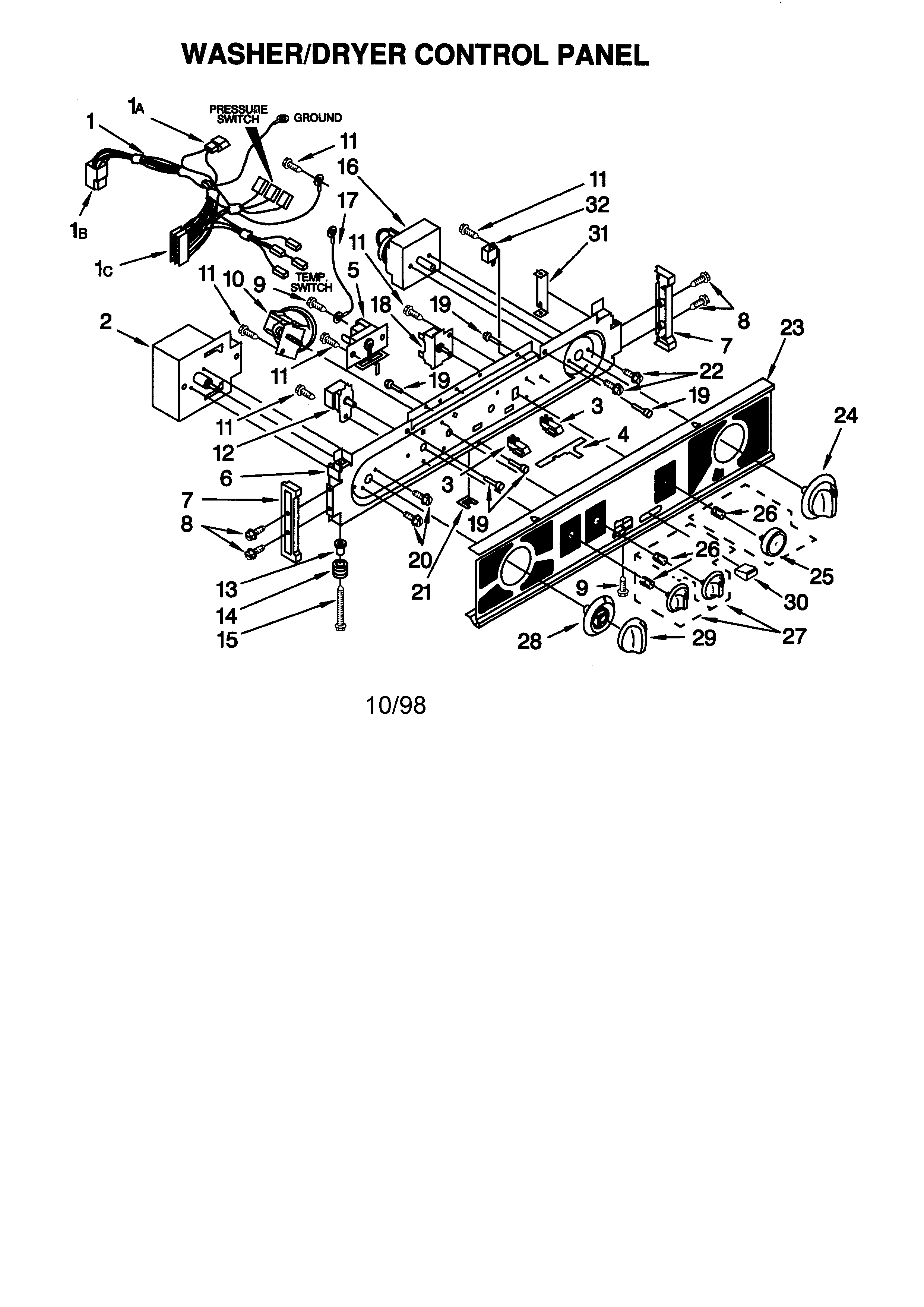

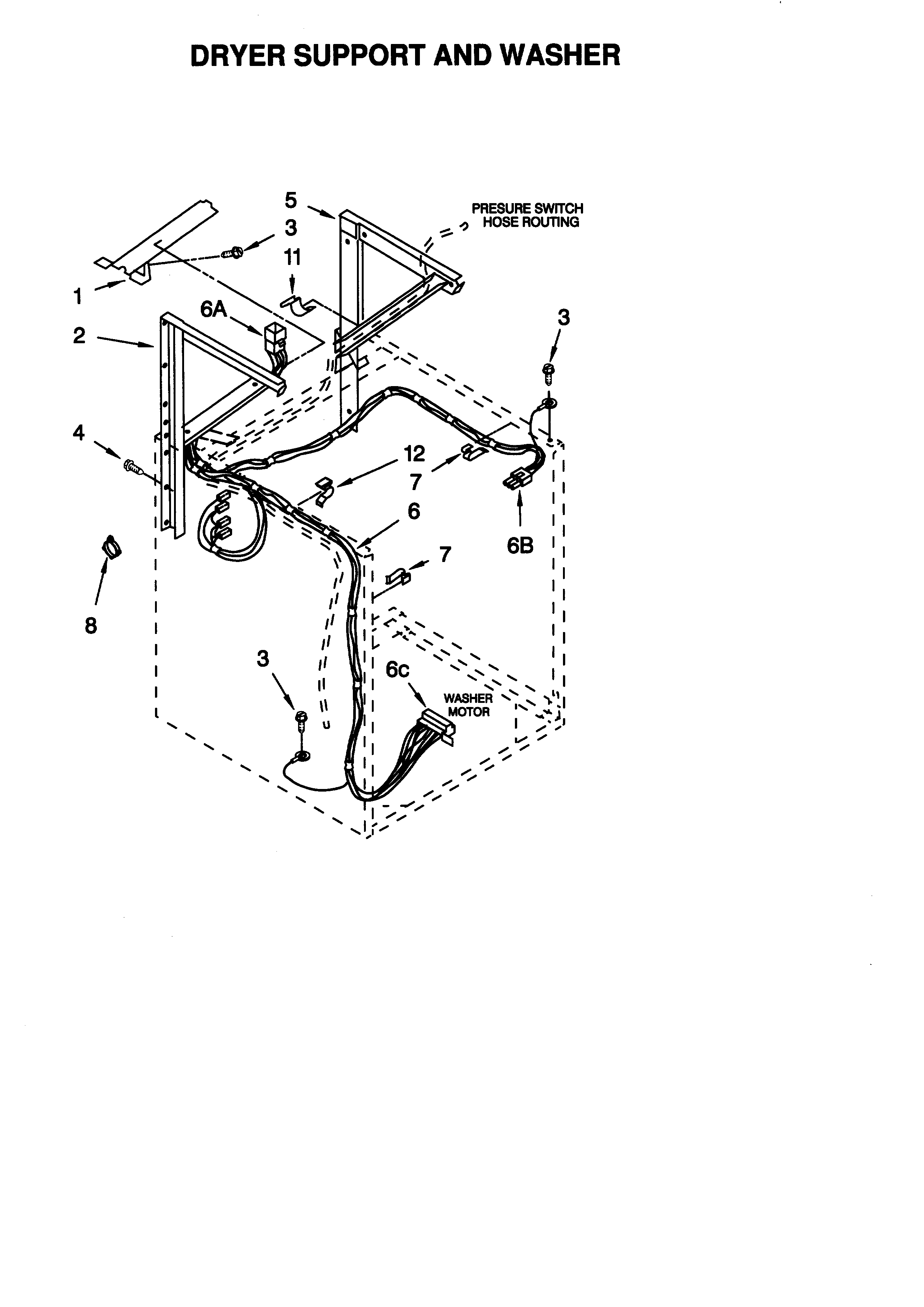

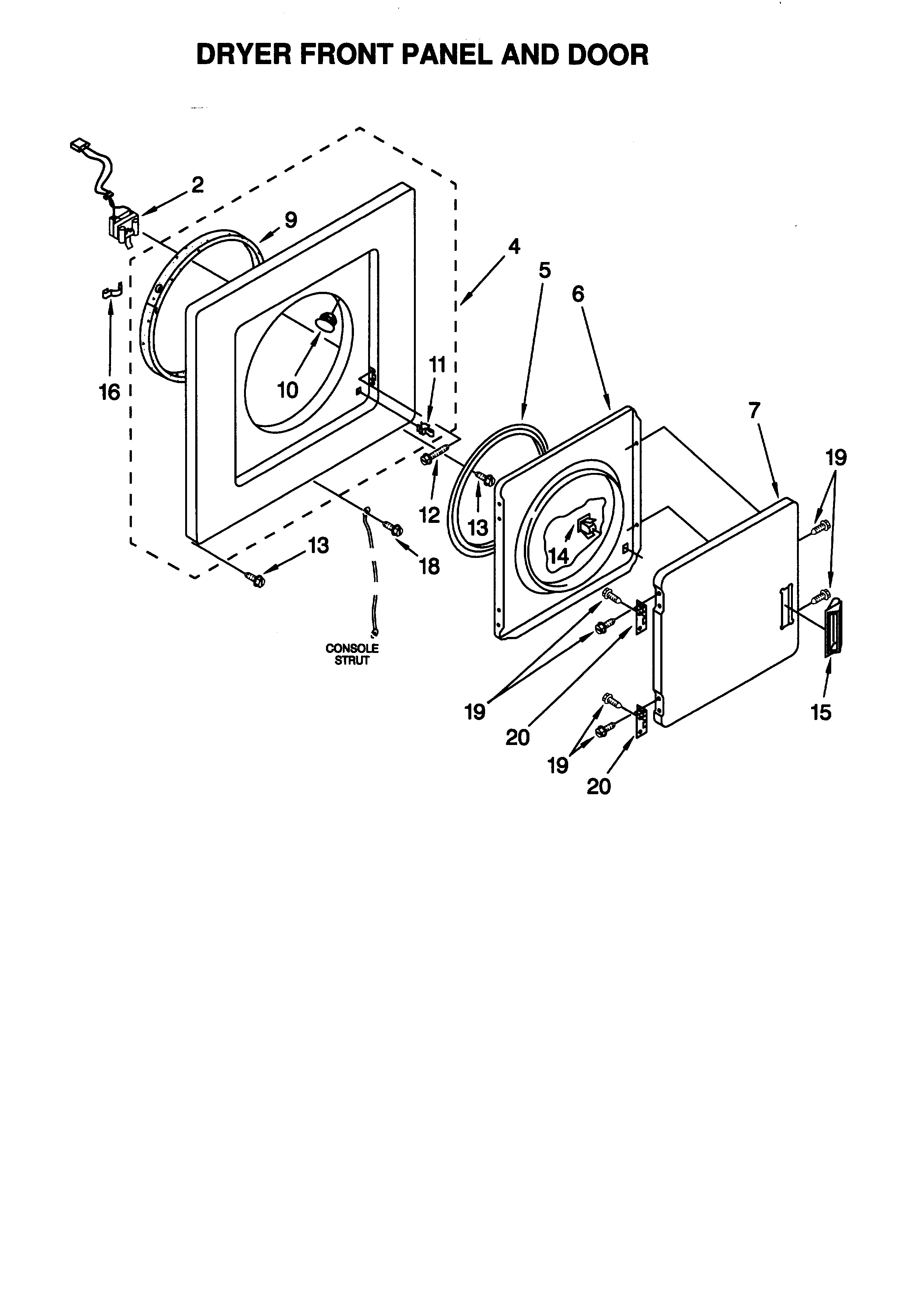

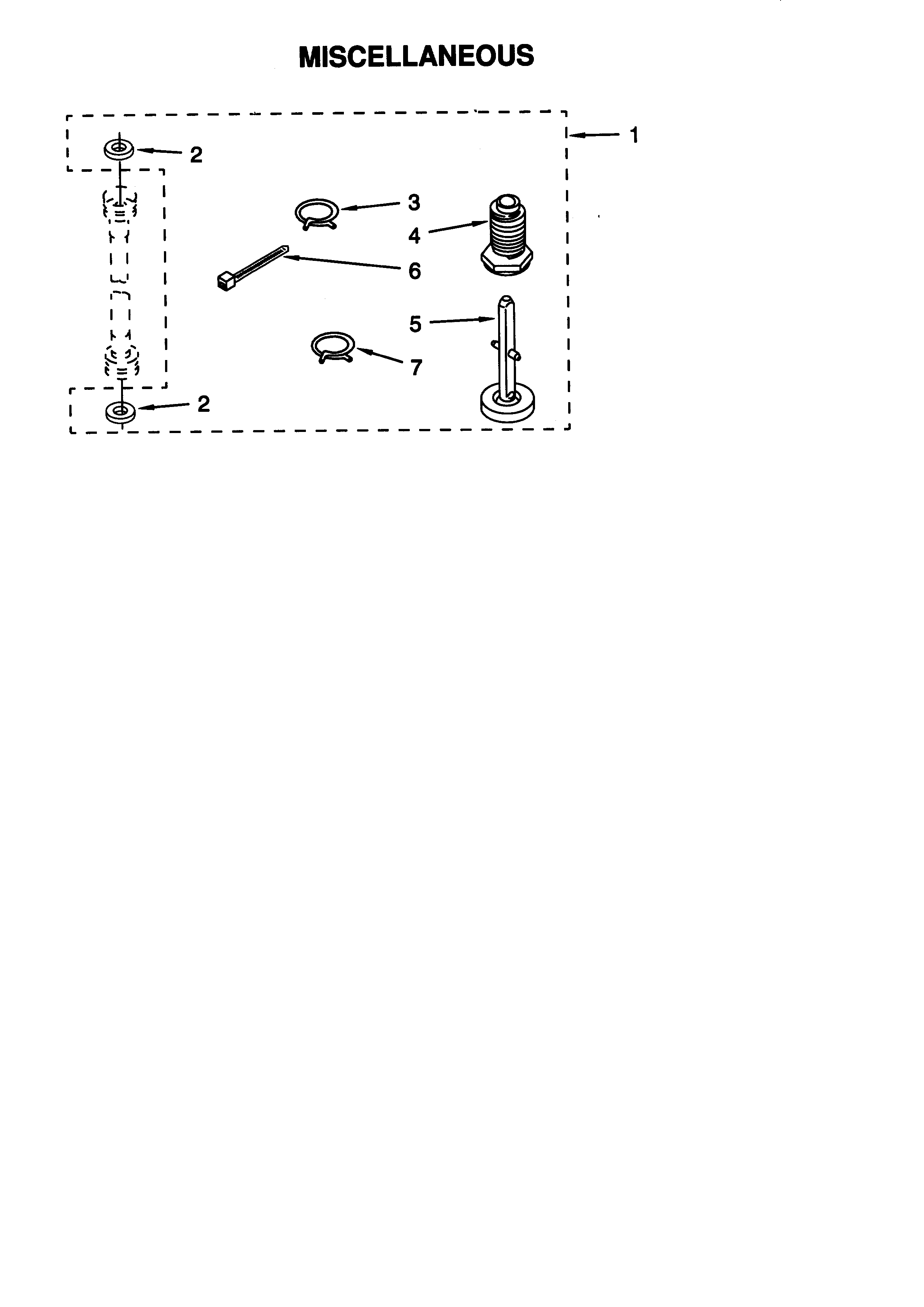

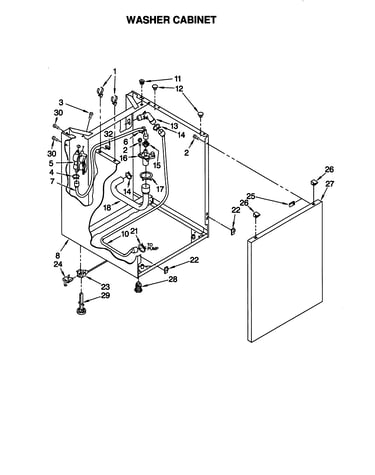

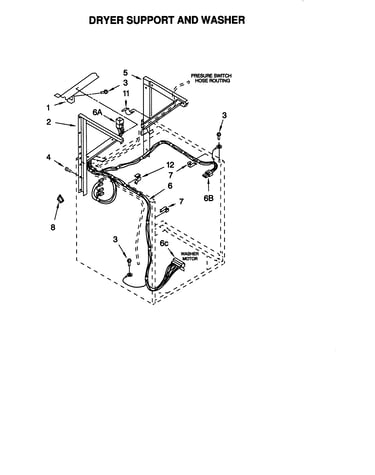

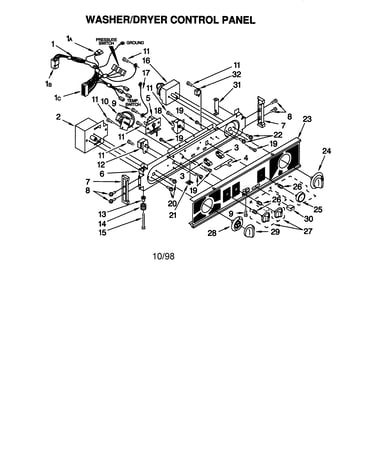

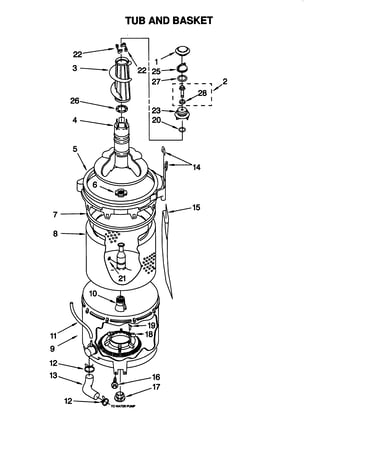

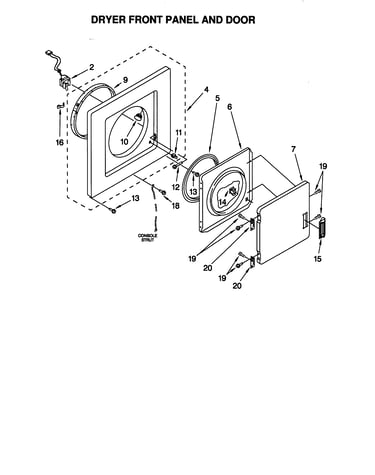

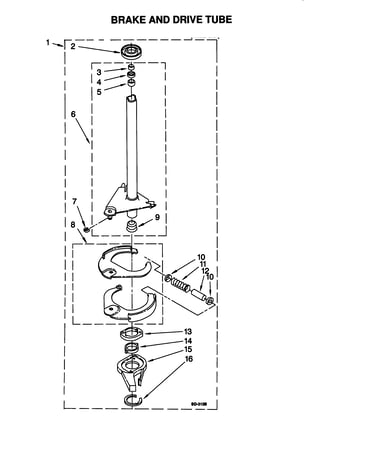

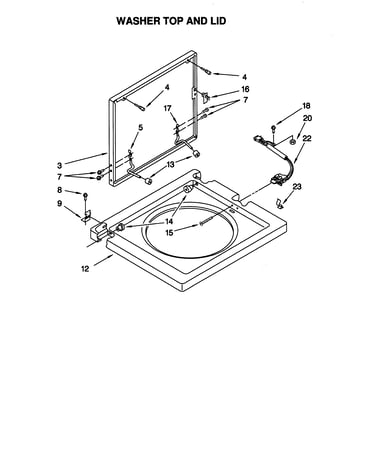

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 319 parts

    Dryer Heating Element Wire Kit

    #39

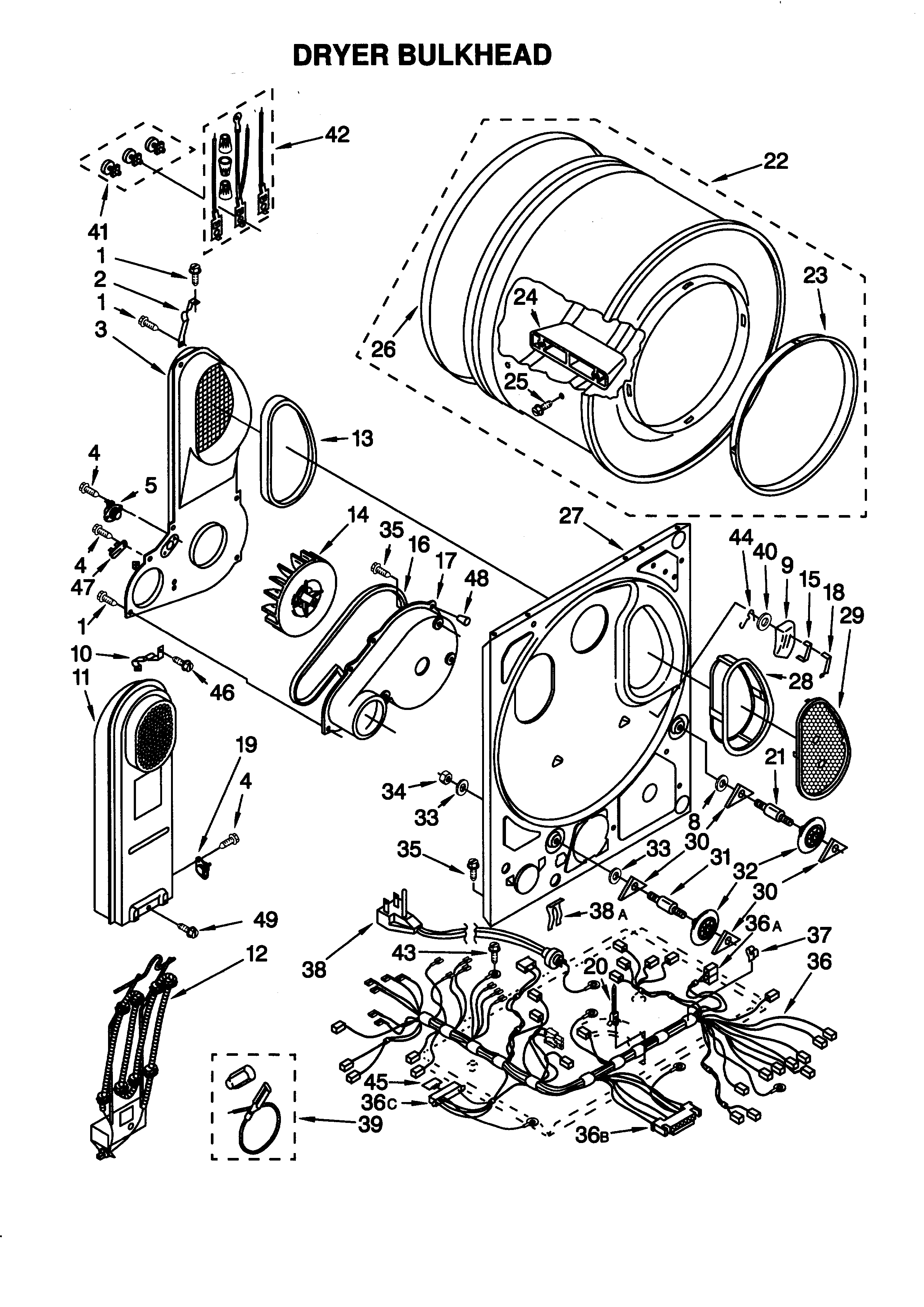

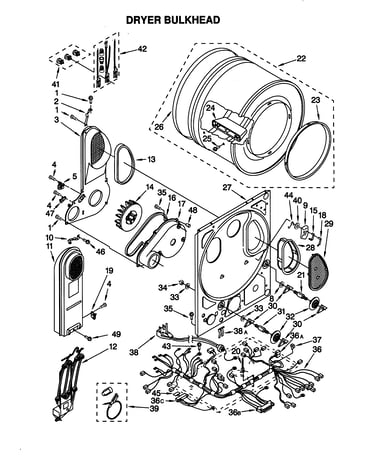

    Dryer bulkhead Diagram

    Dryer heating element wire kit

    Part #279457
    This item is not returnable
    $7.21

    In Stock

    Appliance Touch-Up Paint, 0.6-oz (White)

    #NI

    All parts Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    This item is not returnable
    $6.70 |
    11% OFF MSRP:$7.50

    In Stock

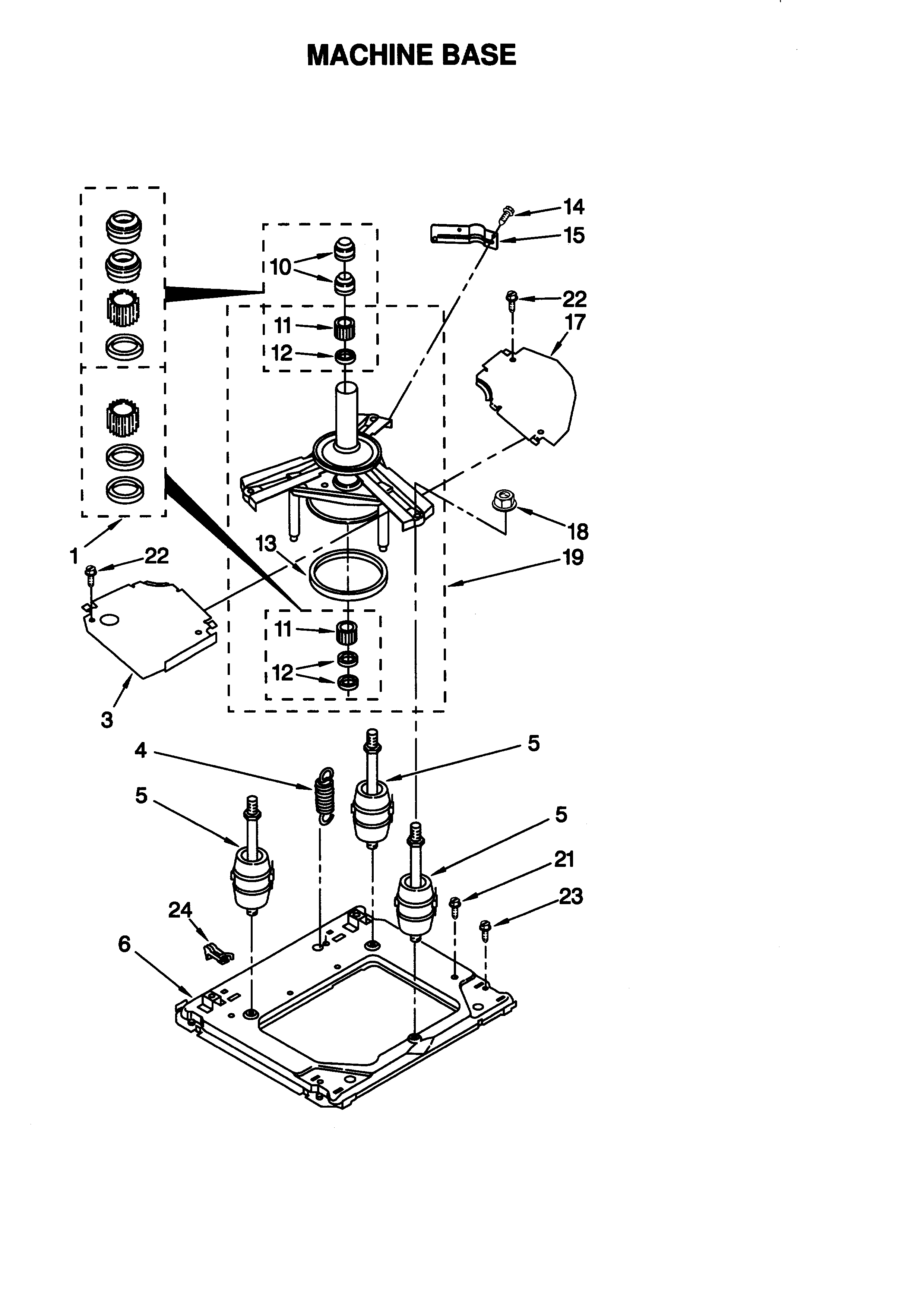

    Washer Bearing and Seal Kit

    #1

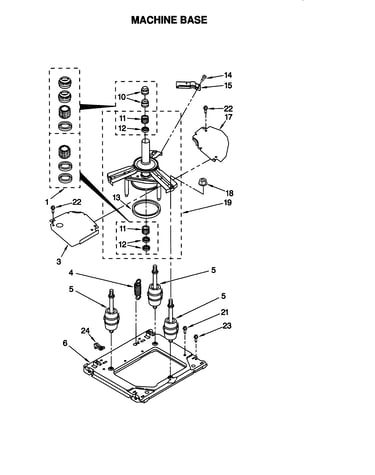

    Machine base Diagram

    $59.97 |
    10% OFF MSRP:$67.00

    In Stock

    Dryer Drum Belt

    #20

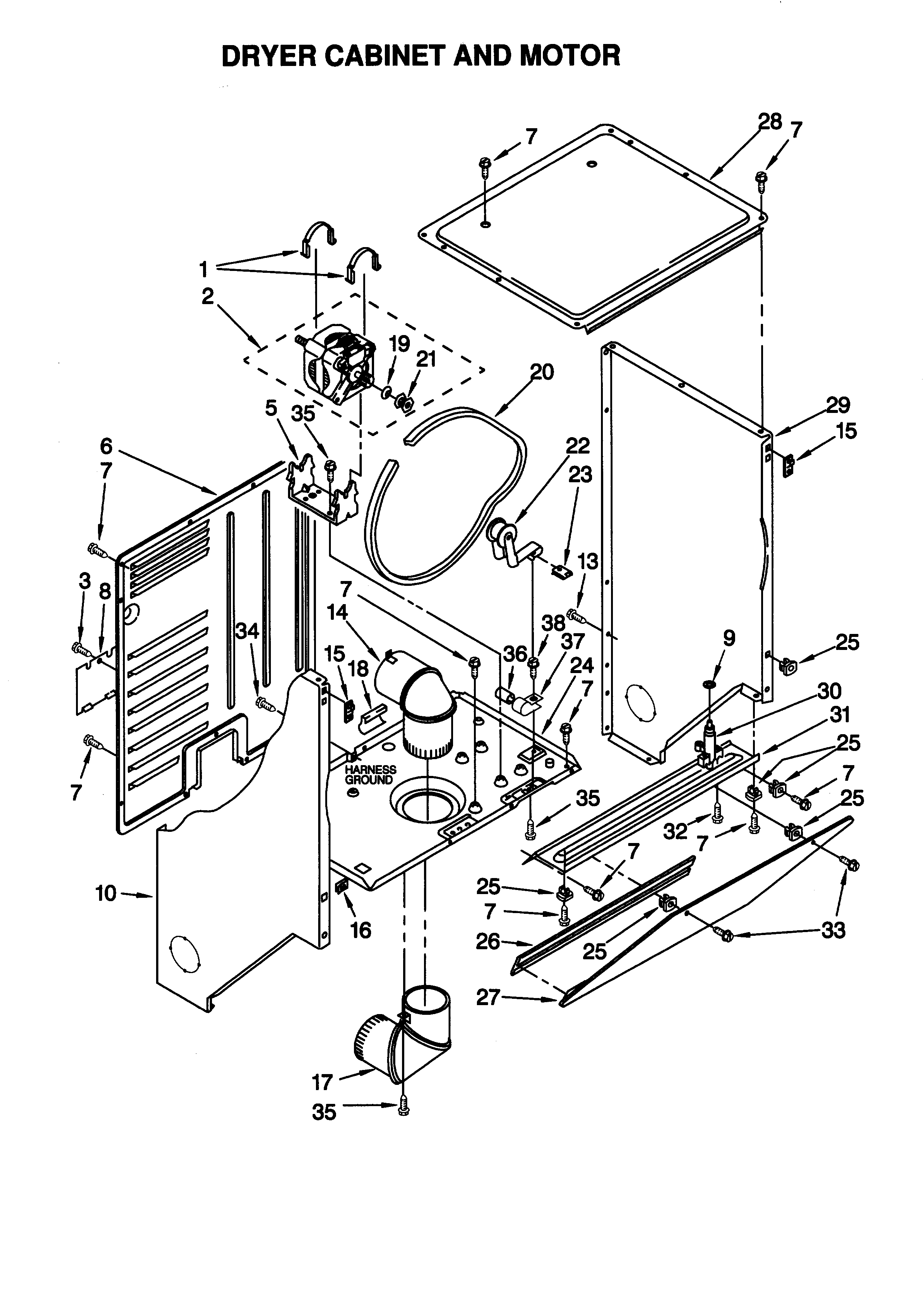

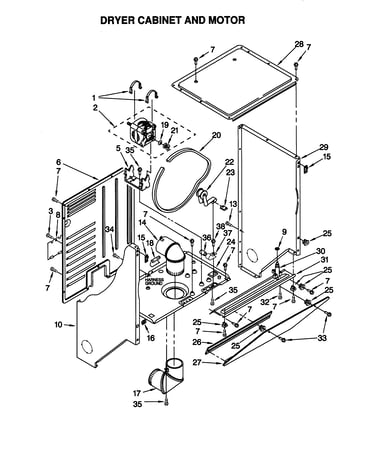

    Dryer cabinet and motor Diagram

    Dryer drum belt

    Part #3394652
    $36.72 |
    25% OFF MSRP:$48.85

    In Stock

    Dryer Terminal Block Wire Set

    #42

    Dryer bulkhead Diagram

    $35.95 |
    14% OFF MSRP:$42.00

    In Stock

    Washer Siphon Break Kit

    #4

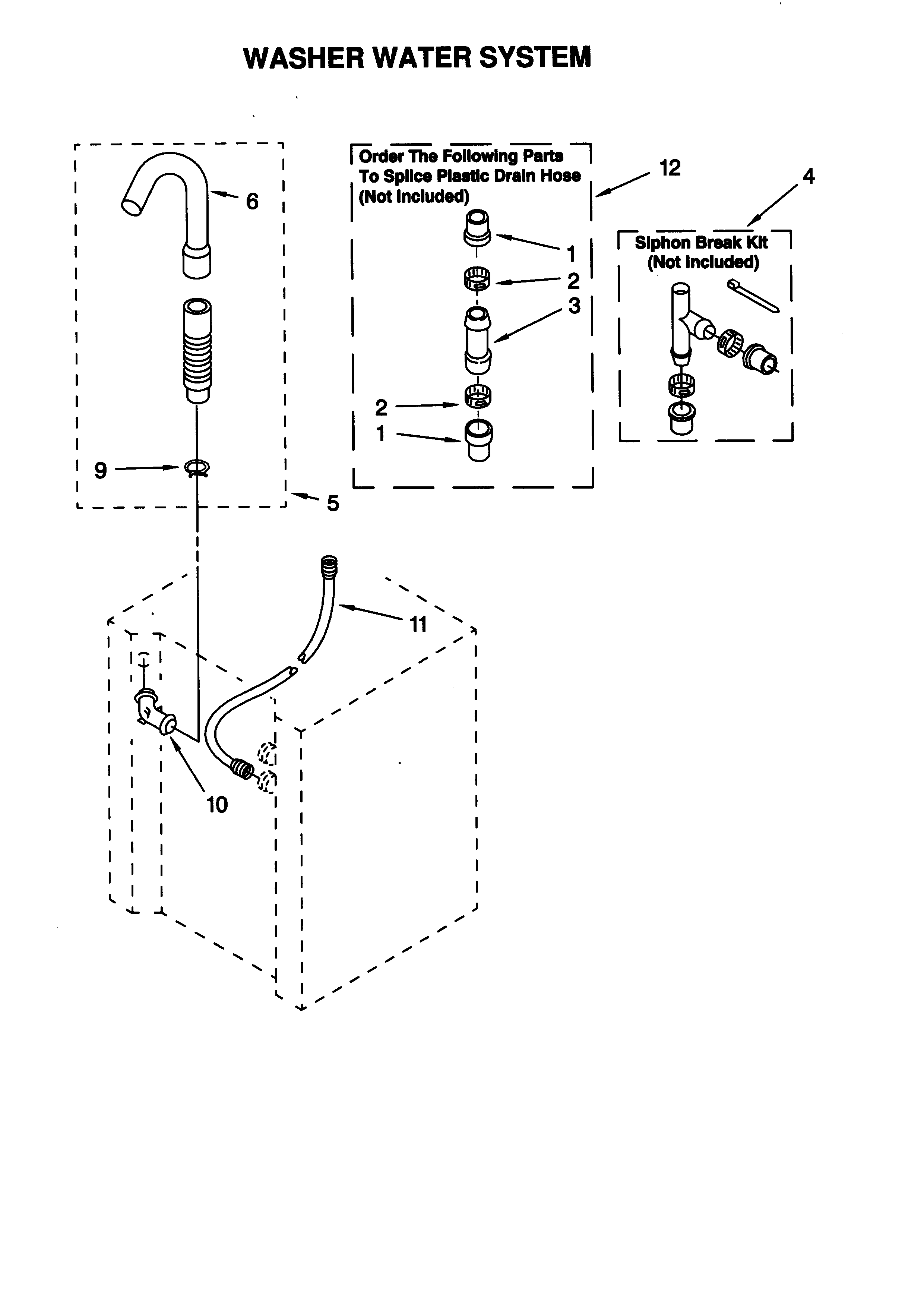

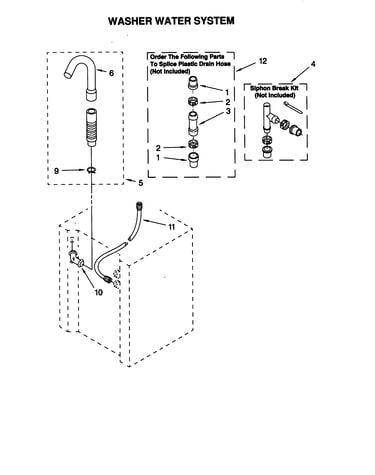

    Washer water system Diagram

    $25.49 |
    25% OFF MSRP:$33.78

    In Stock

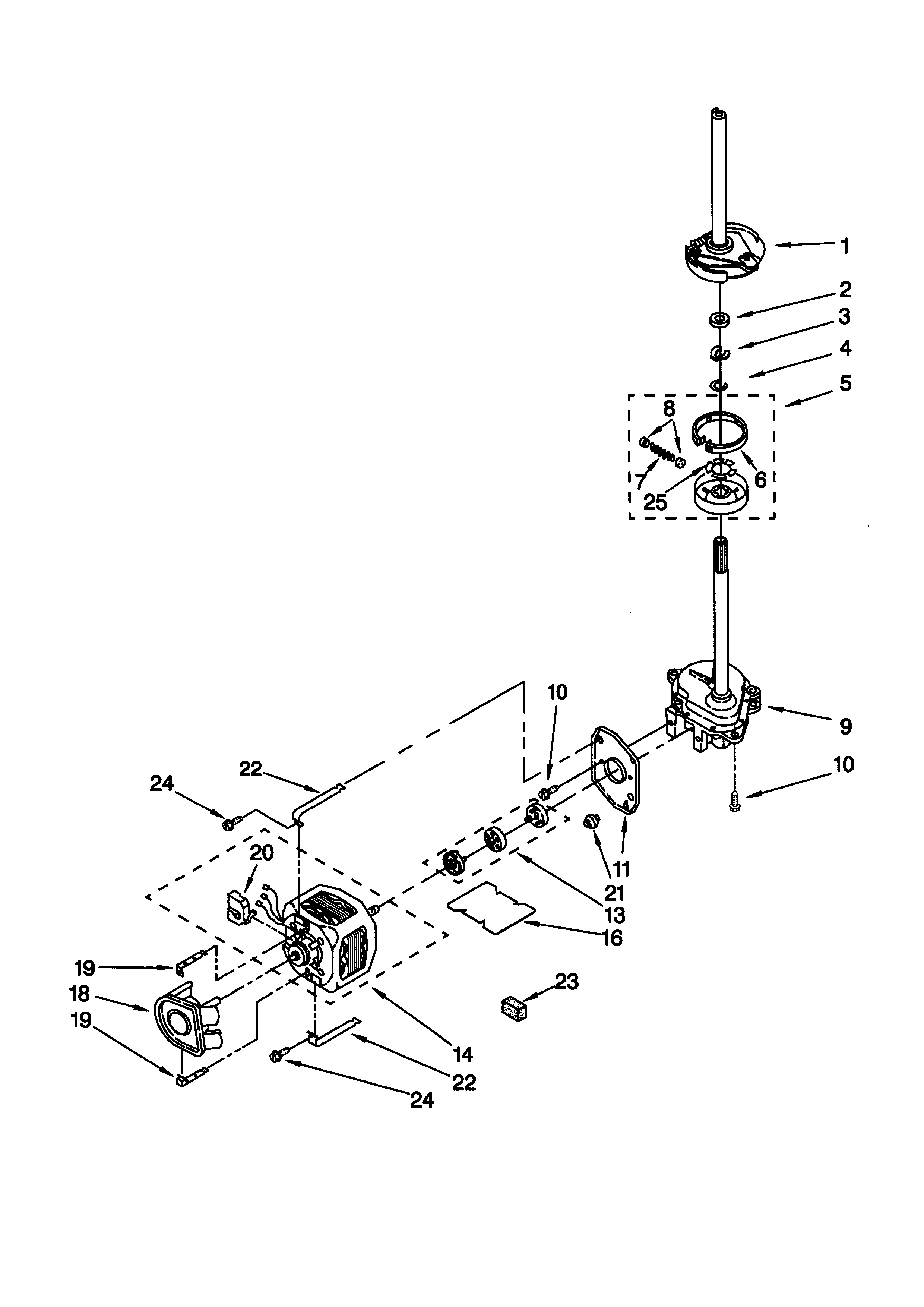

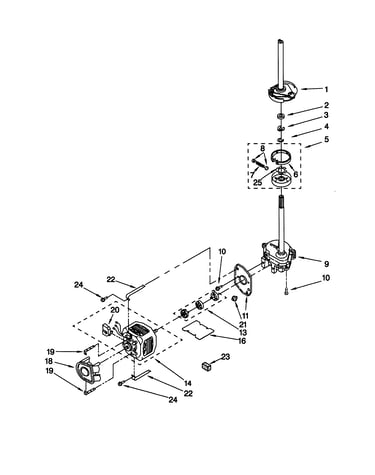

    Washer Gear Case Oil Seal

    #21

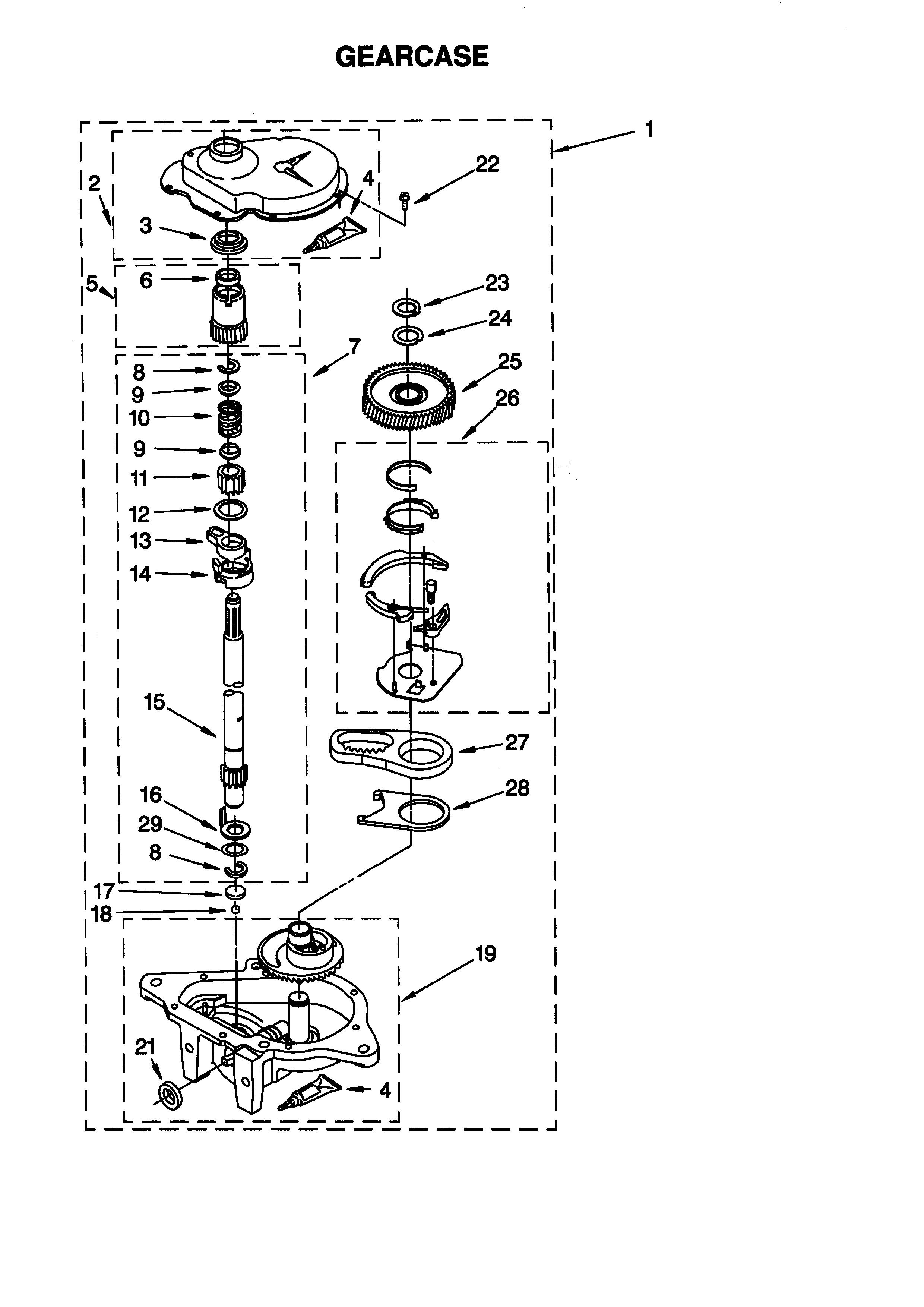

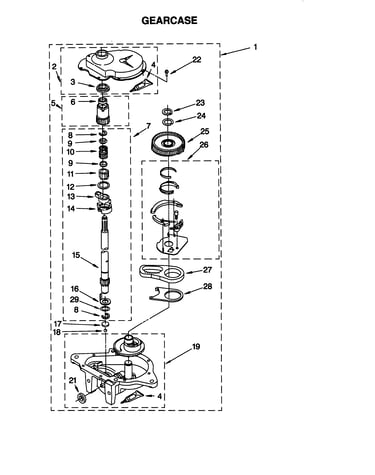

    Gearcase Diagram

    $29.13 |
    17% OFF MSRP:$35.00

    In Stock

    Appliance Spray Paint (Gray Primer)

    #NI

    All parts Diagram

    $23.27

    In Stock

    Washer Gear Case Oil

    #NI

    All parts Diagram

    $26.50 |
    20% OFF MSRP:$33.00

    In Stock

    Dryer Motor Wire Harness Connector

    #36B

    Dryer bulkhead Diagram

    $22.46 |
    25% OFF MSRP:$30.00

    In Stock

    Symptoms common to all laundry centers

    Choose a symptom to see related laundry center repairs.

    Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad heating element
    Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply problem, blown fuse
    Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control board
    Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components
    Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown fuse, control failure
    Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring
    Main causes: clogged drain system, blocked drain hose, bad drain pump
    Main causes: broken dryer drive belt, weak drive motor, binding drum seals
    Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failure, bad water valve

    Repair guides common to all laundry centers

    These step-by-step repair guides will help you safely fix what’s broken on your laundry center.

    How to replace a laundry center washer snubber ring

    If the washer tub bangs the cabinet during the spin cycle even though the load is balanced, you might need to replace the snubber ring in the base of the washer.

    Repair difficulty
    Time required
     15 minutes or less
    July 1, 2015
    By Lyle Weischwill
    How to replace a laundry center washer timer

    If the washer doesn't fill, spin or drain, the timer could be the problem.

    Repair difficulty
    Time required
     15 minutes or less
    How to replace a laundry center dryer door switch

    The dryer won’t start if the door switch is defective. Your can replace it in about 15 minutes.

    Repair difficulty
    Time required
     15 minutes or less

    Articles and videos common to all laundry centers

    Use the advice and tips in these articles and videos to get the most out of your laundry center.

    June 5, 2018

    Displaying error codes on Kenmore and Frigidaire laundry centers

    By Sears PartsDirect staff

    Step-by-step directions for entering the diagnostic test mode.

    October 26, 2016

    How to repair broken or damaged wires video

    By Sears PartsDirect staff

    Learn how to repair broken, frayed or damaged wires in your appliances.

    January 18, 2016

    How to use a multimeter to test electrical parts video

    By Sears PartsDirect staff

    Learn how to use a multimeter to check for wiring problems in an appliance that's not working
