Side-By-Side Refrigerator

Model #ZISB360DRE Official GE refrigerator - r series

Here are the diagrams and repair parts for GE ZISB360DRE refrigerator - r series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

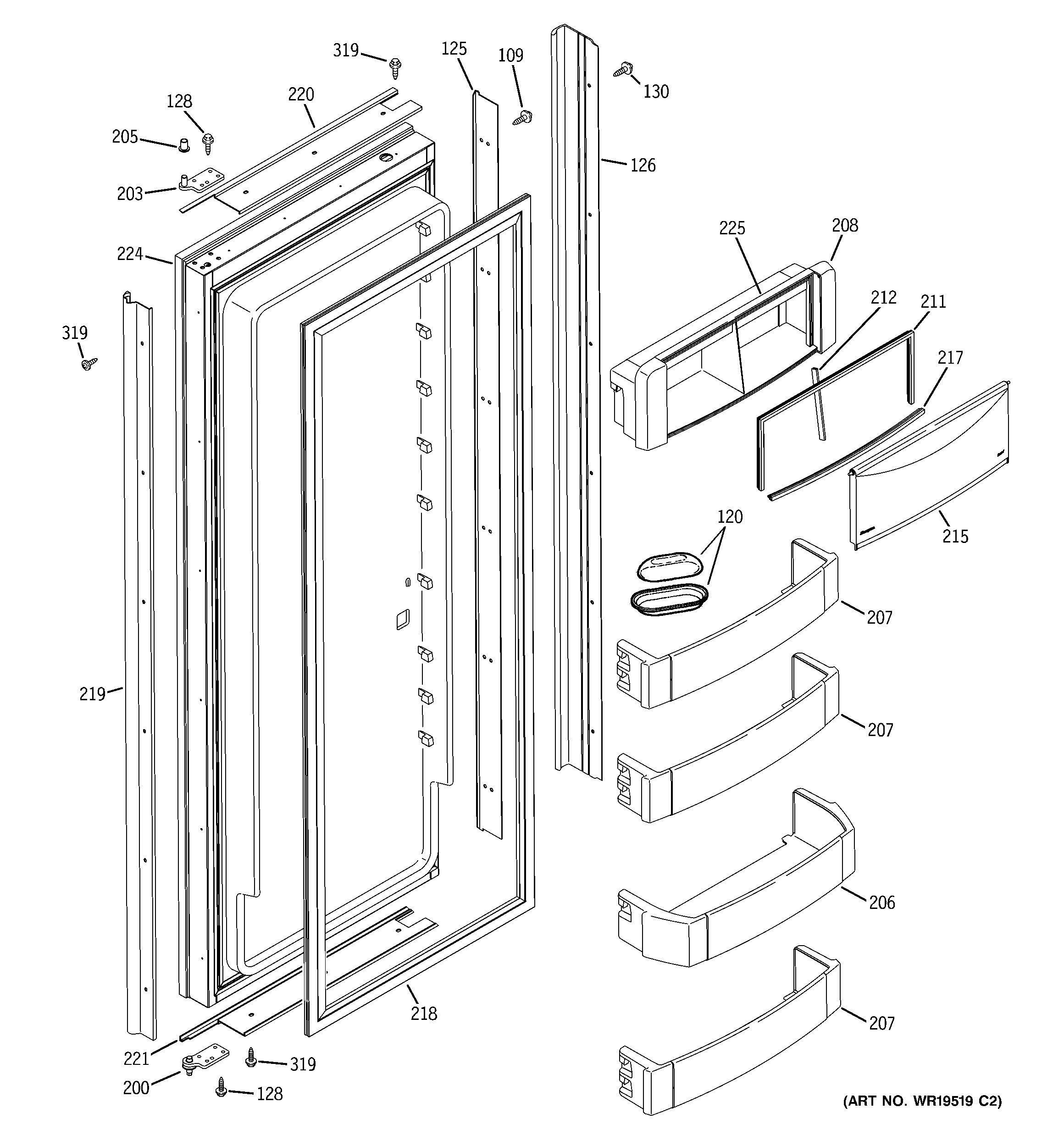

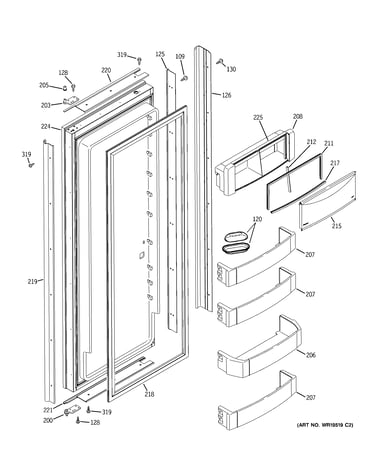

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 313 parts

GE Refrigerator Water Filter (replaces 9970, MWFPA)#303

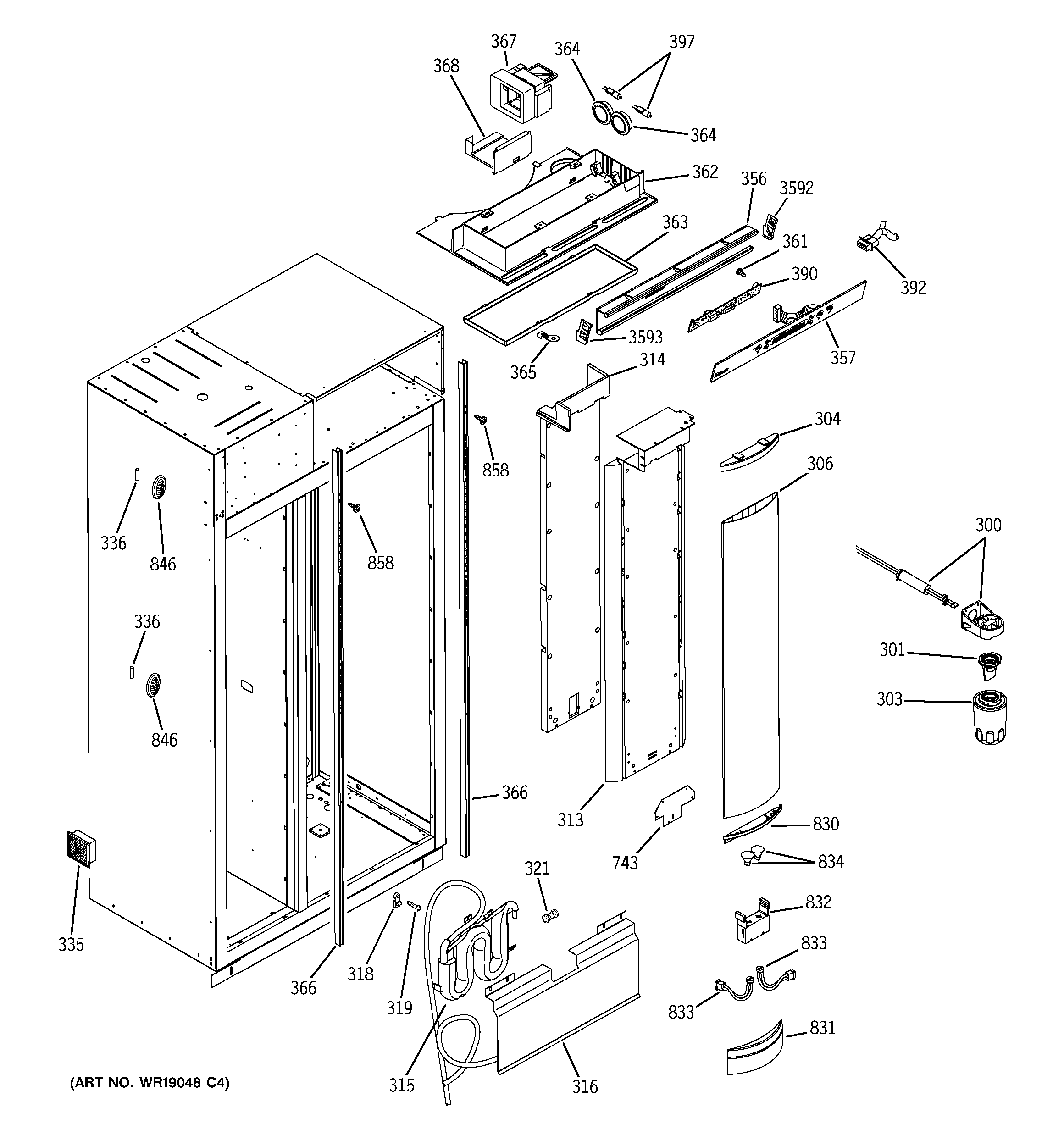

Fresh food section Diagram

Refrigerator water filter

Part #GWF
Replaced by #MWF
?
Manufacturer substitution
This part replaces GWF. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
$49.99
Refrigerator Ice Maker (replaces WR30X10093, WR30X30719, WR30X30919, WR30X318, WR30X40986)#810

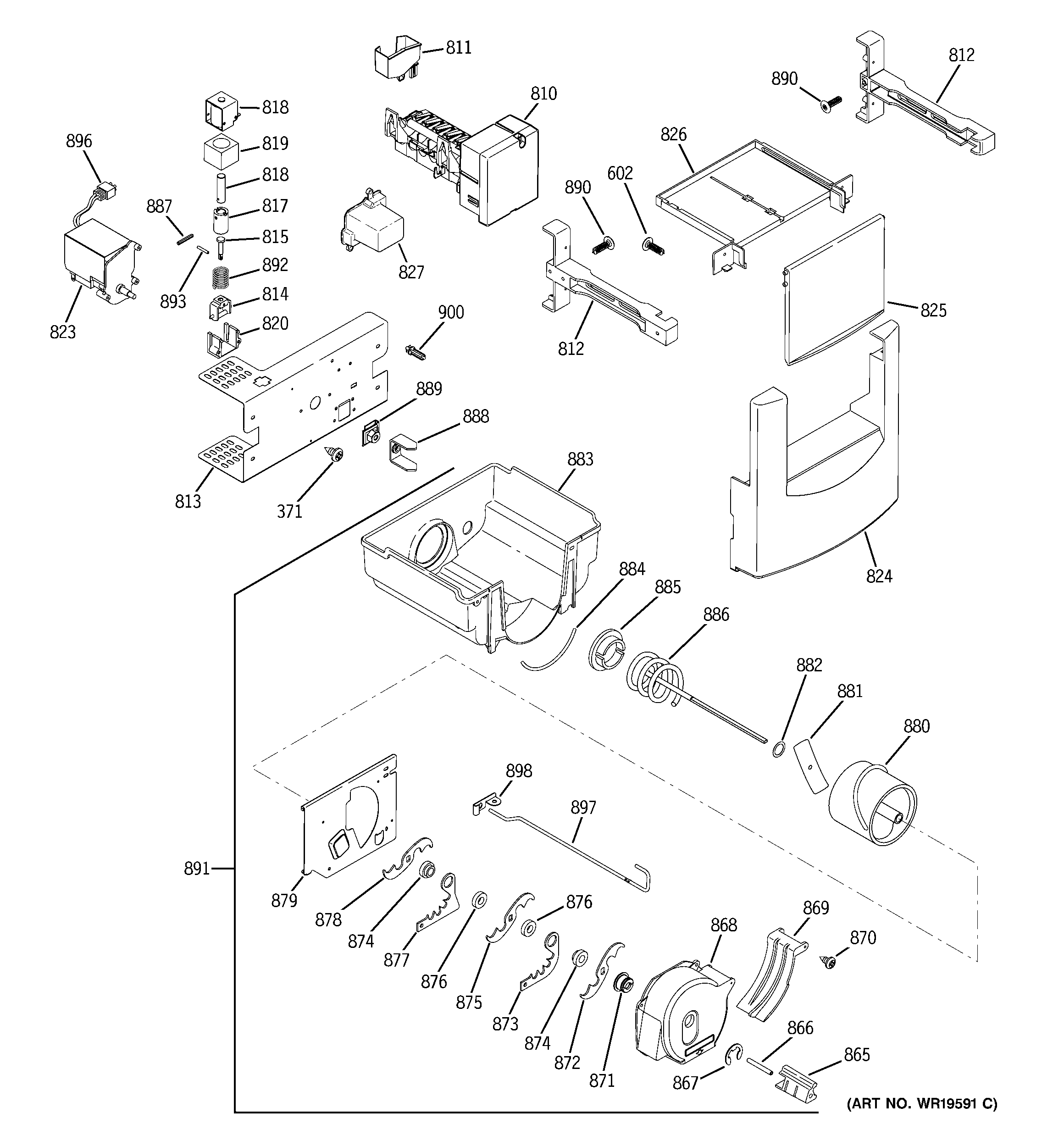

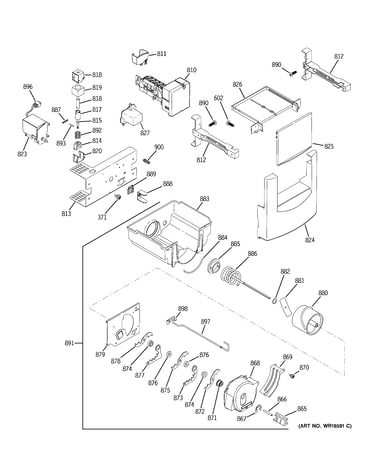

Ice maker & dispenser Diagram

Refrigerator ice maker

Part #WR30X10012
Replaced by #WR30X30972
?
Manufacturer substitution
This part replaces WR30X10012. Substitute parts can look different from the original.
BEST SELLER
In Stock
$120.16 |
8% OFF
Phone Price: $130.16
Refrigerator Evaporator Fan Motor Grommet (replaces WR02X12008)#864

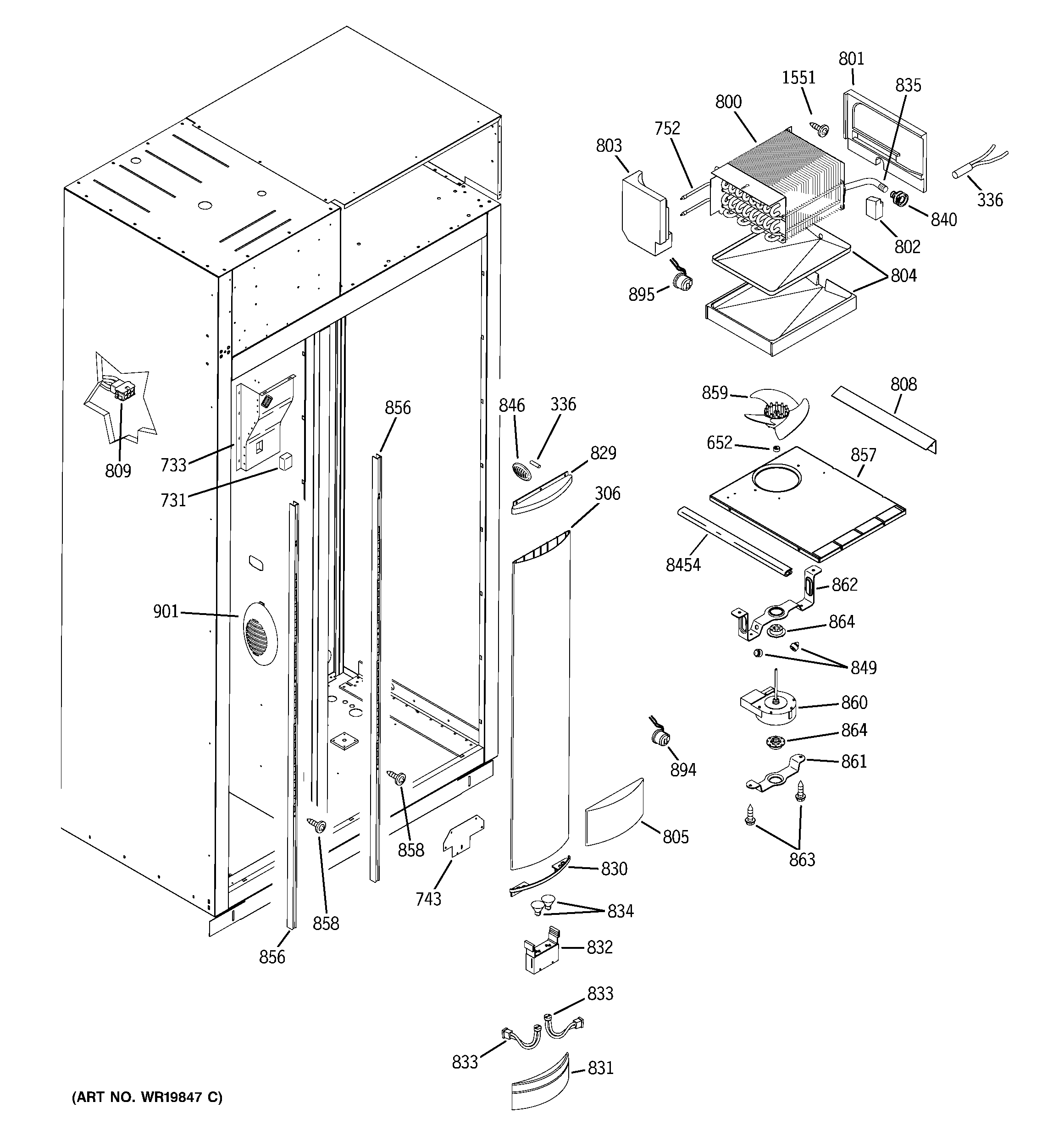

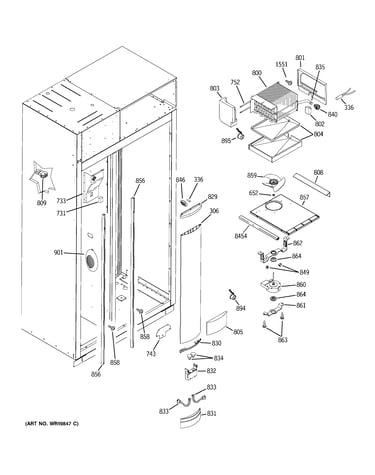

Freezer section Diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519
BEST SELLER
This item is not returnable
In Stock
$5.37 |
16% OFF
Phone Price: $6.37
Refrigerator Evaporator Fan Motor (replaces WR60X10059, WR60X10154)#860

Freezer section Diagram

Dc evaporator motor

Part #WR60X10083
Replaced by #WR60X10185
?
Manufacturer substitution
This part replaces WR60X10083. Substitute parts can look different from the original.
BEST SELLER
In Stock
$80.10 |
6% OFF
Phone Price: $85.10
Refrigerator Dispenser Ice Chute Door Solenoid (replaces WR62X10020)#127

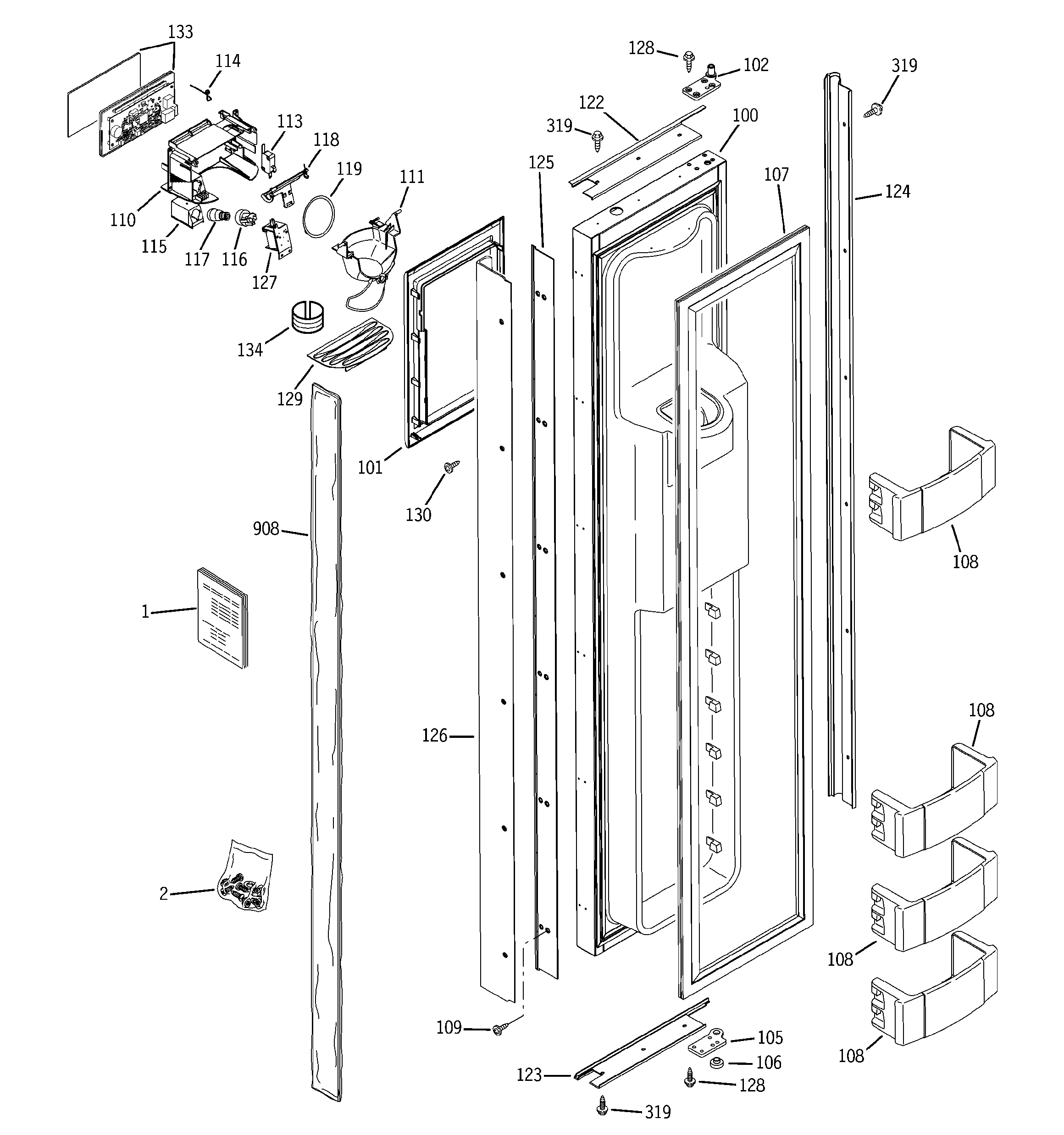

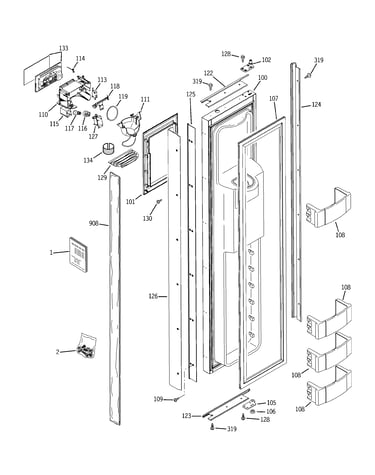

Freezer door Diagram

Refrigerator solenoid

Part #WR62X10020
Replaced by #WR62X10055
?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
In Stock
$54.43 |
8% OFF
Phone Price: $59.43
Refrigerator Door Switch (replaces WR23X21073)#545

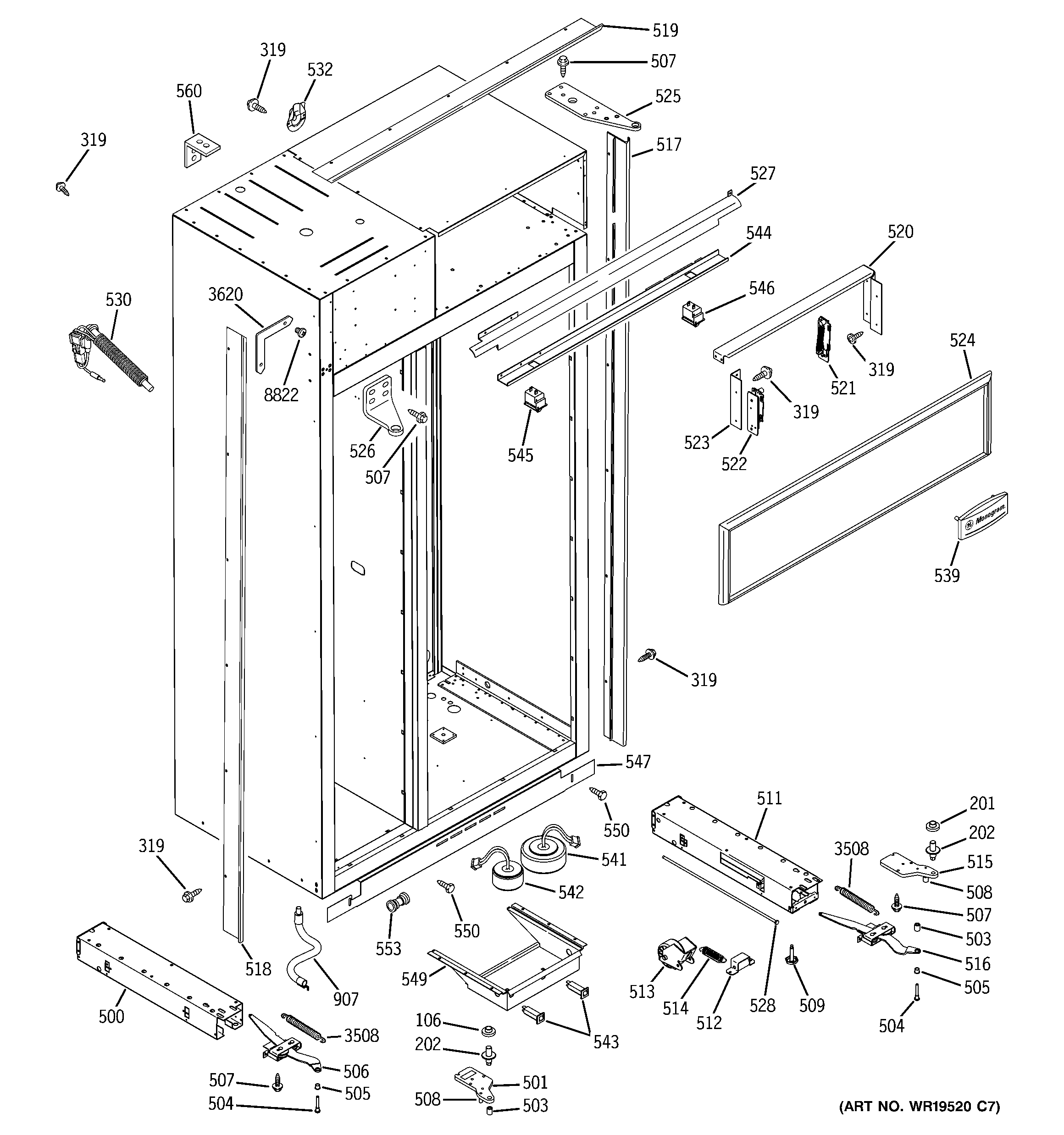

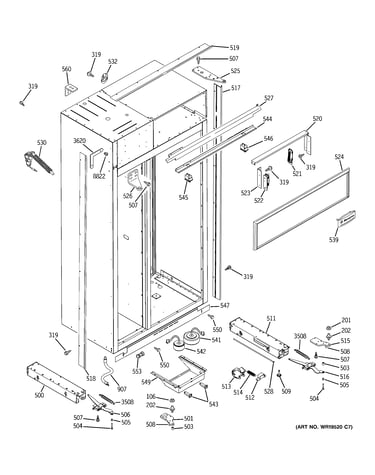

Case parts Diagram

Refrigerator light switch

Part #WR23X10286
Replaced by #WR23X21444
?
Manufacturer substitution
This part replaces WR23X10286. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Refrigerator Dispenser Ice Chute Funnel and Lever (replaces WR17X10743)#111

Freezer door Diagram

In Stock
$30.86 |
14% OFF
Phone Price: $35.86
Freezer Basket Bumper (replaces WR02X11329)#849

Freezer section Diagram

Freezer basket bumper (replaces wr02x11329)

Part #WR02X10540
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Refrigerator Compressor (replaces WR87X10044, WR87X10064, WR87X10121, WR87X10123, WR87X10180)#713

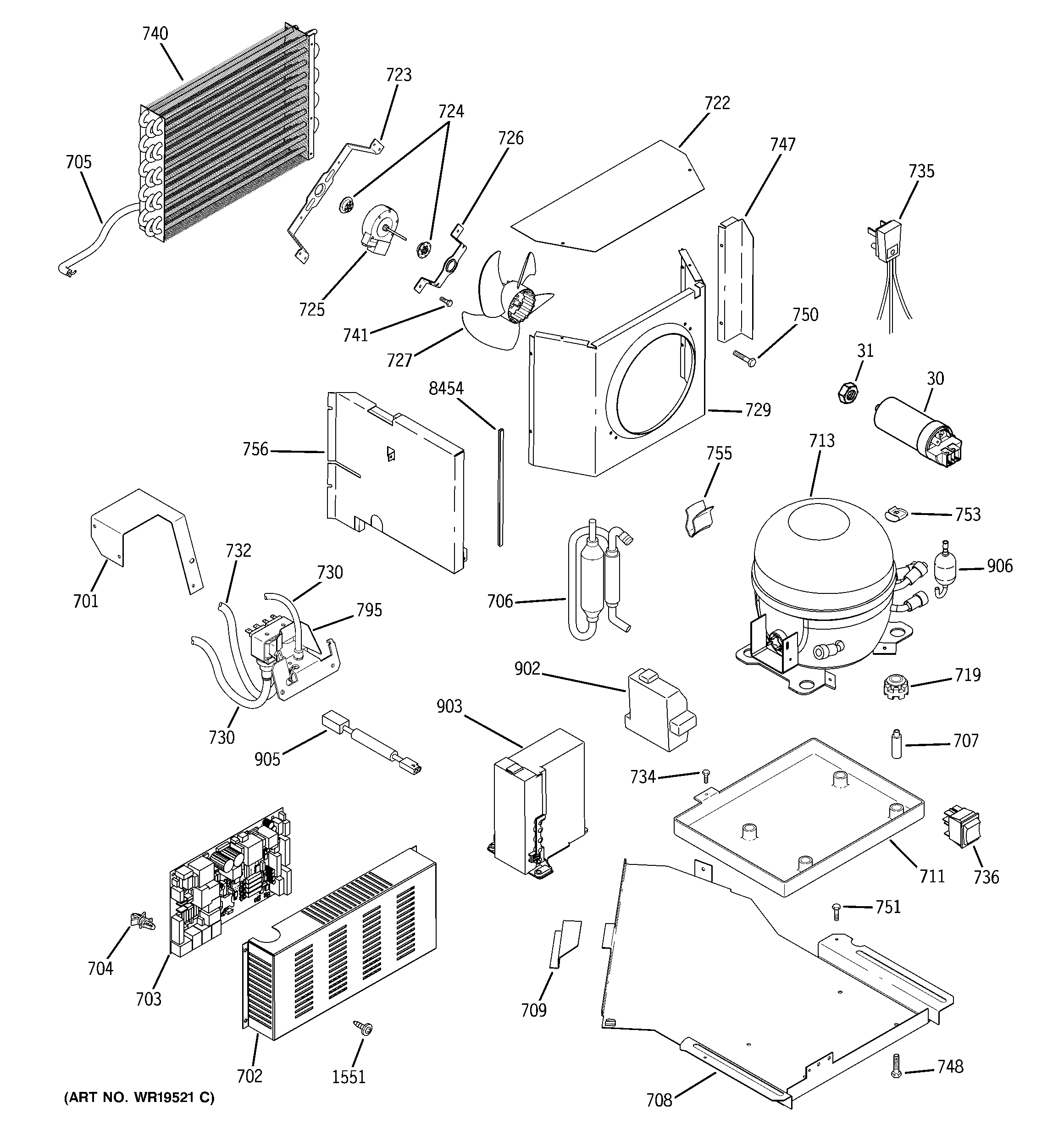

Sealed system & mother board Diagram

Inverter com

Part #WR87X10064
Replaced by #WR87X10111
?
Manufacturer substitution
This part replaces WR87X10064. Substitute parts can look different from the original.
In Stock
$596.96 |
$10.00 OFF
Phone Price: $606.96
Refrigerator Water Filter Bypass (replaces WR02X11705, WR17X11305)#301

Fresh food section Diagram

Refrigerator bypass plug

Part #WR02X10577
Replaced by #WR17X22070
?
Manufacturer substitution
This part replaces WR02X10577. Substitute parts can look different from the original.
This item is not returnable
Back Order
$7.39 |
12% OFF
Phone Price: $8.39
