Jenn-Air W241 electric range Parts
Here are the diagrams and repair parts for Jenn-Air W241 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

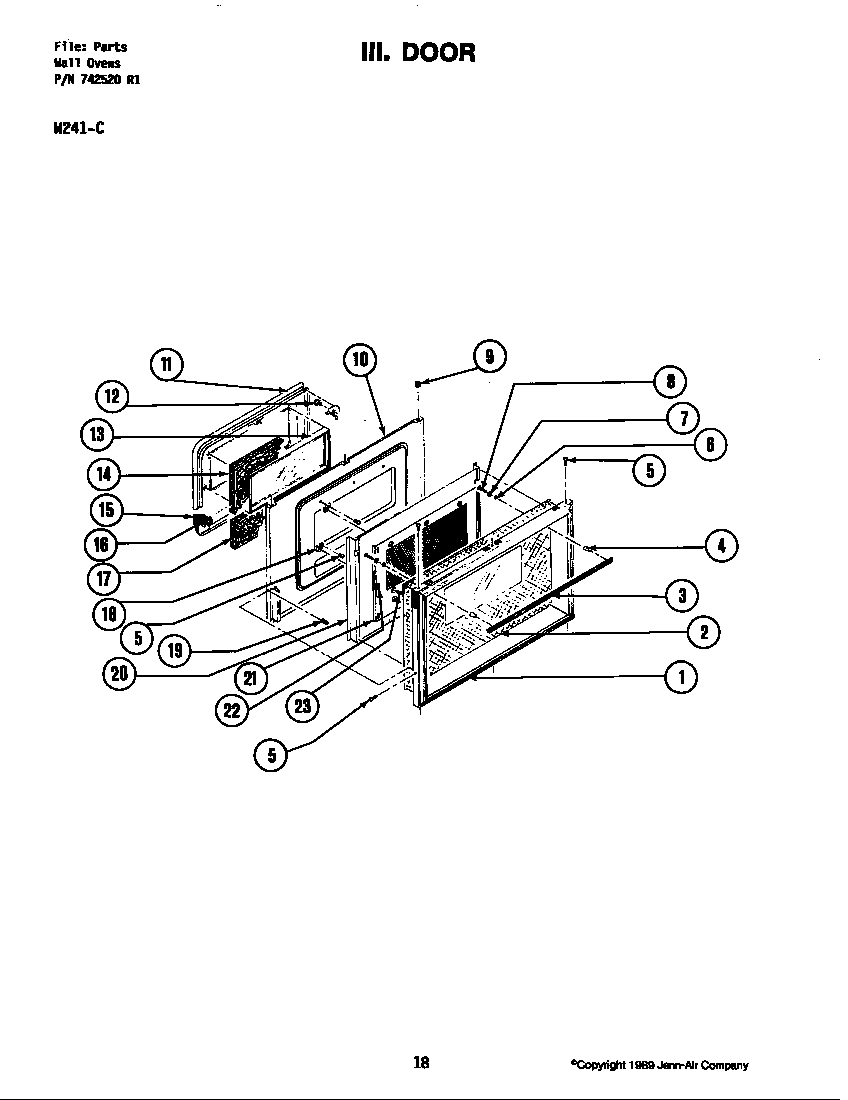

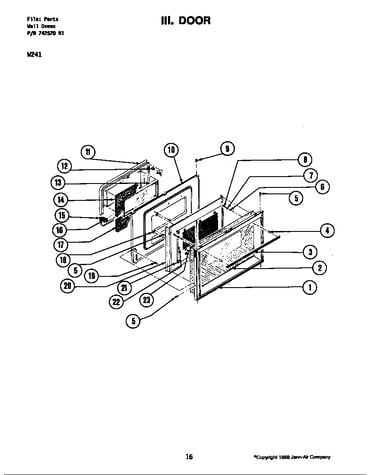

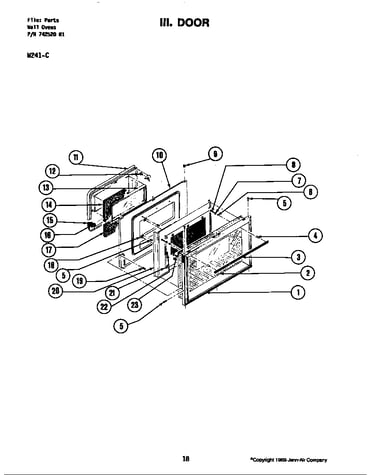

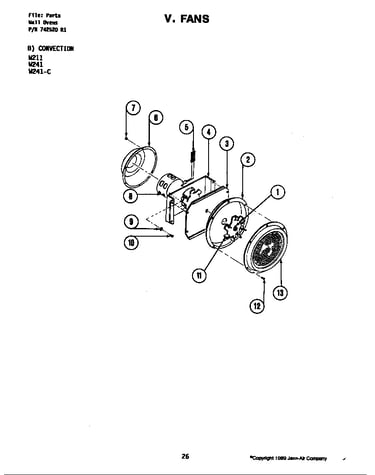

SELECT DIAGRAM
Browse Parts for W241 Ranges

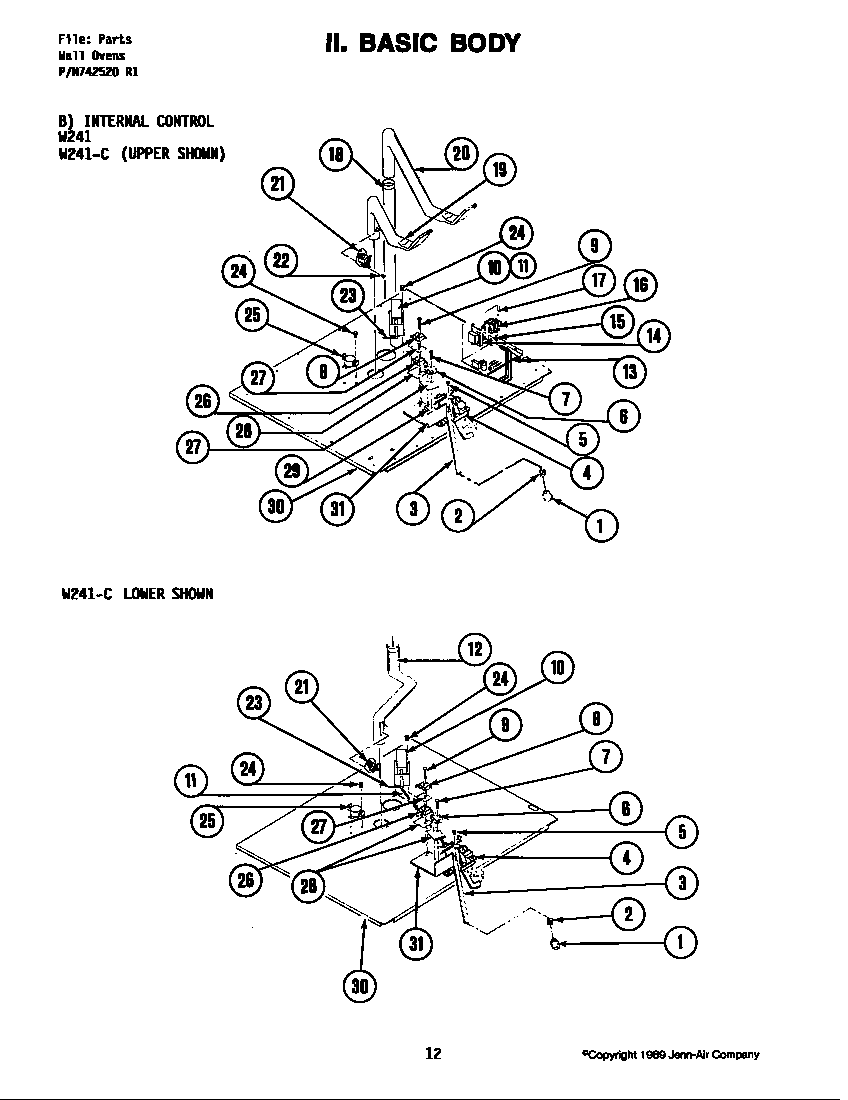

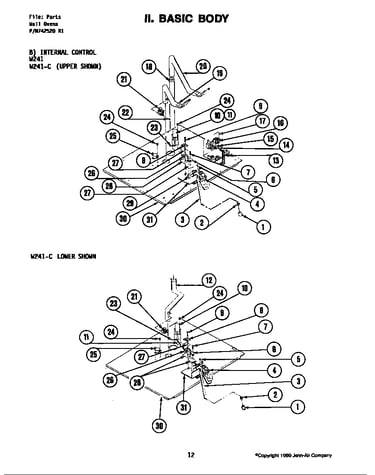

Internal control diagram
Screw
Part #700725Replaced by #WP355214
Manufacturer substitutionThis part replaces 700725. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91
Qty

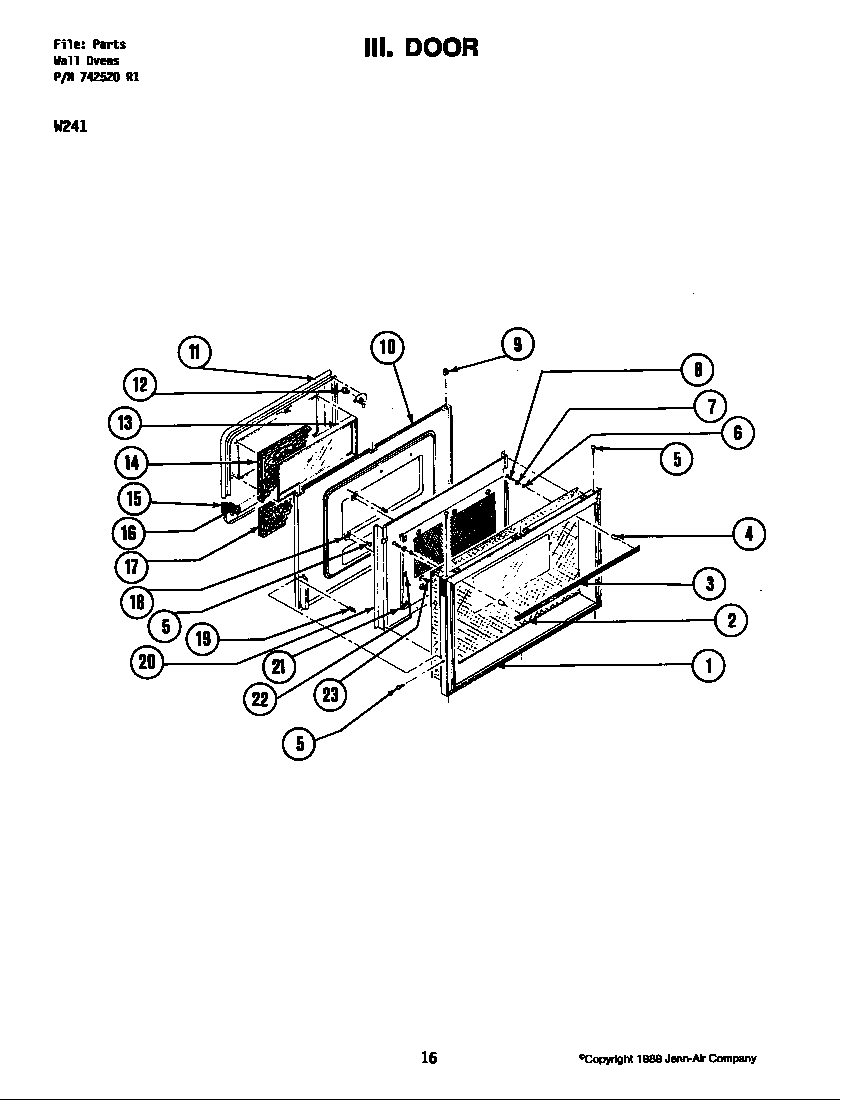

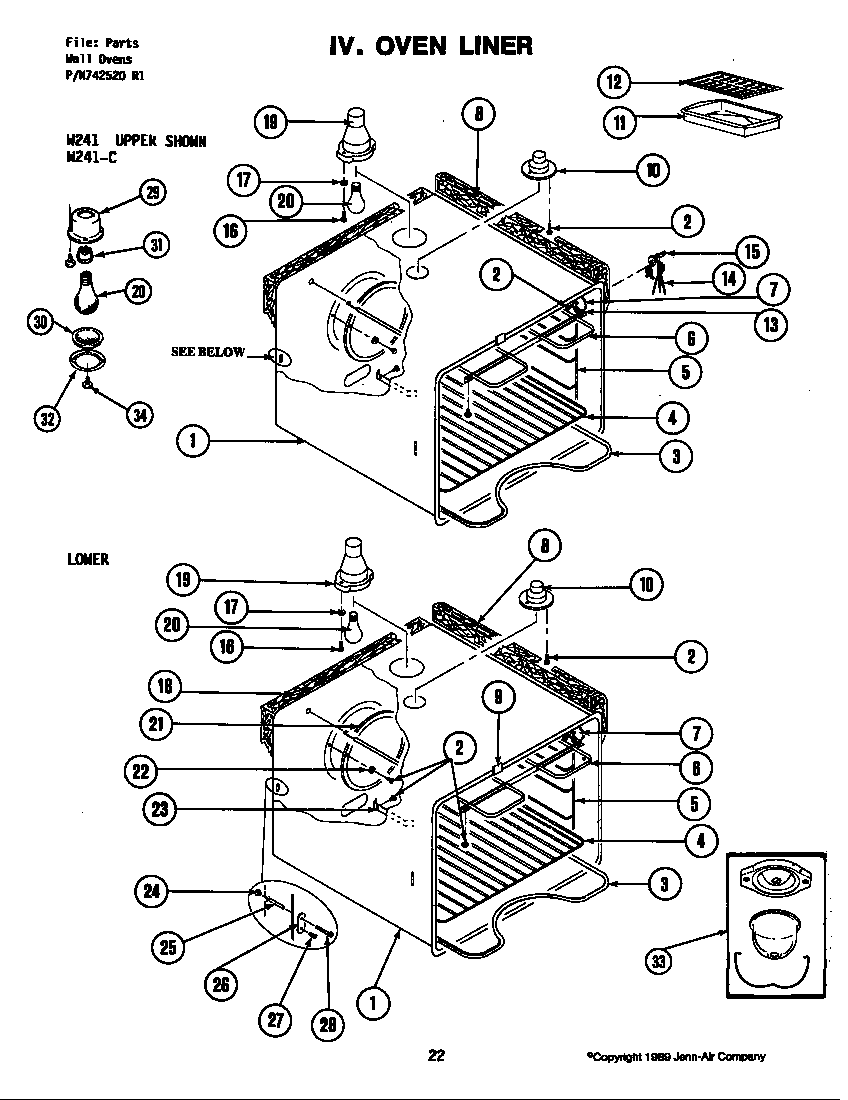

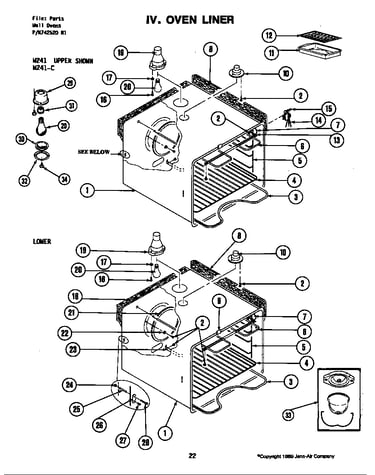

Oven diagram
Screw
Part #708764Replaced by #WP179051
Manufacturer substitutionThis part replaces 708764. Substitute parts can look different from the original.This item is not returnableIn Stock$5.3716% OFF Phone Price : $6.37QtyControl panel diagram
Select Knob
Part #703058Replaced by #12200031

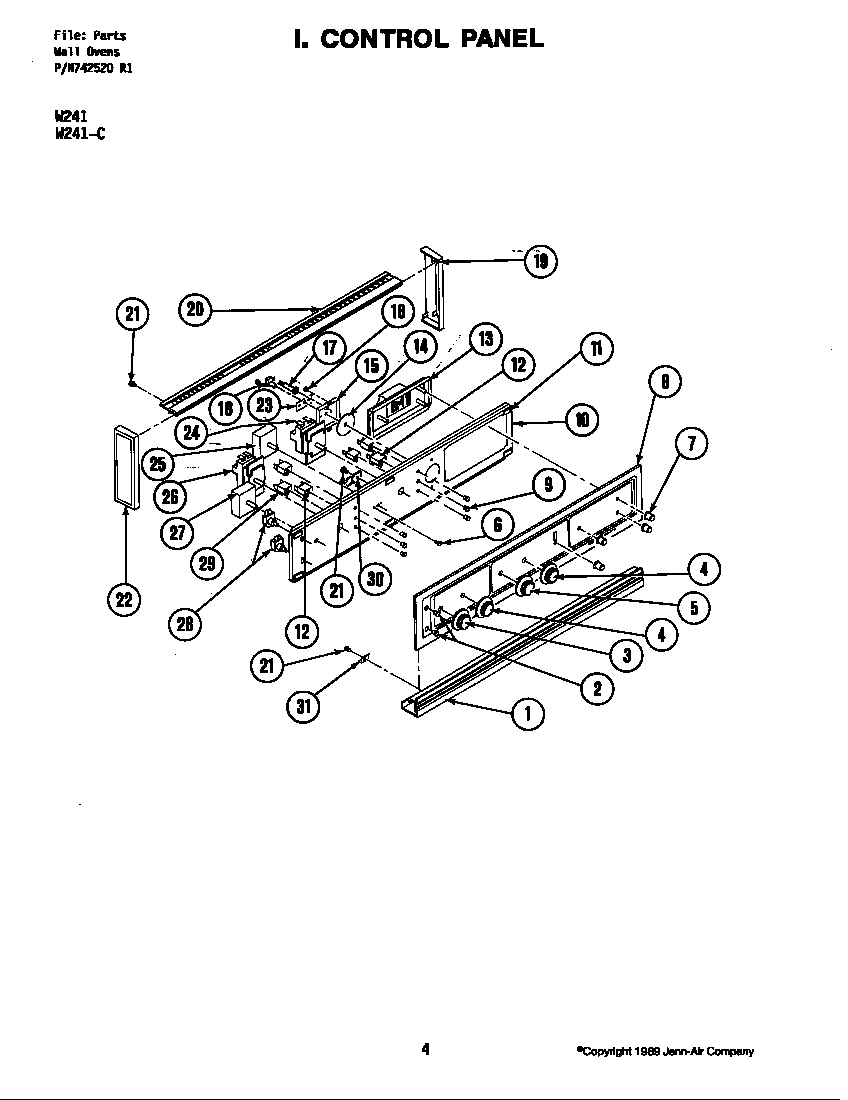

Manufacturer substitutionThis part replaces 703058. Substitute parts can look different from the original.In Stock$27.8734% OFF Was : $42.23QtyControl panel diagram
Select Knob
Part #703501Replaced by #12200031
Manufacturer substitutionThis part replaces 703501. Substitute parts can look different from the original.In Stock$27.8734% OFF Was : $42.23QtyControl panel diagram
Thermostat Knob
Part #703057Replaced by #WPY703499
Manufacturer substitutionThis part replaces 703057. Substitute parts can look different from the original.This item is not returnableIn Stock$44.9512% OFF Phone Price : $50.95QtyScrew
Part #708955Replaced by #WP12990527
Manufacturer substitutionThis part replaces 708955. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8017% OFF Phone Price : $5.80QtyOven diagram
Broiler Pan
Part #703164Replaced by #4396923
Manufacturer substitutionThis part replaces 703164. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyControl panel diagram
Thermostat Knob
Part #703499Replaced by #WPY703499

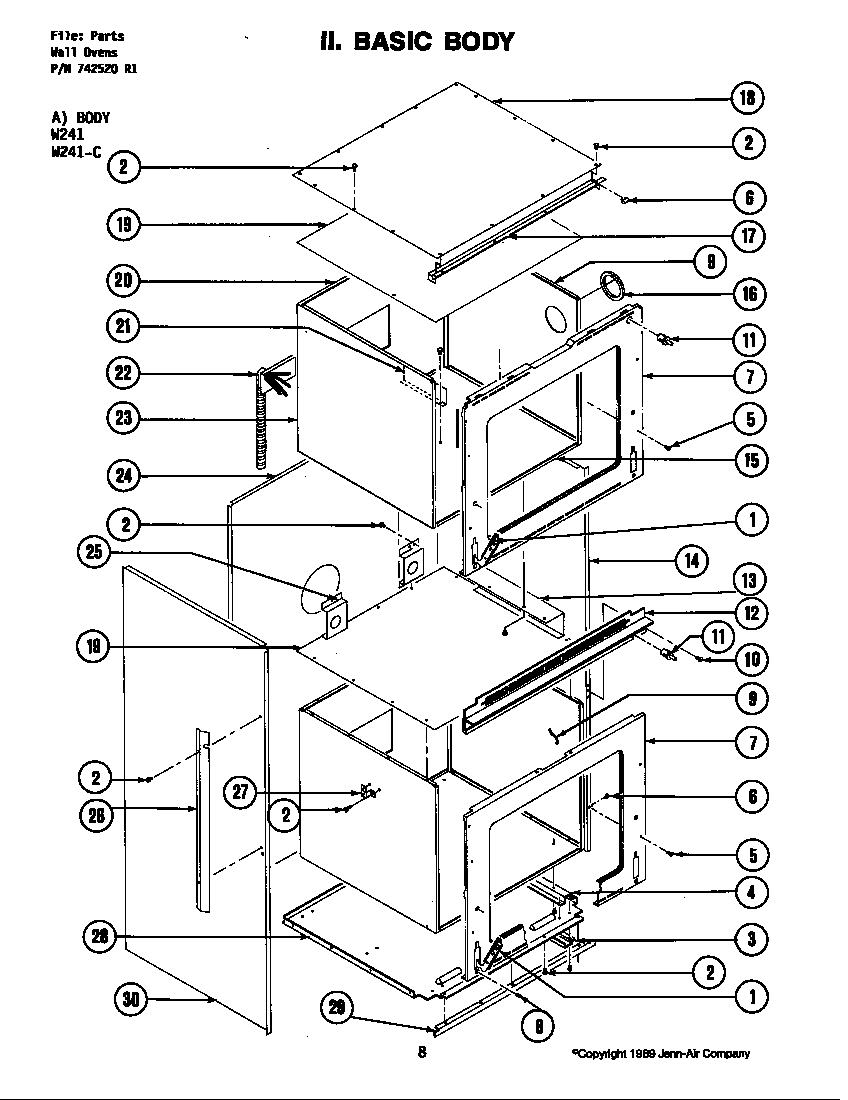

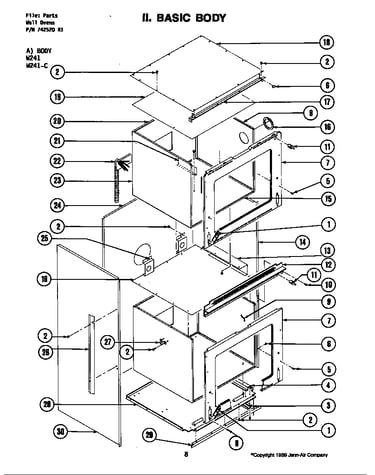

Manufacturer substitutionThis part replaces 703499. Substitute parts can look different from the original.This item is not returnableIn Stock$44.9512% OFF Phone Price : $50.95QtyBody diagram
Screw #8bx38
Part #703506Replaced by #WPY706189
Manufacturer substitutionThis part replaces 703506. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyScrew
Part #700906Replaced by #WPY706189
Manufacturer substitutionThis part replaces 700906. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21Qty
