Eureka
Upright Vacuum

Model #SC785AT Eureka sanitaire commercial upright vacuum cleaner

Here are the diagrams and repair parts for Eureka SC785AT sanitaire commercial upright vacuum cleaner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 78 parts

Plate

#25

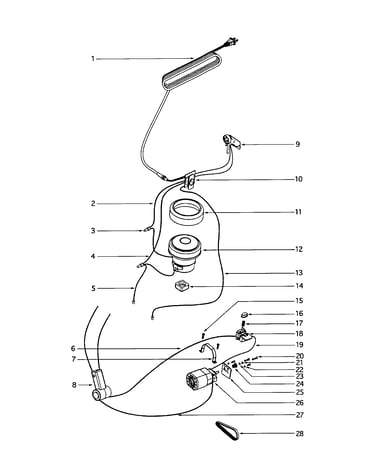

Motor Diagram

Plate

Part #61189-1

The manufacturer no longer makes this part, and there's no substitute part

Pad

#6

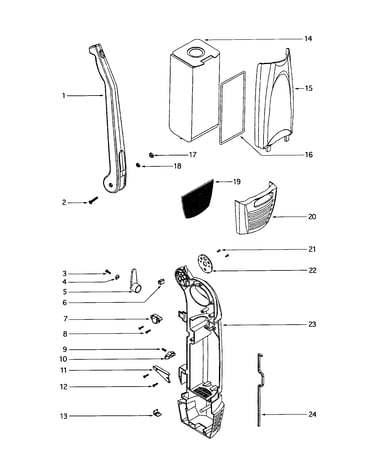

Cover Diagram

Pad

Part #61211

The manufacturer no longer makes this part, and there's no substitute part

Hook

#5

Cover Diagram

Hook

Part #61212-2

The manufacturer no longer makes this part, and there's no substitute part

Pedal

#25

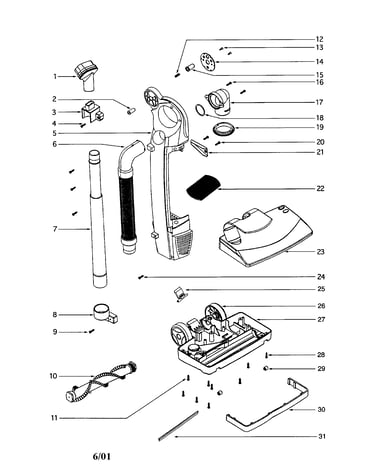

Hood Diagram

Pedal

Part #61463

The manufacturer no longer makes this part, and there's no substitute part

Wand

#7

Hood Diagram

Wand

Part #61127

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Screw

#2

Cover Diagram

Upright vacuum screw

Part #61166

The manufacturer no longer makes this part, and there's no substitute part

Seal

#18

Hood Diagram

Seal

Part #61171

The manufacturer no longer makes this part, and there's no substitute part

Spring-5pk

#12

Hood Diagram

Spring-5pk

Part #61180

The manufacturer no longer makes this part, and there's no substitute part

Wire

#13

Motor Diagram

Wire

Part #61184-2

The manufacturer no longer makes this part, and there's no substitute part

Circulating Breaker

#18

Motor Diagram

Circulating breaker

Part #61192

The manufacturer no longer makes this part, and there's no substitute part
