Gas Line Trimmer

Model #917773700 Craftsman high wheel line trimmer

Here are the diagrams and repair parts for Craftsman 917773700 high wheel line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 229 parts

    Lawn Mower Lock Nut, 3/8-in#27

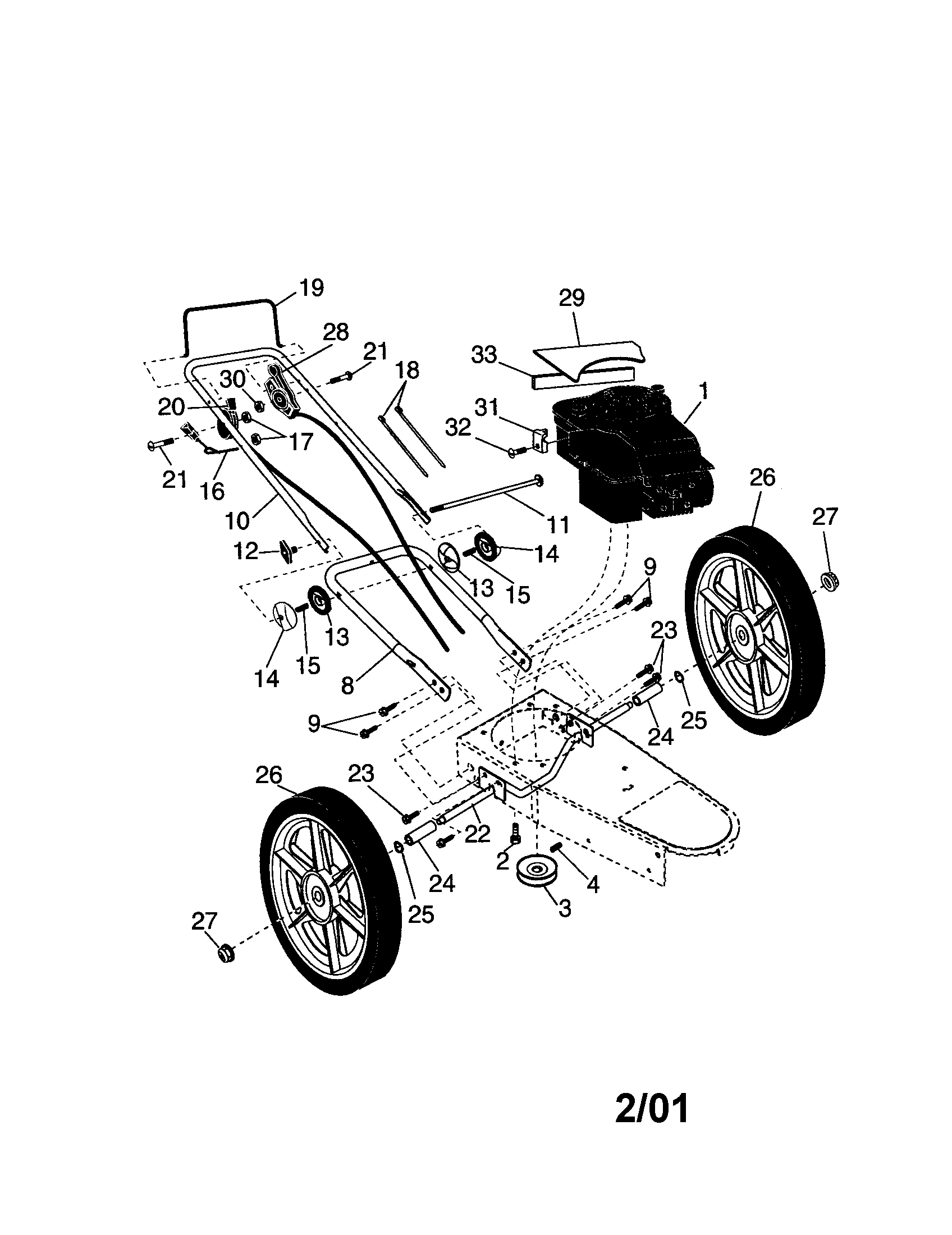

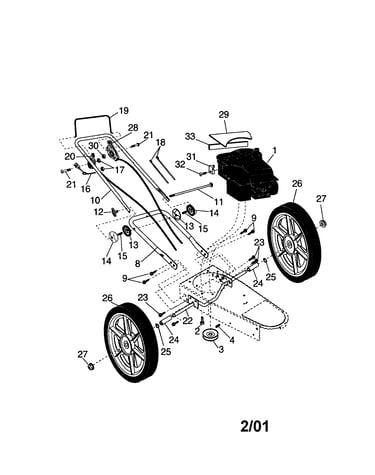

    Weed trimmer Diagram

    Lock nut

    Part #83923
    Replaced by #532409149
    ?
    Manufacturer substitution
    This part replaces 83923. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $2.89 |
    19% OFF
    Was: $3.59
    Lawn Mower Lock Nut, 3/8-in#14

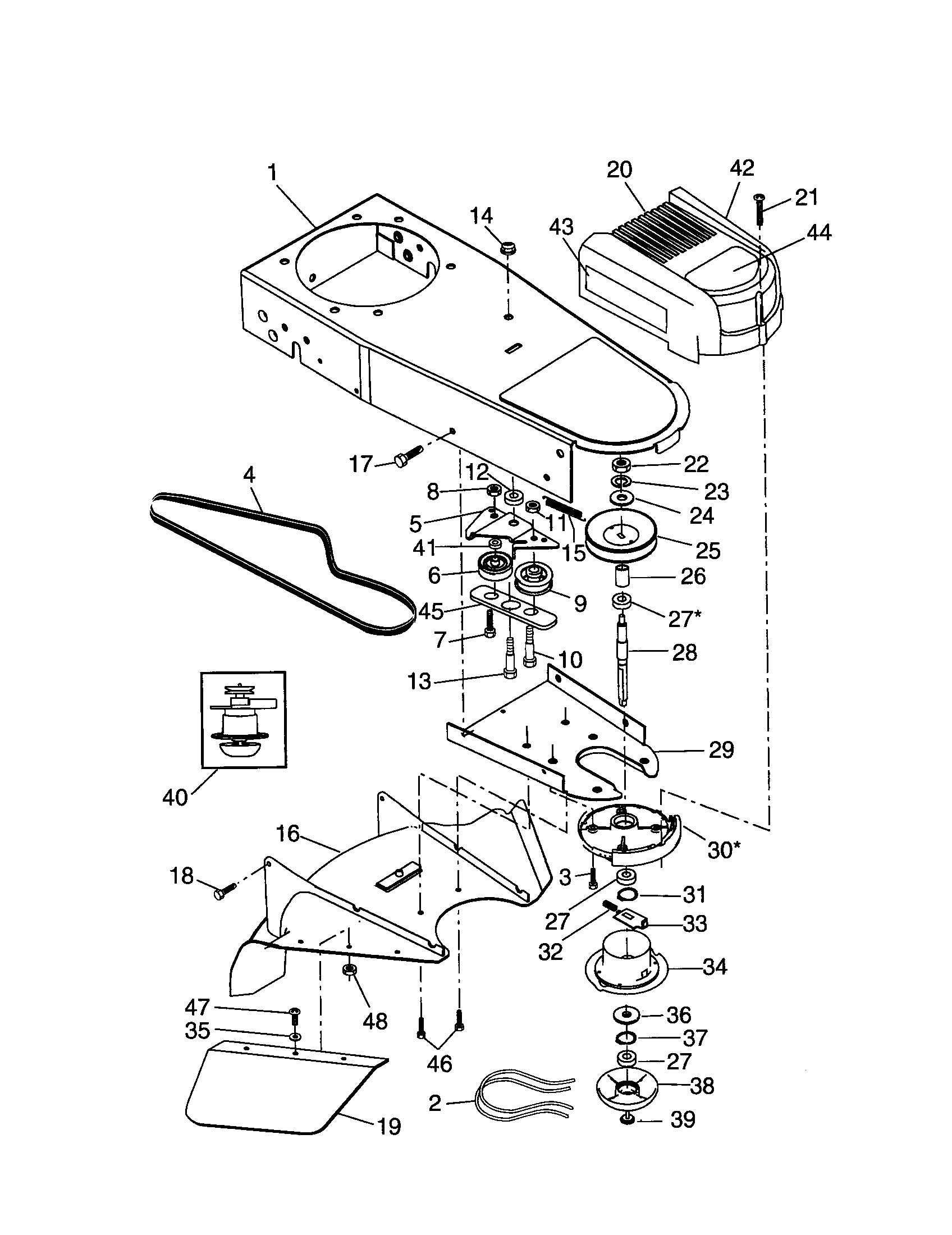

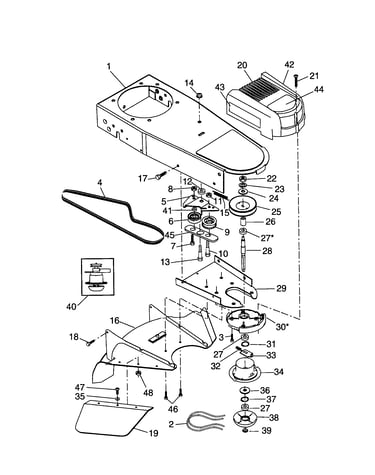

    Chassis Diagram

    Hex flange lock nut

    Part #145212
    Replaced by #532409149
    ?
    Manufacturer substitution
    This part replaces 145212. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $2.89 |
    19% OFF
    Was: $3.59
    Lawn Tractor Mandrel Bearing#27

    Chassis Diagram

    Bearing

    Part #174549
    Replaced by #110485X
    ?
    Manufacturer substitution
    This part replaces 174549. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $7.39 |
    20% OFF
    Was: $9.29
    Lawn Mower Handle Knob#12

    Weed trimmer Diagram

    Handle knob

    Part #136376
    Replaced by #532185577
    ?
    Manufacturer substitution
    This part replaces 136376. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $2.19 |
    22% OFF
    Was: $2.79
    Line Trimmer Carrier Plate#34

    Chassis Diagram

    Plate assembly

    Part #174544
    Replaced by #594935003
    ?
    Manufacturer substitution
    This part replaces 174544. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $41.79 |
    20% OFF
    Was: $52.19
    Line Trimmer Mow Ball Bolt#39

    Chassis Diagram

    Mow ball bolt

    Part #172636
    Replaced by #180334
    ?
    Manufacturer substitution
    This part replaces 172636. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.09 |
    47% OFF
    MSRP: $9.60
    Line Trimmer Drive Belt, 3/8 x 21-3/4-in#4

    Chassis Diagram

    High-wheel trimmer driveshaft belt

    Part #169790
    Replaced by #532185476
    ?
    Manufacturer substitution
    This part replaces 169790. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.99 |
    20% OFF
    Was: $27.49
    Line Trimmer Cutting Line, 0.155-in, 24-pack#2

    Chassis Diagram

    Line

    Part #169802
    Replaced by #85905
    ?
    Manufacturer substitution
    This part replaces 169802. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    Back Order
    $10.19 |
    32% OFF
    MSRP: $15.00
    Line Trimmer Spindle Assembly#40

    Chassis Diagram

    Mow ball assembly

    Part #172342
    Replaced by #596878501
    ?
    Manufacturer substitution
    This part replaces 172342. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $116.99 |
    16% OFF
    MSRP: $140.00
    Line Trimmer Spindle Assembly#25

    Chassis Diagram

    Line trimmer drive pulley

    Part #169792
    Replaced by #596878501
    ?
    Manufacturer substitution
    This part replaces 169792. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $116.99 |
    16% OFF
    MSRP: $140.00
