Maytag
Electric Range

Model #MERD750BAS Maytag range

Here are the repair parts and diagrams for your Maytag MERD750BAS range.

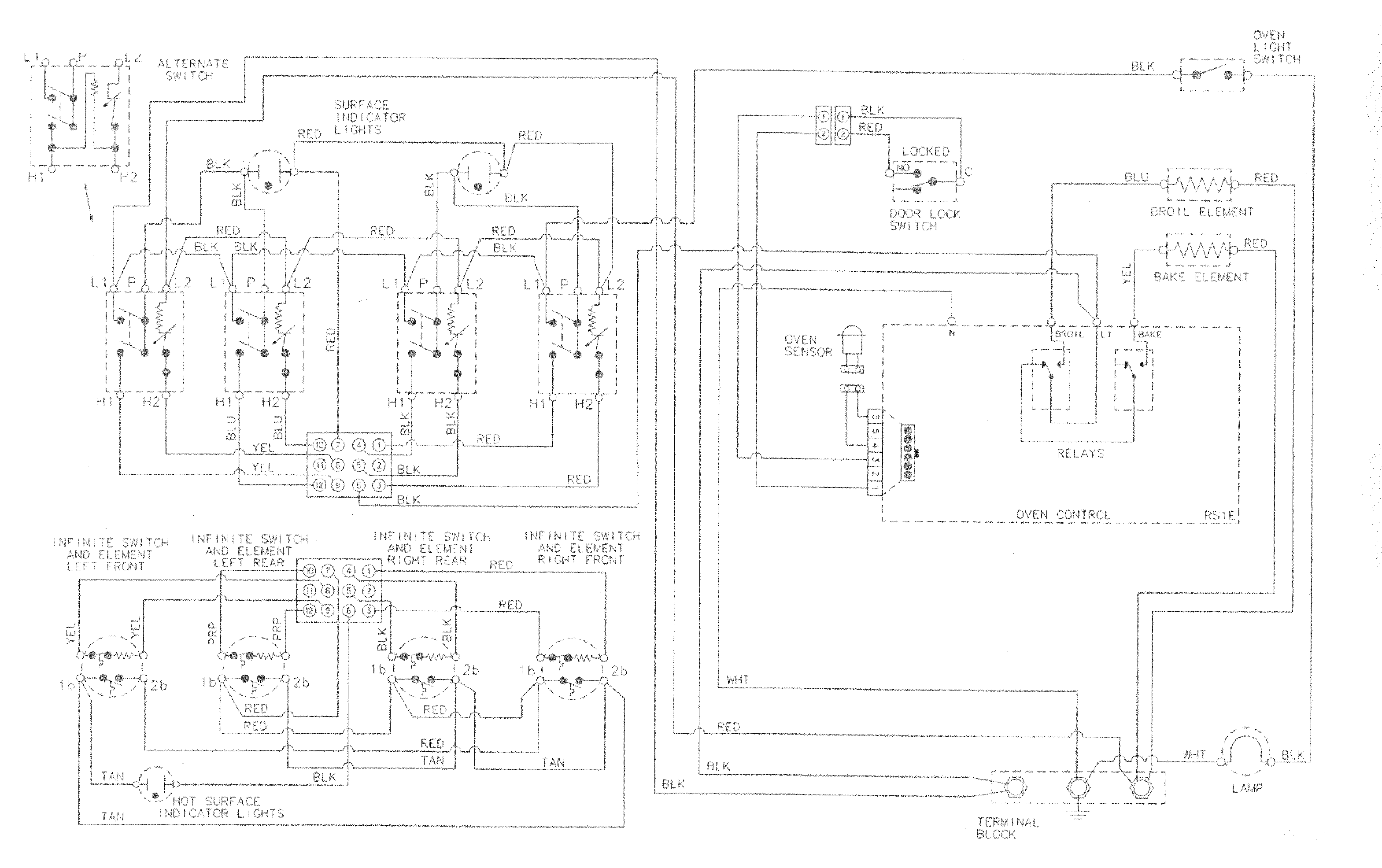

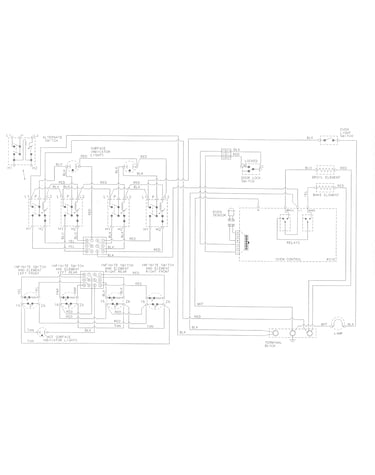

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 119 parts

Range Screw

#2A

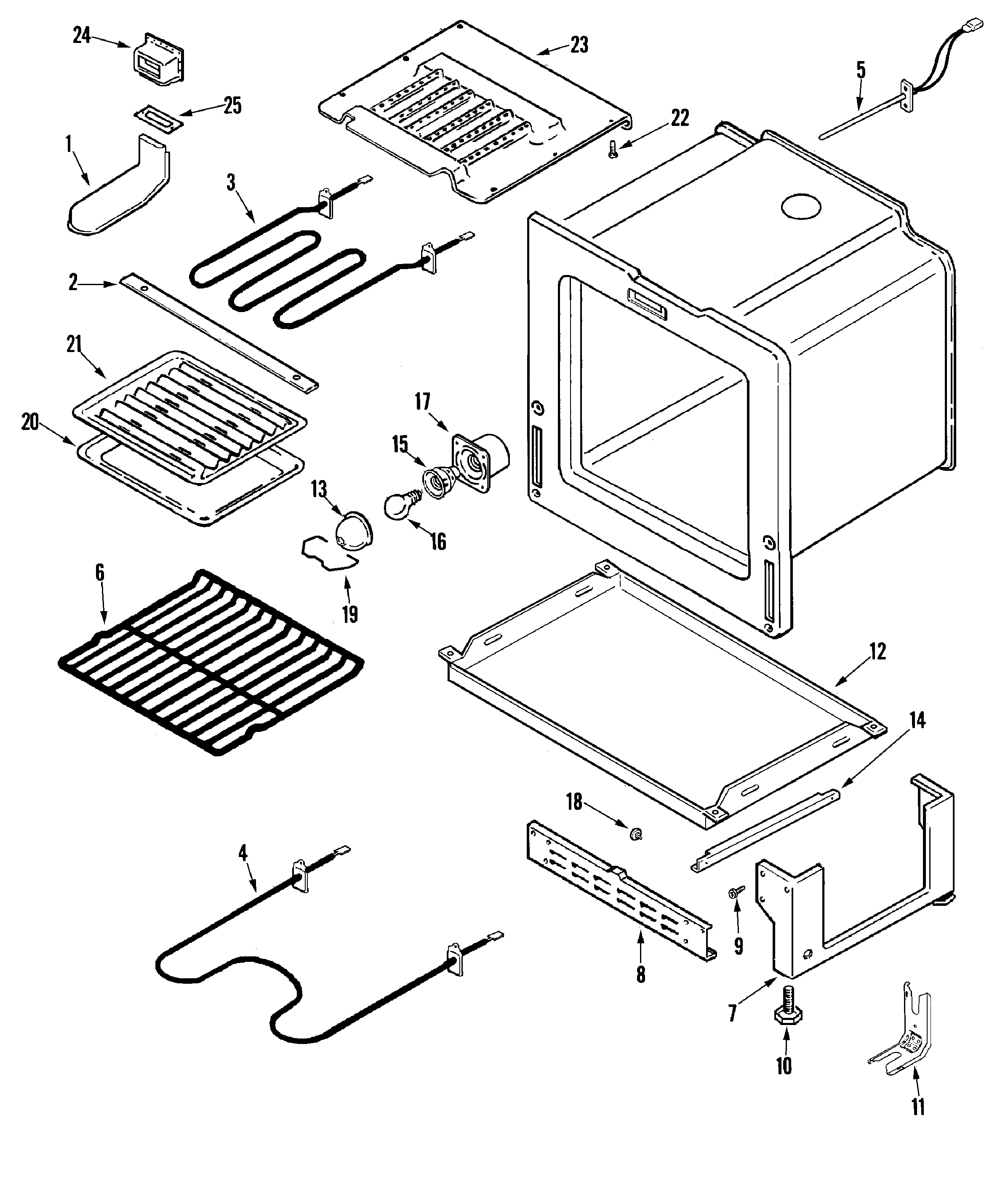

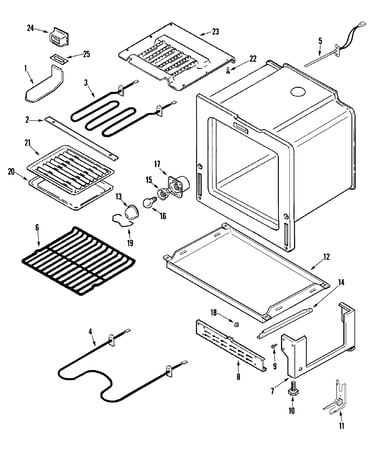

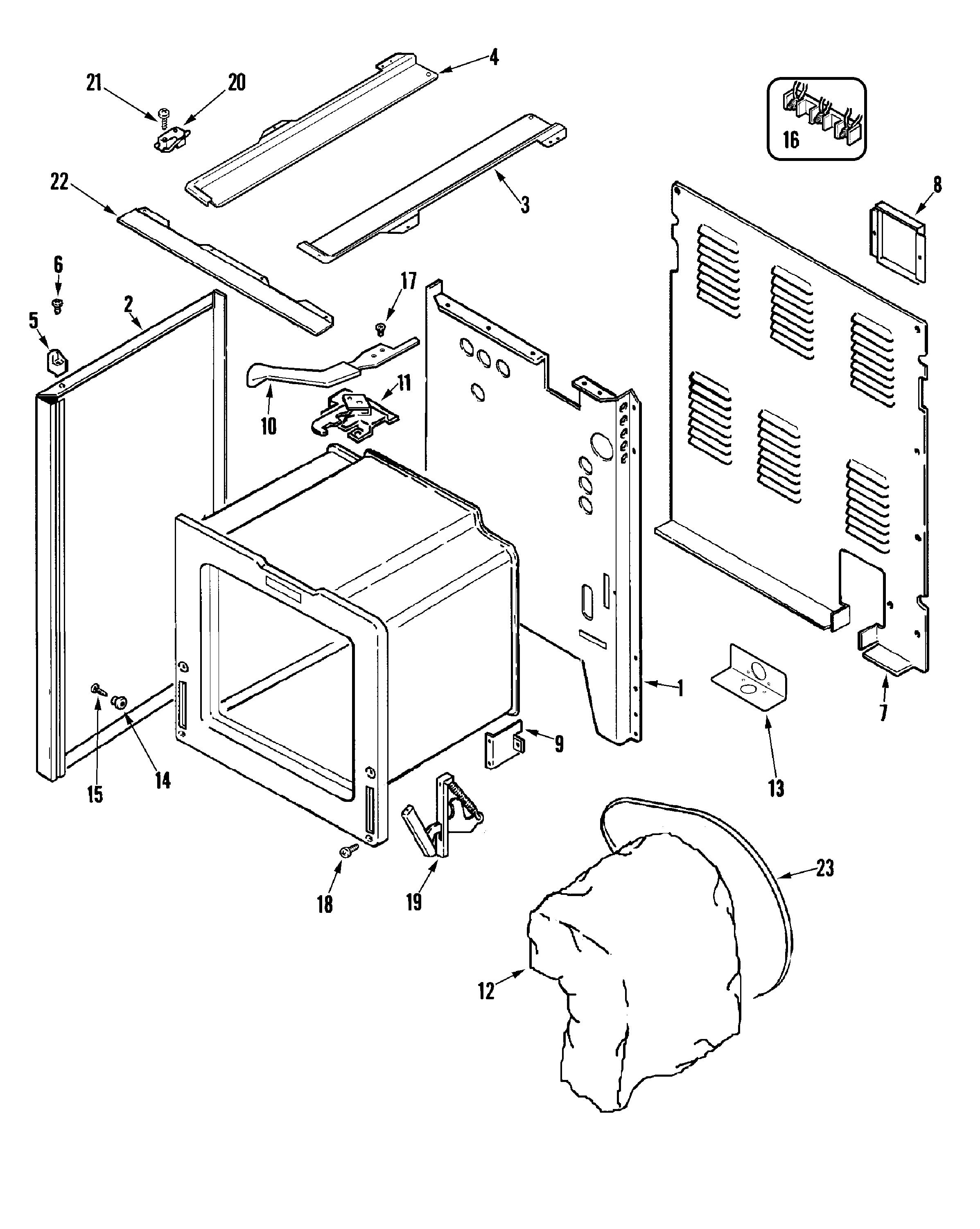

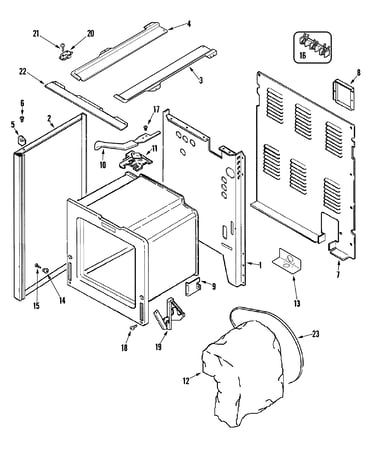

Oven/base Diagram

Range screw

Part #7101P345-60
$12.49

In Stock

Range Screw, #8AB x 3/8-in (Black)

#22

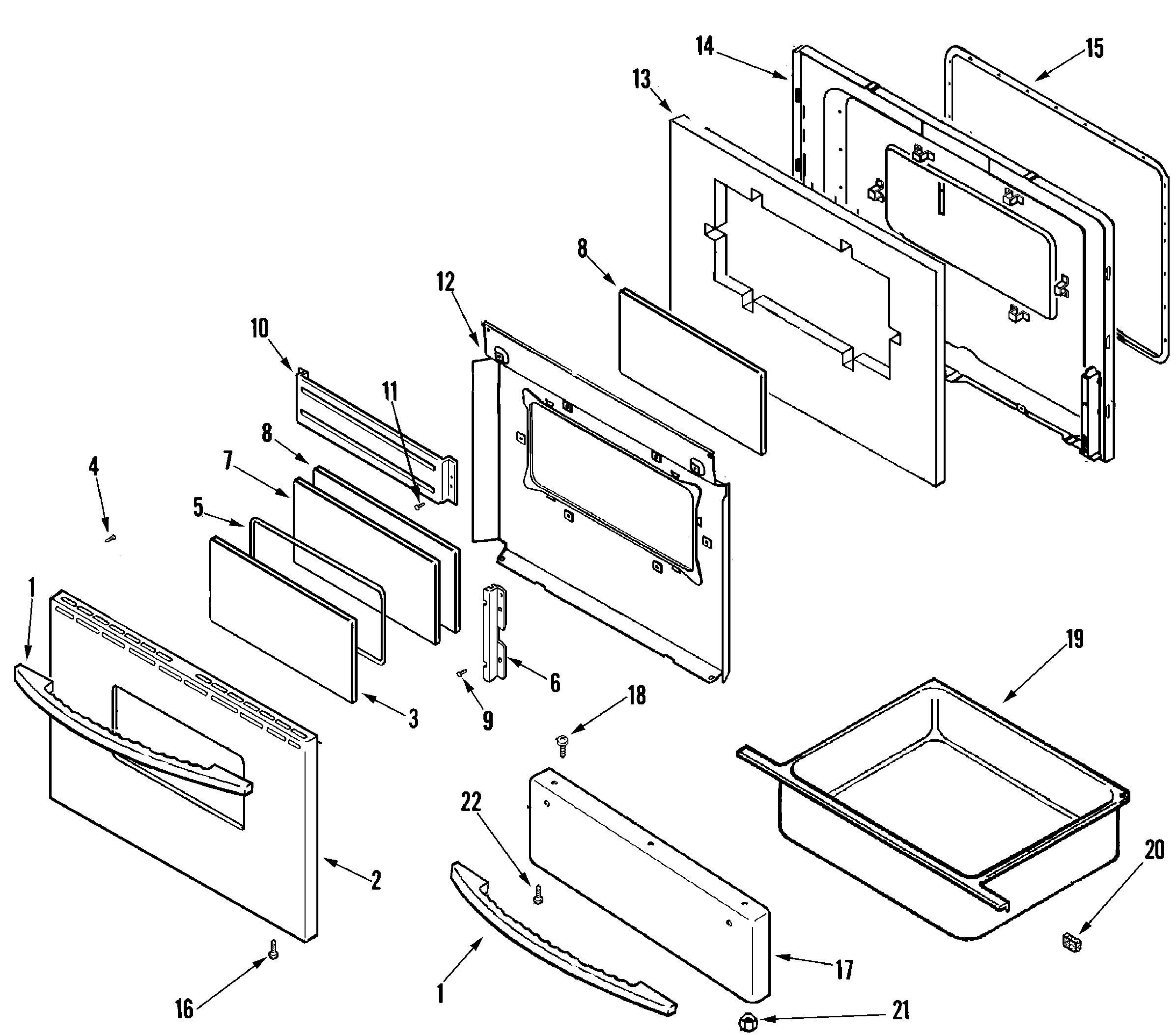

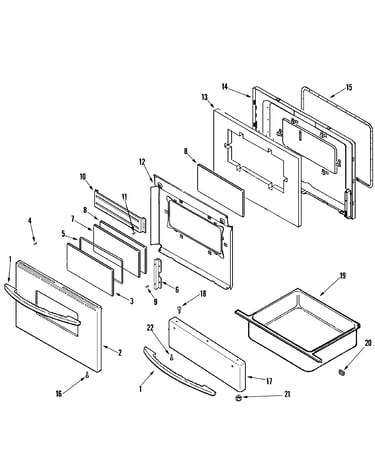

Door/drawer (stl) Diagram

$12.49

In Stock

Range Screw

#3A

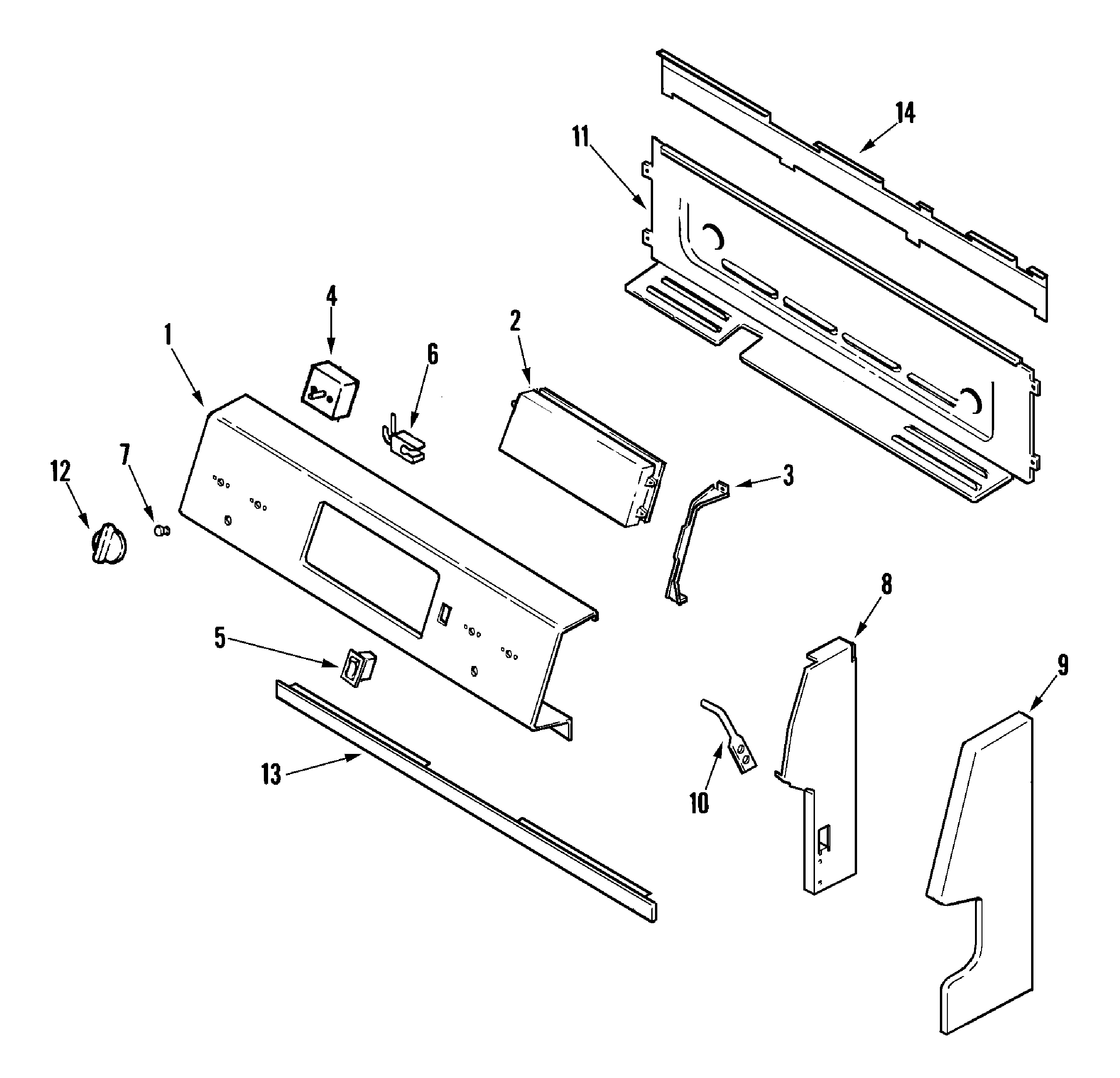

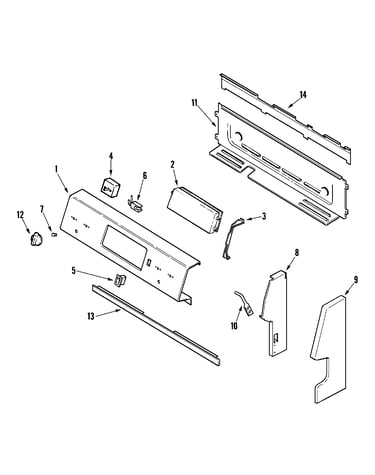

Control panel Diagram

Range screw

Part #WPY706189
?
Manufacturer substitution
This part replaces 7101P347-60. Substitute parts can look different from the original.
This part replaces 7101P347-60
This item is not returnable
$3.21

In Stock

Range Radiant Surface Element

#2

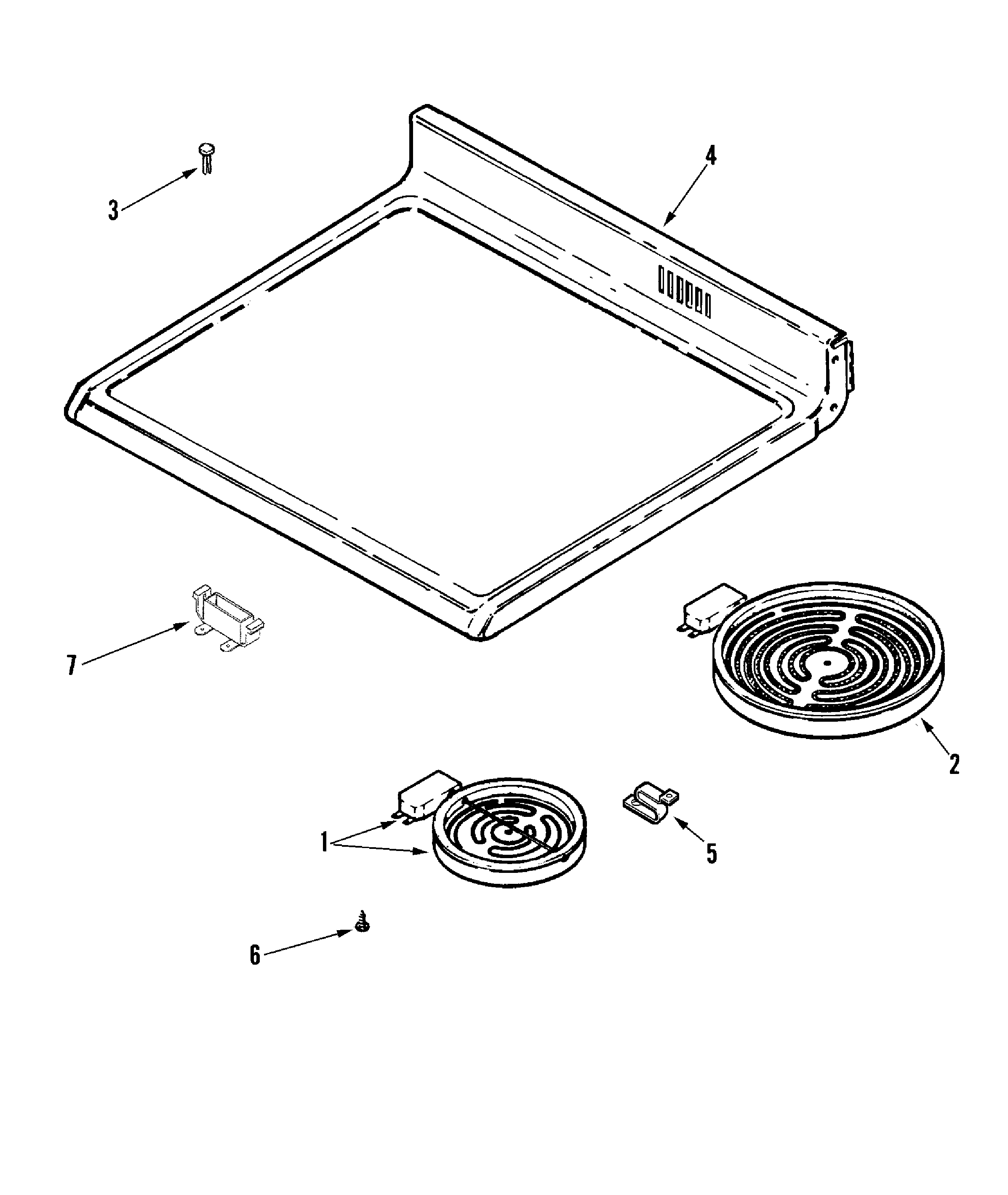

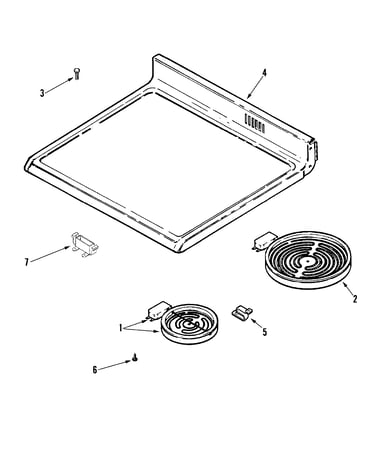

Top assembly Diagram

Range radiant surface element

Part #W10823707
?
Manufacturer substitution
This part replaces 74005477. Substitute parts can look different from the original.
This part replaces 74005477
$119.87
8% OFFMSRP:$130.00

In Stock

Screw

#4B

Control panel Diagram

Screw

Part #WP7101P309-60
?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This part replaces 7101P309-60
This item is not returnable
$2.49
24% OFFMSRP:$3.29

In Stock

Hex Lock Nut, 8-pack

#18A

Oven/base Diagram

Hex lock nut, 8-pack

Part #STD541408
?
Manufacturer substitution
This part replaces 7103P082-60. Substitute parts can look different from the original.
This part replaces 7103P082-60
This item is not returnable
$6.25

Back Order

Range Oven Rack

#6

Oven/base Diagram

Range oven rack

Part #WPW10282492
?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
This part replaces 74001757
$45.87

In Stock

Range Oven Temperature Sensor

#5

Oven/base Diagram

Range oven temperature sensor

Part #12001656
?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
This part replaces 74004943
$38.01

Back Order

Range Radiant Surface Element

#1

Top assembly Diagram

Range radiant surface element

Part #W10823704
?
Manufacturer substitution
This part replaces 74005476. Substitute parts can look different from the original.
This part replaces 74005476
$114.26
24% OFFMSRP:$150.00

In Stock

Appliance Screw

#2A

Control panel Diagram

Appliance screw

Part #WP59002061
?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This part replaces 7101P077-60
This item is not returnable
$3.33

In Stock

Symptoms common to all ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
Main causes: broken broiler element, weak or broken boil burner igniter, control system failure, faulty temperature sensor, wiring failure
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter

Repair guides common to all ranges

These step-by-step repair guides will help you safely fix what’s broken on your range.
