Model # MHW3500FW0 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MHW3500FW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

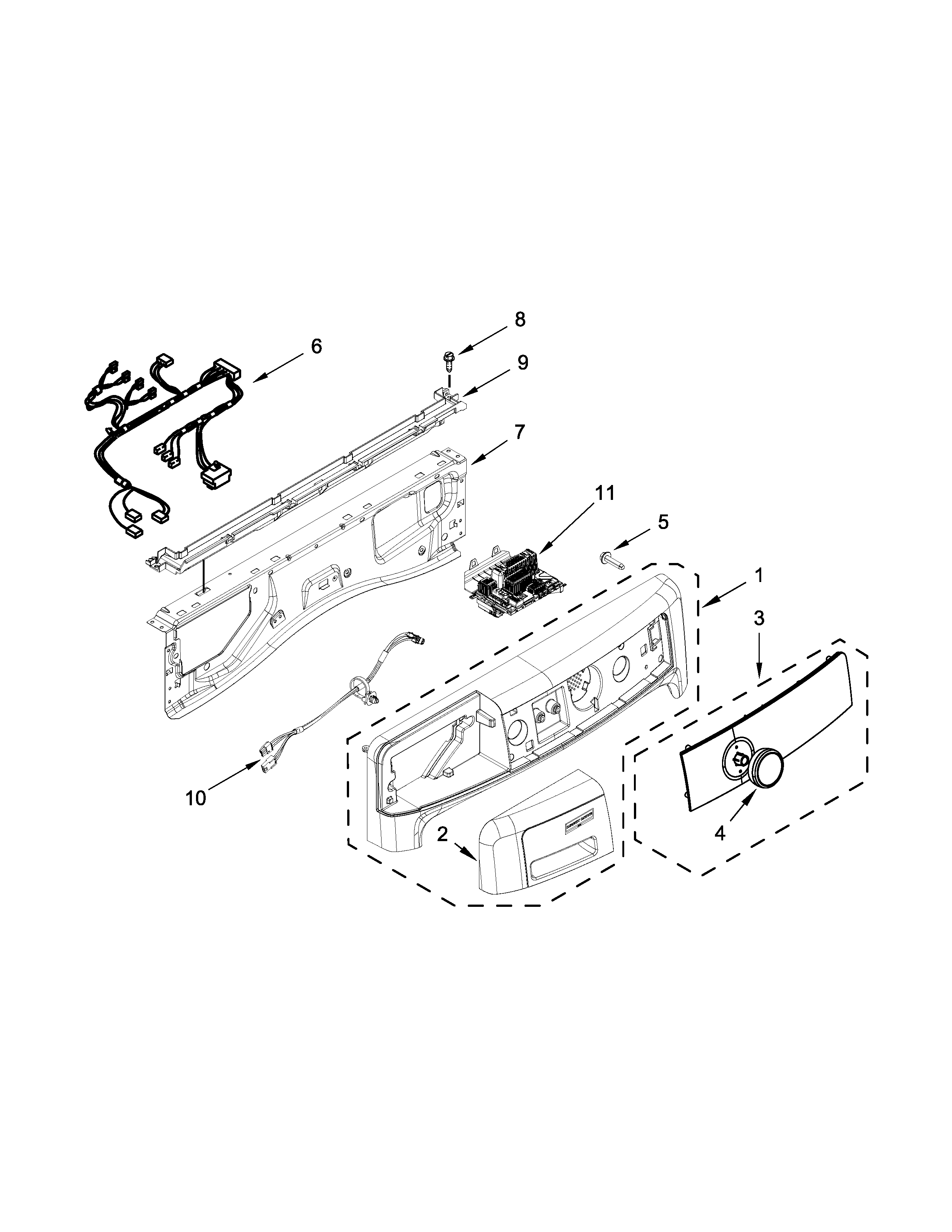

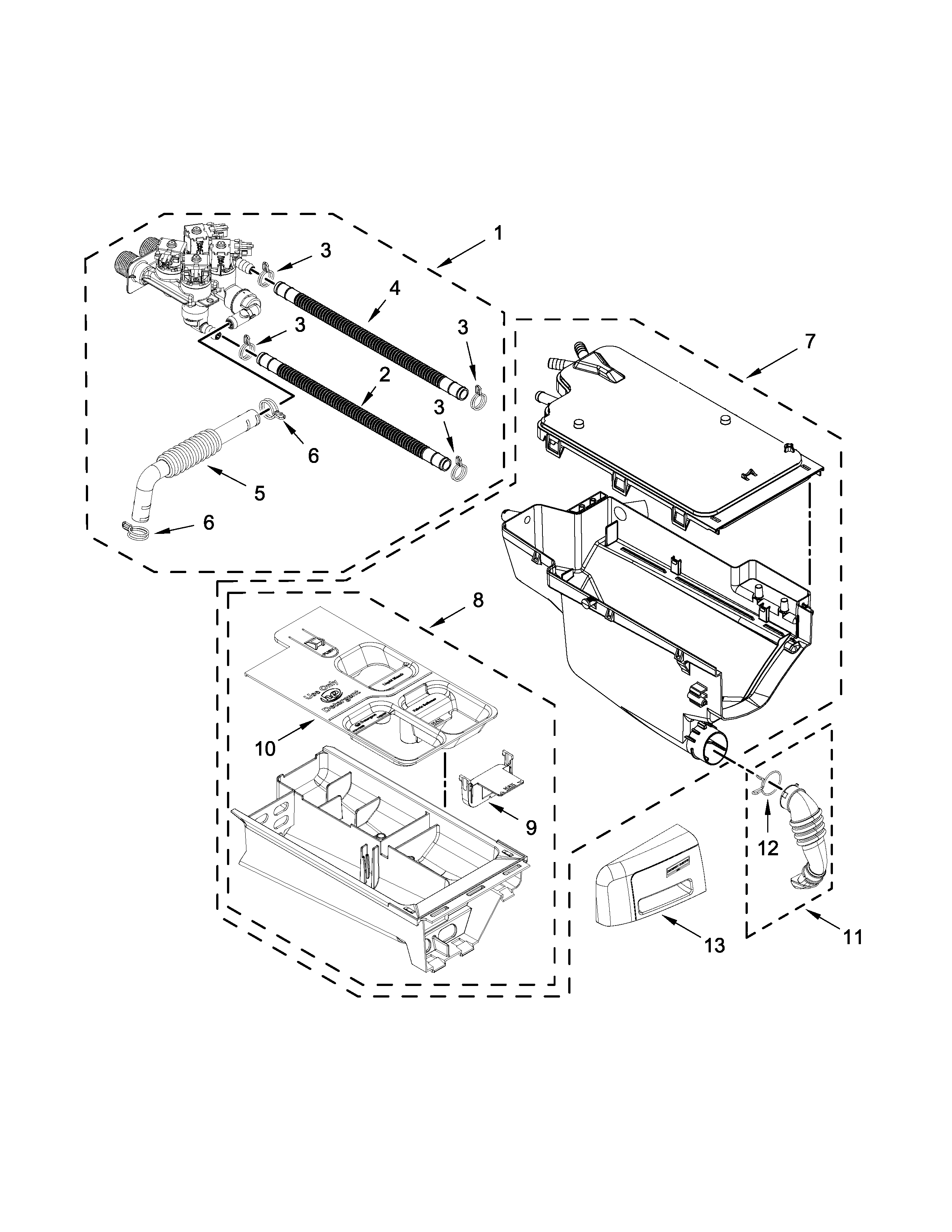

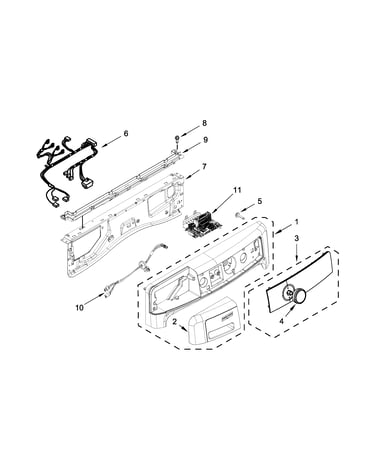

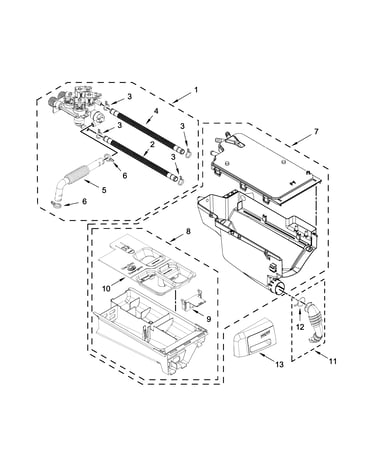

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$12.27 |
44% OFF MSRP : $22.00
In Stock
Washer Drain Pump W10605427
#26

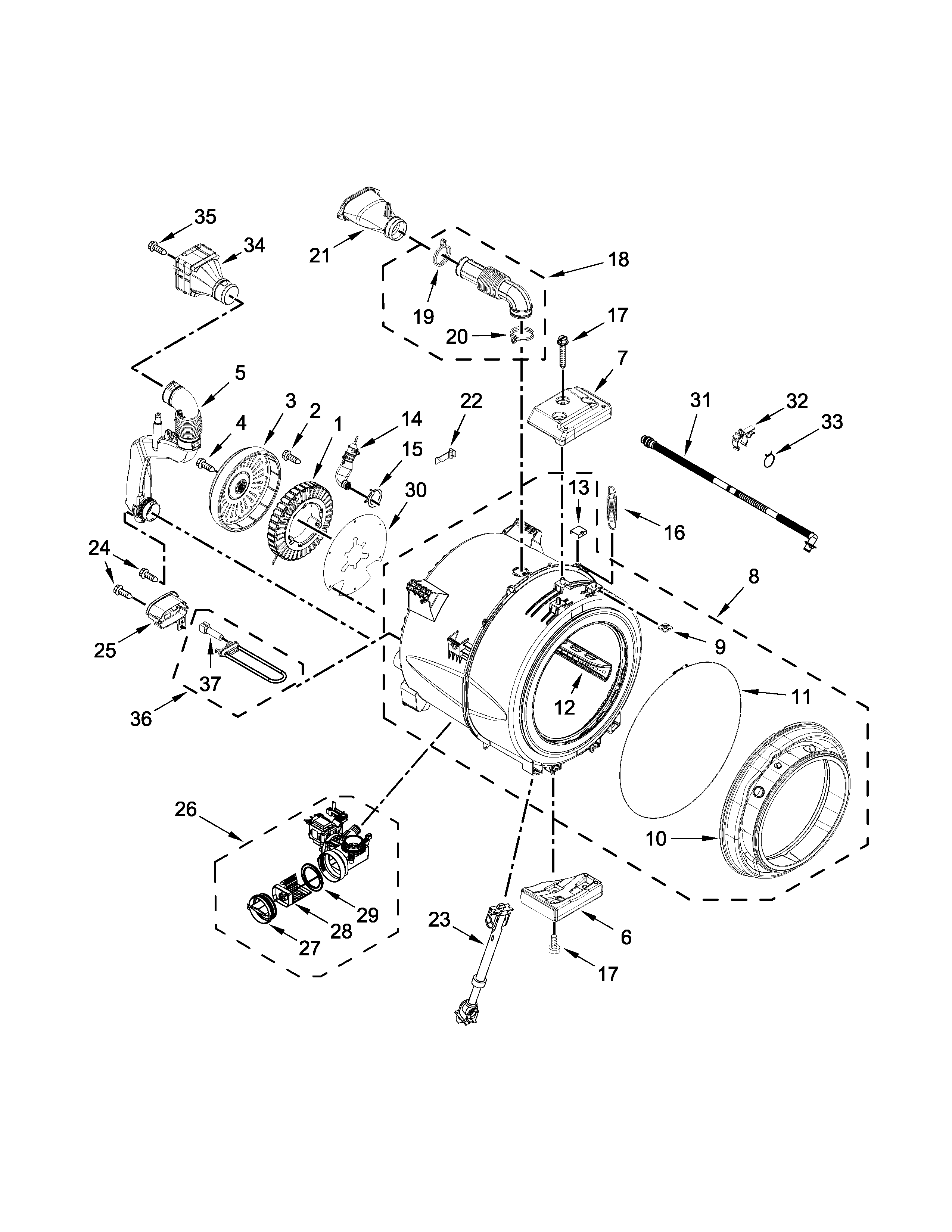

Tub and basket parts diagram

Washer drain pump

Part #W10605427

Replaced by #WPW10605427

?
Manufacturer substitution
This part replaces W10605427. Substitute parts can look different from the original.
BEST SELLER
$41.60 |
34% OFF MSRP : $63.00
In Stock
Washer Water-level Pressure Switch W10448876
#20

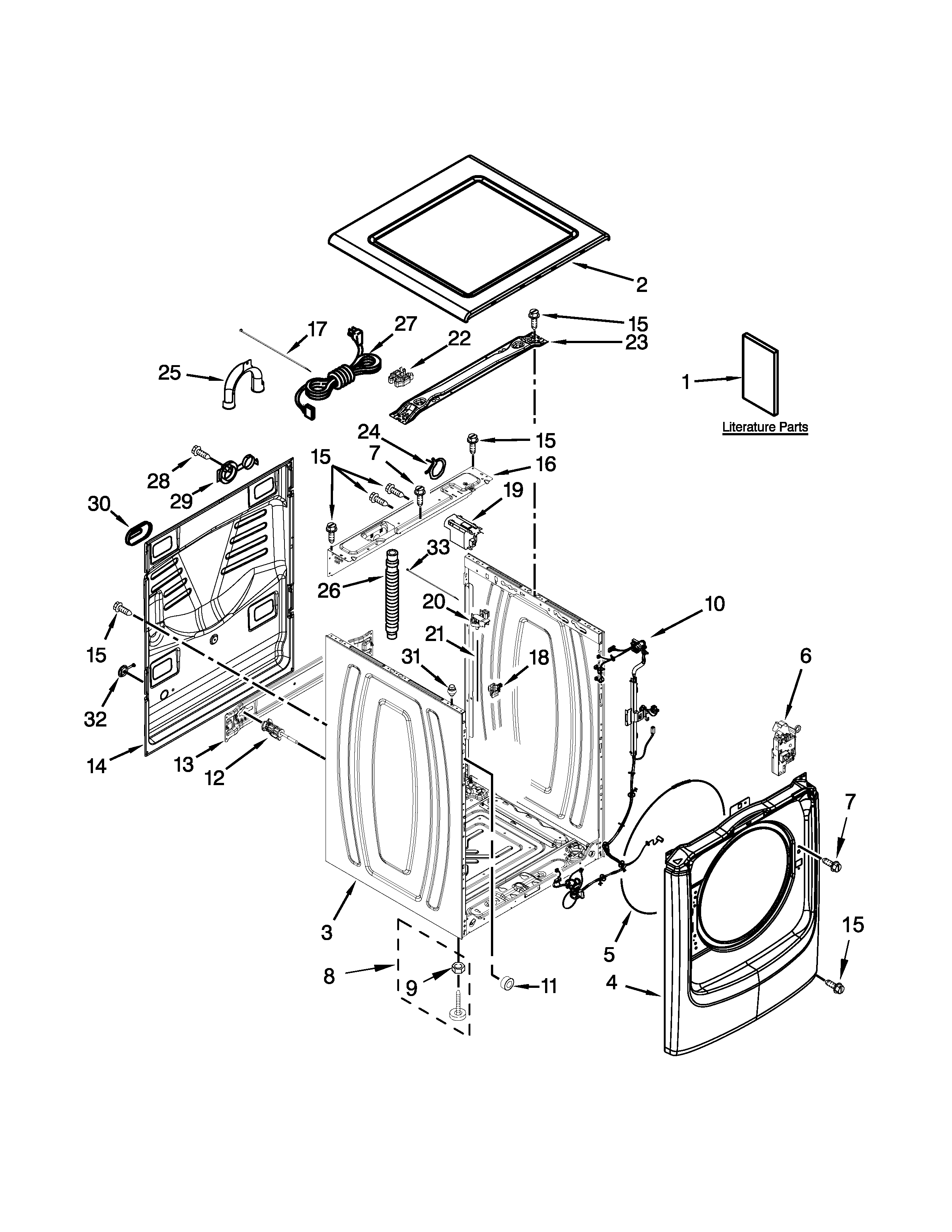

Top and cabinet parts diagram

Washer water-level pressure switch

Part #W10448876

Replaced by #WPW10448876

?
Manufacturer substitution
This part replaces W10448876. Substitute parts can look different from the original.
BEST SELLER
$39.23 |
34% OFF MSRP : $59.00
In Stock
Washer Door Lock W10443885
#6

Top and cabinet parts diagram

Washer door lock

Part #W10443885

Replaced by #WPW10443885

?
Manufacturer substitution
This part replaces W10443885. Substitute parts can look different from the original.
BEST SELLER
$65.53 |
33% OFF MSRP : $98.00
In Stock
Washer Door Hinge W10208415
#1

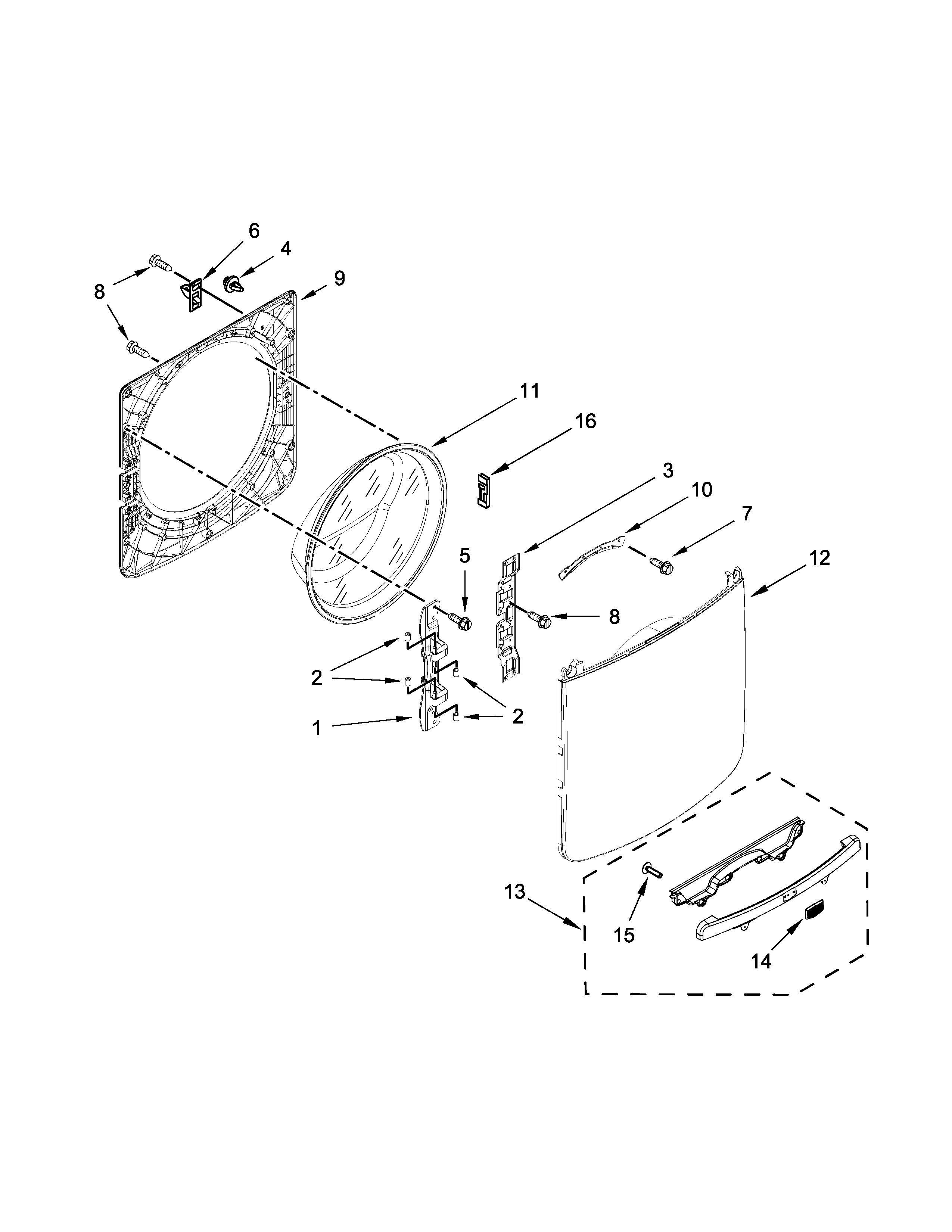

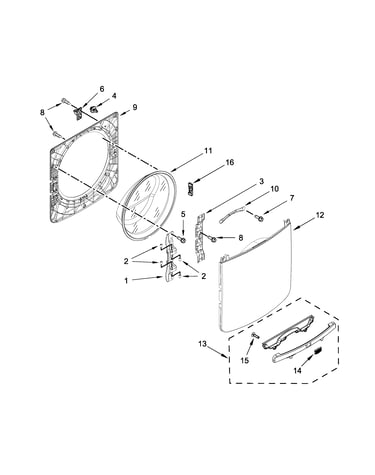

Door parts diagram

Washer door hinge

Part #W10208415

Replaced by #WPW10208415

?
Manufacturer substitution
This part replaces W10208415. Substitute parts can look different from the original.
BEST SELLER
$82.32 |
25% OFF MSRP : $110.00
In Stock
Washer Water Inlet Hose, 2-pack 8212487
#NI

Optional parts (not included) diagram

Washer water inlet hose, 2-pack

Part #8212487

Replaced by #8212487RP

?
Manufacturer substitution
This part replaces 8212487. Substitute parts can look different from the original.
BEST SELLER
$23.18 |
51% OFF MSRP : $47.00
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Hose Clamp 356138
#24

Top and cabinet parts diagram

Hose clamp

Part #356138

The manufacturer no longer makes this part, and there's no substitute part

Washer Door Boot Spring Clamp W10237503
#5

Top and cabinet parts diagram

Washer door boot spring clamp

Part #W10237503

Replaced by #W11266654

?
Manufacturer substitution
This part replaces W10237503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$20.79 |
42% OFF MSRP : $36.00
In Stock
Washer Water Temperature Sensor W10467289
#37

Tub and basket parts diagram

Washer water temperature sensor

Part #W10467289

Replaced by #WPW10467289

?
Manufacturer substitution
This part replaces W10467289. Substitute parts can look different from the original.
BEST SELLER
$28.62 |
28% OFF MSRP : $40.00
In Stock
