KitchenAid KEBS277SBL1 electric built-in oven Parts
Here are the diagrams and repair parts for KitchenAid KEBS277SBL1 electric built-in oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

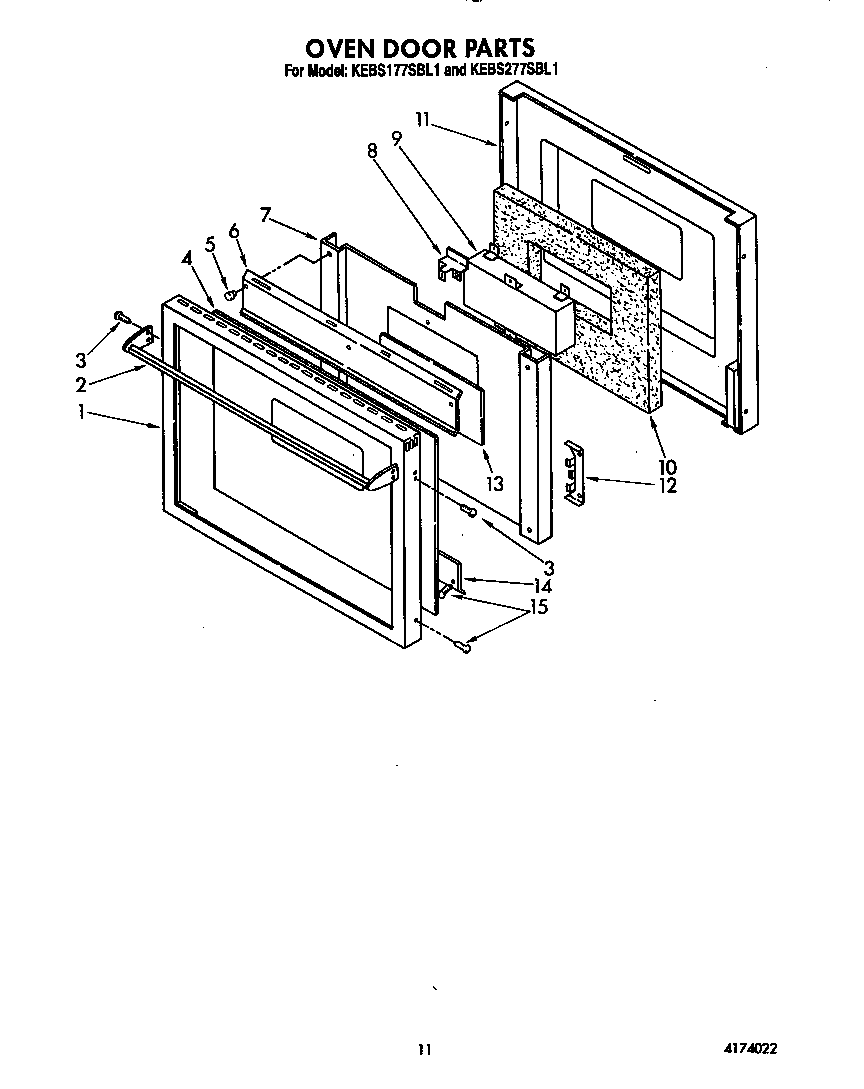

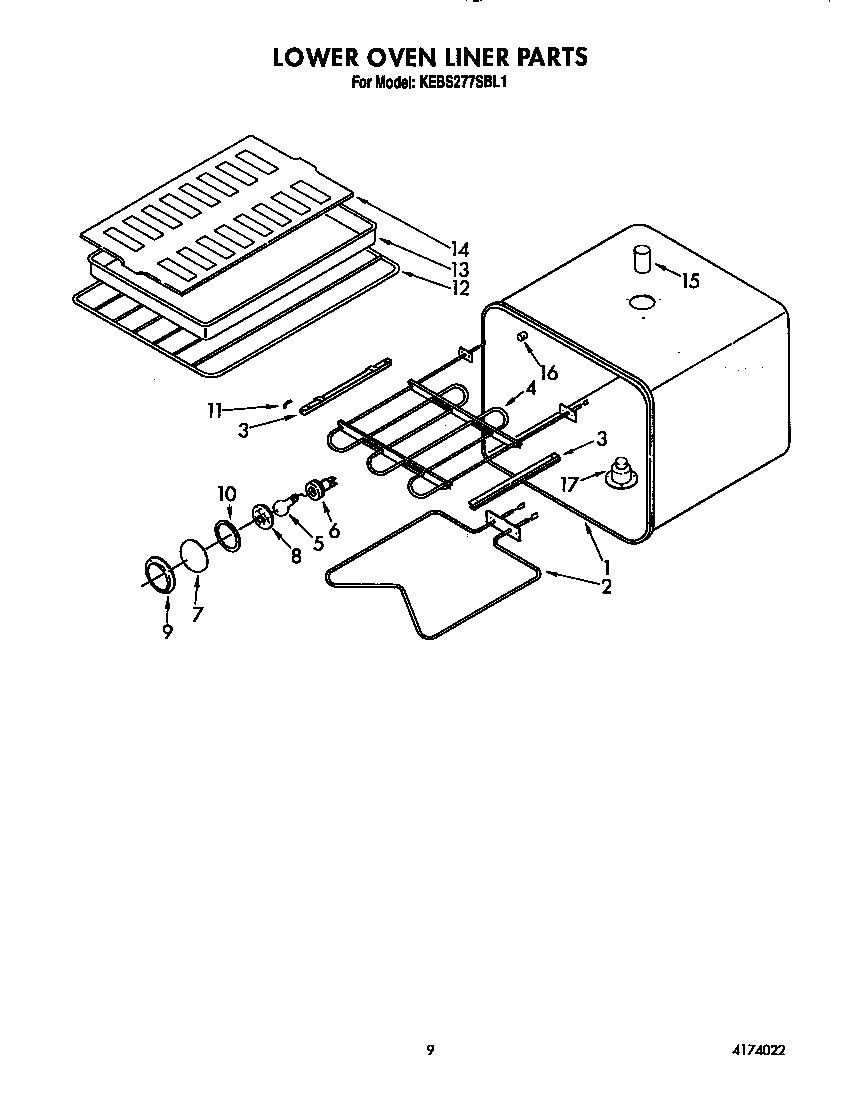

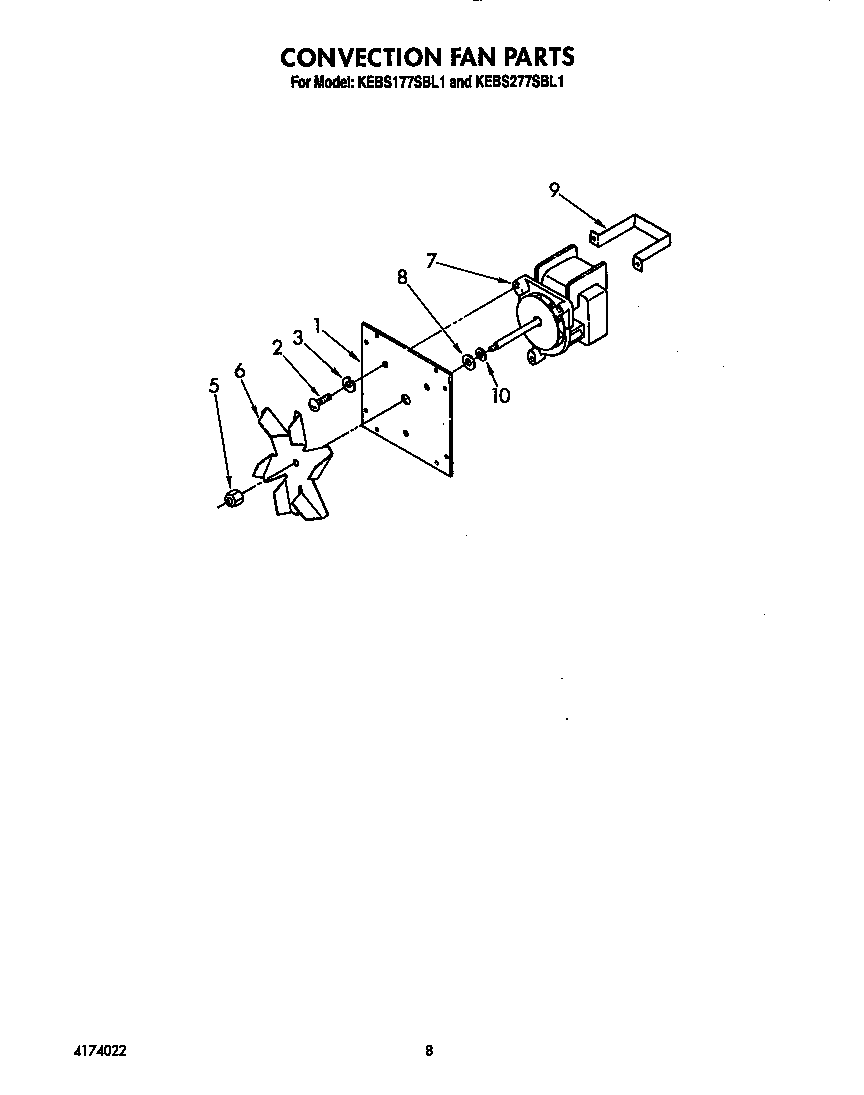

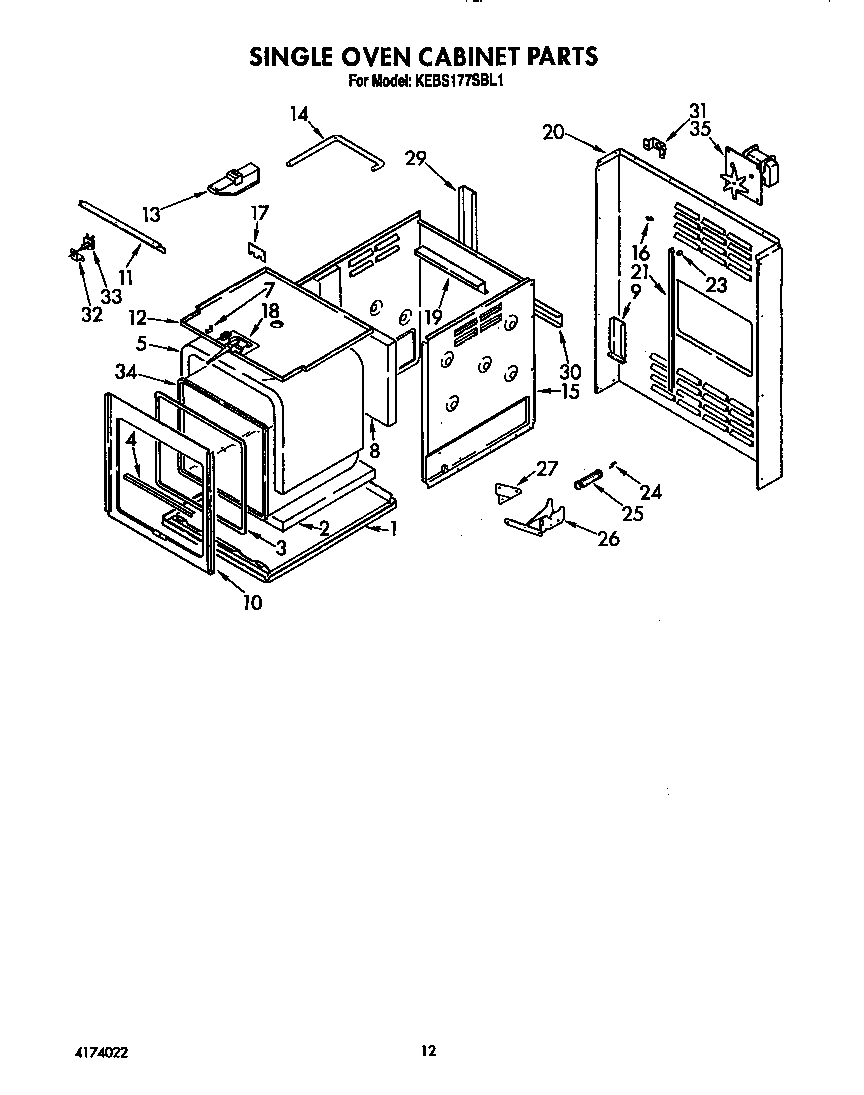

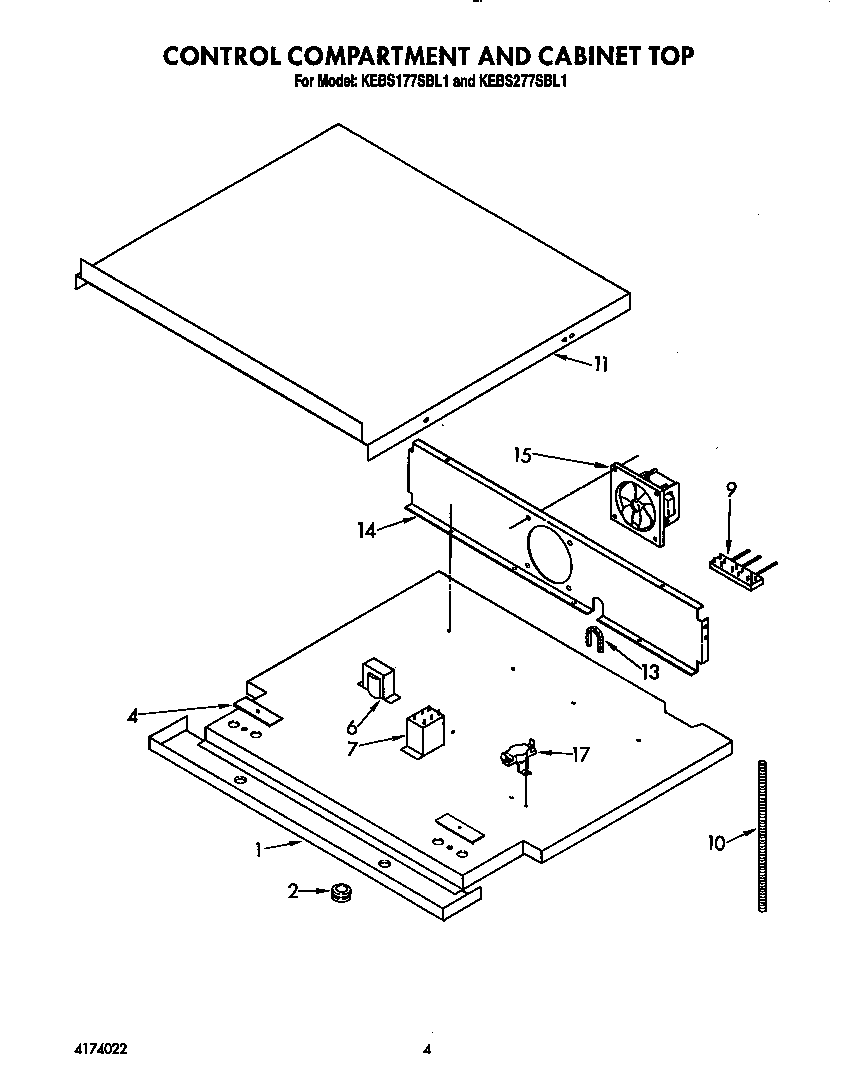

SELECT DIAGRAM
Browse Parts for KEBS277SBL1 Wall Ovens
#NI
All parts diagram
Instructions, Installation (trim Kit)
Part #4174015
The manufacturer no longer makes this part, and there's no substitute part

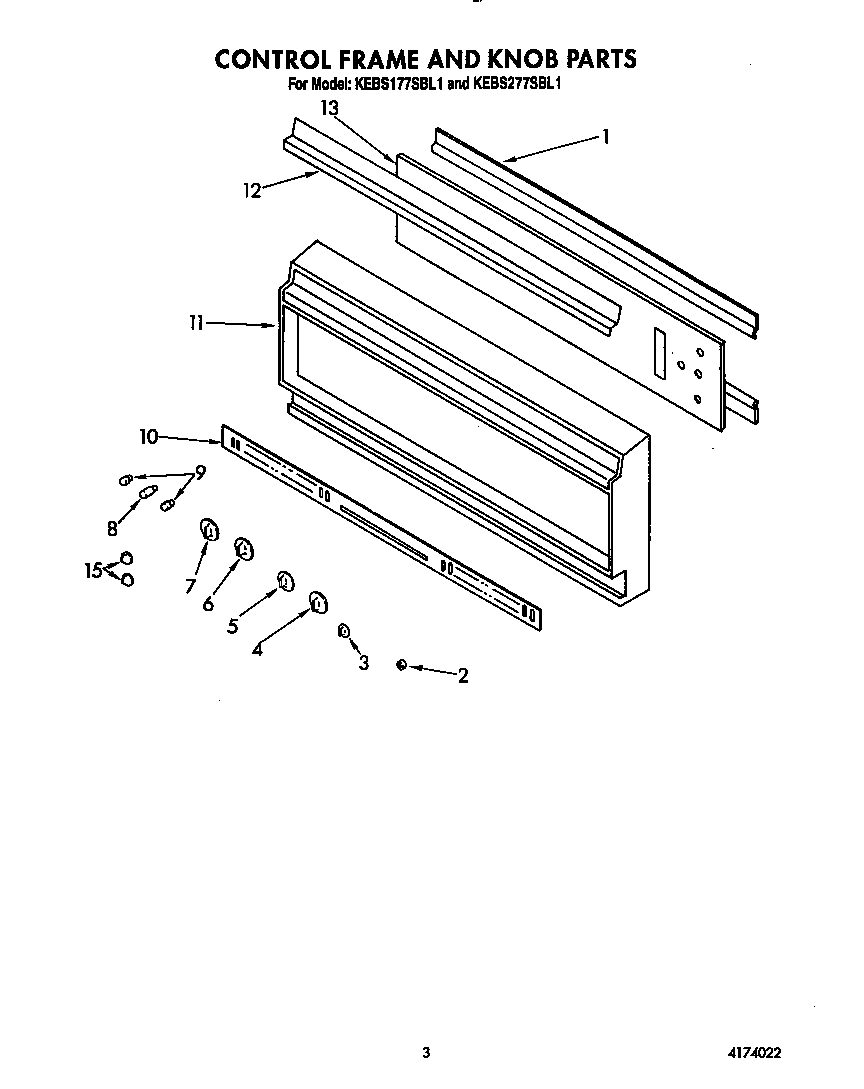

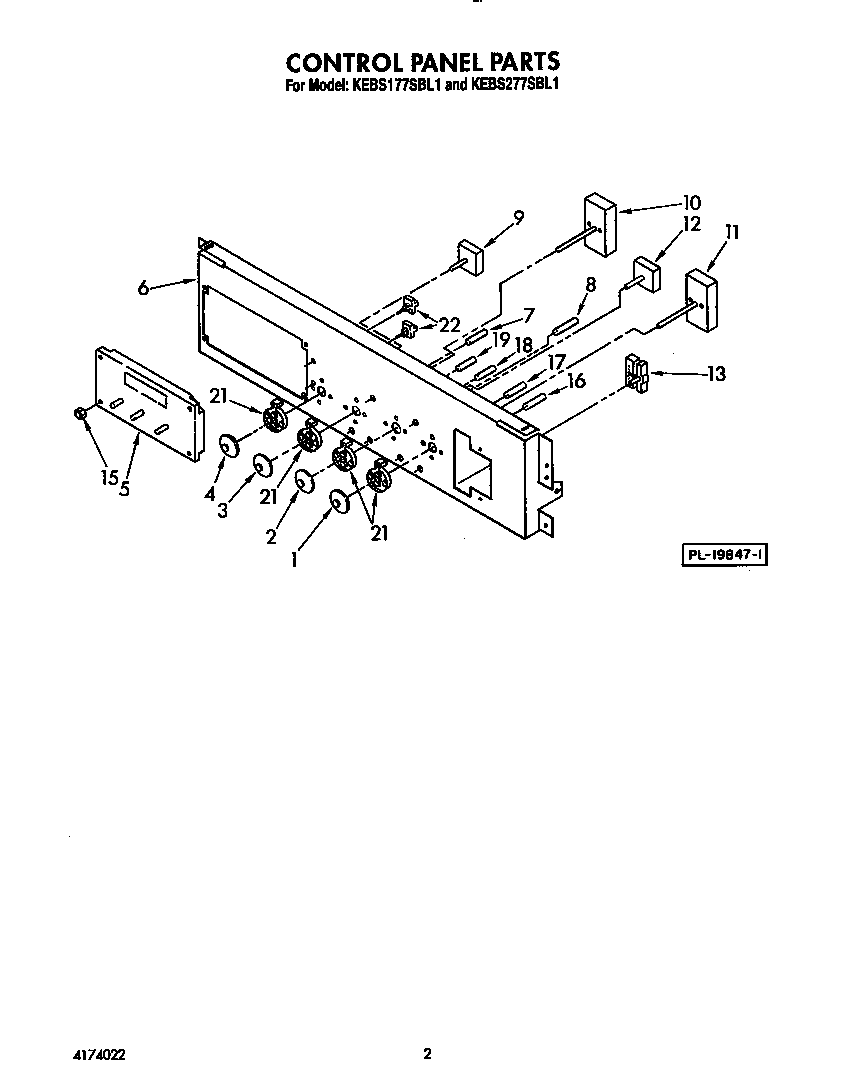

Control frame and knob diagram
Insert (black)
Part #4173163
The manufacturer no longer makes this part, and there's no substitute part

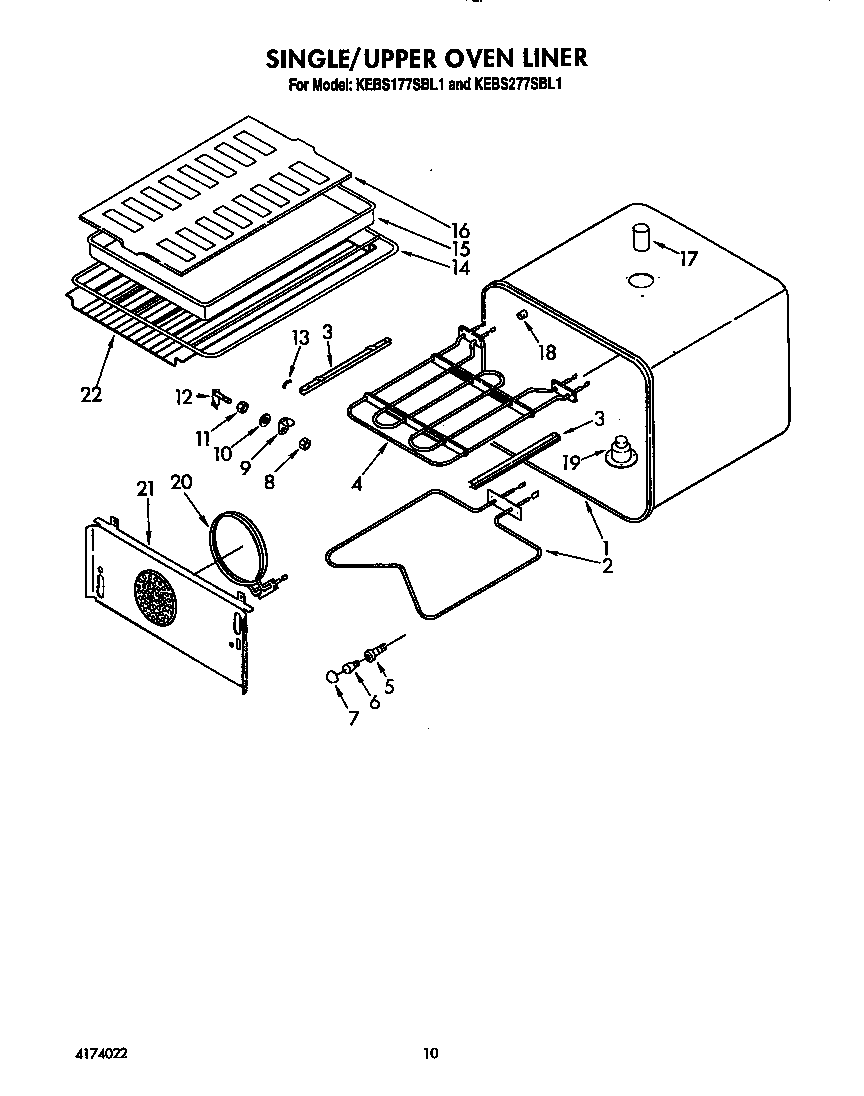

Single/upper oven liner diagram
Oven Rack
Part #3178638
The manufacturer no longer makes this part, and there's no substitute part
Double oven cabinet diagram
Box-coltr
Part #4168681
The manufacturer no longer makes this part, and there's no substitute part

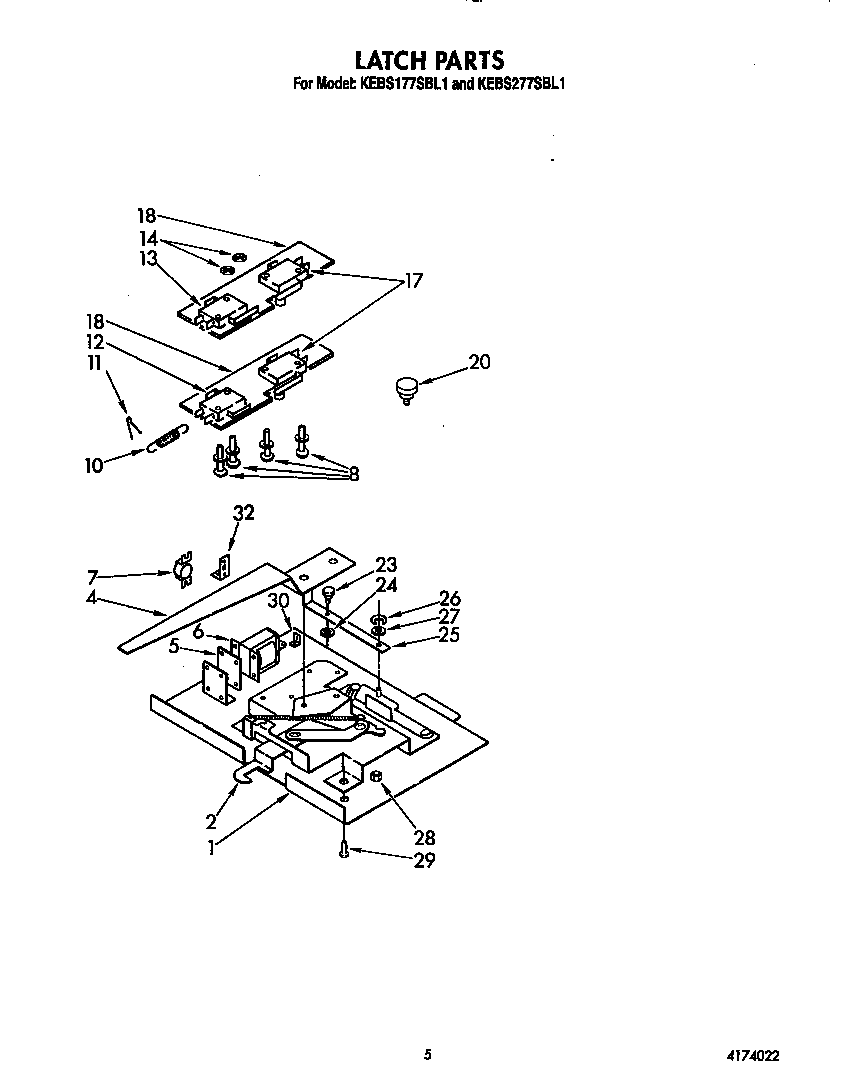

Latch diagram
Screw #10-24x3/8
Part #4159287
The manufacturer no longer makes this part, and there's no substitute part
Latch diagram
Bracket
Part #4173168
The manufacturer no longer makes this part, and there's no substitute part
Latch diagram
Nut
Part #4159117
The manufacturer no longer makes this part, and there's no substitute part
Duct-ext
Part #4173017
The manufacturer no longer makes this part, and there's no substitute part
Single/upper oven liner diagram
Oven Broiler Element
Part #3178520
The manufacturer no longer makes this part, and there's no substitute part
Single/upper oven liner diagram
Cover Nut
Part #4167277
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
