Bosch HGS7052UC/01 gas range Parts
Here are the diagrams and repair parts for Bosch HGS7052UC/01 gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

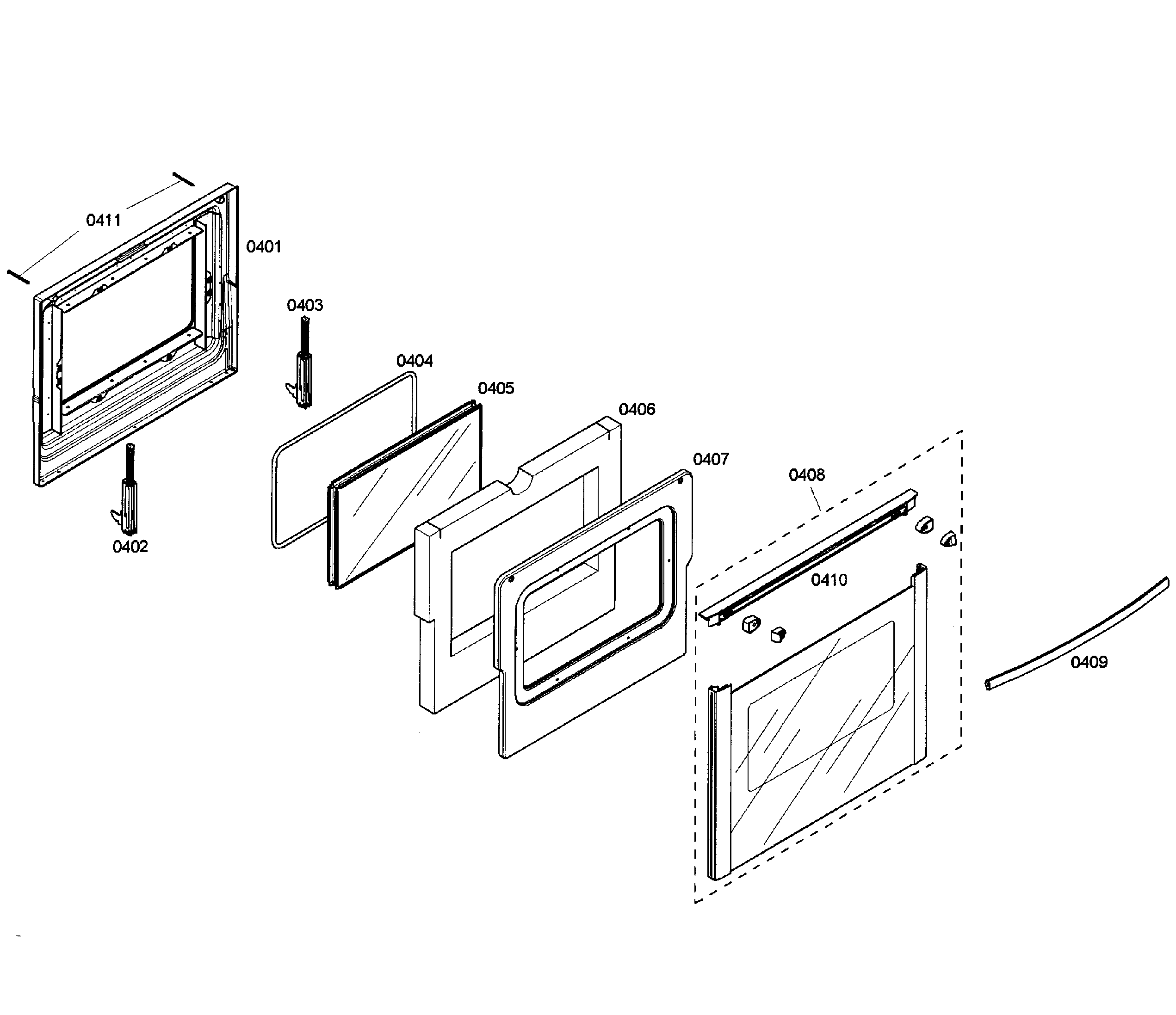

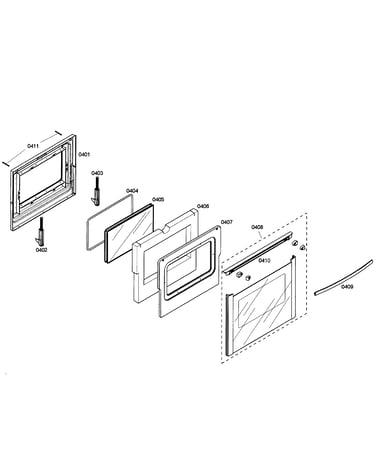

Browse Parts for HGS7052UC/01 Ranges

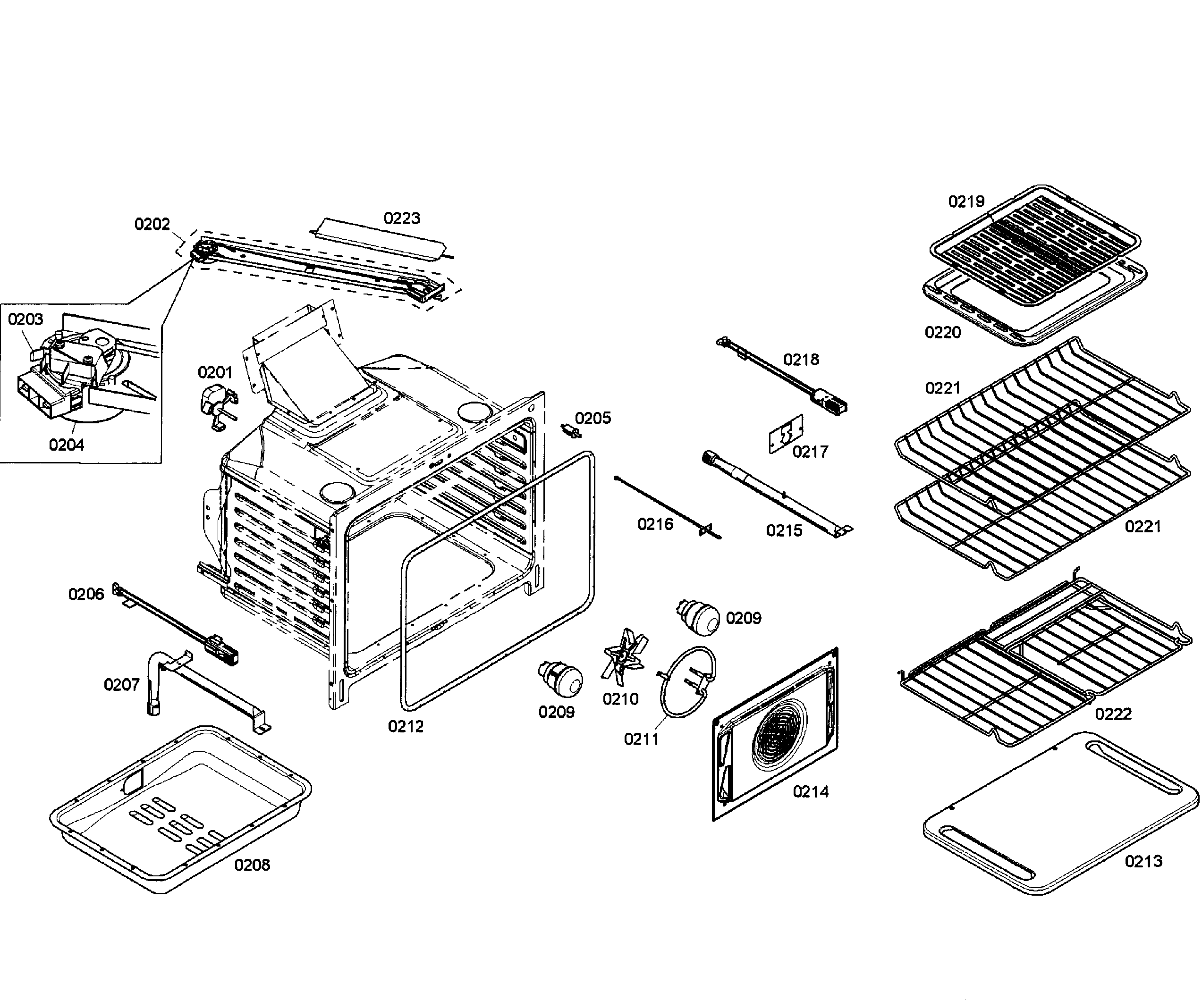

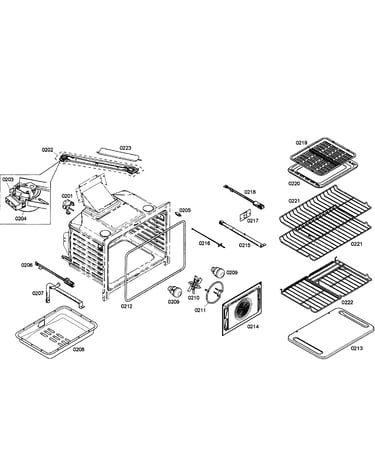

Oven cavity diagram
Oven Burner
Part #437801Replaced by #00437801
Manufacturer substitutionThis part replaces 437801. Substitute parts can look different from the original.In Stock$80.897% OFF Phone Price : $86.89
Qty

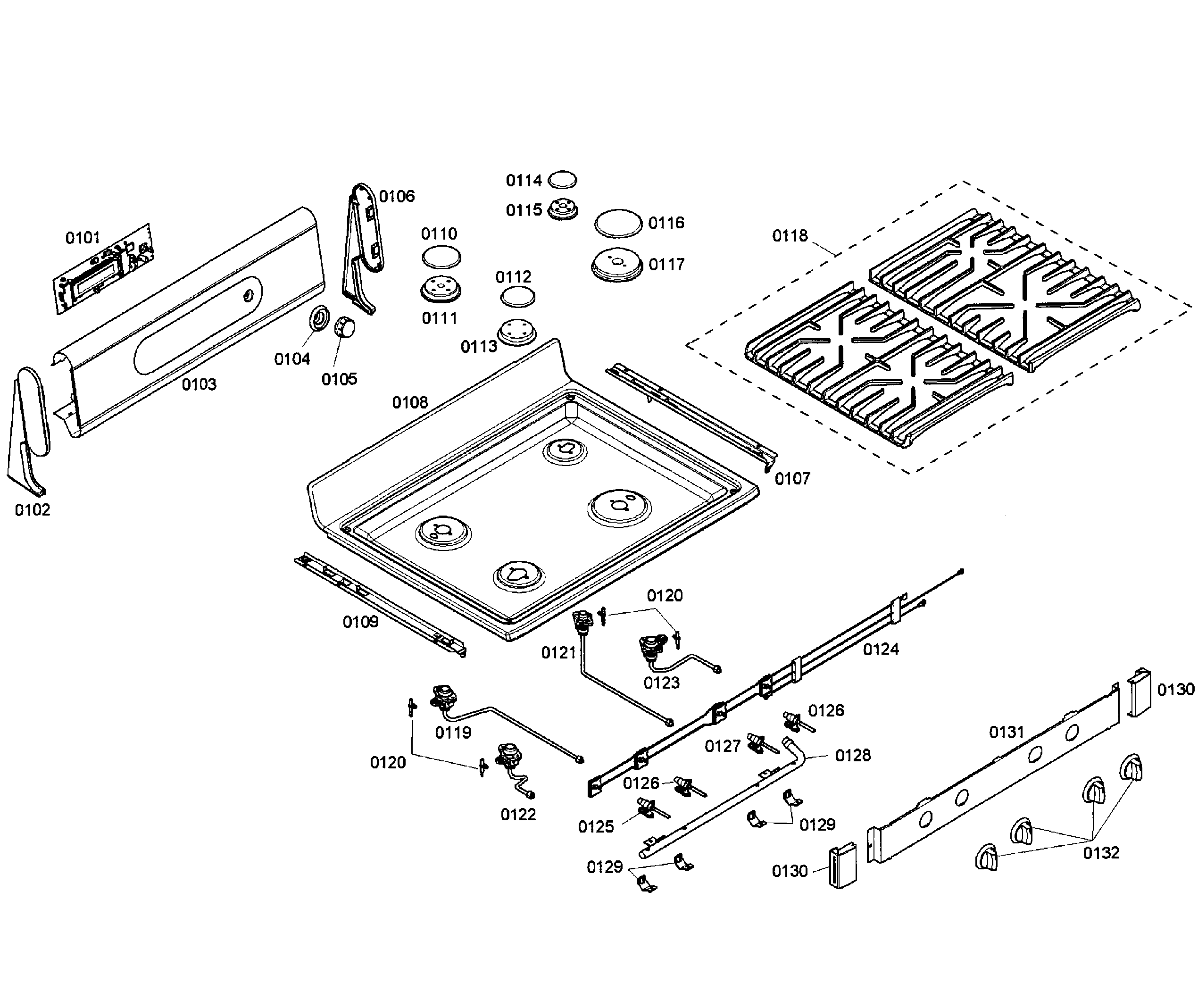

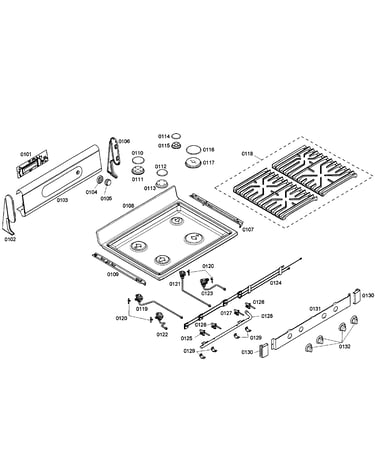

Stove top diagram
Jet Holder
Part #423487Replaced by #00423487
Manufacturer substitutionThis part replaces 423487. Substitute parts can look different from the original.In Stock$67.478% OFF Phone Price : $73.47QtyStove top diagram
Bulb
Part #623710Replaced by #00623710
Manufacturer substitutionThis part replaces 623710. Substitute parts can look different from the original.This item is not returnableIn Stock$18.3010% OFF Phone Price : $20.30QtyStove top diagram
Range Surface Burner Valve
Part #603716Replaced by #00603716
Manufacturer substitutionThis part replaces 603716. Substitute parts can look different from the original.In Stock$127.2735% OFF Was : $196.00QtyStove top diagram
Range Oven Light Lens
Part #414513Replaced by #00414513
Manufacturer substitutionThis part replaces 414513. Substitute parts can look different from the original.In Stock$30.2617% OFF Phone Price : $36.26QtyOven cavity diagram
Oven Lamp Assembly
Part #415045Replaced by #00415045
Manufacturer substitutionThis part replaces 415045. Substitute parts can look different from the original.In Stock$68.0018% OFF Was : $82.97QtyOven cavity diagram
Fan Blade
Part #491577Replaced by #00491577
Manufacturer substitutionThis part replaces 491577. Substitute parts can look different from the original.In Stock$97.16QtyOven cavity diagram
Remote Latch
Part #448634Replaced by #00746648

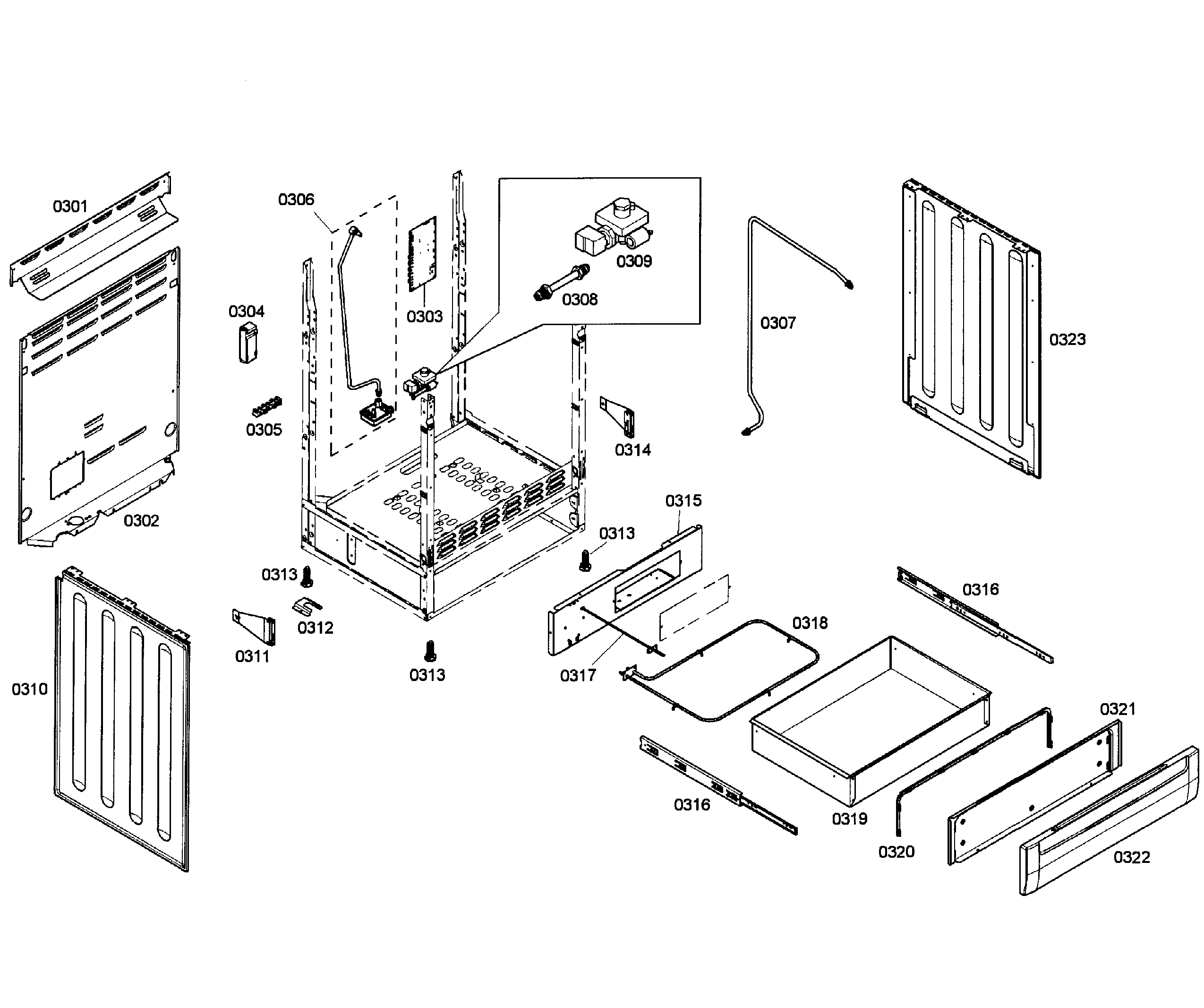

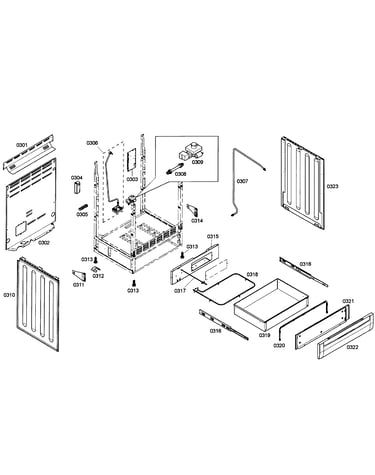

Manufacturer substitutionThis part replaces 448634. Substitute parts can look different from the original.In Stock$200.56QtyBase assy diagram
Terminal Box
Part #436364Replaced by #00436364
Manufacturer substitutionThis part replaces 436364. Substitute parts can look different from the original.In Stock$96.68QtyStove top diagram
Jet Holder
Part #423486Replaced by #00423486
Manufacturer substitutionThis part replaces 423486. Substitute parts can look different from the original.In Stock$120.55Qty
