Panasonic
Upright Vacuum

Model # MC-UG327-00 Official Panasonic vacuum

Here are the diagrams and repair parts for Official Panasonic MC-UG327-00 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Handle Assembly AC95BDRZZR03
#1

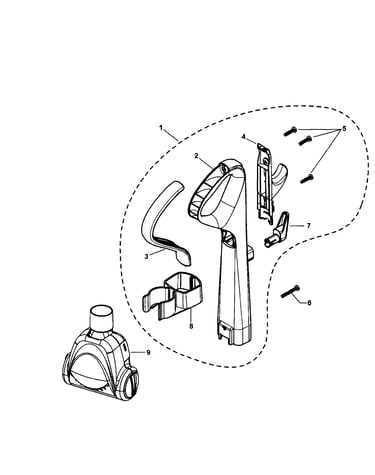

Handle assy diagram

Handle assembly

Part #AC95BDRZZR03

In Stock
Vacuum Wheel AC99CDRZZV07
#15

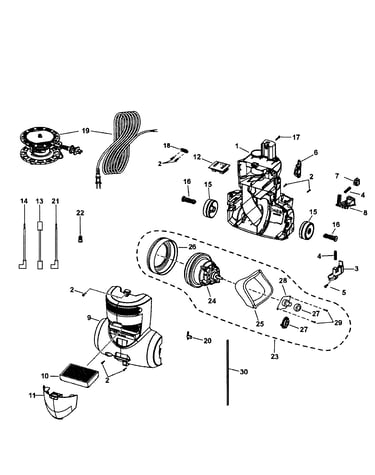

Lower body diagram

Vacuum wheel

Part #AC99CDRZZV07

In Stock
Fastener Guide AC21KDTGZV07
#3

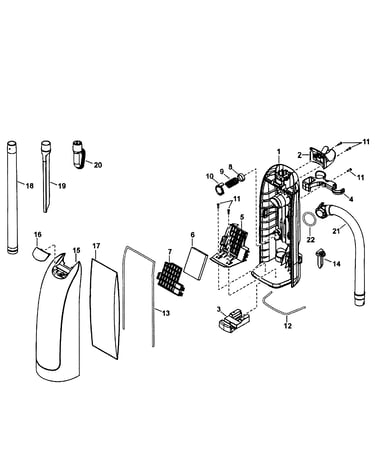

Upper body diagram

Fastener guide

Part #AC21KDTGZV07

This item is not returnable
In Stock
Belt Cover AC43SAFVZ000
#9

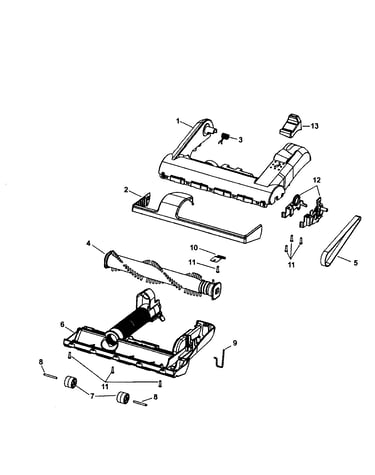

Nozzle assy diagram

Belt cover

Part #AC43SAFVZ000

This item is not returnable
In Stock
Vacuum Twist-on Wire Connector AMC-1CTCE23
#22

Lower body diagram

Vacuum twist-on wire connector

Part #AMC-1CTCE23

In Stock
Vacuum Dust Cover AC60KDVJZRU3
Vacuum dust cover

Part #AC60KDVJZRU3

In Stock
Spring Nozzle AC58ACRYZ000
#3

Nozzle assy diagram

Spring nozzle

Part #AC58ACRYZ000

This item is not returnable
In Stock
Filter Sec AC37KDKTZ000
#6

Upper body diagram

Filter sec

Part #AC37KDKTZ000

This item is not returnable
In Stock
On Switch AC01EDRZZ000
#7

Lower body diagram

On switch

Part #AC01EDRZZ000

In Stock
Vacuum Exhaust Filter AC38KDDJZ000
#10

Lower body diagram

Vacuum exhaust filter

Part #AC38KDDJZ000

This item is not returnable
