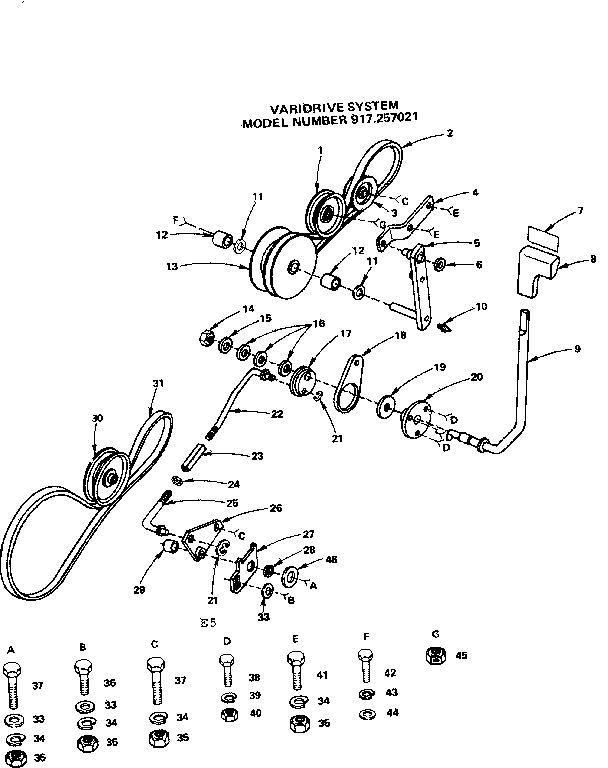

Craftsman 917257021 varidrive gt 11 garden tractor Parts
Here are the diagrams and repair parts for Craftsman 917257021 varidrive gt 11 garden tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

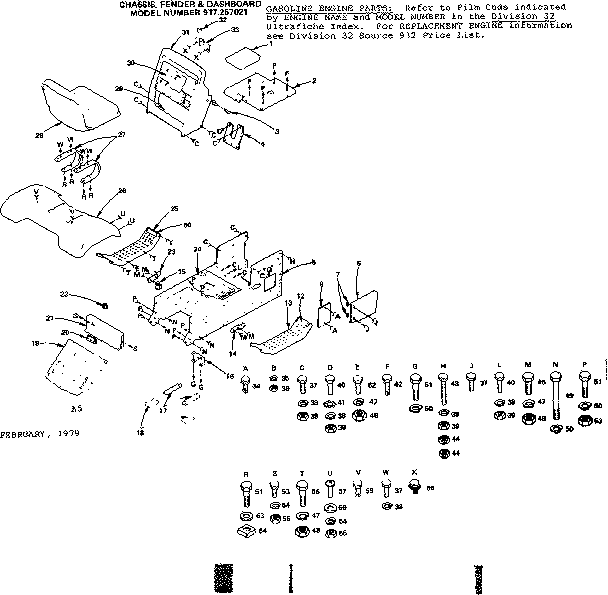

Browse Parts for 917257021 Riding Mowers & Tractors

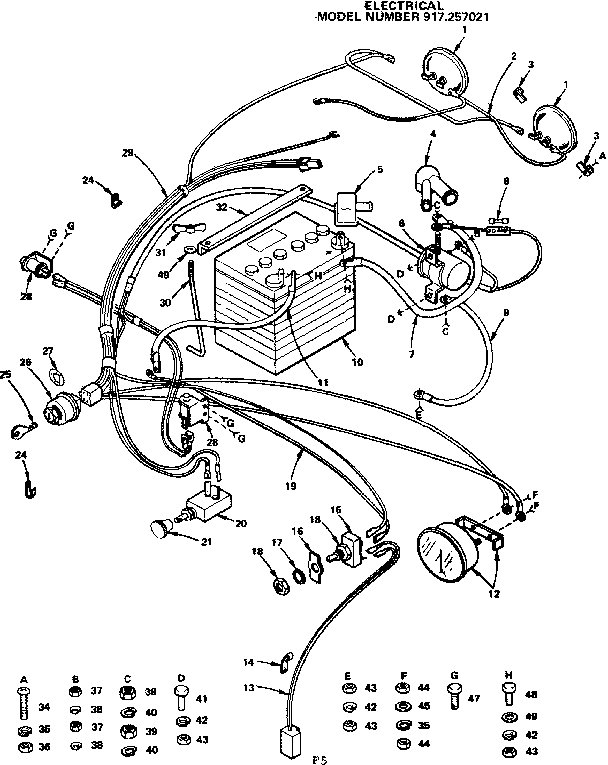

Electrical diagram
Ground Cable
Part #8861RReplaced by #532004207
Manufacturer substitutionThis part replaces 8861R. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1611% OFF Phone Price : $9.16
Qty
Replacement parts diagram
Needle Brg
Part #4895HReplaced by #532004895
Manufacturer substitutionThis part replaces 4895H. Substitute parts can look different from the original.This item is not returnableIn Stock$20.2023% OFF Phone Price : $26.20QtyClutch-brake & drive diagram
Muffler
Part #420JReplaced by #392989
Manufacturer substitutionThis part replaces 420J. Substitute parts can look different from the original.In Stock$61.67QtyReplacement parts diagram
Ring
Part #5845RReplaced by #812000029
Manufacturer substitutionThis part replaces 5845R. Substitute parts can look different from the original.This item is not returnableIn Stock$3.6522% OFF Phone Price : $4.65QtyPedal Cover (black)
Part #8883RReplaced by #510089501
Manufacturer substitutionThis part replaces 8883R. Substitute parts can look different from the original.In Stock$12.5814% OFF Phone Price : $14.58QtyBolt
Part #STD523108
The manufacturer no longer makes this part, and there's no substitute part

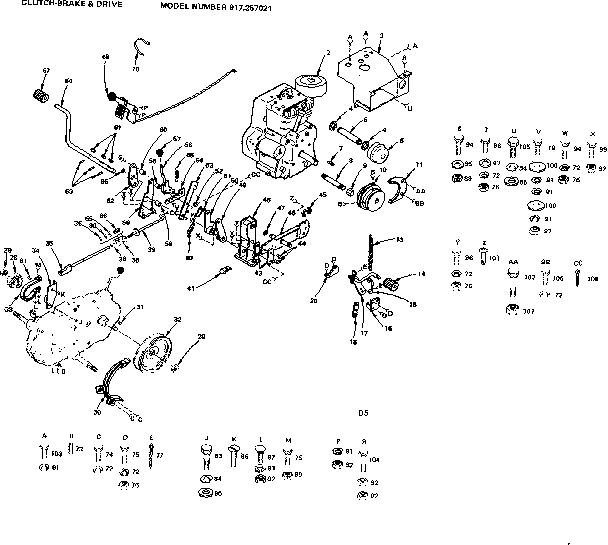

Clutch-brake & drive diagram
Clutch Lever
Part #673A106
The manufacturer no longer makes this part, and there's no substitute part
Electrical diagram
Lock Washer
Part #STD551108
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Reduction Gear
Part #4213R
The manufacturer no longer makes this part, and there's no substitute part
Steering and front axle diagram
Tire
Part #2795R
The manufacturer no longer makes this part, and there's no substitute part
