Model #DLSR483EG6WW GE electric dryer

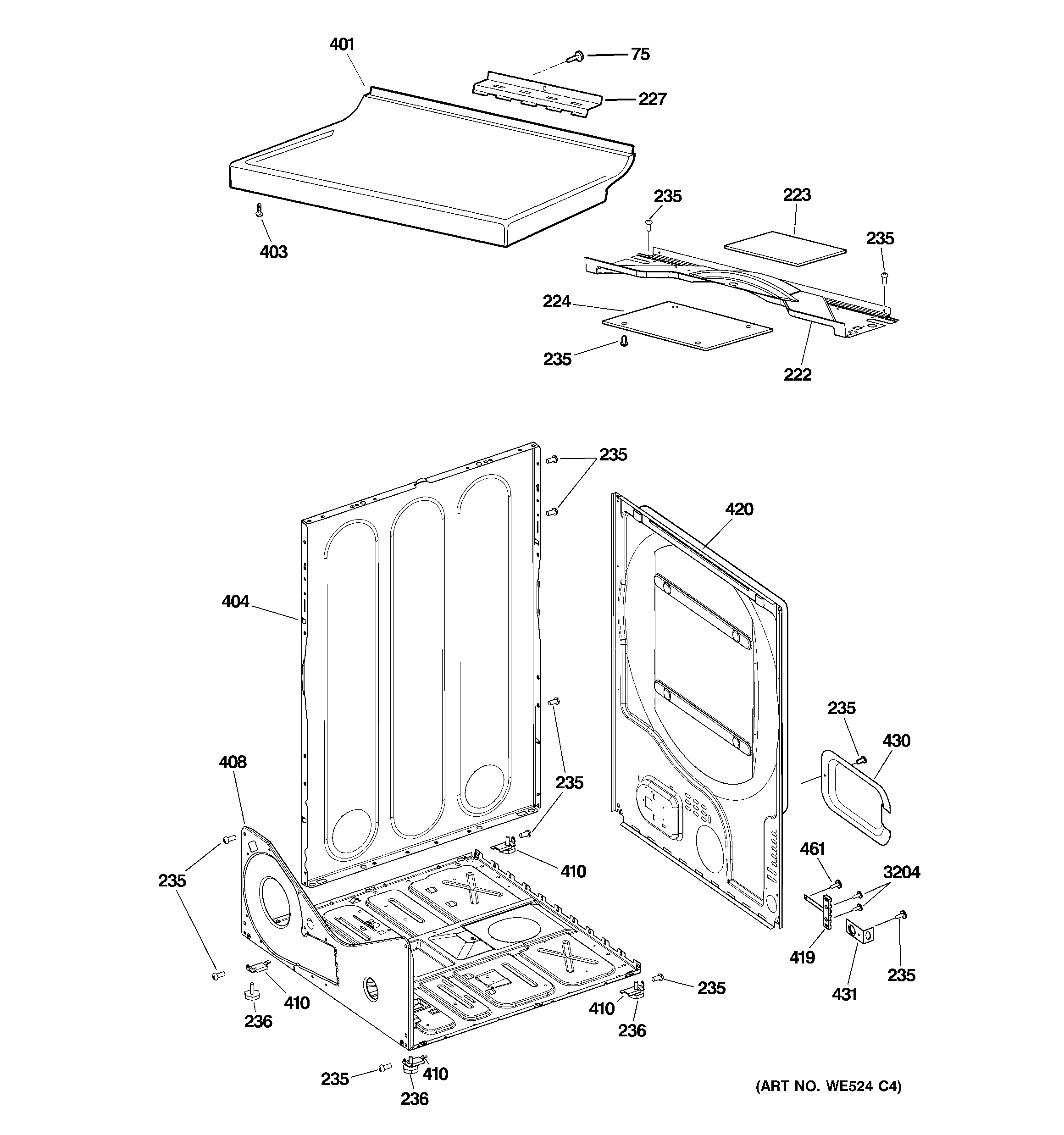

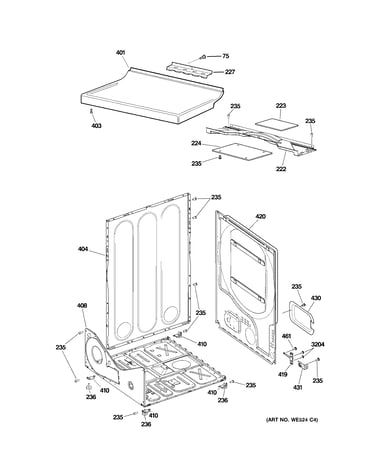

Here are the diagrams and repair parts for GE DLSR483EG6WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 99 parts

    Dryer Drum Belt#213

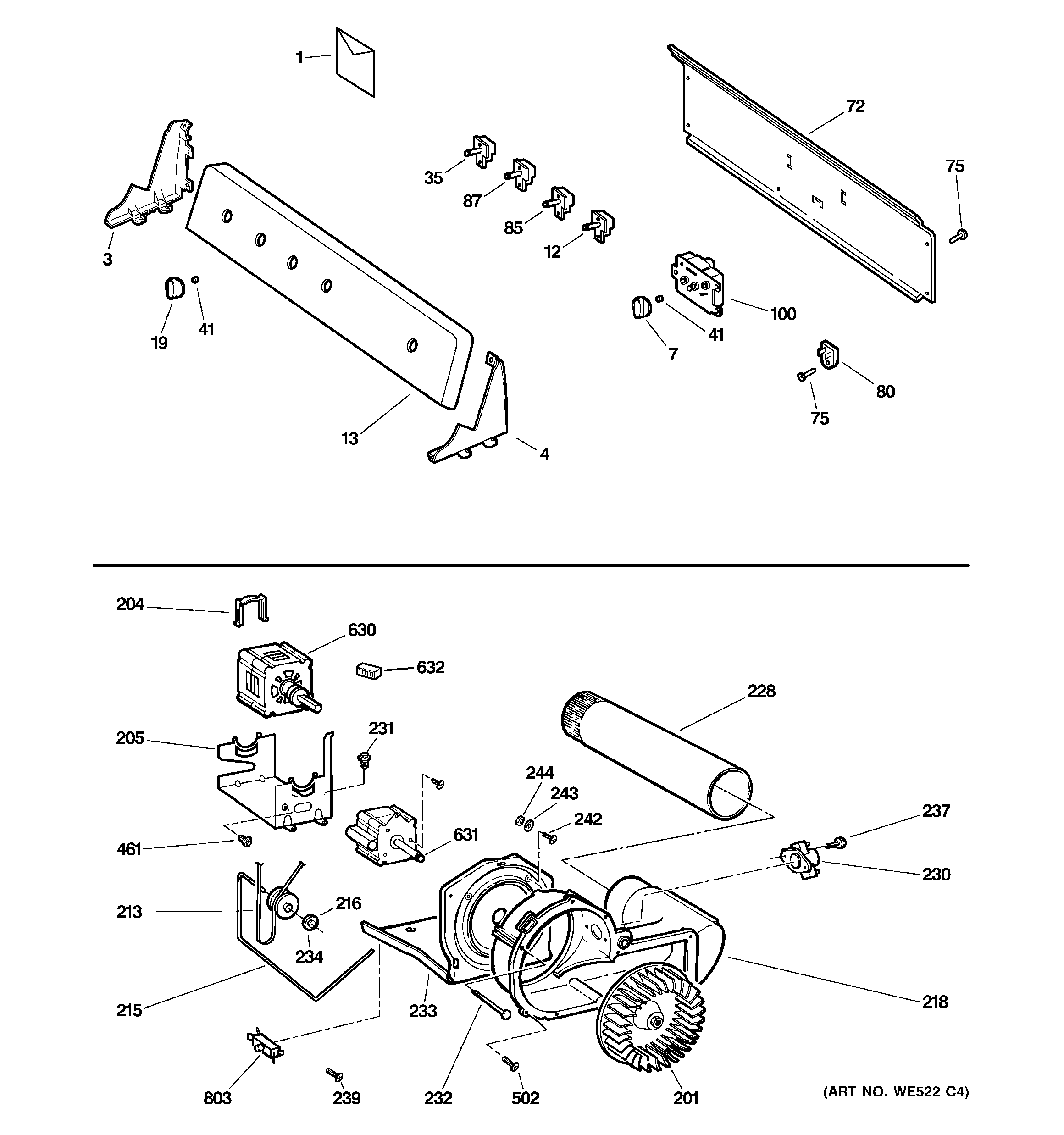

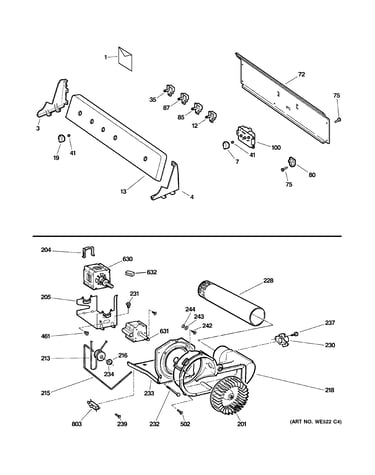

    Backsplash, blower & motor Diagram

    Dryer drum belt

    Part #WE12M29
    BEST SELLER
    In Stock
    $32.59

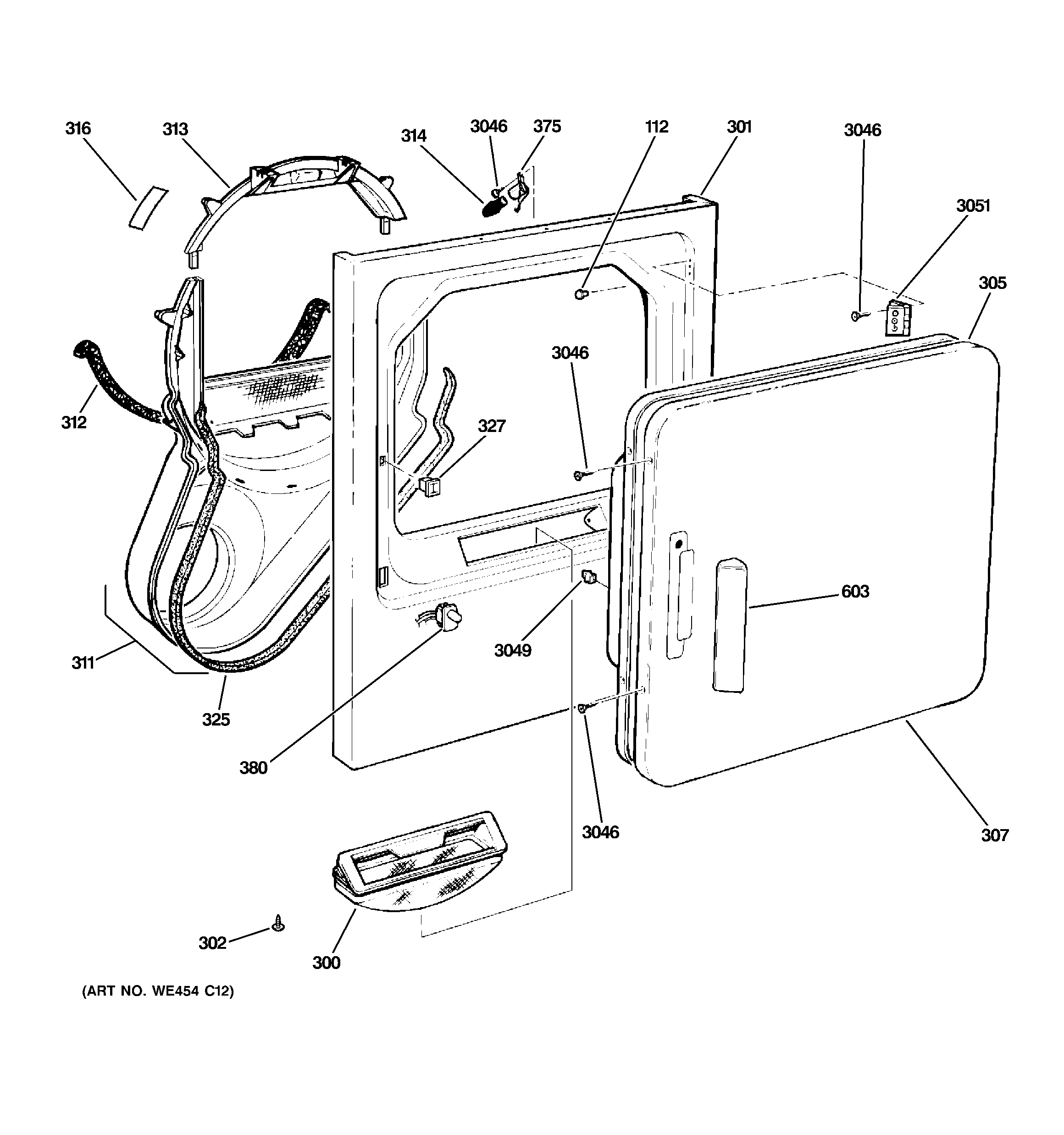

    Dryer Drum Front Glide Pad#316

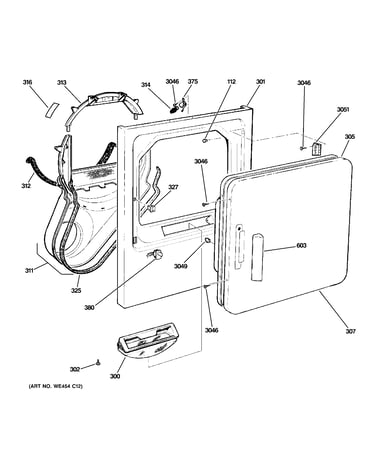

    Front panel & door Diagram

    Dryer drum glide bearing (green)

    Part #WE1M507
    Replaced by #WE1M1067
    ?
    Manufacturer substitution
    This part replaces WE1M507. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.49 |
    10% OFF
    Was: $7.19
    Dryer Drum Front Glide Pad#316

    Front panel & door Diagram

    Dryer drum front glide pad

    Part #WE1M504
    BEST SELLER
    In Stock
    $10.59 |
    10% OFF
    Was: $11.79
    Dryer Drum Felt Seal#312

    Front panel & door Diagram

    Felt

    Part #WE9M30
    Replaced by #WE09X27634
    ?
    Manufacturer substitution
    This part replaces WE9M30. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.69
    Dryer Drum Bearing, Front#313

    Front panel & door Diagram

    Dryer drum bearing, front

    Part #WE3M26
    BEST SELLER
    In Stock
    $52.69
    Dryer Lint Chute Assembly#311

    Front panel & door Diagram

    Air duct assembly

    Part #WE14M92
    Replaced by #WE14X25080
    ?
    Manufacturer substitution
    This part replaces WE14M92. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $97.69 |
    10% OFF
    Was: $108.60
    Dryer Timer Knob#7

    Backsplash, blower & motor Diagram

    Dryer timer knob

    Part #WE1M654
    BEST SELLER
    In Stock
    $30.49
    Dryer Drum Light Bulb#314

    Front panel & door Diagram

    Dryer drum lamp

    Part #WE4M305
    Replaced by #WE05X20431
    ?
    Manufacturer substitution
    This part replaces WE4M305. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $14.79

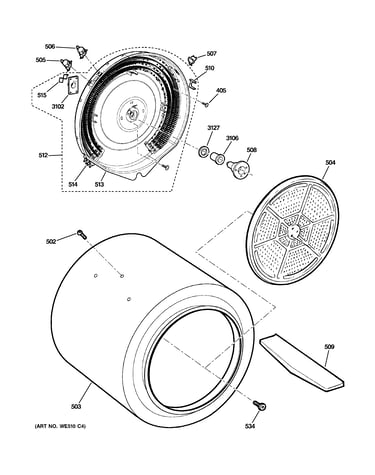

    Dryer Rear Bearing#3106

    Drum Diagram

    Dryer rear bearing

    Part #WE1M462
    BEST SELLER
    In Stock
    $14.59 |
    20% OFF
    Was: $18.29
    Dryer Control Knob#19

    Backsplash, blower & motor Diagram

    Knob and cli

    Part #WH01X10307
    Replaced by #WE01X20378
    ?
    Manufacturer substitution
    This part replaces WH01X10307. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $29.79 |
    10% OFF
    Was: $33.09

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
