Kenmore
Electric Water Heater

Model #153326460 Official Kenmore water heater

Here are the diagrams and repair parts for Kenmore 153326460 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 18 parts

    Water Heater Heating Element, 3,800-watt

    See All Related Diagrams

    Element

    Part #31906
    Replaced by #9000225015
    ?
    Manufacturer substitution
    This part replaces 31906. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $51.69 |
    9% OFF
    Phone Price: $56.69
    Water Heater Anode Rod#3

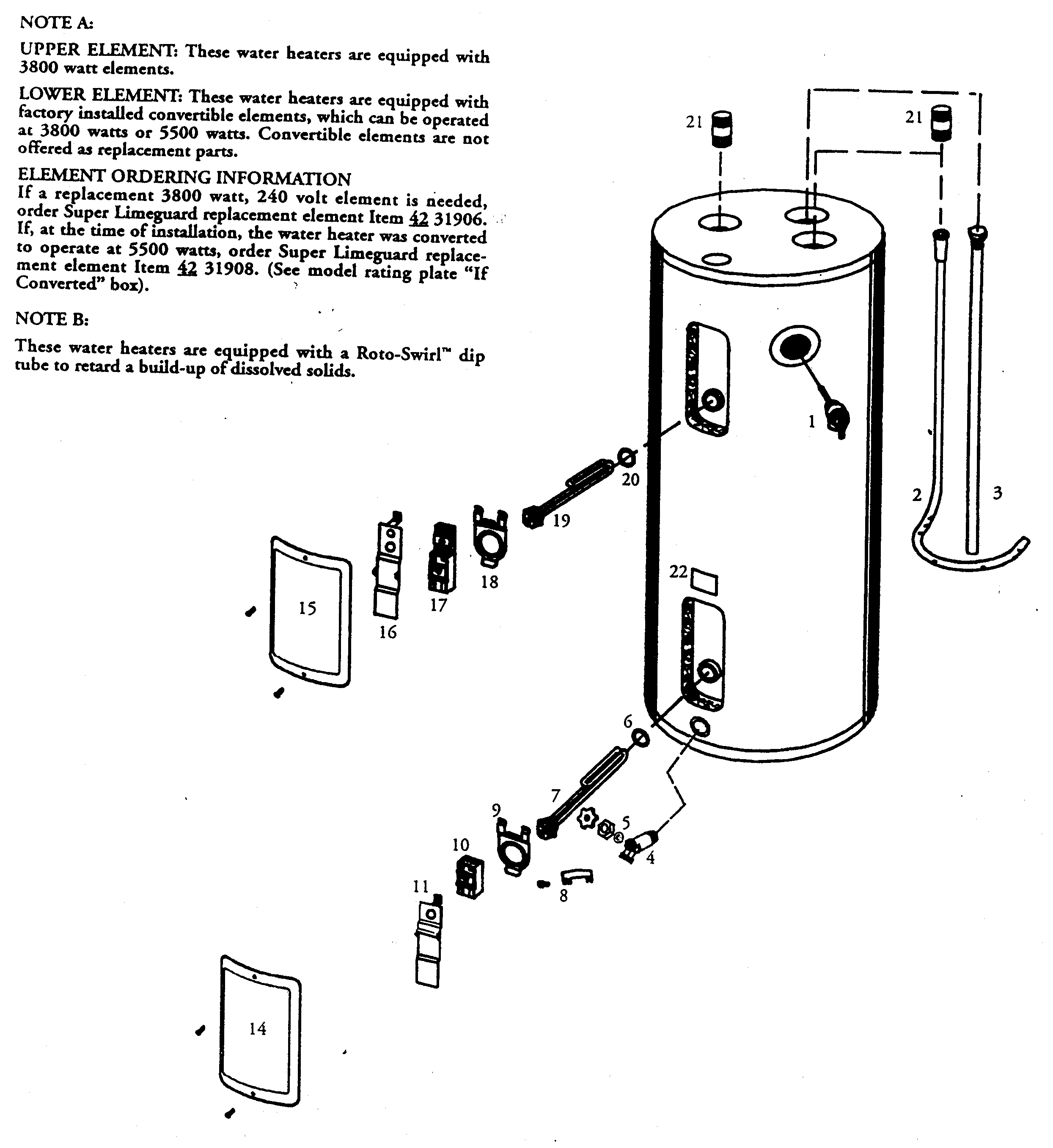

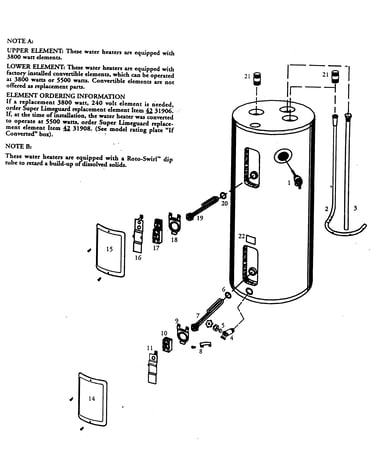

    Water heater Diagram

    Anode rod

    Part #9001828
    Replaced by #9003892005
    ?
    Manufacturer substitution
    This part replaces 9001828. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $37.99 |
    12% OFF
    Phone Price: $42.99
    Water Heater Heating Element, 5,500-watt#7A

    Water heater Diagram

    Element

    Part #31908
    Replaced by #100093526
    ?
    Manufacturer substitution
    This part replaces 31908. Substitute parts can look different from the original.
    Back Order
    $51.95
    Water Heater Water Line Connector#21A

    Water heater Diagram

    Water heater water line connector

    Part #9003719
    This item is not returnable
    In Stock
    $17.69 |
    10% OFF
    Phone Price: $19.69
    Water Heater Washer#5

    Water heater Diagram

    Water heater washer

    Part #9001584
    This item is not returnable
    In Stock
    $17.69 |
    10% OFF
    Phone Price: $19.69
    Water Heater Heating Element Gasket

    See All Related Diagrams

    Water heater heating element gasket

    Part #9000308

    The manufacturer no longer makes this part, and there's no substitute part

    Water Heater Thermostat Cover#11

    Water heater Diagram

    Water heater thermostat cover

    Part #9002276
    This item is not returnable
    In Stock
    $17.69 |
    10% OFF
    Phone Price: $19.69
    Water Heater Access Panel, Lower

    See All Related Diagrams

    Water heater access panel, lower

    Part #9003900
    This item is not returnable
    In Stock
    $17.69 |
    10% OFF
    Phone Price: $19.69
    Water Heater Owner's Manual#NI

    Water heater Diagram

    In Stock
    $13.99
    Water Heater Thermostat Bracket

    See All Related Diagrams

    Water heater thermostat bracket

    Part #9000309
    This item is not returnable
    In Stock
    $17.69 |
    10% OFF
    Phone Price: $19.69
