Maytag PER5720ACW electric freestanding range Parts
Here are the diagrams and repair parts for Maytag PER5720ACW electric freestanding range, as well as links to manuals and error code tables, if available.
Error Codes

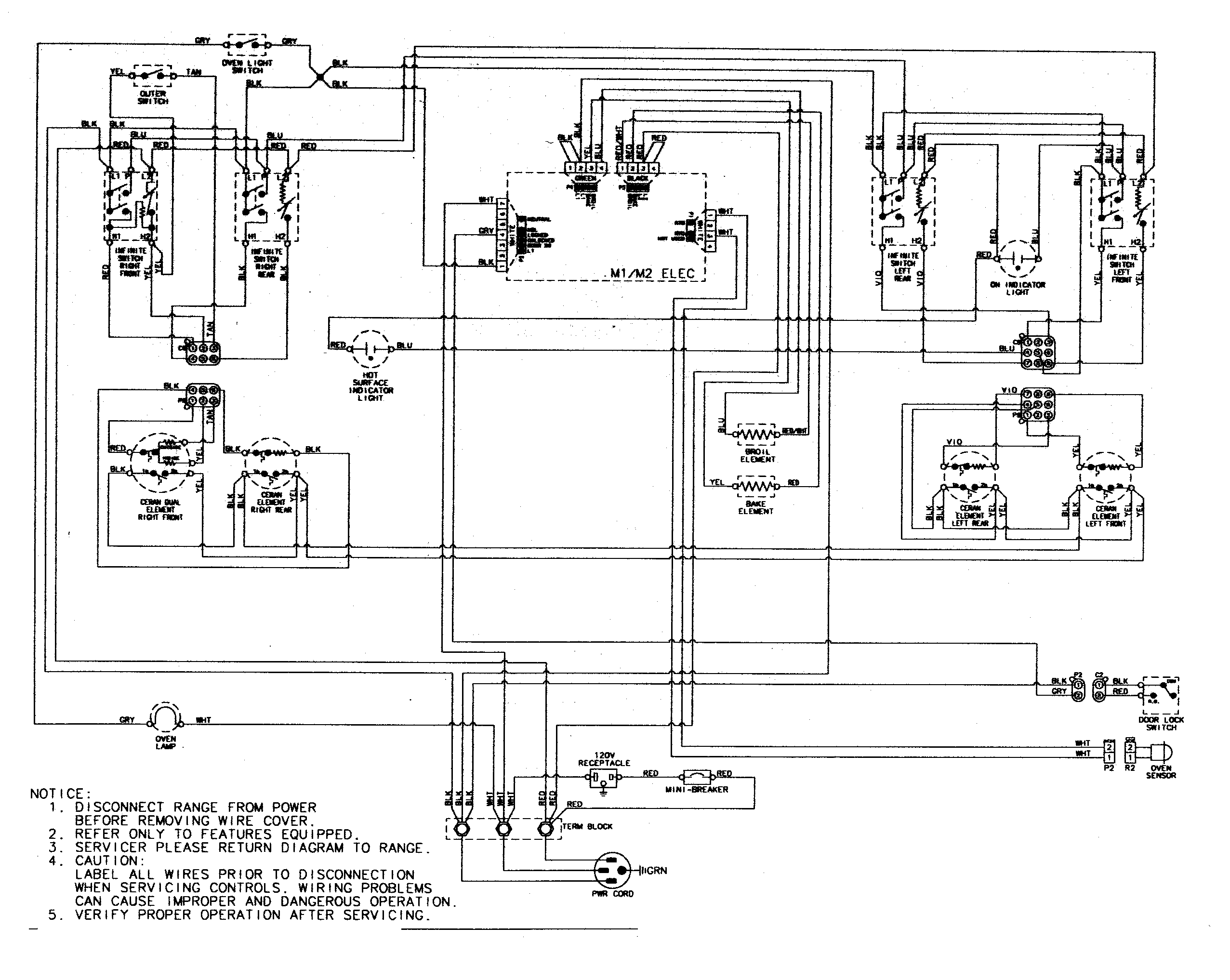

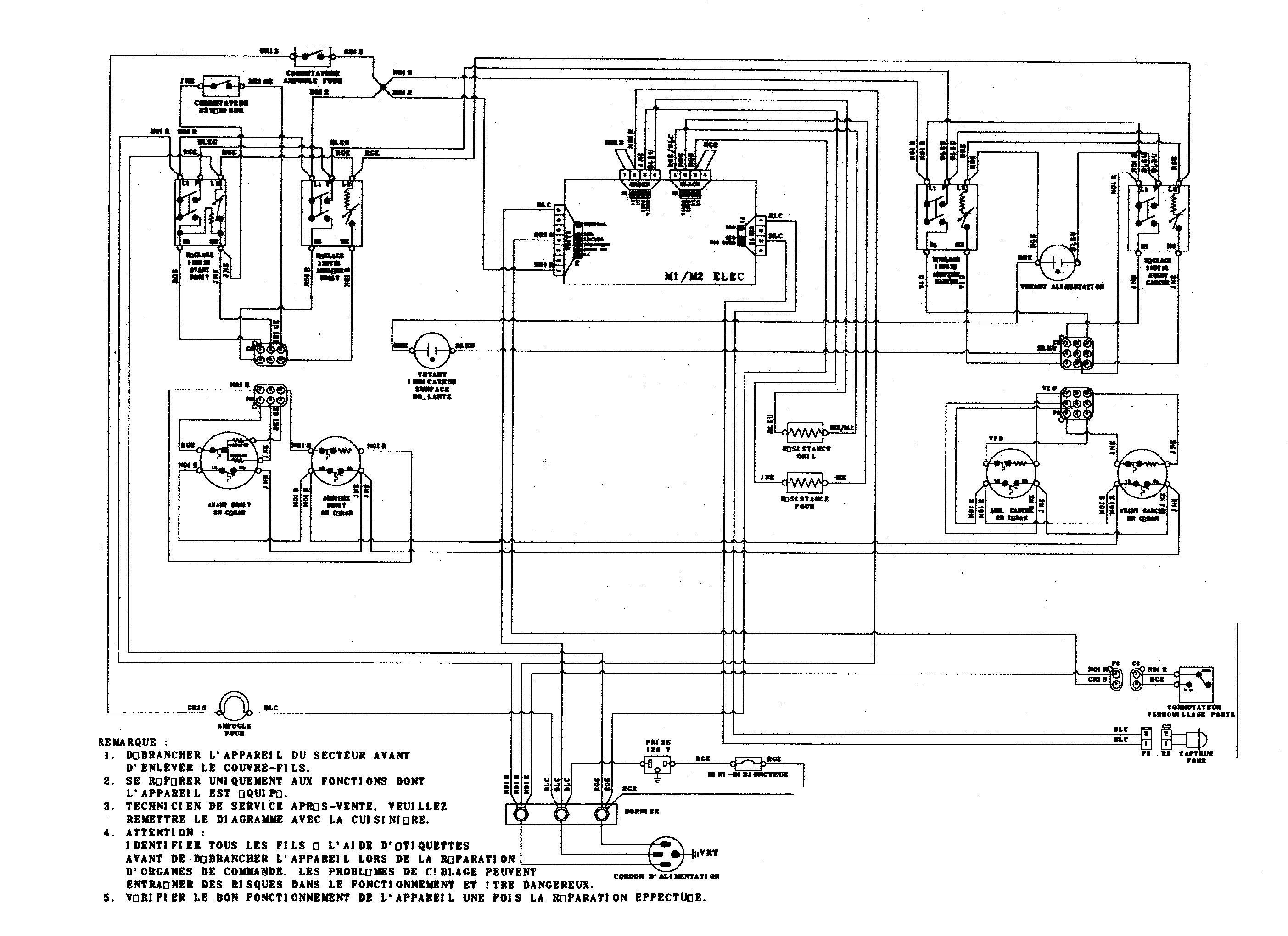

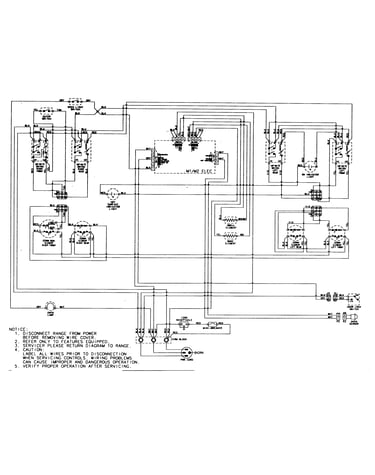

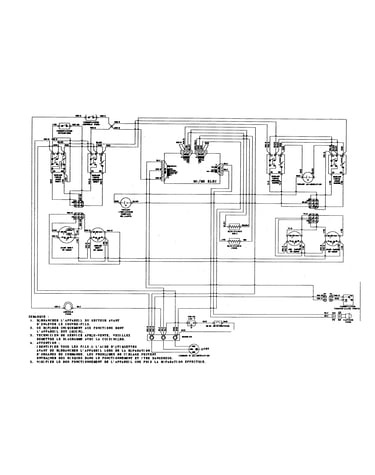

By Schematic
By Part
SELECT DIAGRAM
Browse Parts for PER5720ACW Ranges

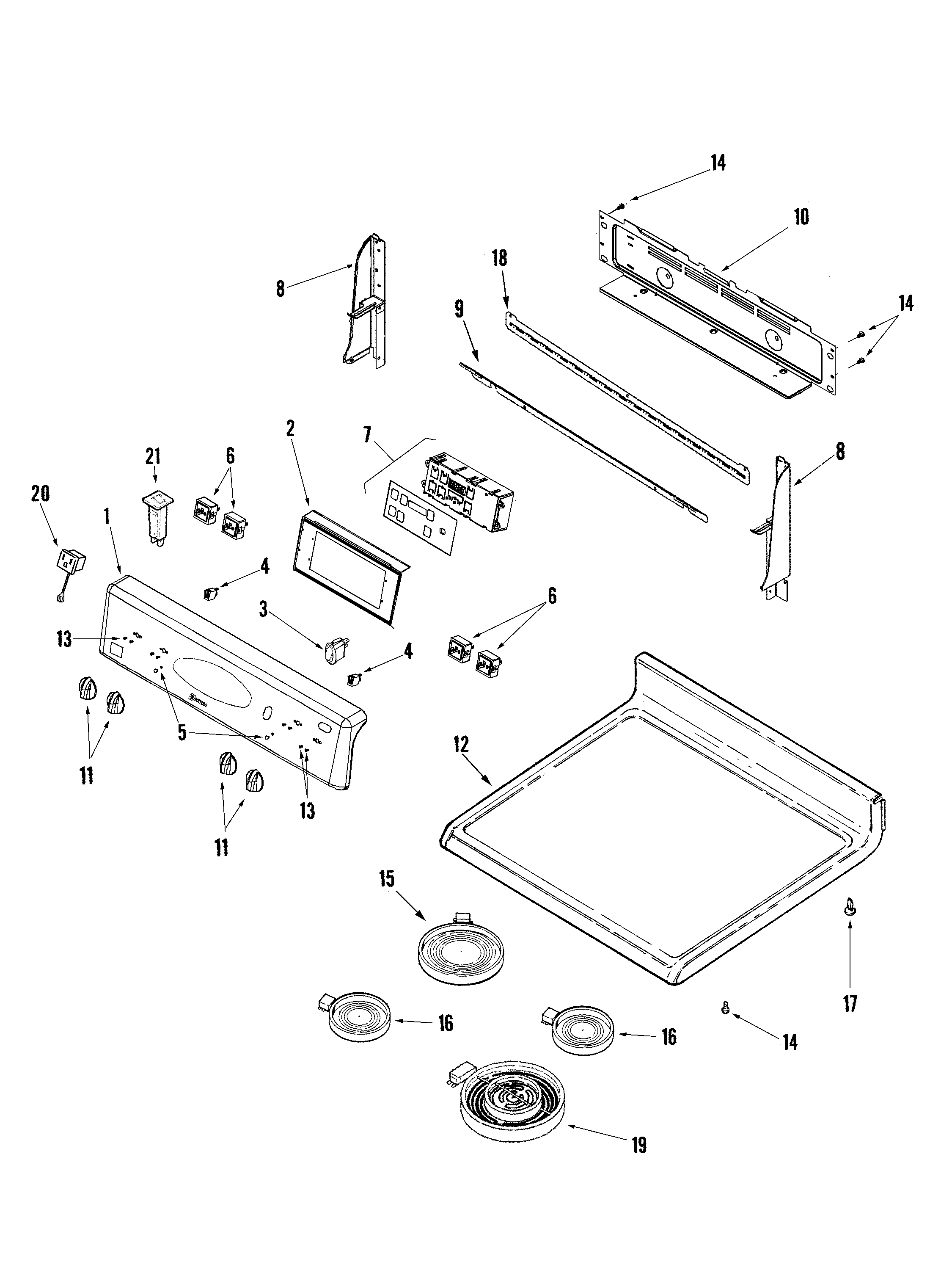

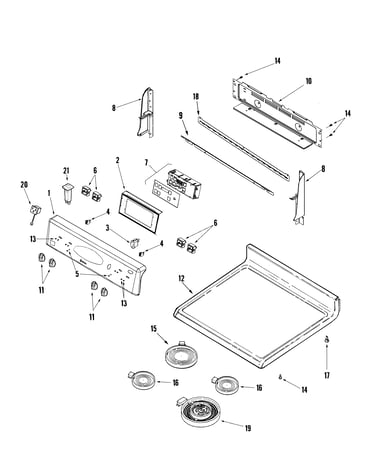

Control panel/top assembly diagram
Element, Dua
Part #74008570Replaced by #W10823709
Manufacturer substitutionThis part replaces 74008570. Substitute parts can look different from the original.In Stock$159.037% OFF Phone Price : $171.03
Qty

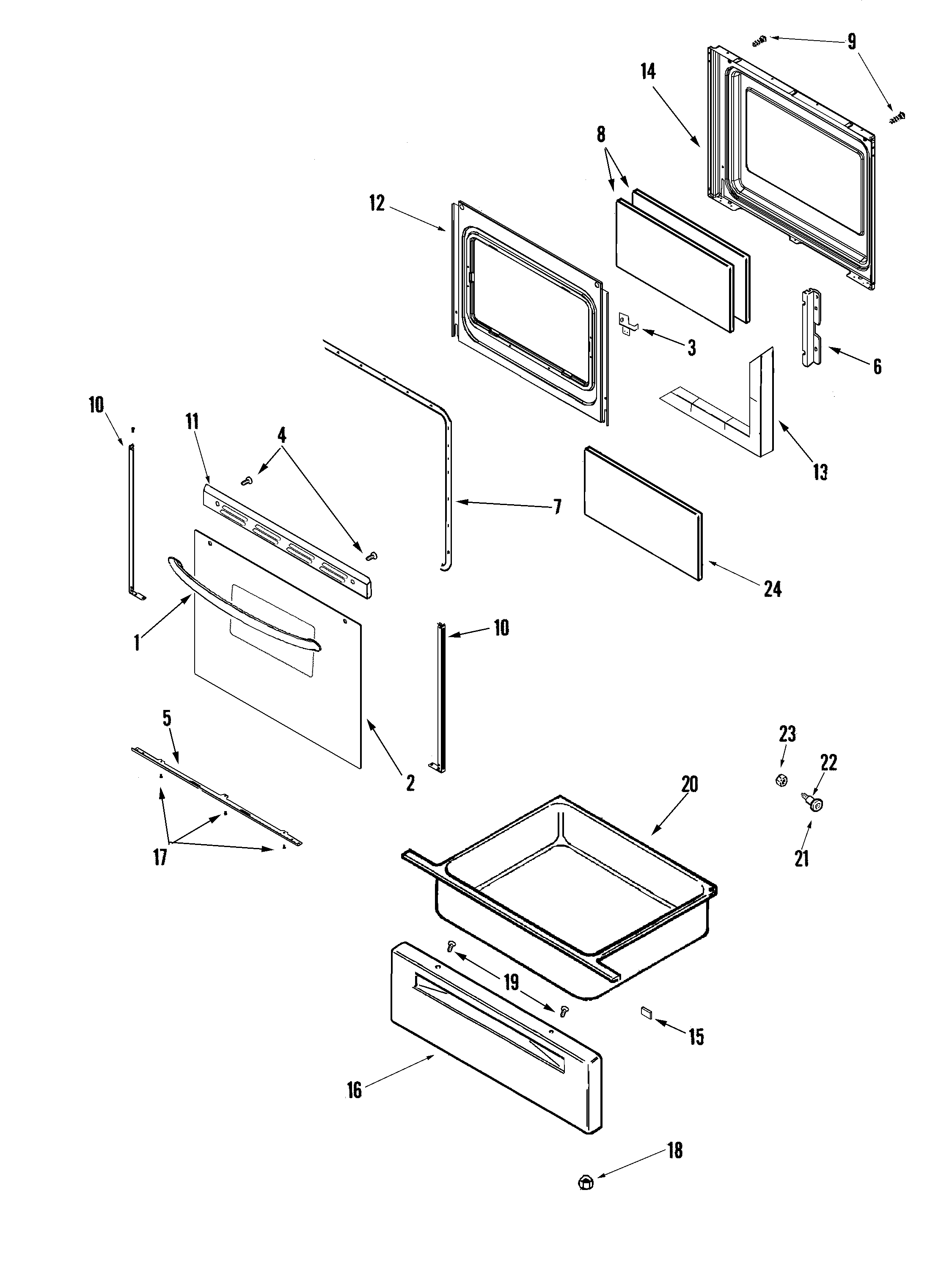

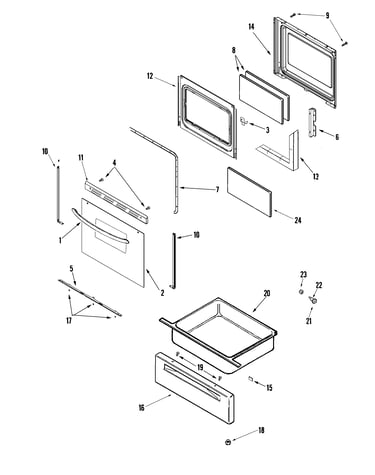

Door/drawer diagram
Door Gasket
Part #7201P046-60Replaced by #WPW10162384
Manufacturer substitutionThis part replaces 7201P046-60. Substitute parts can look different from the original.In Stock$84.057% OFF Phone Price : $90.05QtyControl panel/top assembly diagram
Oven Indicator Light
Part #74004153Replaced by #WP74004153
Manufacturer substitutionThis part replaces 74004153. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyOven/base diagram

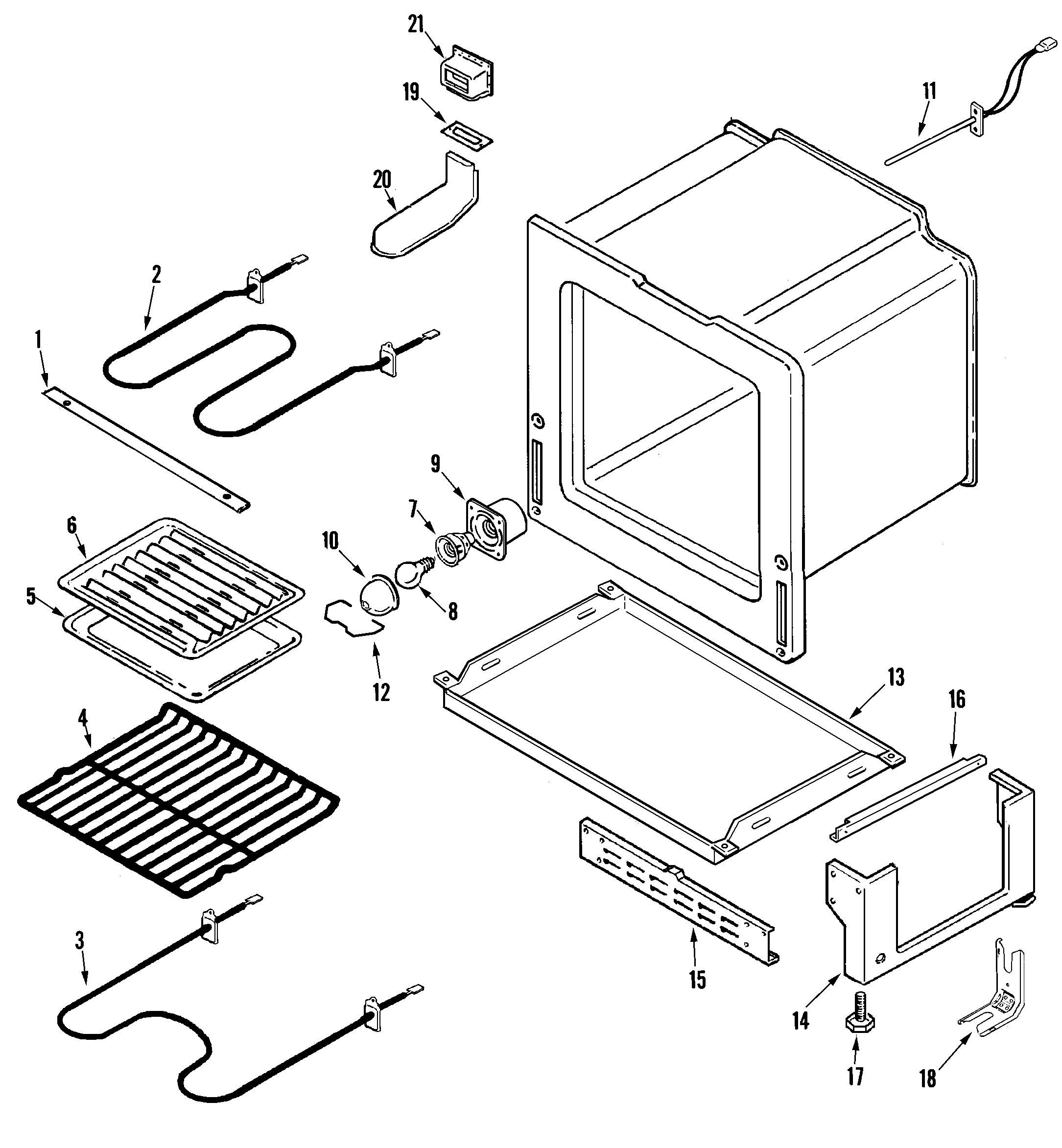

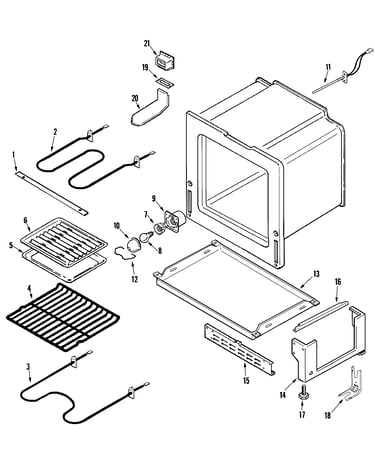

Oven Broiler Element
Part #74003041Replaced by #WPW10310249
Manufacturer substitutionThis part replaces 74003041. Substitute parts can look different from the original.In Stock$92.706% OFF Phone Price : $98.70QtyDoor/drawer diagram
Range Screw
Part #74011674Replaced by #WP74006515
Manufacturer substitutionThis part replaces 74011674. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyDoor/drawer diagram
Range Screw
Part #74006635Replaced by #WP74006515
Manufacturer substitutionThis part replaces 74006635. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyOven/base diagram
Oven Rack
Part #74001757Replaced by #WPW10282492
Manufacturer substitutionThis part replaces 74001757. Substitute parts can look different from the original.In Stock$67.328% OFF Phone Price : $73.32QtyDoor/drawer diagram
Double Tape (white)
Part #74009014Replaced by #WP74009014

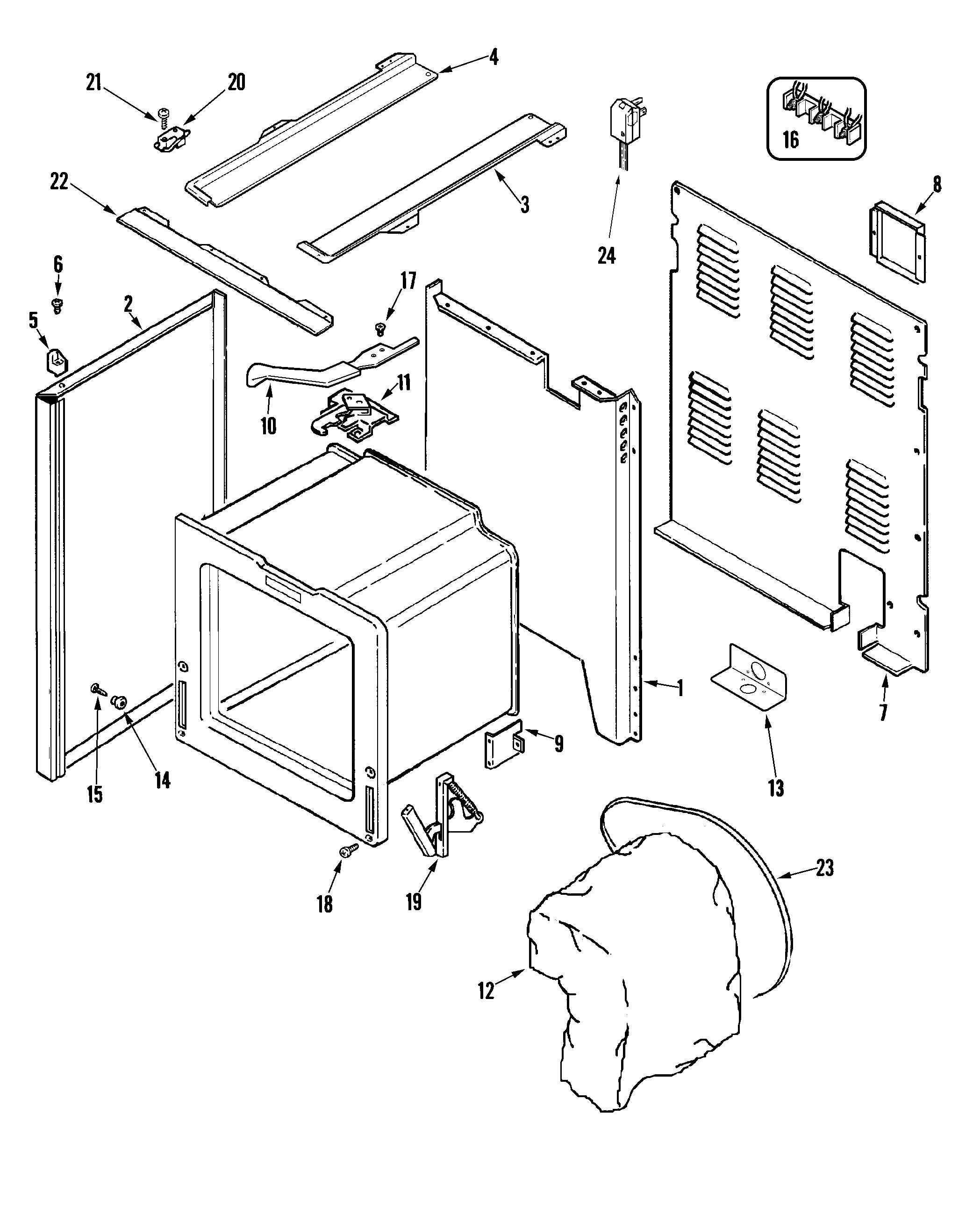

Manufacturer substitutionThis part replaces 74009014. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyBody diagram

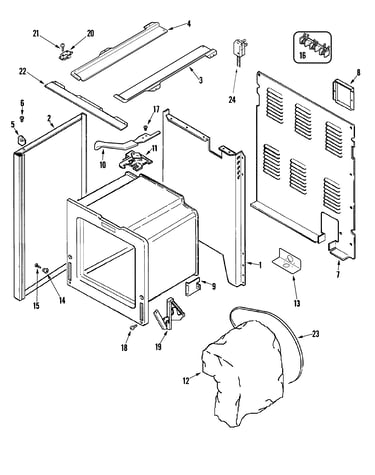

Door Hinge
Part #74003243Replaced by #WP74011140
Manufacturer substitutionThis part replaces 74003243. Substitute parts can look different from the original.In Stock$119.029% OFF Phone Price : $131.02QtyOven/base diagram
Broiler Insert
Part #3413F016-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56Qty
