Model #GSC3400J00BB GE dishwasher

Here are the diagrams and repair parts for GE GSC3400J00BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

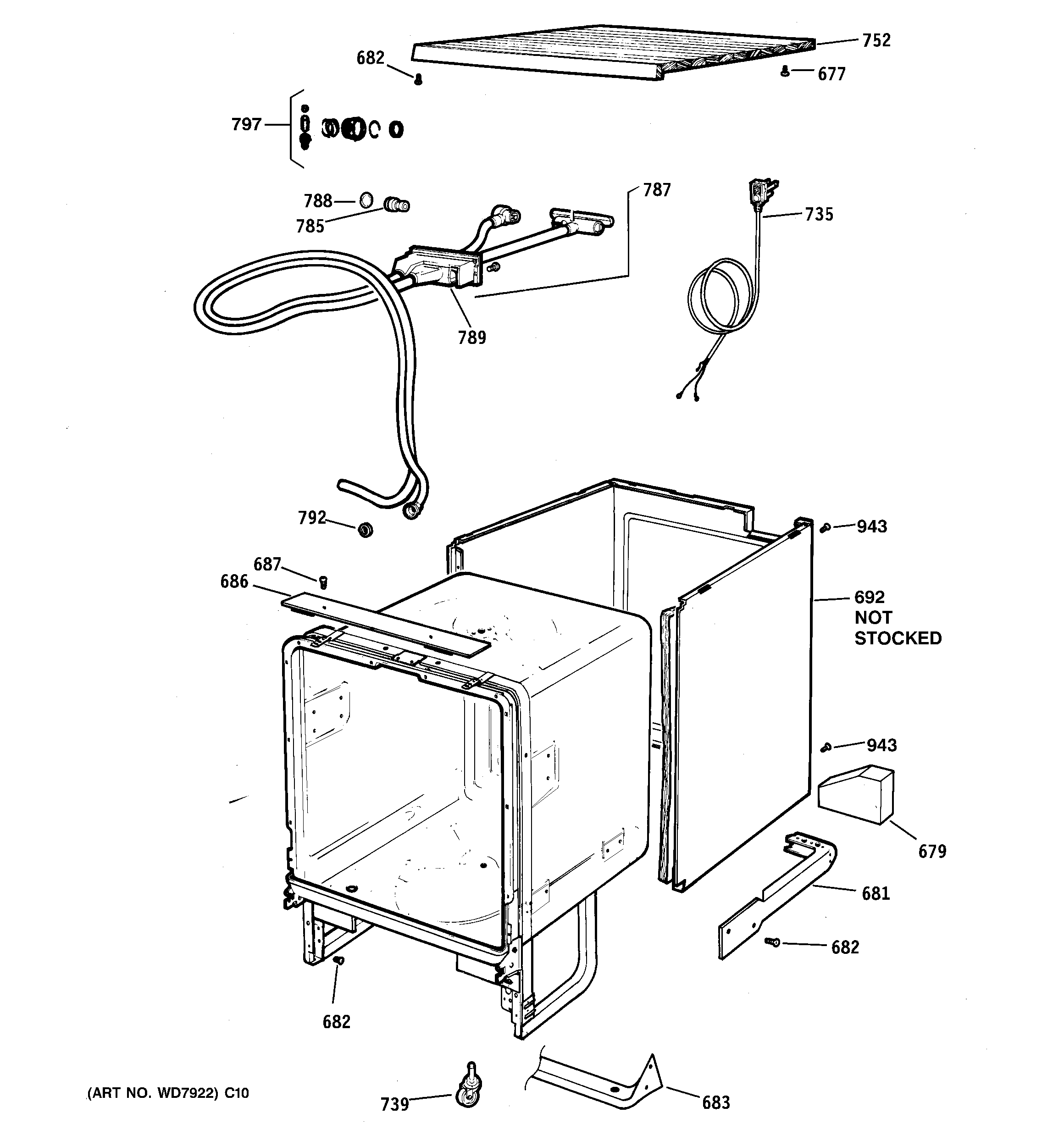

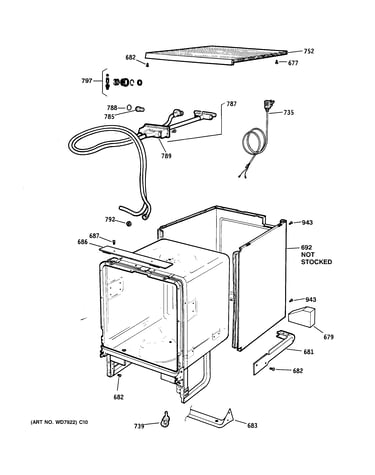

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 144 parts

    Dishwasher Door Hinge Arm Link#716

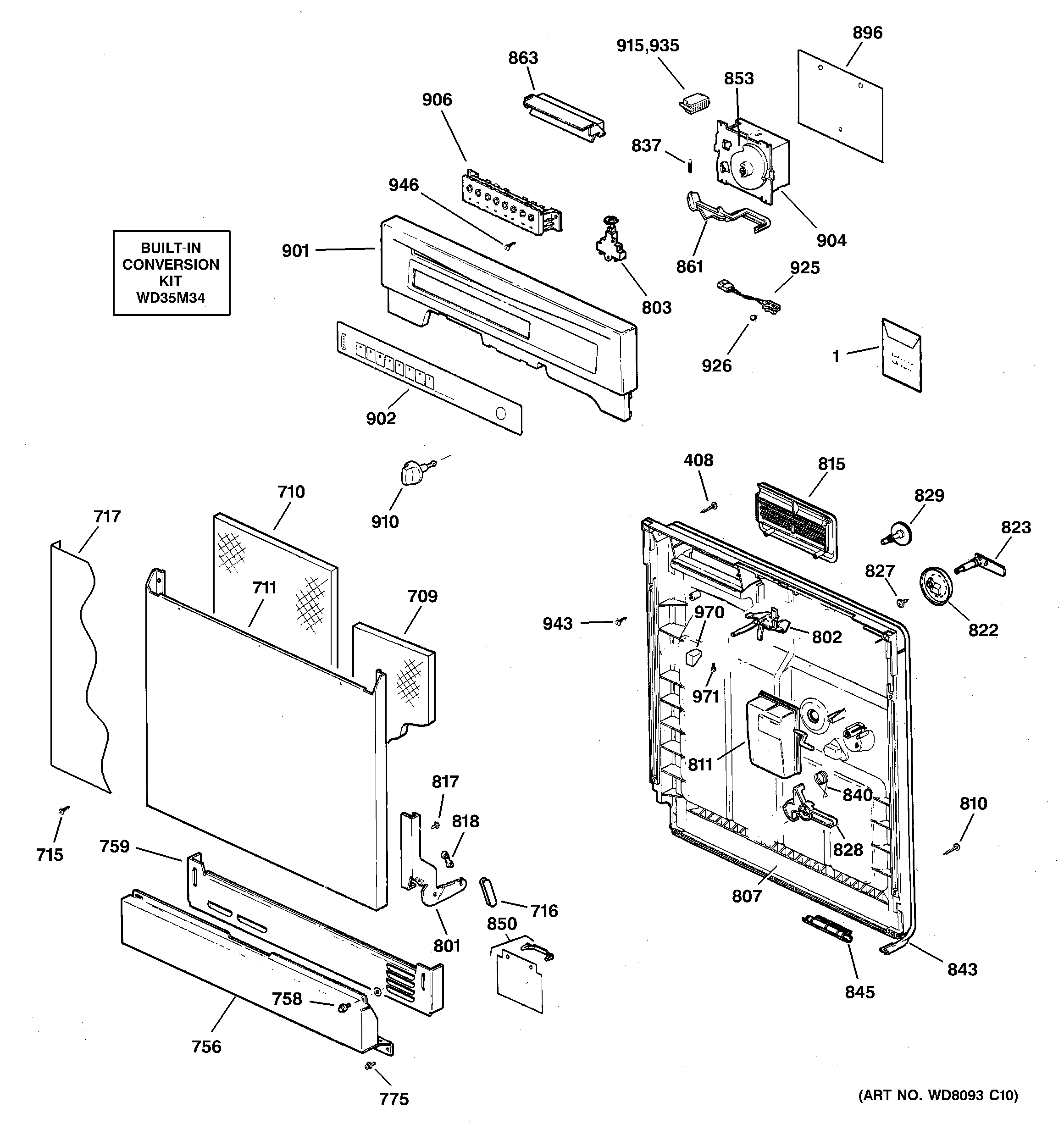

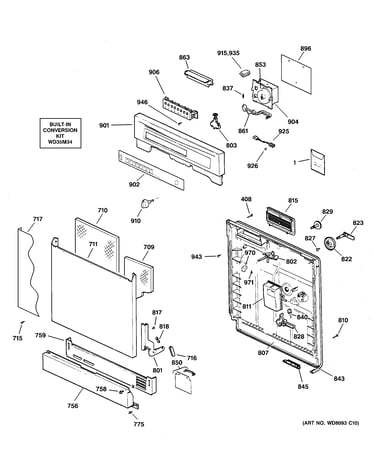

    Escutcheon & door assembly Diagram

    Dishwasher door hinge arm link

    Part #WD14X10009
    BEST SELLER
    This item is not returnable
    In Stock
    $5.39
    Dishwasher Tub Corner Baffle, Right#26

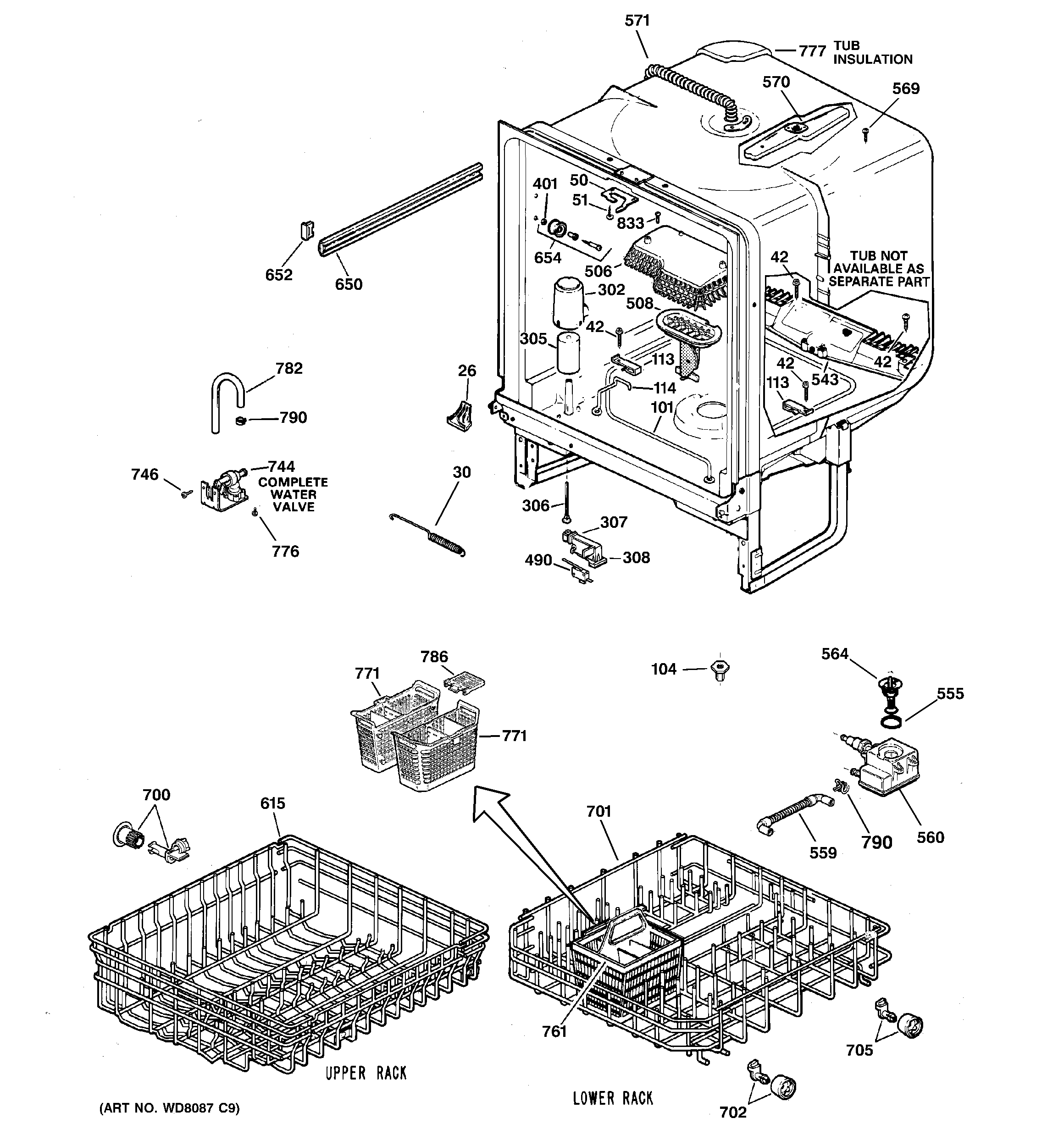

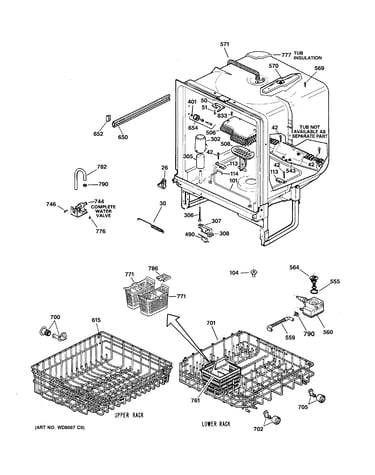

    Body parts Diagram

    Bafle tubcnr

    Part #WD08X0227
    Replaced by #WD8X227
    ?
    Manufacturer substitution
    This part replaces WD08X0227. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.09
    Dishwasher Dishrack, Lower#701

    Body parts Diagram

    Rack asm lwr

    Part #WD28X0305
    Replaced by #WD28X10284
    ?
    Manufacturer substitution
    This part replaces WD28X0305. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $174.59
    Dishwasher Tub Corner Baffle, Left#26

    Body parts Diagram

    Bafle tubcn

    Part #WD08X0228
    Replaced by #WD8X228
    ?
    Manufacturer substitution
    This part replaces WD08X0228. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.99

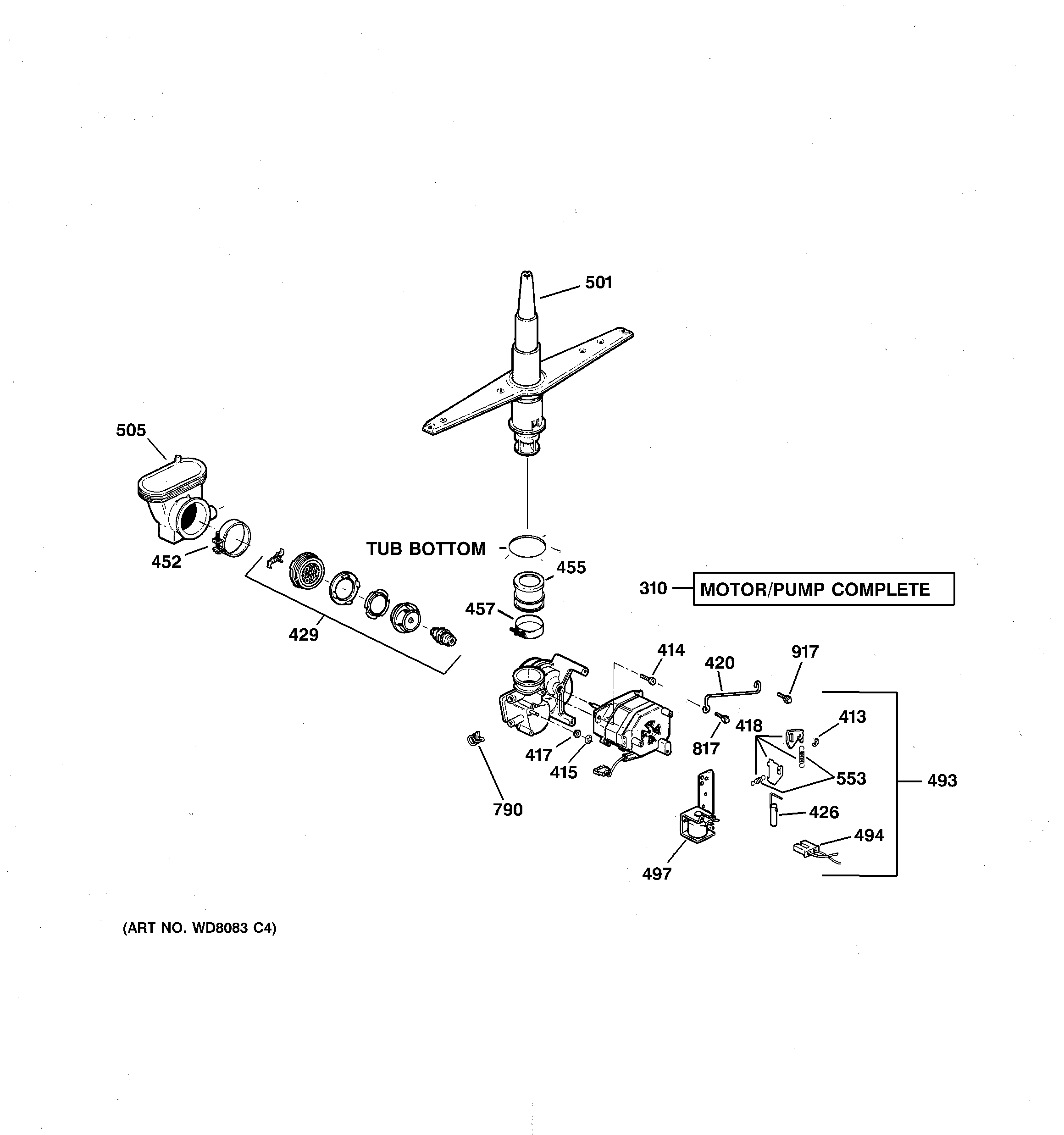

    Dishwasher Drain Solenoid Assembly#497

    Motor-pump mechanism Diagram

    Bracket & so

    Part #WD21X10071
    Replaced by #WD21X10268
    ?
    Manufacturer substitution
    This part replaces WD21X10071. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $37.89
    Dishwasher Dishrack Roller, Lower Front#702

    Body parts Diagram

    Rack roller

    Part #WD12X0271
    Replaced by #WD12X271
    ?
    Manufacturer substitution
    This part replaces WD12X0271. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $15.99
    Dishwasher Drain Solenoid Link#426

    Motor-pump mechanism Diagram

    Armature&lnk

    Part #WD01X1316
    Replaced by #WD1X1316
    ?
    Manufacturer substitution
    This part replaces WD01X1316. Substitute parts can look different from the original.
    In Stock
    $29.49
    Refrigerator Push Nut#415

    Motor-pump mechanism Diagram

    Push on nut

    Part #WD02X0429
    Replaced by #WR2X7054
    ?
    Manufacturer substitution
    This part replaces WD02X0429. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.71
    Dishwasher Rinse-Aid Dispenser Cap#829

    Escutcheon & door assembly Diagram

    Dispenser cap

    Part #WD12X0409
    Replaced by #WD12X24238
    ?
    Manufacturer substitution
    This part replaces WD12X0409. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.71
    Dishwasher Detergent Dispenser Cover Latch Kit#828

    Escutcheon & door assembly Diagram

    Dishwasher detergent dispenser cover latch kit

    Part #WD16X10005
    This item is not returnable
    In Stock
    $3.49
