Craftsman
Garage Door Opener

Model #13953925DS Official Craftsman garage door opener

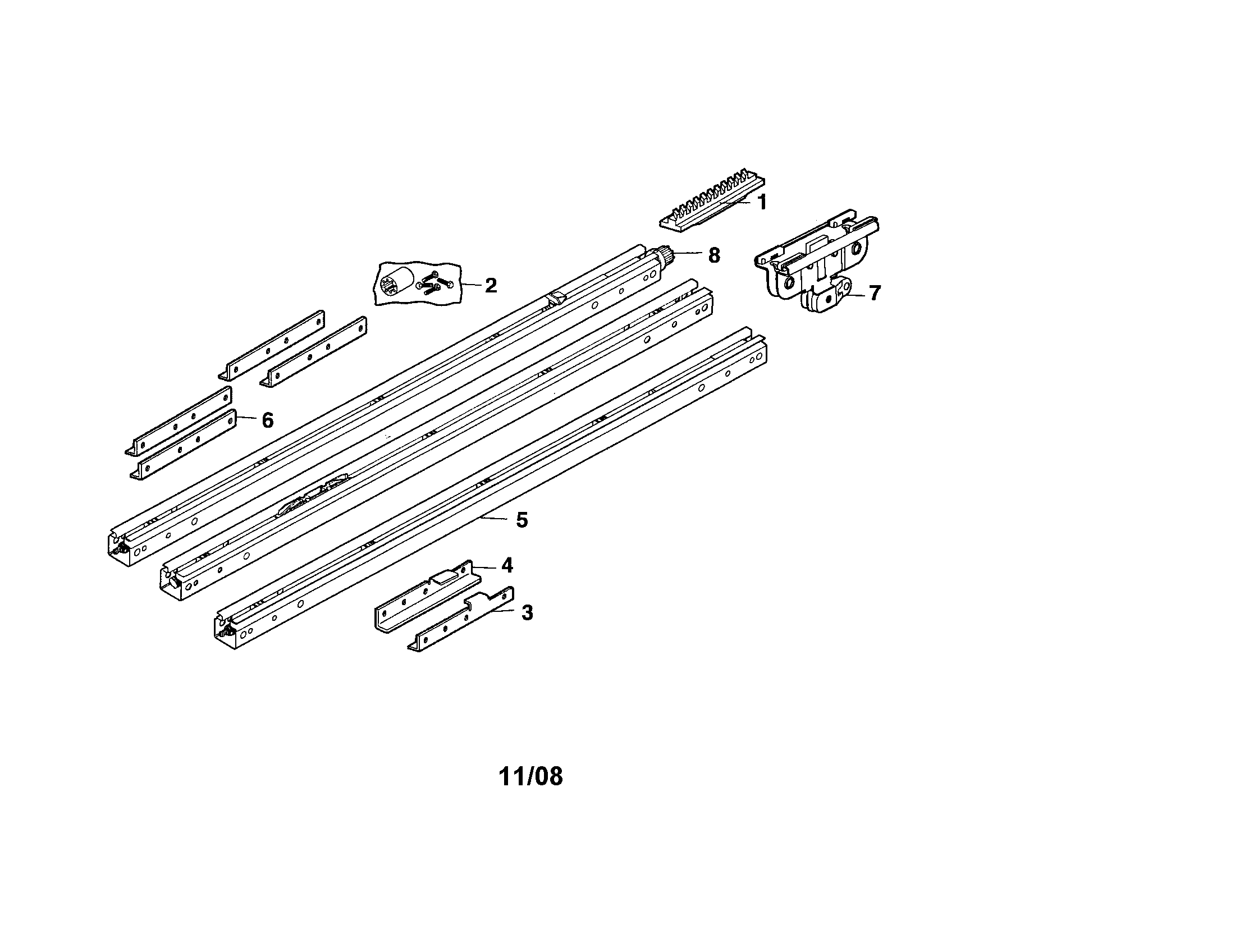

Here are the diagrams and repair parts for Craftsman 13953925DS garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 53 parts

    Light Socket#13

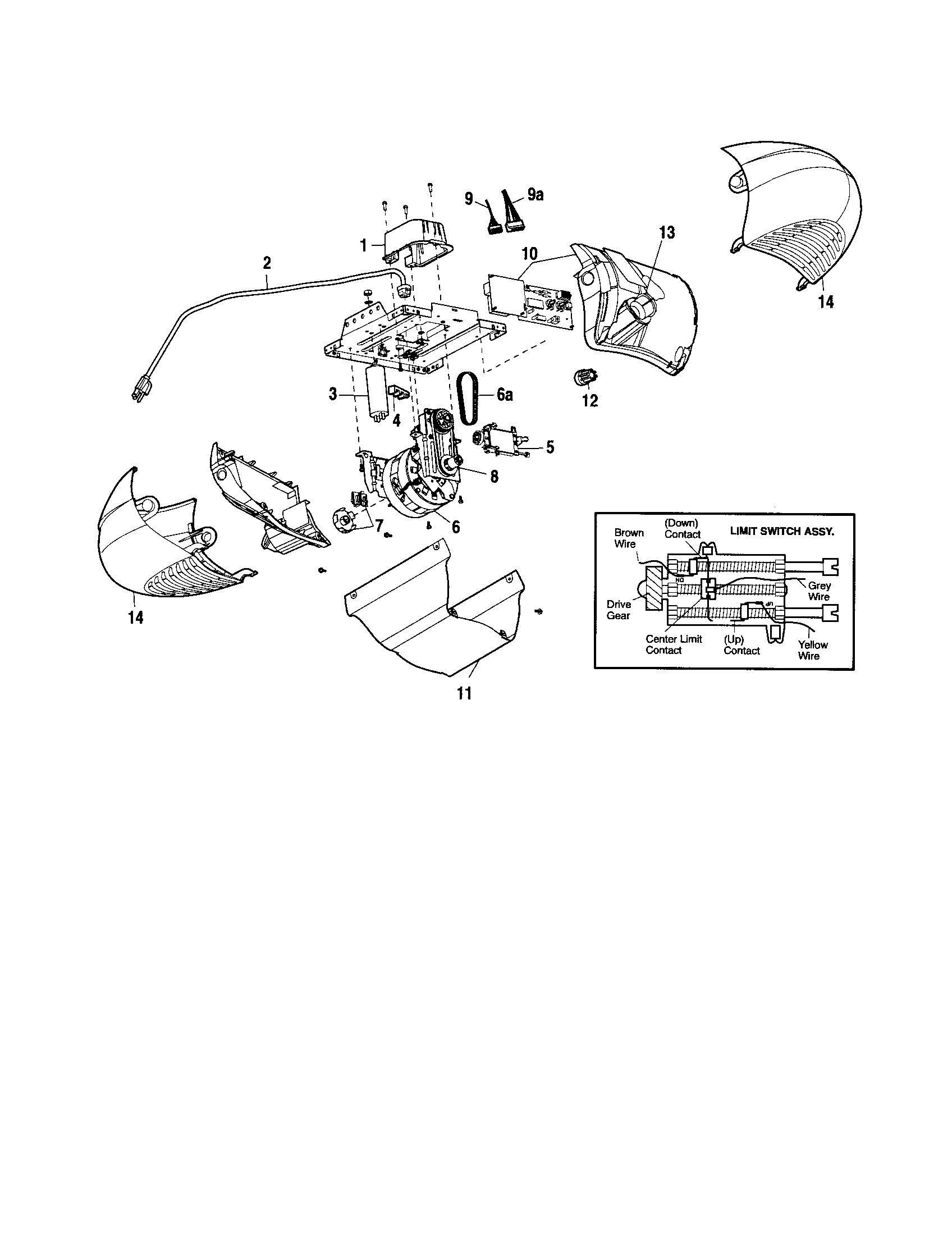

    Motor unit Diagram

    Light socket

    Part #175B88

    The manufacturer no longer makes this part, and there's no substitute part

    Garage Door Opener Safety Sensor Kit#9

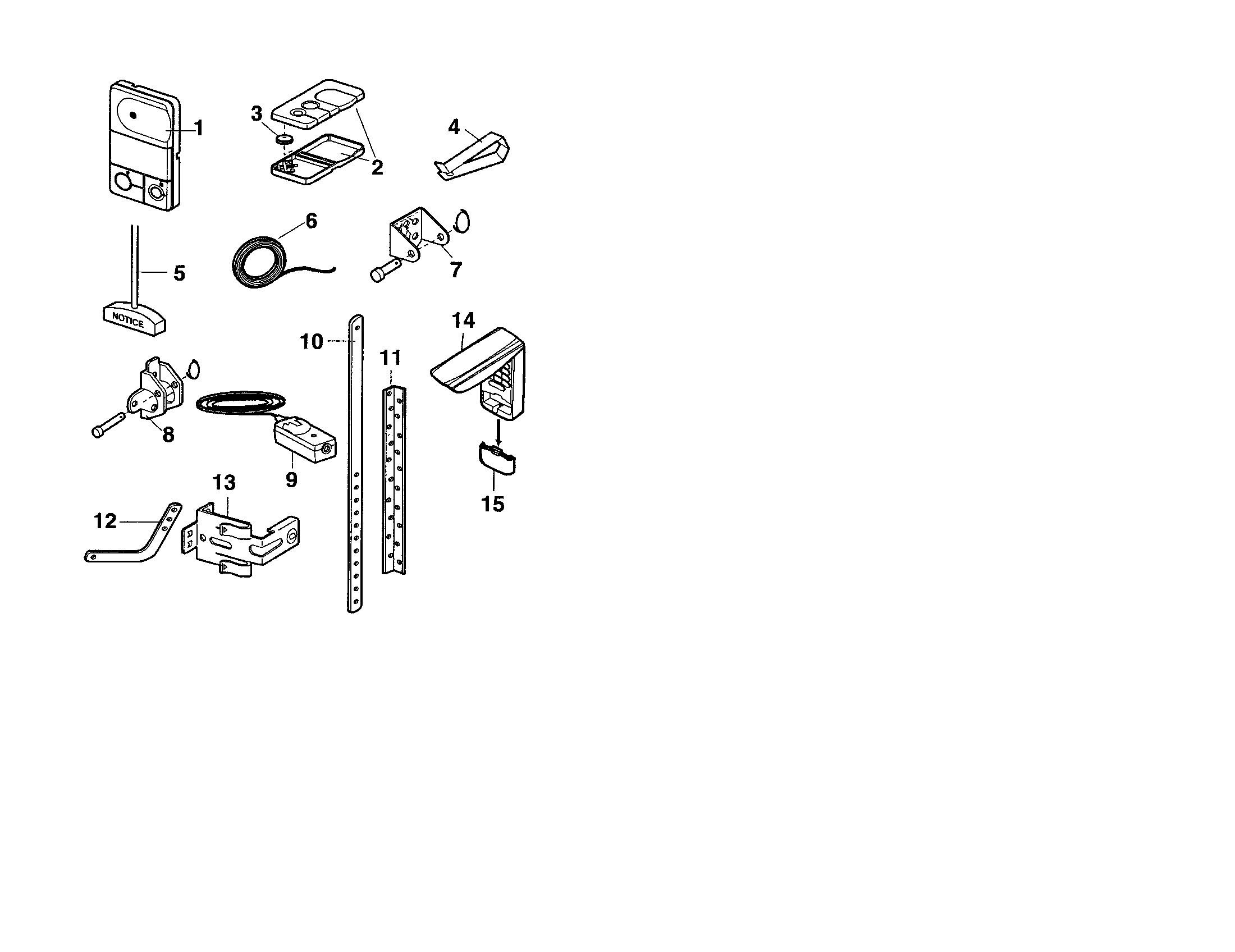

    Installation Diagram

    Garage door opener safety sensor kit

    Part #41A5034

    The manufacturer no longer makes this part, and there's no substitute part

    Garage Door Opener Light Lens#14

    Motor unit Diagram

    Garage door opener light lens

    Part #108D77

    The manufacturer no longer makes this part, and there's no substitute part

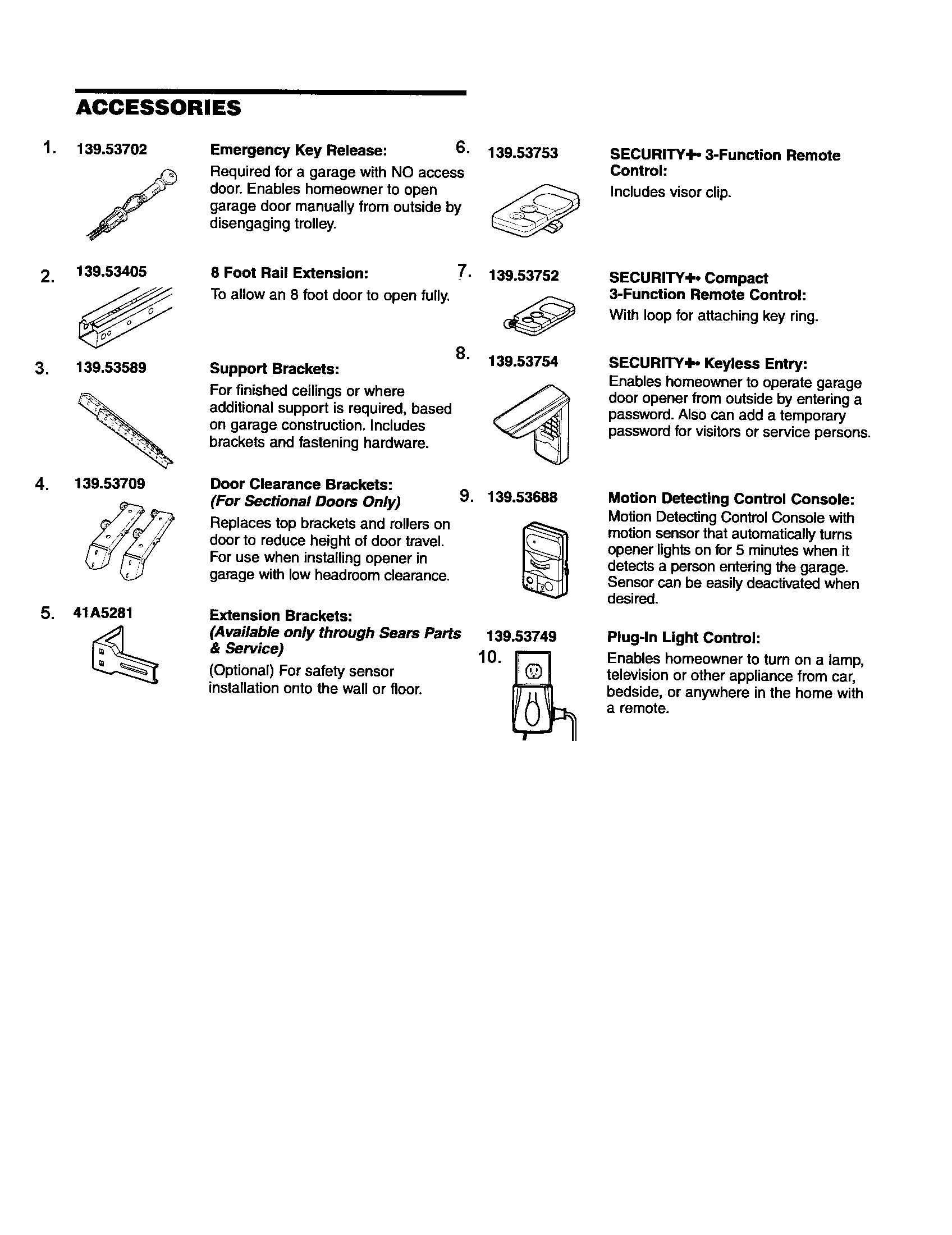

    SECURITE+(R) 3-FUNCTION REMOTE CONTROL#6

    Accessories Diagram

    Securite+(r) 3-function remote control

    Part #139.53753

    The manufacturer no longer makes this part, and there's no substitute part

    Garage Door Opener Header Bracket Assembly#7

    Installation Diagram

    Garage door opener header bracket assembly

    Part #41A4353

    The manufacturer no longer makes this part, and there's no substitute part

    Garage Door Opener Wall Control#1

    Installation Diagram

    Garage door opener wall control

    Part #41A4884

    The manufacturer no longer makes this part, and there's no substitute part

    Garage Door Opener Keypad Cover#14

    Installation Diagram

    Garage door opener keypad cover

    Part #41D543-1

    The manufacturer no longer makes this part, and there's no substitute part

    Garage Door Opener Straight Door Arm#10

    Installation Diagram

    Garage door opener straight door arm

    Part #178B34

    The manufacturer no longer makes this part, and there's no substitute part

    MOTION DETECTING CONTROL CONSOLE#9

    Accessories Diagram

    Motion detecting control console

    Part #139.53688

    The manufacturer no longer makes this part, and there's no substitute part

    SECURITY + COMPACT 3-FUNCTION REMOTE CONTROL#7

    Accessories Diagram

    Security + compact 3-function remote control

    Part #139.53752

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all garage door openers

    Choose a symptom to see related garage door opener repairs.

    Things to do: check garage door travel, tighten brackets and fasteners, test safety sensors, check travel limits and force limits
    Main causes: loose fasteners, broken brackets, need preventive maintenance, worn drive gears, loose or worn belt, loose chain
    Main causes: faulty logic control board, bad RPM sensor, broken gears in the drive system, bad drive motor
    Main causes: neighbor's remote programmed at the same time as yours, faulty wall control wiring, bad wall control unit
    Main causes: garage door locked, damaged garage door tracks, up-force setting needs adjustment, RPM sensor failure, bad drive motor
    Main causes: radio interference, weak remote batteries, sunlight interference with safety sensor beams, safety sensors need adjustment
    Main causes: safety sensor beams blocked, safety sensors not aligned, downforce setting needs adjustment, damaged garage door tracks
    Main causes: garage door opener misaligned, travel limits need adjustment, bad travel limit switches, faulty logic control board
