Bosch SHP65TL5UC/07 dishwasher Parts

Yes, in many cases we can address an E15 error on a Bosch SHP65TL5UC by safely resetting power and then checking for the leak or overfill condition that triggered the base-pan water protection. If water is present in the base, the key is finding and fixing the source before restarting. See the SHP65TL5UC use & care manual for model-specific safety and operating guidance.

What E15 usually means on this model

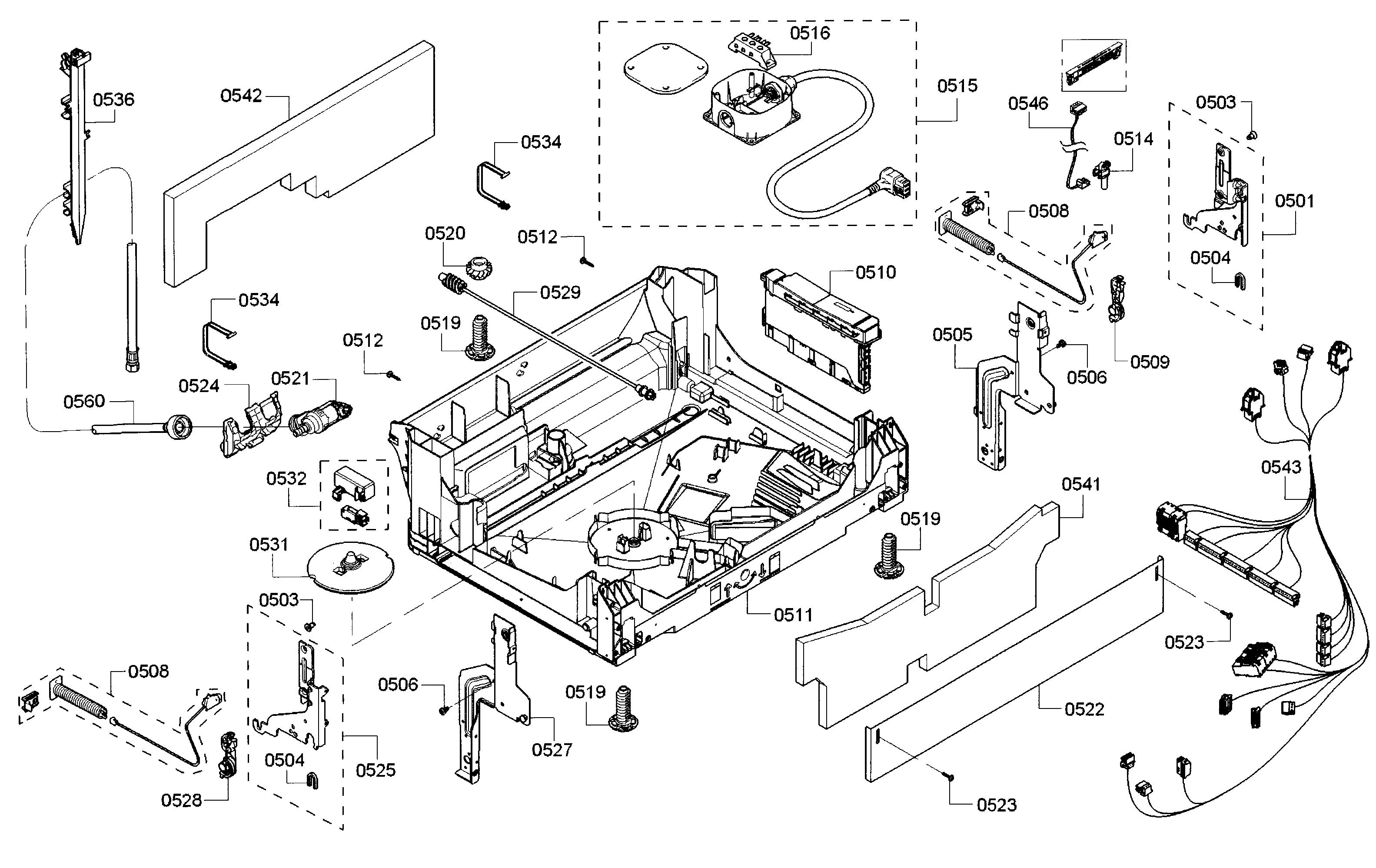

E15 is commonly associated with water detected where it should not be (often the base pan), which can be caused by a leak, overfill, or drainage issue.

Quick checks we recommend first

• Turn off power at the breaker (safer than just opening the door).
• Turn off the water supply valve to the dishwasher.
• Check for obvious leaks: door area, under the unit, and at hose connections.
• Clean the filter area and remove standing water inside the tub.
• Verify the drain hose is not kinked or crushed.

DIY steps that often clear E15

1. Reset the control: Restore power after a few minutes and try a short cycle.
2. Check the float system: Make sure the float moves freely and is not stuck by debris.
3. Inspect for drainage problems: A slow drain can contribute to overflow conditions.

If the float switch is sticking or not switching reliably, replacing the dishwasher float switch assembly 00751391 is a common repair.

Parts that may be involved (when symptoms match)

Symptom you notice	Likely area to inspect	Example compatible part

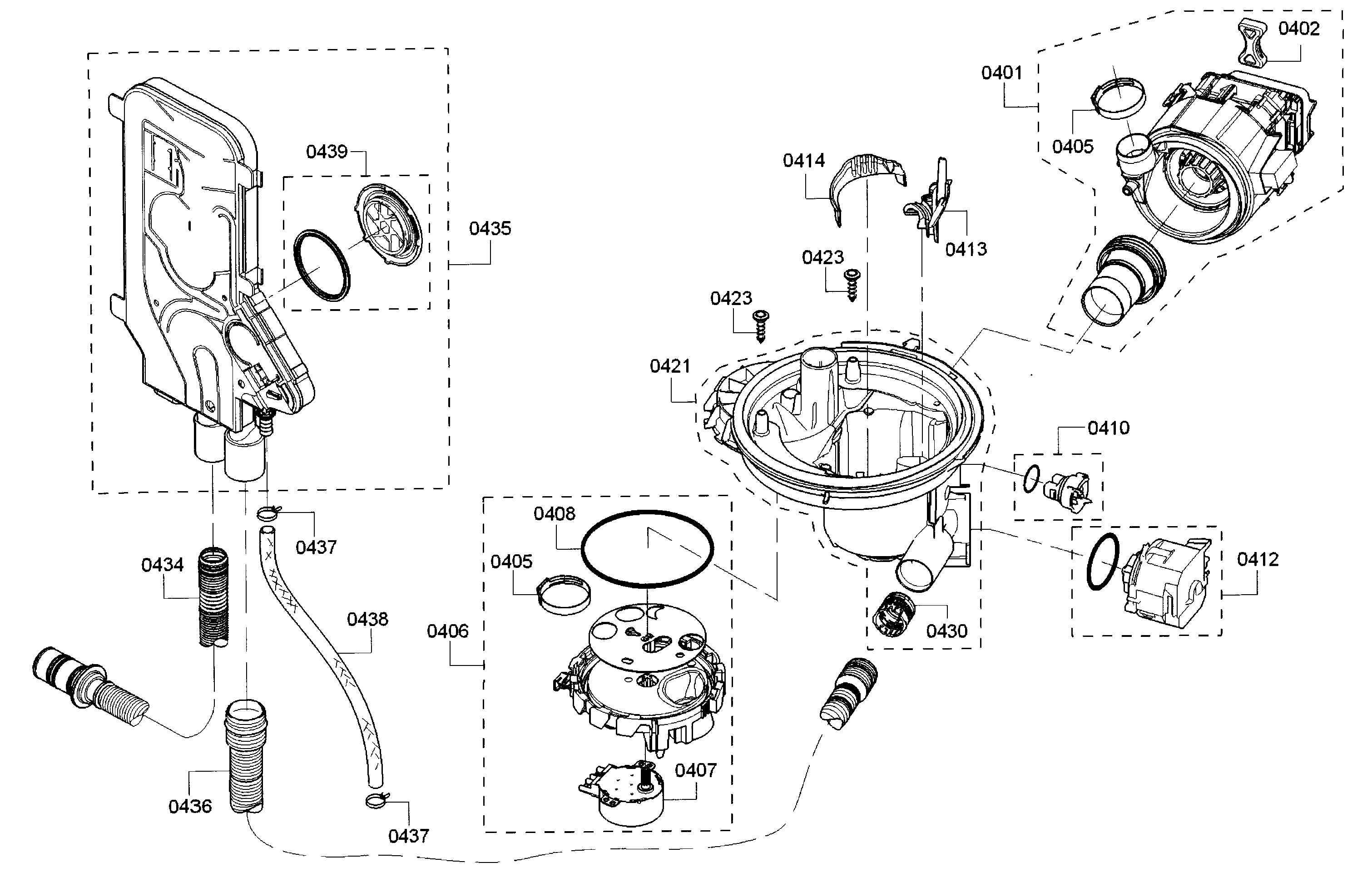

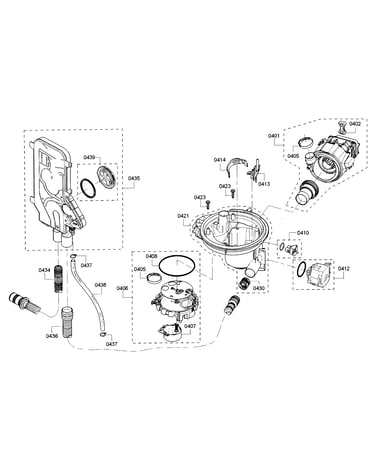

Won’t drain or drains slowly	Drain path, pump area	Dishwasher drain pump 00631200
Overfilling or odd fill behavior	Float/overfill protection	Dishwasher float switch assembly 00751391

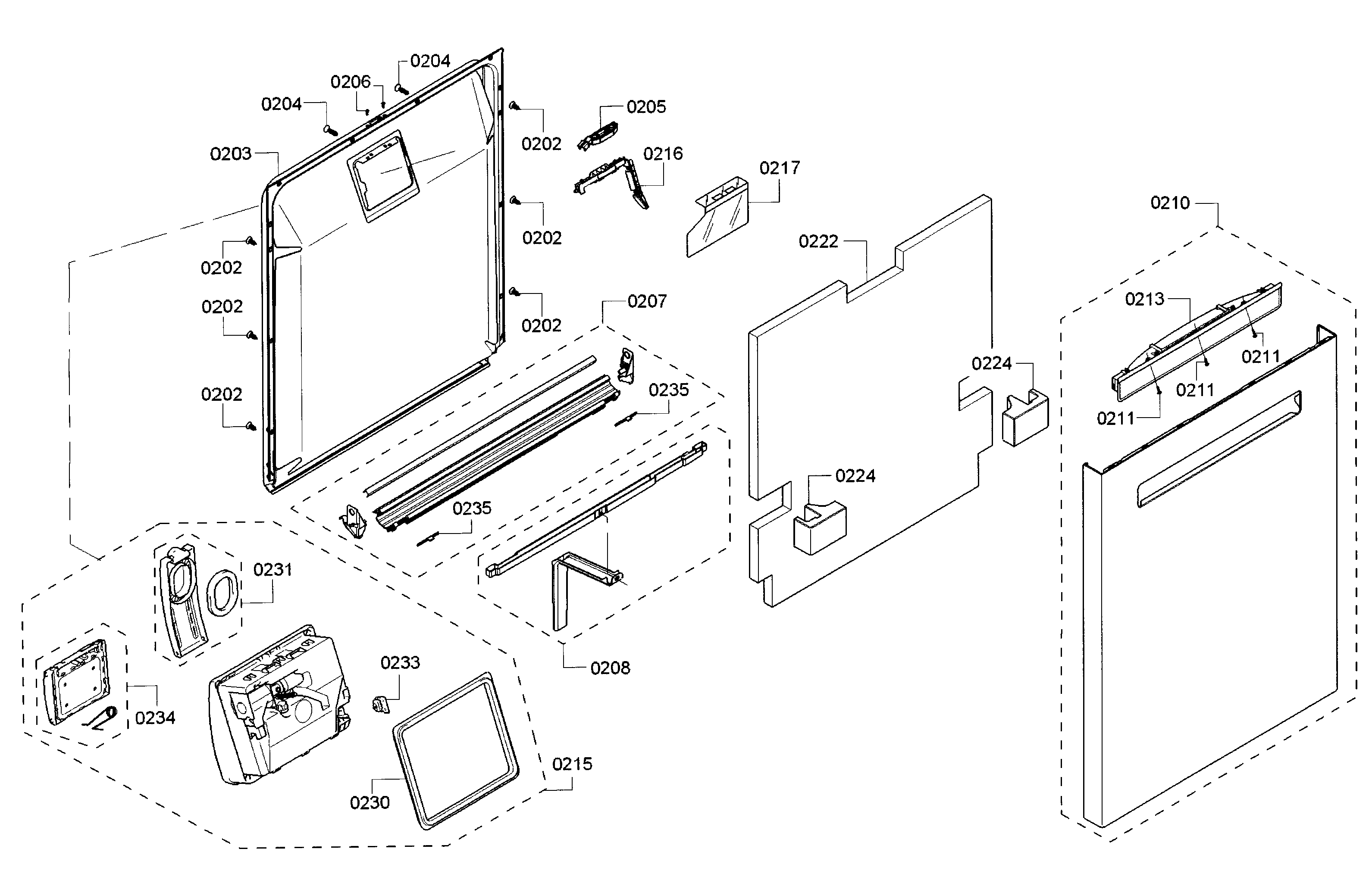

Water on floor near door	Door sealing surfaces	Dishwasher door seal 00744884

Why it matters

E15 is a protection response; clearing the code without correcting the leak or overfill source can lead to repeat shutdowns and potential water damage under the dishwasher.

When to stop and call service

• You see active leaking from the circulation system or under the tub
• The breaker trips, you smell burning, or wiring looks damaged
• E15 returns immediately after drying/resetting

Last updated: January 2026

Drain problems are the most common issue we see on Bosch dishwashers, including the Bosch SHP65TL5UC. A dishwasher that will not drain is often caused by a dirty filter area, a kinked or clogged drain hose, or a drain pump that is jammed or failing; start with the easy checks first using the SHP65TL5UC use & care manual.

Quick checks we recommend first

• Cancel the cycle and let the unit attempt a drain (listen for the drain pump running).
• Clean the filter area and remove any debris from the sump.
• Check the sink drain and garbage disposal for a blockage (a clogged sink drain can back up into the dishwasher).
• Inspect the drain hose for kinks, crushing, or a low loop issue.
• If you hear humming but no draining, check for an obstruction at the pump inlet.

Parts that commonly solve “won’t drain” symptoms

If cleaning and hose checks do not fix it, these model-compatible parts are common next steps:

Symptom	What it often points to	Model-compatible part to check
Water remains in tub, pump is silent	Drain pump not running or failed	Dishwasher drain pump 00631200
Slow drain or intermittent drain	Restricted drain path or collapsing hose	Dishwasher drain hose 00744881
Drains but water returns to tub	Backflow issue in drain path	Dishwasher check valve 00611320

Why it matters

Standing water can cause odors, poor wash results, and repeated cycle interruptions. Fixing the drain path early also helps protect the circulation system and heater from running under poor water conditions.

When to use error codes

If your SHP65TL5UC shows an error, match the code to the symptom before replacing parts. We recommend using Bosch dishwasher error codes to narrow the diagnosis.

Last updated: January 2026

A Bosch dishwasher like model SHP65TL5UC typically lasts 10 to 15 years with normal household use and basic maintenance. That lifespan assumes proper installation, routine filter cleaning, and addressing draining or filling problems early using the guidance in the SHP65TL5UC/07 use & care manual.

What affects lifespan the most

A dishwasher’s service life is usually determined by how hard the wash system works and how clean the water path stays.

• Clean the filter and sump area regularly to prevent pump strain
• Use the correct detergent amount to reduce residue buildup

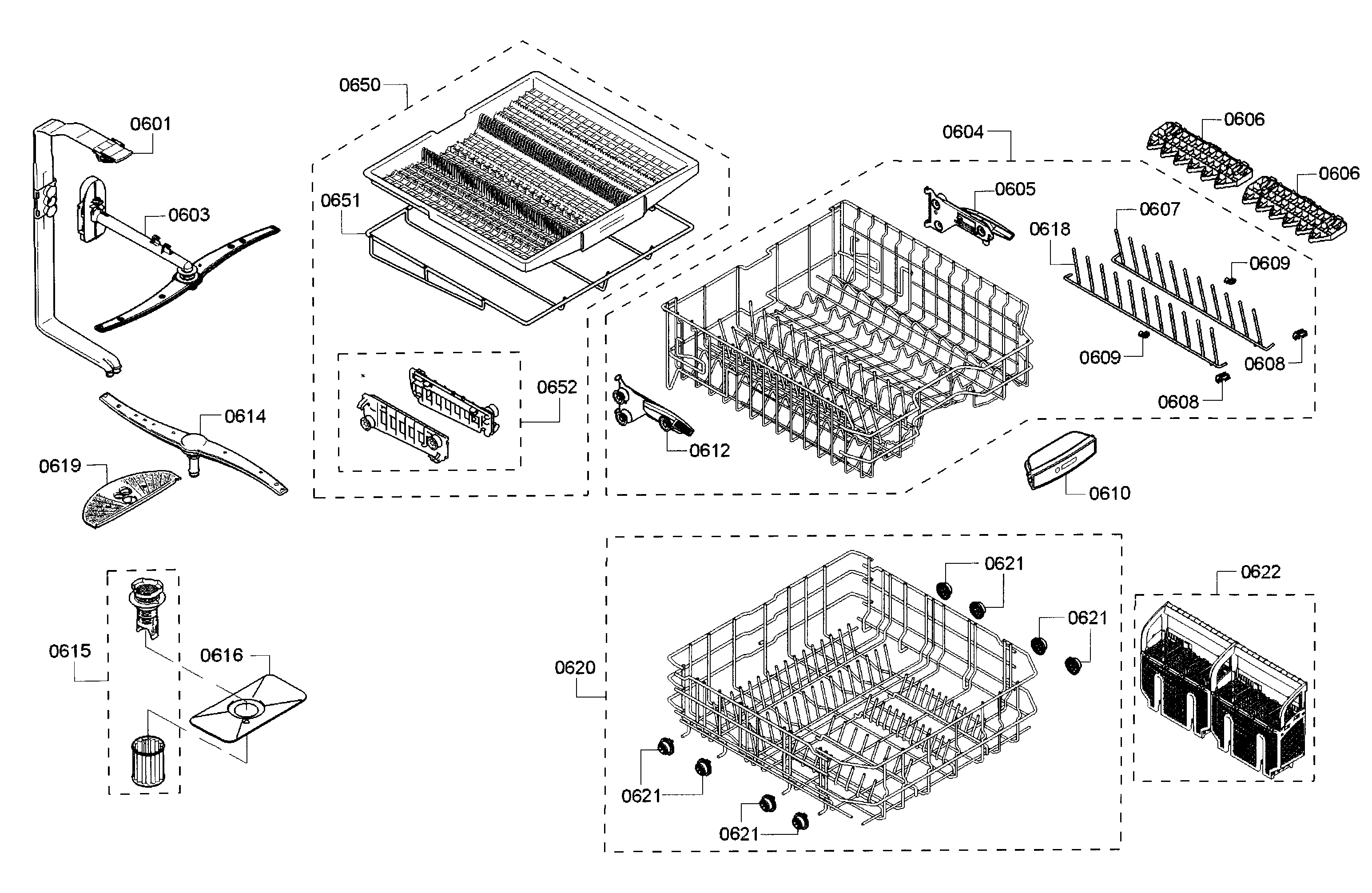

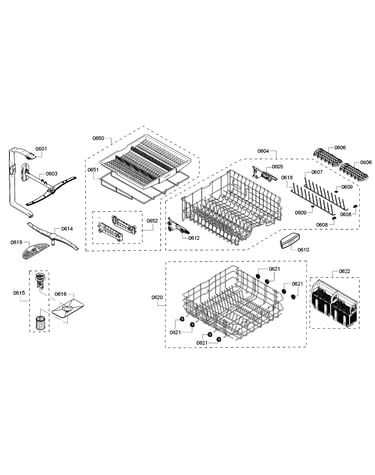

• Keep the spray arms clear so the circulation system is not overworked
• Fix slow draining quickly to avoid repeated pump overheating
• Avoid running with heavy food soil that can clog the drain path

Maintenance checklist (quick and practical)

We recommend these habits for SHP65TL5UC to help it reach the 10 to 15 year range:

• Monthly: remove and rinse the filter; wipe the door seal and inner lip
• Every 3 to 6 months: run a cleaning cycle (per the manual) to reduce grease and mineral buildup
• As needed: clear debris from the drain area if you notice standing water

If you’re troubleshooting draining issues, the dishwasher drain pump 00631200 is one of the key components in the drain system on this model.

Typical lifespan vs. what you may see at home

Usage and care level	Typical outcome	What you’ll notice first
Light use + regular cleaning	12 to 15 years	Minor rack wear, occasional odor
Average use + basic care	10 to 12 years	Longer cycles, more noise, slower drain
Heavy use + little maintenance	7 to 10 years	Poor cleaning, frequent clogs, leaks

Why it matters

Knowing the expected lifespan helps you decide whether to invest in repairs (like a pump, valve, or seal) versus planning for replacement, especially if multiple symptoms show up at once.

Last updated: January 2026
